Интеллектуальный позиционер клапана DONJOY одно

Описание и отзывы

Характеристики

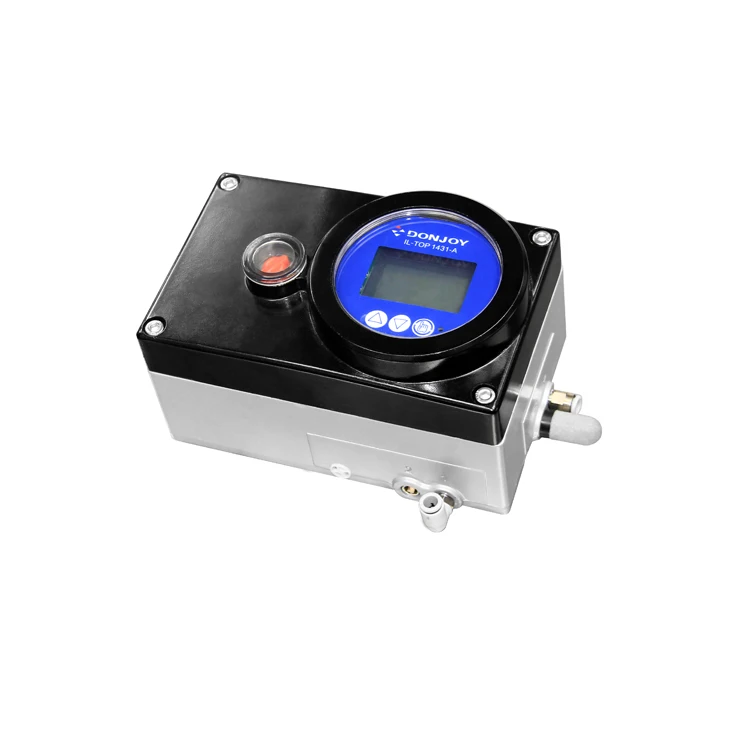

Product name	IL-TOP-1441 valve positioner
INPUT	0/4-20mA/0-5V/10V
Feed back output	0/4-20mA/0-5V/10V
Power supply	DC24V±10%
Bus communication	MODE BUS Rs485
Accuracy	reapeat positioning accuracy <=0.2%
Menu	OLED display Chinese & English
Adjusting	single button auto -adjusting function
Opration mode	manual/automatic operation cut off air source ,outage valve position automatic reset (standard) keep valve position (optional)
Stroke angle	0-180 °
