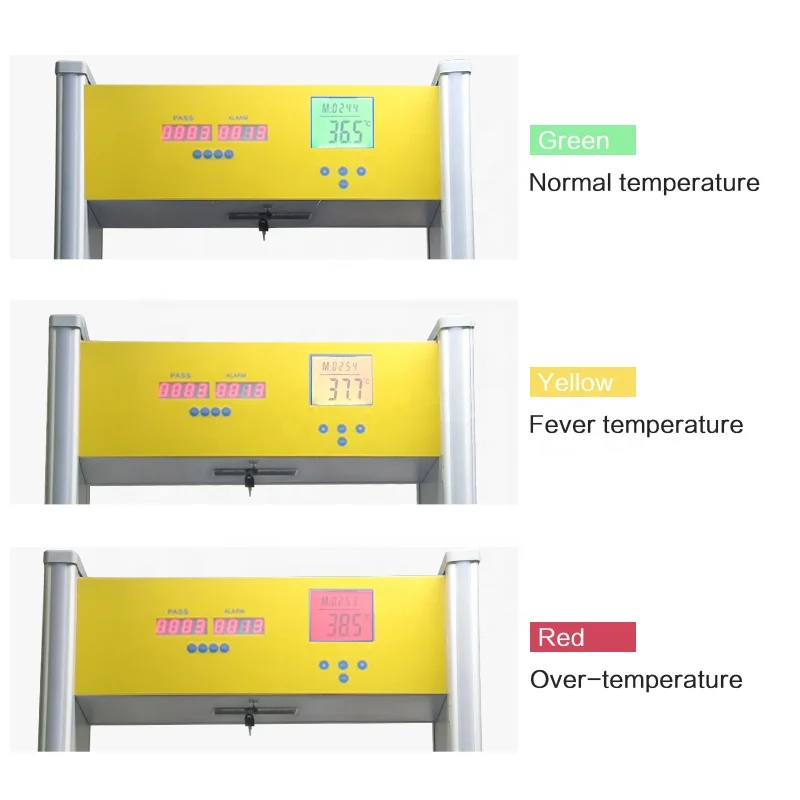

The 6 zones walk through temperature sensor metal detector adopts high-precision thermal imaging infrared temperature measuring sensor. The optimal measuring distance is 0-20cm. The temperature measurement passing rate about 1s of each person, with high test speed.High precision and high resolution, don’t be influenced by the sunlight and environment. The measurement error is ±0.1℃ of indoor temperature. The initial temperature setting value is 37.3°C (adjustable). It will alarm when the body temperature over 37.3℃.

Meantime,used to check metal object hidden in human body. When humans with metals pass through the equipment, the door would alarm and show the alarm zones if the weight, quantity and shape of metal exceed the presetting figures of the door. It is good for security officers' checking for the prohibited items.

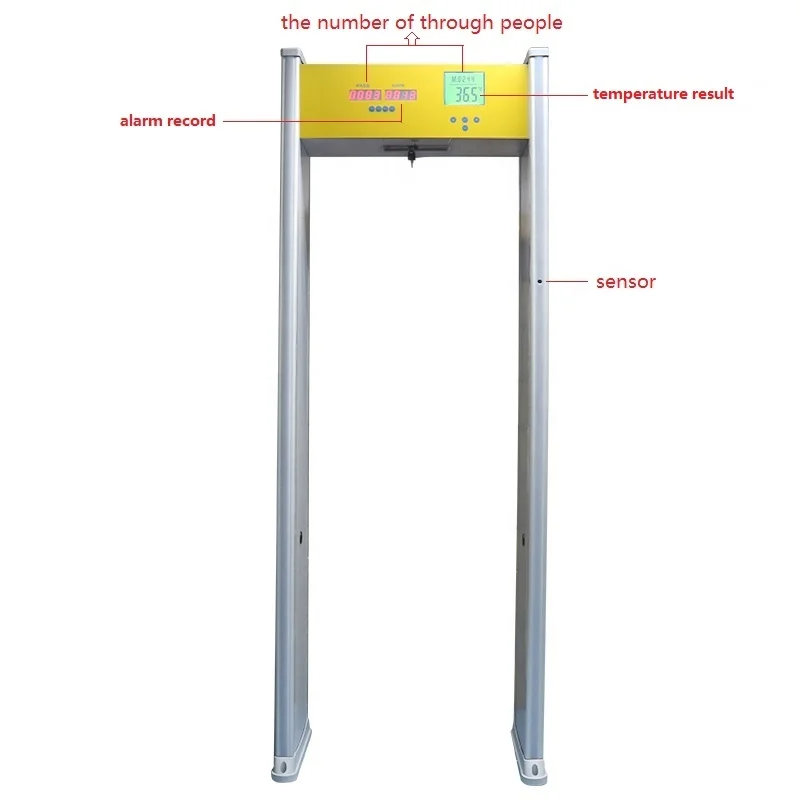

1. Super bright  LCD display, the appearance of luxury and beauty

2. Built-in power supply: don't be afraid of no power, unplugged or temporary use outside, can be used continuously for 2-8 hours (customized)

3. Waterproof: rainy, can still use in the outside

4.Infrared measuring temperate,organic infrared measuring temperature with metal security integration

Infrared temperature the cervix, human alarm, tip temperature anomalies, effectively prevent scale disease

5.Sound and light alarm

6.Can be in the open air (the rain) to work properly, and do not need to cover

7.PVC synthetic materials and special process, waterproof luxurious appearance is more suitable for large-scale high places.

8.Intelligent traffic and alarm counting function, can automatically statisticians by the number and the number of alarm.

9.Digital, analog, and left and right balanced technology to prevent false alarms and false negatives, and greatly improve the anti-jamming capability.

10.Double password protection, allowing only authorized personnel operation, the password needed to be modified and lost password recovery settings, and more secure. Parameter settings are automatically stored without uninterruptible power supply protection, safer and more convenient.

11.EMC electromagnetic radiation standards, the use of weak magnetic field technology, a pacemaker wearer, pregnant women, floppy disks, film, video tapes and other sound.

12.This series body temperature detector door with integrated design, installation or removal is completed in 20 minutes, were equipped with installation and commissioning Operating Instructions.

Power Supply: AC90V-250V 50HZ-60HZ

Power: <20W

Minimum resolution: 0.1 ℃.
Temperature range: 20 ℃ ~ 45 ℃(you can set alarm level by which degree)
Total power: ≤20W.
Repeatability error: 0.2 ℃.

Warning temperature measurement error: ± 0.1 ℃.
Measurement time: ≤0.3 seconds.
Multiple measurement intervals: ≤1 seconds.

Dimensions: 2200mm (H) '800mm (in width) '500mm (deep)

Channel dimensions: 2010mm (H) '700mm (W) '500mm (D)

Color: black, charcoal gray or other customers custom color

Weight: about 65kg

Work environment: 0 ° C-+45 ° C

Standard: GB15210-2003 national standard through metal detector door general technical specifications.

leg unit              x 2

head control unit    x1

bag of bolts           x1

Manual                 x1
