Product Description
Application:
It is used for rubber plasticizing,stock mixing.
Structure features:
All of inside wall , discharge door, ram are of drill hole cooling, and rotor is of hollow spray cooling.
Contacting faces with stock such as mixing chambers inside wall, discharge door, ram are received hardening treatment.
Rotor bearing is of rolling bearing.
Axial seal of rotor is adopted with hydraulic seal, and with adjustable seal ratio.
Operating of the discharge door is driven by the double-rack tilting hydraulic cylinder and with plate-inserted or crank locking.
The transmission system may adopt a dual-output hardened-gear speed reducer, and used with gear coupling (joint) or the cross universal coupling drive, the transmission system is structured with stationary state, low noise, high efficiency and long-service life.
Specification
| Model <Item> | X(S)M-1.5> | X(S)M-50> | X(S)M-80> | X(S)M-110> | X(S)M-160> | X(S)M-250/20> | X(S)M-270> | X(S)M-370> | |
| (L) Total volume> | 1.5> | 50> | 80> | 110> | 160> | 250> | 250> | 395> | |
| Filling factor> | 0.6-0.8> | 0.6-0.8> | 0.6-0.8> | 0.6-0.8> | 0.6-0.8> | 0.6-0.8> | 0.6-0.8> | 0.6-0.8> | |
| (r/min) Rotor speed> | 0-80> | 4-40 (40)> | 4-40 (40)> | 4-40 (40)> | 4-40 (30)> | 20> | 4-40> | 6-60> | |
| (MPa) Max ram pressure> | Max0.3> | 0.27> | 0.37> | 0.58> | 0.5> | 0.24> | 0.52 0.6(Hydraulic)> | 0.54 0.6(Hydraulic) > | |
| (KW) Main motor power> | 37AC> | 90DC(95AC) > | 200DC(210AC) > | 250DC(240AC) > | 355DC (355AC) > | 240AC > | 1250DC (1250/1500AC) > | 2x1250DC> | |
| Over size > | L> | 2,700> | 5,560> | 5,800> | 6,000> | 8,900> | 7,500> | 7,450> | 11,150> |
| W> | 1,200> | 2,700> | 2,500> | 2,850> | 3,330> | 3,900> | 4,140> | 4,960> | |
| H> | 2,040> | 3,250> | 4,155> | 4,450> | 6,050> | 4,730> | 6,270> | 7,040> | |
| (kg) Total weight> | 2,000> | 16,000> | 22,000> | 29,000> | 36,000> | 33,500> | 50,000> | 78,000> | |
Contact Us

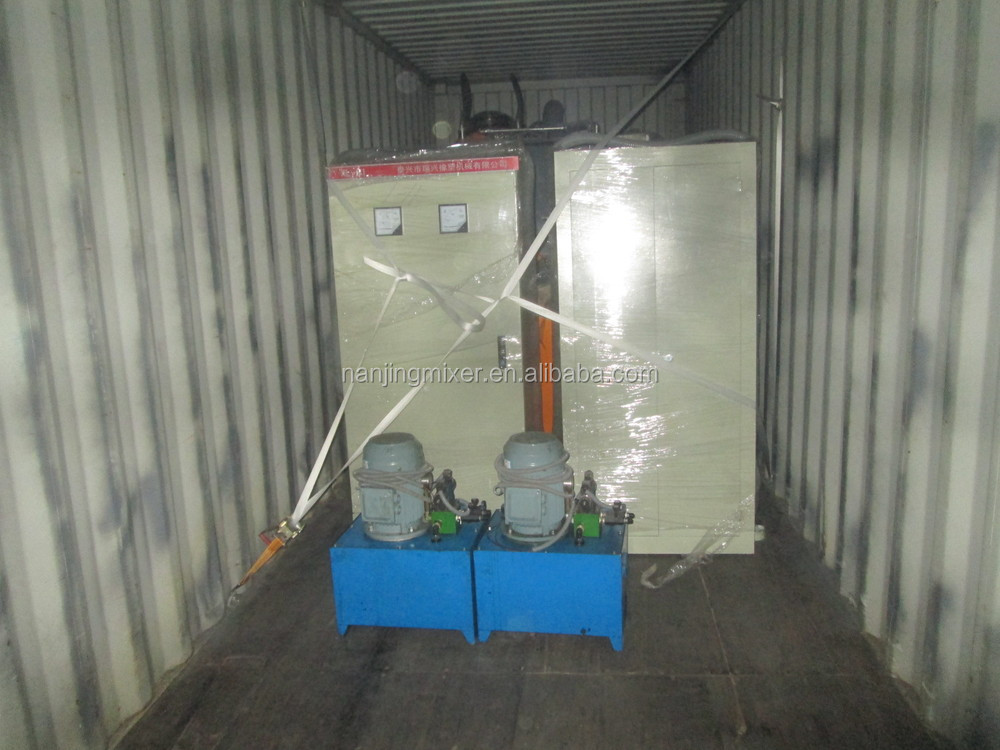

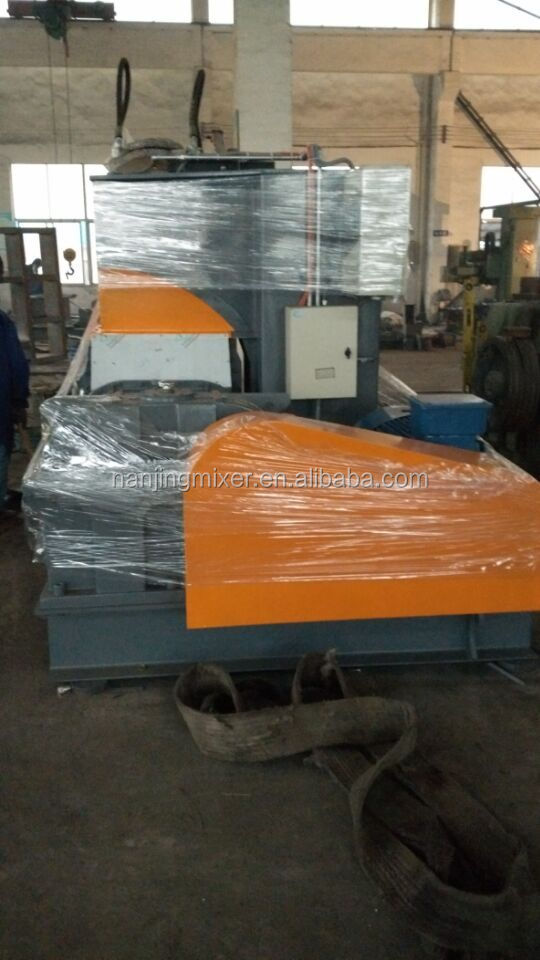

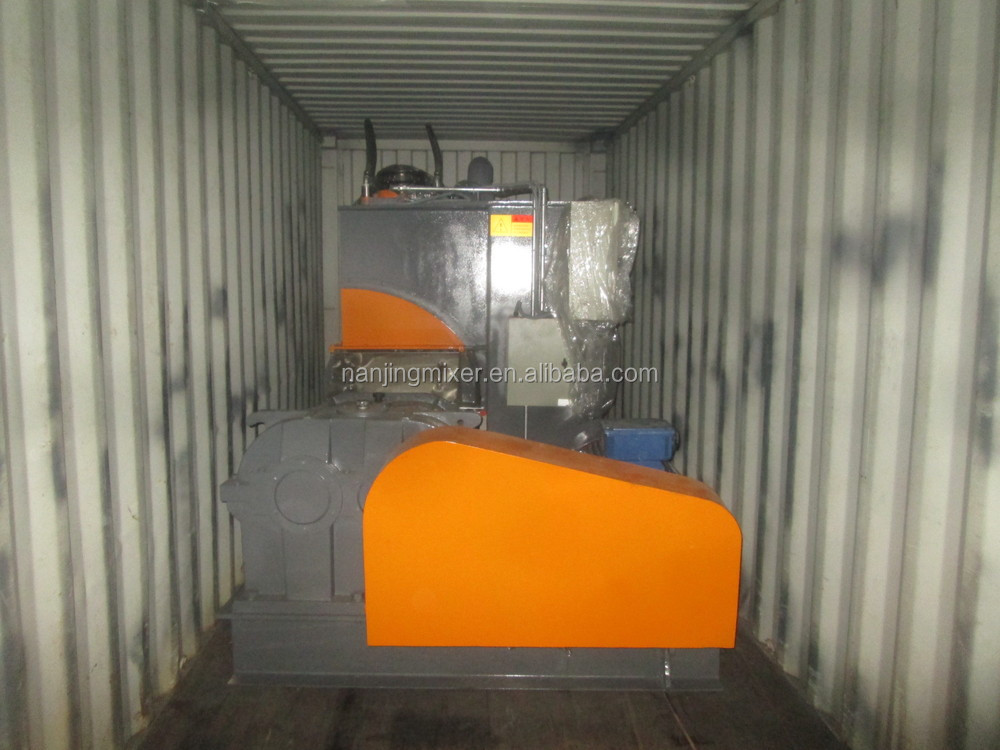

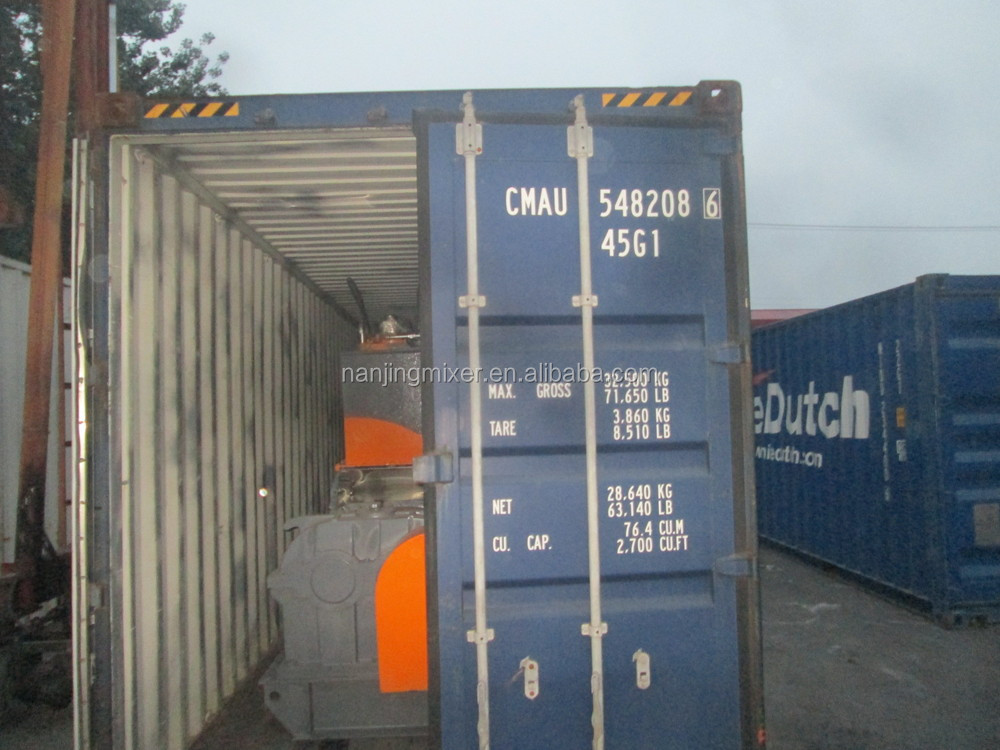

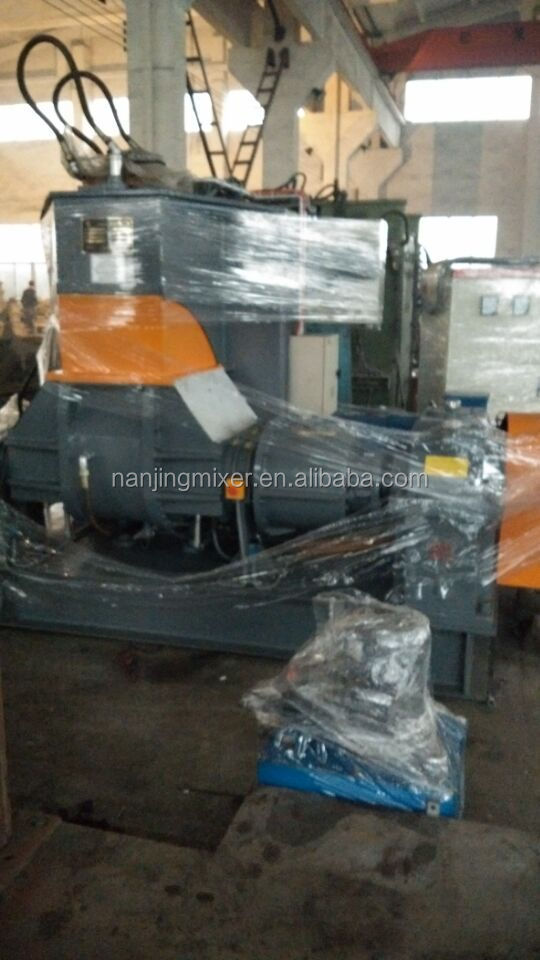

Packaging & Shipping

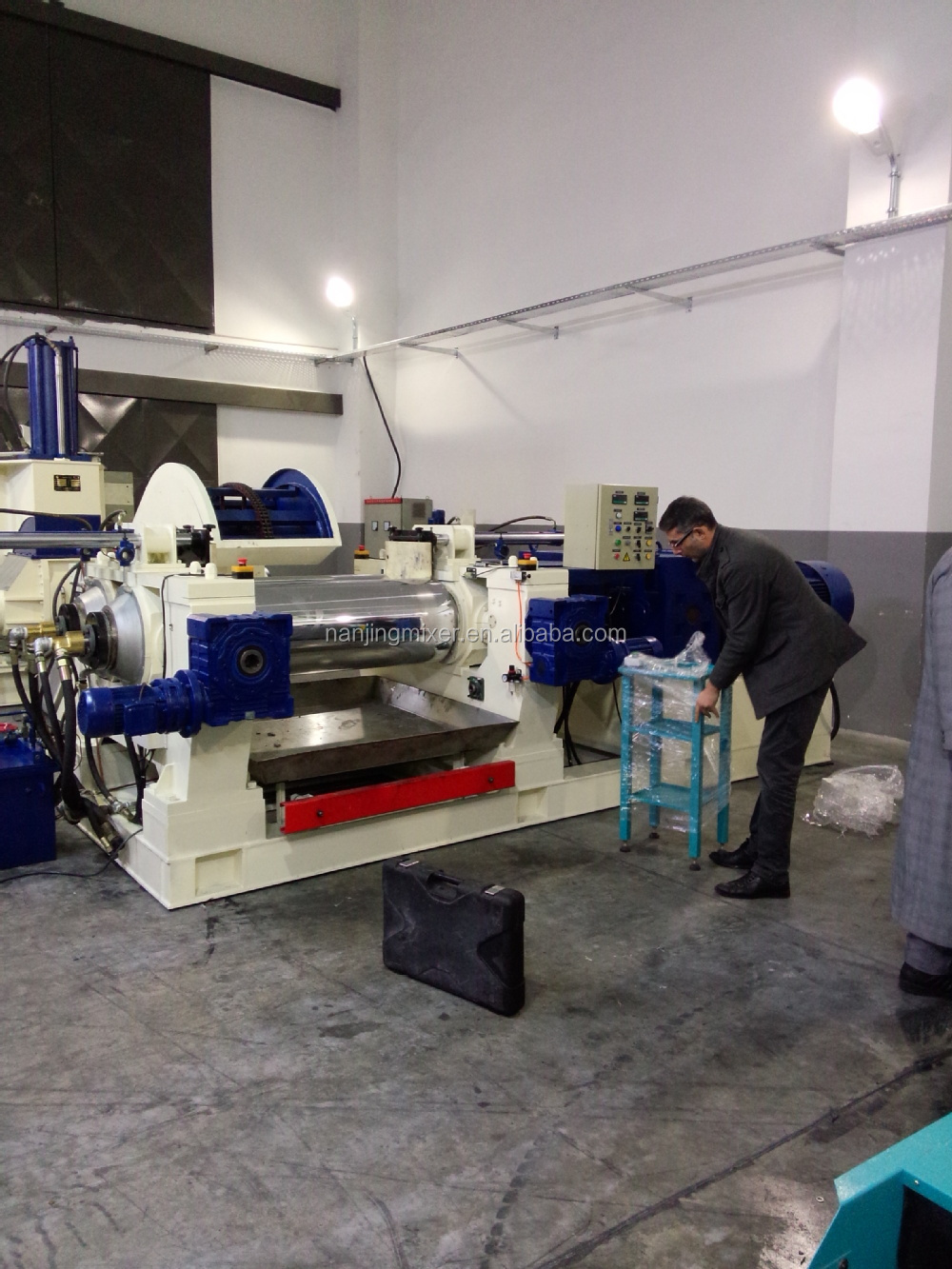

Customer visit
Our Services
1. Reply your inquiry in 24 working hours.
2. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
3. Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 11 years, competitive with good quantity.
Company Information
Nanjing Mixer Industrial Co., Ltd (the same company as Nanjing Mixer Rubber&Plastic Machinery Co., Ltd) We are the sister company with Taixing Reshine Rubber&Plastic Machinery Co., Ltd ,Ningbo Dechuan Machinery Co., Ltd and Wuxi Zhenxing Machine Co.,having more than 10 years of experience in the field of rubber&plastic machineries, owning 5 manufacturing plants, mostly are located within the scope of 300 KM around Shanghai, having dozens of experienced engineers and more than 100 skilled workers, as well as a considerable number of precise, digital-control, advanced processing machine tools. All ensure every part and details of our machines with good performance and qualified running test before delivery to our customers on time.
Our main products include: Dispersion Kneader,Banbury Mixer,Two Roll Open Mixing Mill,Rubber Precision Preformer (Barwell),Rubber Calender,Hydraulic Vulcanzing Press,Rubber Extruder,Rubber Filtering Machine,Single Screw Extruder and Twin Screw Extruder for Compound Pelletizing,Sigma Kneader,Bandknife Splitting Machine for EVA/PE/EPDM/CR/RUBER CORK,Rubber Crusher Mill and Rubber Refining Mill for Reclaimed Rubber,Rubber Cutting Machine,Cooling Machine,etc.
