Кабель электропитания 0,75-10 мм2, Электрический кабель
US $0.45-$0.55
0 6/1kV с ПВХ-изоляцией и лоток пламени D коммерческий огнезащитного ПВХ оболочке TFR-CVV TFR-CVVS TFR-CVVSB медная лента щит управления
- Категории: Control Cables >>>
- Поставщик: Zhengzhou,Hesheng,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

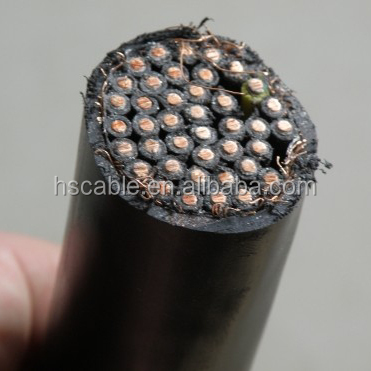

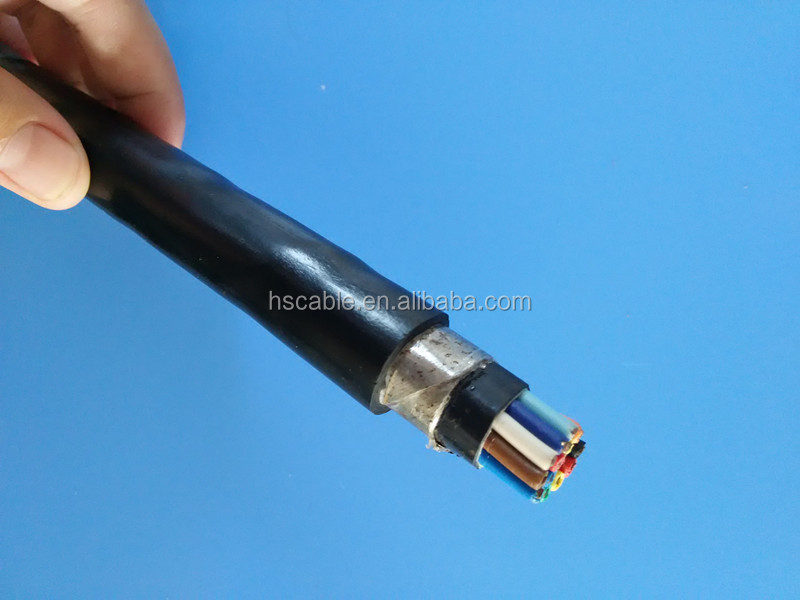

0.6/1kV PVC Insulated and Tray Flame-Retardant PVC Sheathed TFR-CVV TFR-CVVS TFR-CVVSB Copper Tape Shield Control Cable
0.6/1 kV CVV-SWA
IEC 60502 (2-30 core)
Application : For use in duct, tray and for direct burying in ground. The cable subject to immerce in water all the line.
Conductor : Concentric Stranded annealed copper wire
Insulation : PVC Black color
Identification : Printed White number on the surface of Black insulation
Filler : Suitable filler
Binding tape : Suitable tape
Inner sheath : PVC Black color
Armour : Galvanized steel wire
Binding tape : Suitable tape
Outher Sheath : PVC Black color

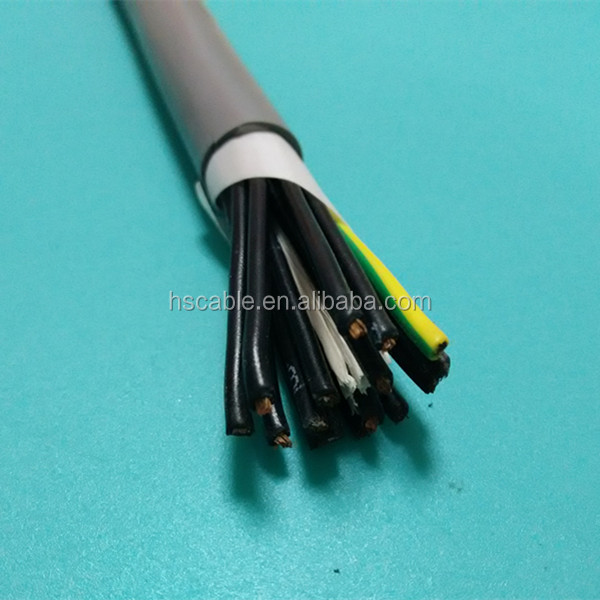

Control Cable
| Type | Name | Section Area(mm2) | No. of Core | Application Site |
| CVV | Copper Conductor,PVC Insulated and Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| CVV-SB | Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| CVV-S | Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable | 0.75 1.0 1.5 2.5 | 4-10 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 7-61 | |||
| 10 | 4-10 | |||
| KVV22 | Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force |
| 4 6 | 4-14 | |||
| 10 | 4-14 | |||
| KVVR | Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
| KVVRP | Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required |
| Symbol | MAX. Operating Temperature of Conductor (°C) | Materials | Application | |
|---|---|---|---|---|
| Insulation | Sheath | |||
| CVV | 60 | PVC | PVC | General use |
| CEV | 75 | Polyethylene | PVC | |
| CCV | 90 | Crosslinked Polyethylene | PVC | |
| CEE | 75 | Polyethylene | Polyethylene (Black) | Chemical resistance |
| CCE | 90 | Crosslinked Polyethylene | Polyethylene (Black) |
Packaging & Shipping
Company Information
Our Services
0.6/1kV PVC Insulated and Tray Flame-Retardant PVC Sheathed TFR-CVV TFR-CVVS TFR-CVVSB Copper Tape Shield Control Cable
