SF-LINE China Automatic S-Shape Zigzag Sofa Spring Making Machine

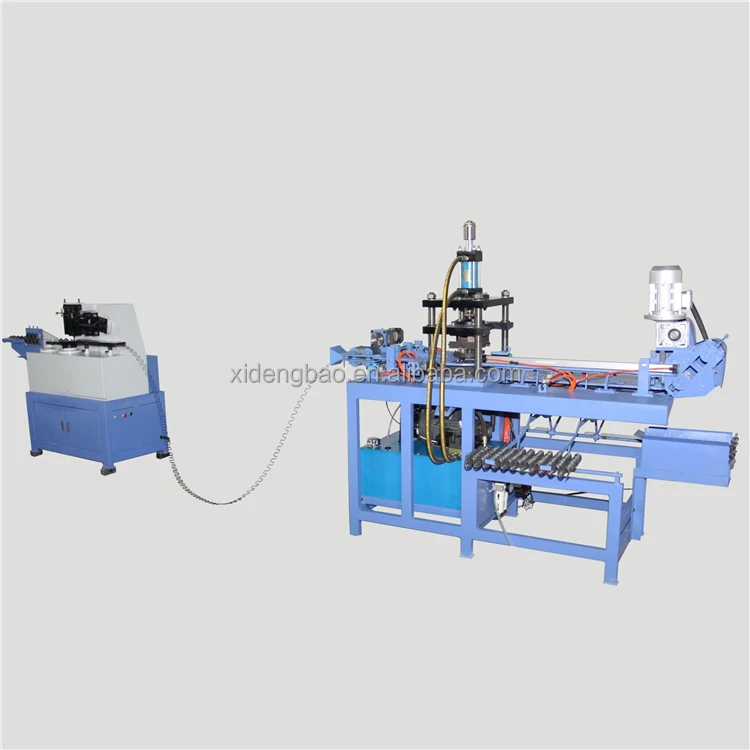

SF-LINE Fully Automatic Sofa Spring Production Line

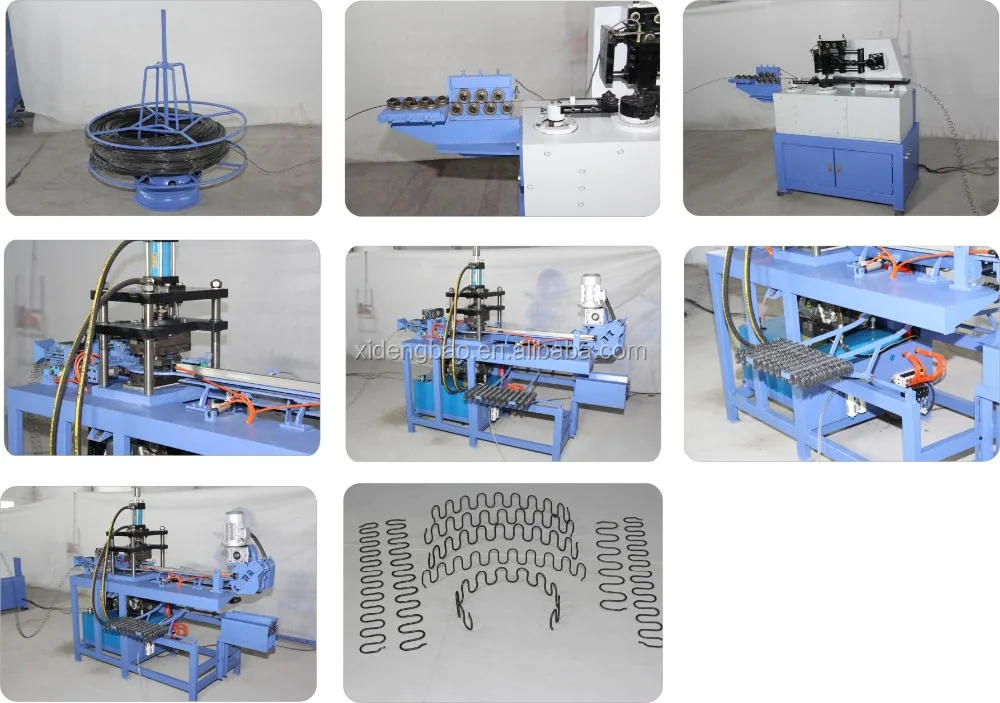

Machine Description:

This sofa spring making machine are mainly used for producing s-shape spring. It is ideal equipment for making cushion spring used in sofa and automobile.

Technical characteristics:

1. Machine fully automatic working.

2. Machine can produce two kinds of spring (flat spring,curve spring)

3. Spring automatic cutting, bending,and lined up.

4. When the steel wire use off,automatic stop working.

5. High effiency and diameter range is large.

6. Machine simple operation,easy maintenance.

Main Specification:

Spring Forming machine:

Available Wire Diameter	2.5-5.0mm
Spring Pitch	16-60mm
Available Spring Height	28-100mm
Capacity	280 peak/min
Motor Power	4kw
Weight	1000kg



Spring Cutting Machine:

Cutting Length at one time	200-800mm
Proper height of S-shape spring	40-50mm
Cutting Type	Adjustable single, double peak
Proper spring pitch	20-30mm
Diameter of spring	3.0-4.0mm
Feeding speed	0-24m/min
Norminal pressure	30KN
Total power	4KW
Weight	950kg

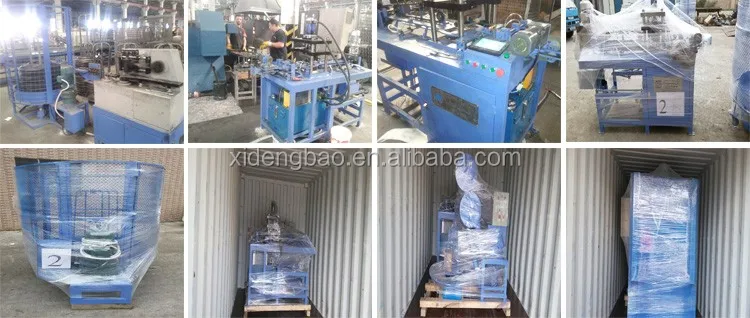

Package and Shipping:
