Смеситель Banbury с твердым

Описание и отзывы

Характеристики

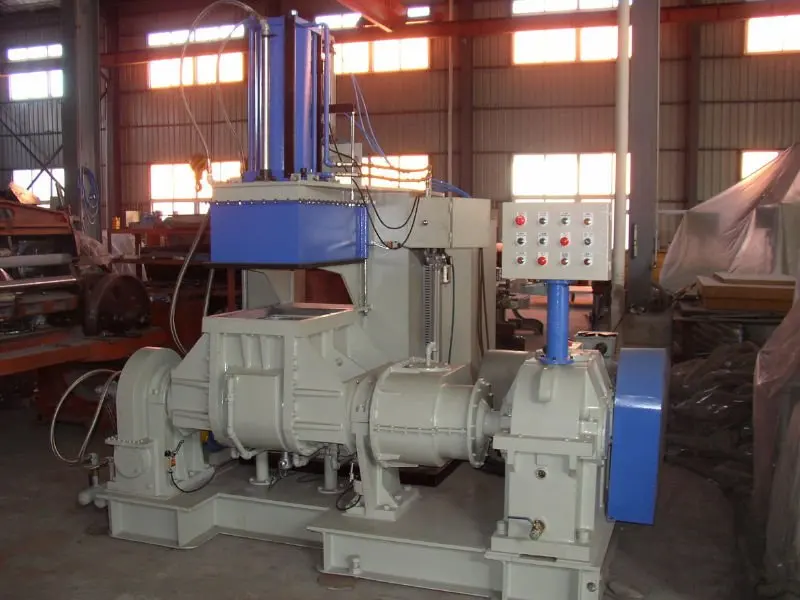

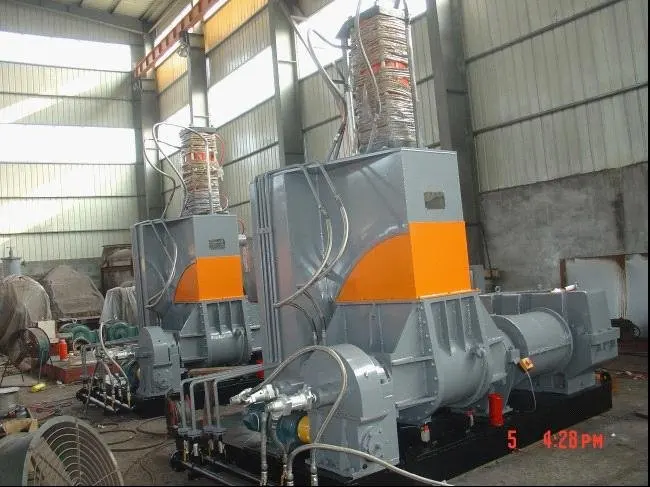

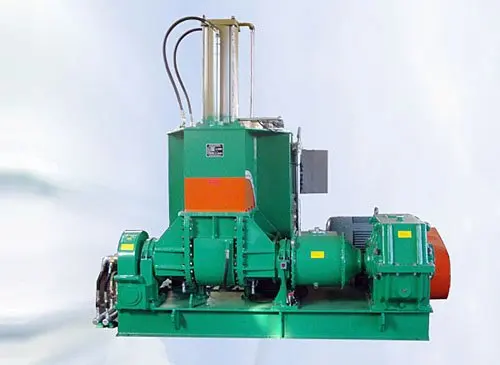

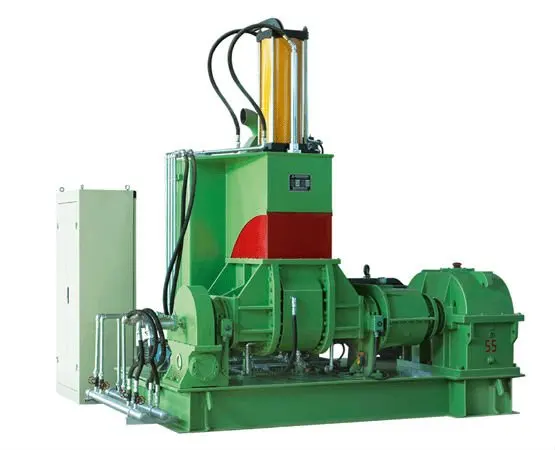

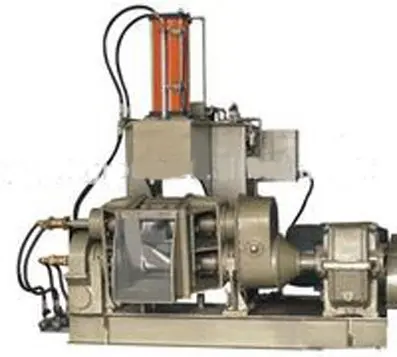

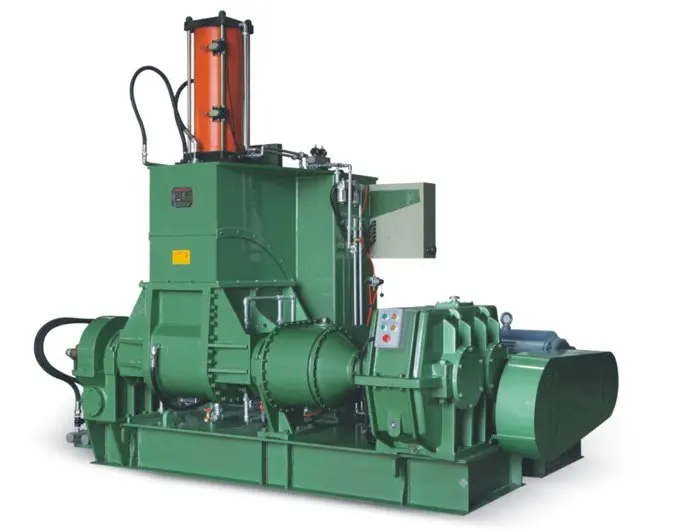

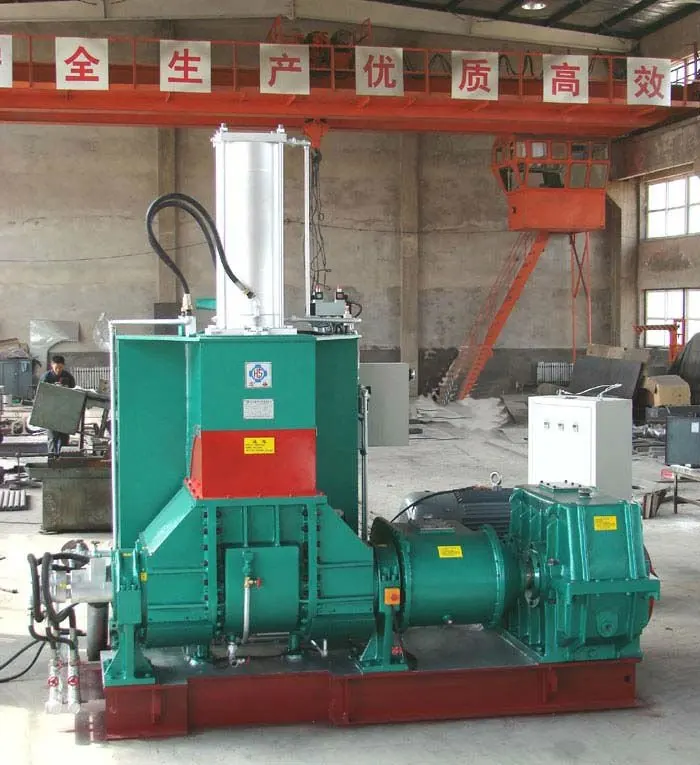

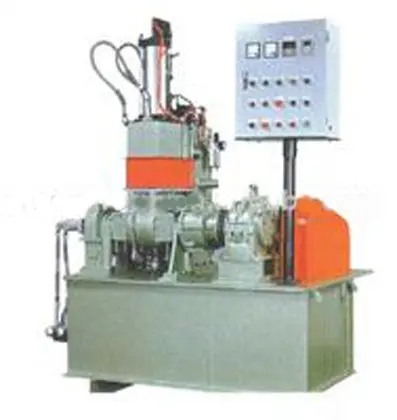

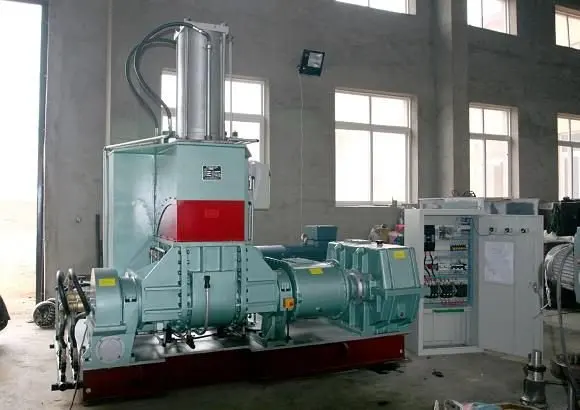

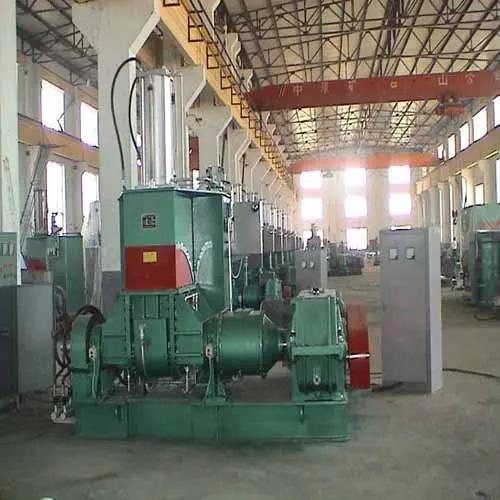

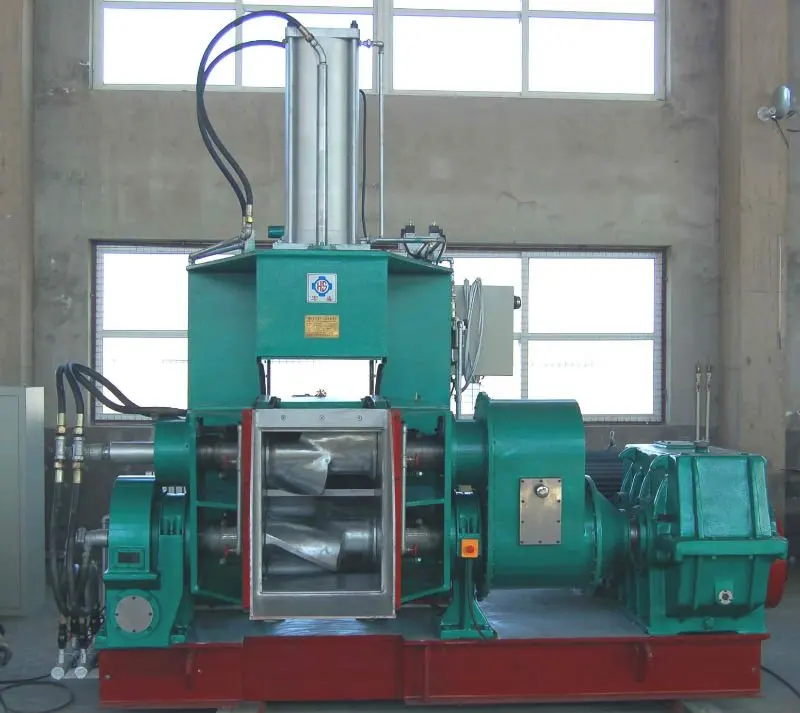

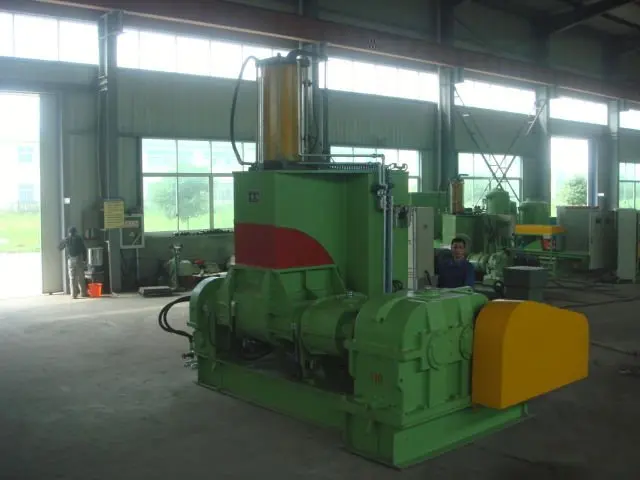

Banbury Mixer, Banbury Kneader, Rubber Kneader



1. Internal mixer, Rubber Kneader
2. Version: XN-55
3. PLC control and very convenient to operate.
4. Pedestal and roll is made of chilled cast iron, and no oil leakage, operate very convenniently.
5. Qingdao Guangyue Rubber machinery manufacting Co., Ltd is a the partner of Acooperating Unit Of China Science institute, and also we export rubber machines to all the world, such like south Asia, south America, Africa etc.

Excellent design, good quanlity, competitive price and best sale service to win more and more clients, please contact us for the long-term business.

Version & Parameters	XN-35/30	XN-55/30	XN-75/30	XN-110
Mixing  capacity  (L)	35	55	75	110
Main Power(kw)	55	75	90	160
Brake Motor (kw)	2.2	3.0	4.0	5.5
Tilting angle	1400	1400	1400	1400
Air compressor (kw)	5.5	7.5	10	10
Dust collector	HLL-10	HLL-15	HLL-20	HLL-30
Cooling water (MPA)	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Heating Steam (MPA)	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Electric Heater (kw)	12	15	18	24
Overall Size L×W×H (mm)	3200×1900×2950	3750×1950×3050	3760×2143×3050	3930×3000×3660
Weight(kg)	6500	7800	10500	15000
