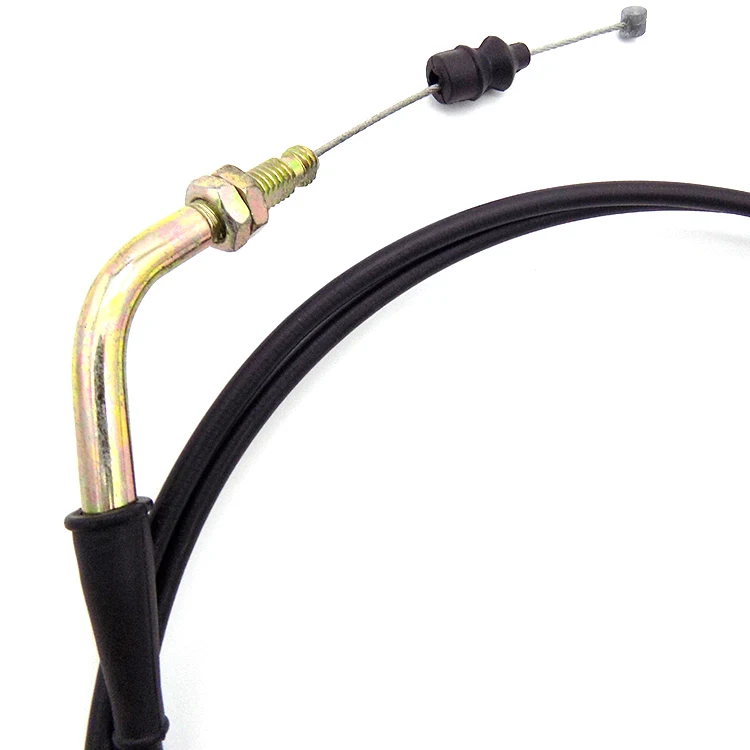

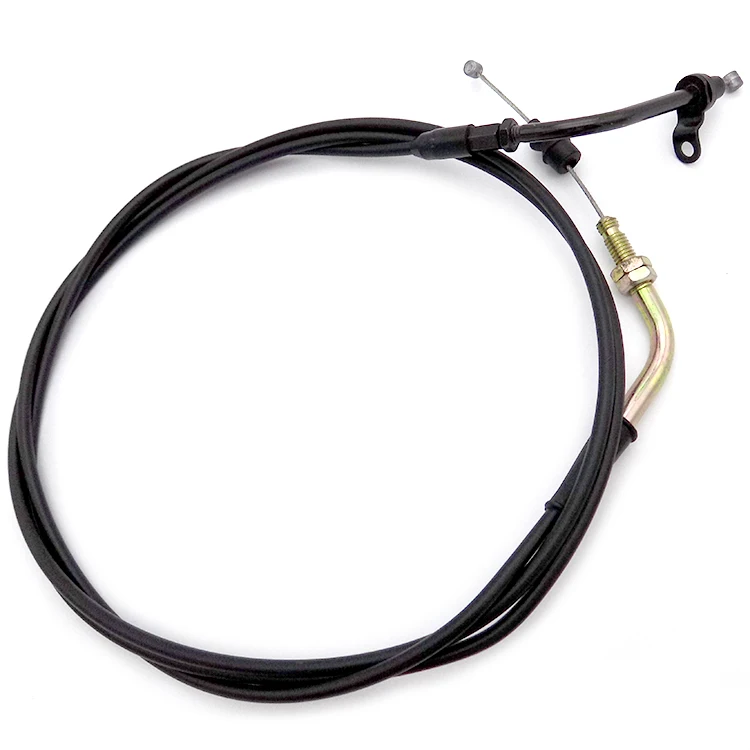

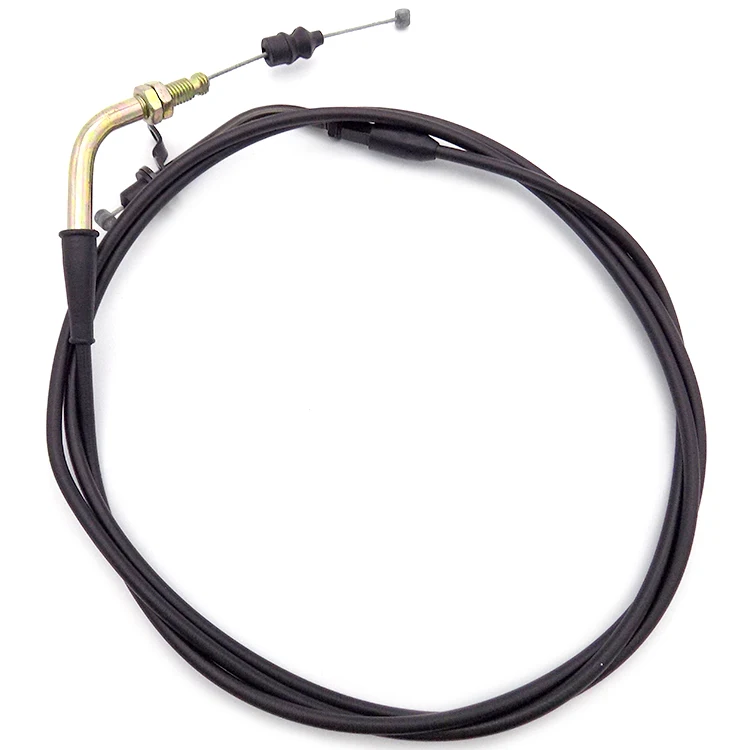

Black PE Coated Stainless Steel Wire Rope Garden Lawn Mower Rear Brake Control Cable
Product Description
1.steel wire diameter
| 1.0mm-4.0mm | Custom-made available |
outer casing diameter | 3.0mm-8.0mm | |
2.construction | PVC/PU outer cable+steel cable+PE cable | |
3.material of steel cable | Galvanized or stainless steel | |
4.MOQ | 500pcs or 1000meter | |
5.Material of fitting(hook) | Brass or Aluminum | |
6.Lead time | 20 days as usually | |
7.sample | Free sample available if all of dimensions same as our existing one , contact me to get a cost efficient solution. | |
application | Automotive, agricultural vehicles, engineering machinery, marine machinery, etc. (Low Price High Quality Control Cable Lever for car, bus, truck, tractors and bicycles) | |
specification | 1.pushpull cable Designed and manufactured for hydraulic equipment 3.Extreme versatility 4.Easy and fast installation 5.Minimum maintenance 6.Low maintenance costs | |
advantages | 1.Control cables are made according to client's specifications, your drawings and samples are highly appreciated. 2. Durable in use, we have a strong R&D center design system and strict inspection process in order to ensure the quality. 3. Package: PP film bag inside, standard export carton outside or according to your requirement. 4.Test: Life test, pull-out force test, salt spray test, etc. | |
how to choose material:1stain1.1.1.
1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:
Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.
Diameter | construction | weight(100m) | Minimum Breaking load(N) |
1.0mm | 1*19 | 0.495 | 950(95kg) |
| 7*7 | 0.393 | 650 (65kg) |
1.2mm | 1*19 | 0.713 | 1440(144kg) |
| 7*7 | 0.566 | 950(95kg) |
1.5mm | 1*19 | 1.114 | 2200(220kg) |
| 7*7 | 0.884 | 1500(150kg) |
1.8mm | 1*19 | 1.604 | 3200(320kg) |
| 7*7 | 1.273 | 2100(210kg) |
2.0mm | 1*19 | 1.98 | 3900(390kg) |
| 7*7 | 1.527 | 2650(265kg) |
2.4mm | 1*19 | 2.851 | 5650(565kg) |
| 7*7 | 2.264 | 3800(380)kg |
2.5mm | 1*19 | 3.094 | 6100(610kg) |
| 7*7 | 2.381 | 4100(410kg) |
3.2mm | 7*7 | 4.024 | 6850(685kg) |
| 7*19 | 3.901 | 6800(680kg) |
3.8mm | 7*19 | 5.675 | 9650(965kg) |
| 7*7 | 5.502 | 9600(960kg) |
4.0mm | 7*19 | 6.609 | 12500(1250kg) |
4.2mm | 7*7 | 6.933 | 13000(1300kg) |
4.5mm | 7*7 | 7.958 | 13500(1350kg) |
4.8mm | 7*19 | 8.778 | 15300(1530kg) |
6.0mm | 7*19 | 8.716 | 23900(2390kg) |
Company Information
Dongguan Guofeng Sports Equipment Fitting Co., Ltd. is specialized in manufacturing Black PE Coated Stainless Steel Wire Rope Garden Lawn Mower Rear Brake Control Cable
Certifications
Customer & Feedback
Packaging & Shipping
Our Services
FAQ
1. How do you design a control cable?
Of course ,we have to know your application firstly and a number of factors have to be considered, such as work load, safety abrasion, environment ,cycle life, flexibility, cost, When we design the control cable .
2. How to place an order?
We produce according to customers’ specifications,so you’d better give us complete information as specified below:
Material,Diameter,Construction,Coating,Length,Packing,Quantity, Remarks
3. Are your products of good quality? How can I trust you?
Yes. We are a professional manufacturer of wire assemblies with 15 years producing experience in China .We have always been cooperating with domestic and overseas customers and partners with the first- class quality and service to make great achievements. If this is your first time to contact us, please trust us, we’ll not let you down.
4. What’s the lead time of my order?
It was largely depend on the size of your order .normally ,15days . if you are in urgent need of it ,we will try my best to met your requirement.
If there any thing else we could do for you please don't be hebsitate to contact us ! We are happy to reply within 24 hours ^^ . Thanks a lot
