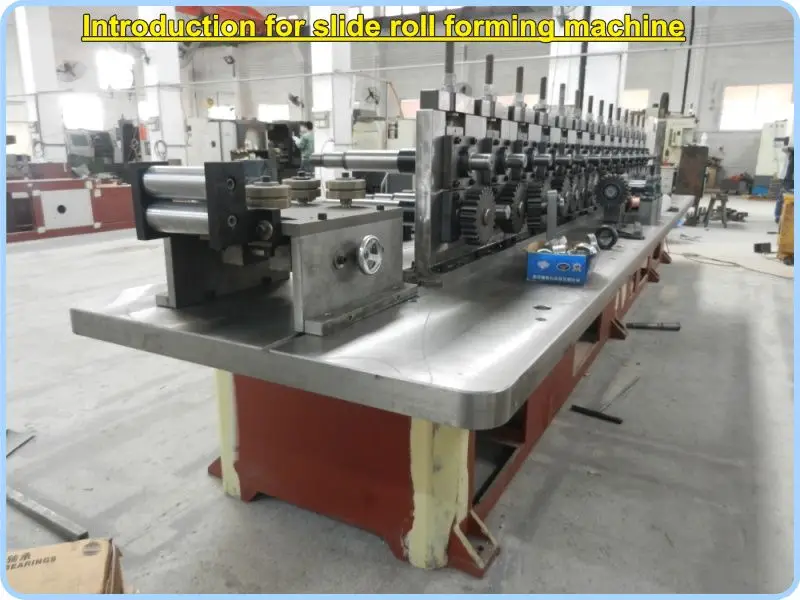

LMS kitchen cabinet drawer slide channel roll forming machine



completed line for three section drawer slide telescopic channel drawer slide manufacturing line roll forming machine



Details of completed manufacturing line for three section drawer slide

 machine slide rails



ITEM	Description	Quantity	Function	Capacity	Working flow	Power	Weight(KG)	Diamension(MM)
1	Roll forming Machine(12 steps)	2 sets	One set if for inner rail, Another set is for outer rail.	6m/min	Decoiler-forming-hole punching&cutting-run out table	380V,3phs,50hz	4000	5400*820*950mm
2	Roll forming Machine(16 steps)	1 set	For making middle rail.	6m/min	Decoiler-forming-hole punching&cutting-run out table	380V,3phs,50hz	4000	6200*820*950mm
	Punching & Cutting Moulds	3 sets	Installed on those three roll forming machines		For punching hole and cutting rail of roll forming machine

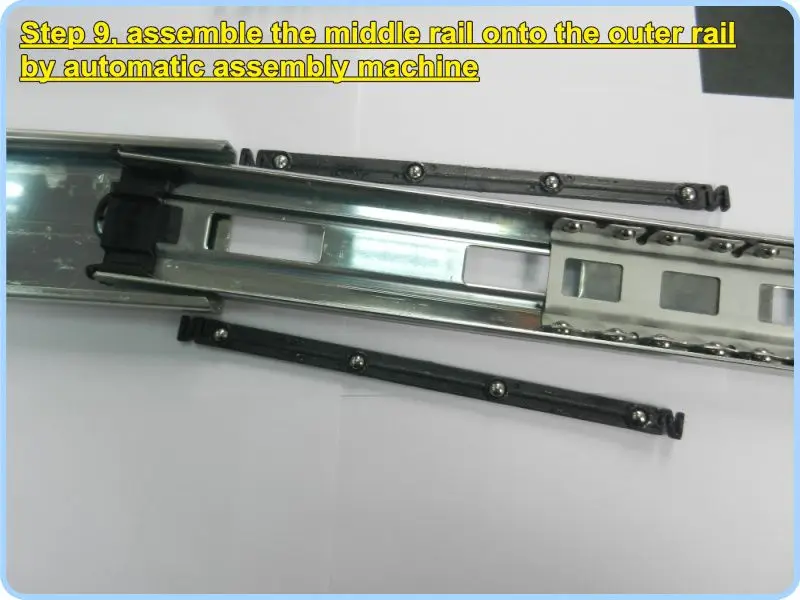

3	Automatic Assembly Machine	1 set	For assembling the beads on the slot, then install the slot on the middle rail	20pcs/min		220V,1phs,  50Hz	600	2100*1100*1500

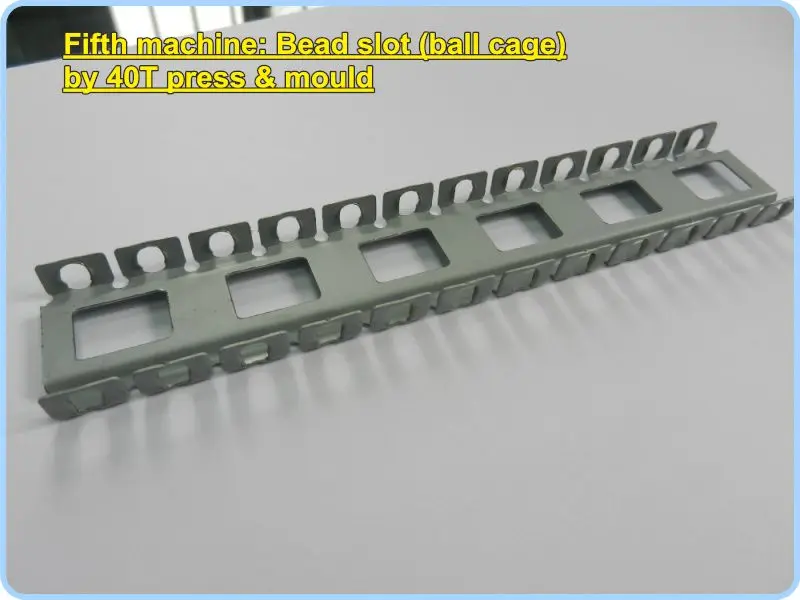

4	40T Power Press machine for making Bead slot(including the Mould)	1	To make the bead slot, which will punch the bead slot with mould		Material feeder- punching(mould)-control box



 machine slide rails

ITEM	Description	Quantity	Function	Capacity	Working flow	Power	Weight(KG)	Diamension(MM)

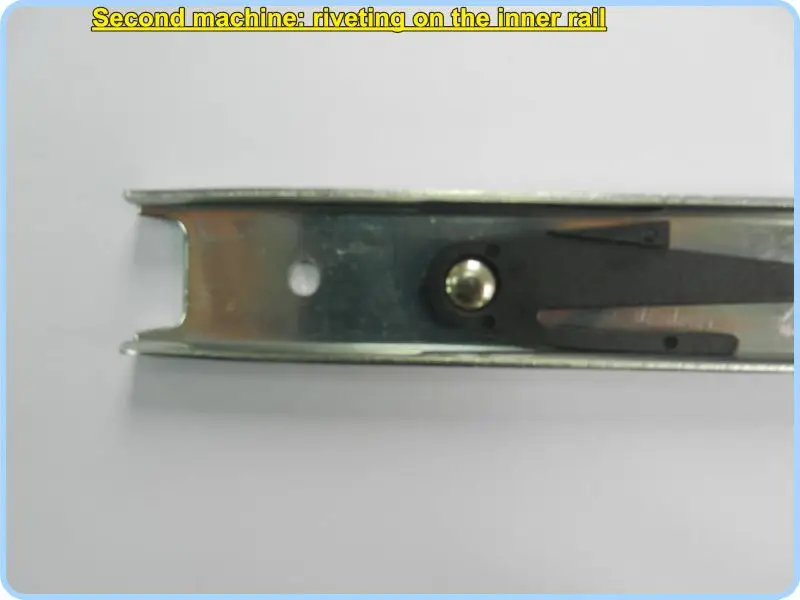

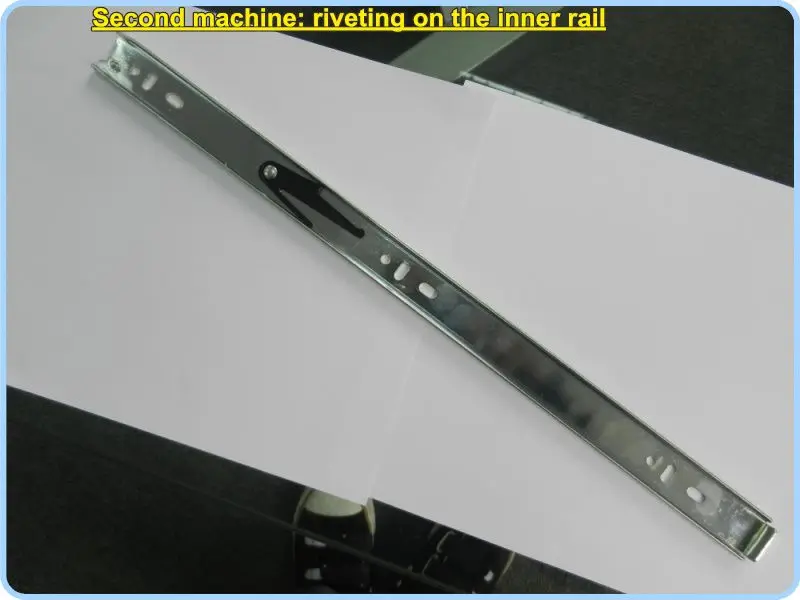

5	Riveter machine	1 set	Riveting the inner rail	60pcs/min		220V,1phs,50Hz	160	950*600*1600
6	16T Power press for Inner rail (Mouth Lock Mould)	1 set	To press one head of the inner rail for mouth lock function
7	High Precision Punching machine for outer rail tail stopper	1 set	To press the outer rail tail stopper	20pcs/min	Including punching machine and mould and control box,for punching the stopper and input the rubber	380V	1000	1580*900*1880



 machine slide rails

Main introduction

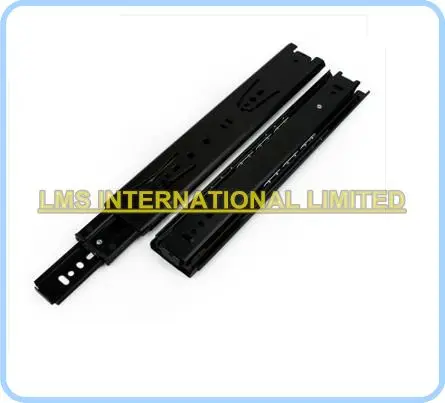

1,	Function:	Whole completed line for manufacturing the three sections drawer slide (Length adjustable)
2,	Material:	Cold rolled steel or Galvanized steel; HRB60+/-5
3,	Slide Width:	45mm (same price for width 27mm,35mm, but one width one completed line, not one line for all widths)
4,	Material thickness:1.2mm(no more than 1.5mm)
5,	Totally 9 machines, and it needs 11 steps to make a slide.
