PEAD PE Dam Liner 1.5mm HDPE Geomembrane
Smooth Geomembrane HDPE liner is the low permeable synthetic membrane liner and geotechnical engineering materials which are widely used for solid waste containment, mining and water containment applications. BPM smooth geomembrane HDPE liner is made of finest quality high density polyethylene (HDPE) with specially formulated, virgin polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which makes our smooth geomembrane HDPE liner with excellent resistance to UV radiation and is suitable for exposed conditions.
Our smooth geomembranes are fabricated by the state of the art automatic geomembrane production lines and advanced three layered pressing technology in accordance with GRI GM13 standard. Compared with traditional concrete, asphalt and compacted clay, smooth geomembrane HDPE Liner has proven to be far more cost effective, environmentally safe, excellent durable, chemically resistant, fast deployment and easy transportation.
When you want to choose waterproof material as your pool base,what is the key points you mostly care about,nothing but the following points:
Cost calculation
Flexibility
Elongation and tensile strength
Width and length per roll
Weather and UV resistance
Lifespan
Taking these into consideration,we recommend BPM HDPE geomembrane,which has all the advantages and popularly used in a lot of applications,to be the priority choice among waterproof materials.
Let us introduce our product as follow:
BPM HDPE Geomembrane Description
Made from high density Polyethylene by blow film process.
Thickness from 0.3~3.0mm. Width : 4~7m. Length as customer demand.
Density: more than 0.94g/cm3
BPM HDPE Geomembrane Thickness
0.3mm,0.5mm,0.75mm,1.0mm,1.25mm,1.5mm,2.0mm,2.5mm,3.0mm
BPM HDPE Geomembrane Characteristics
1. Good flexibility
2. For service temperature range:-70°C~110°C
3. Corrosion resistance, aging resistance
4. Excellent environmental stress cracking resistance property
5. High tensile strength and elongation

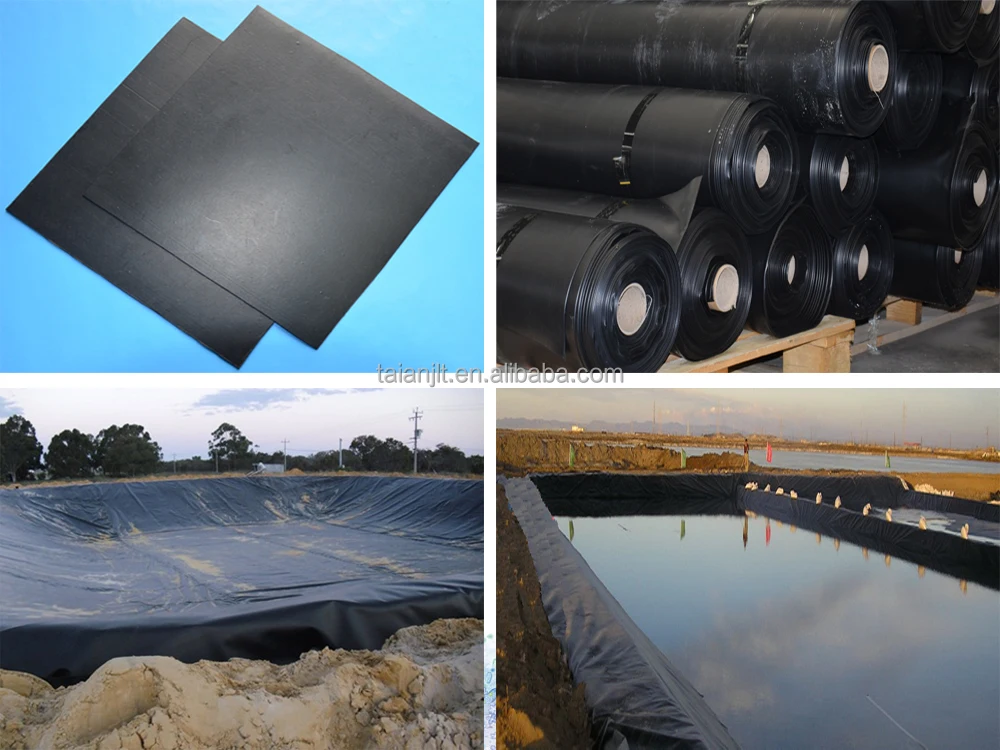

BPM HDPE Geomembrane applied range
1. Municipal environmental projects, water conservancy projects
2. Landfill cap, mining heap leach pads

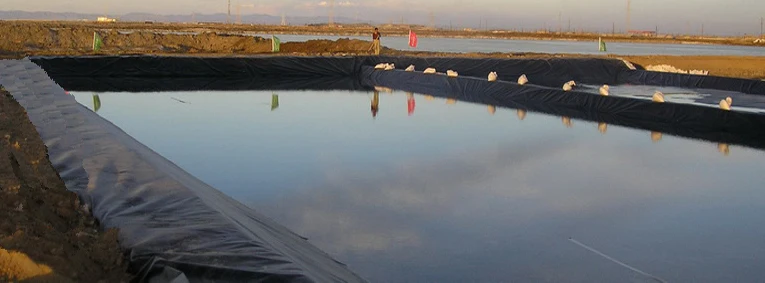

3. Pond liner, canal linings, tank linings, raw water treatment reservoirs, retention ponds
4. Waste water treatment lagoon, secondary containment tank.

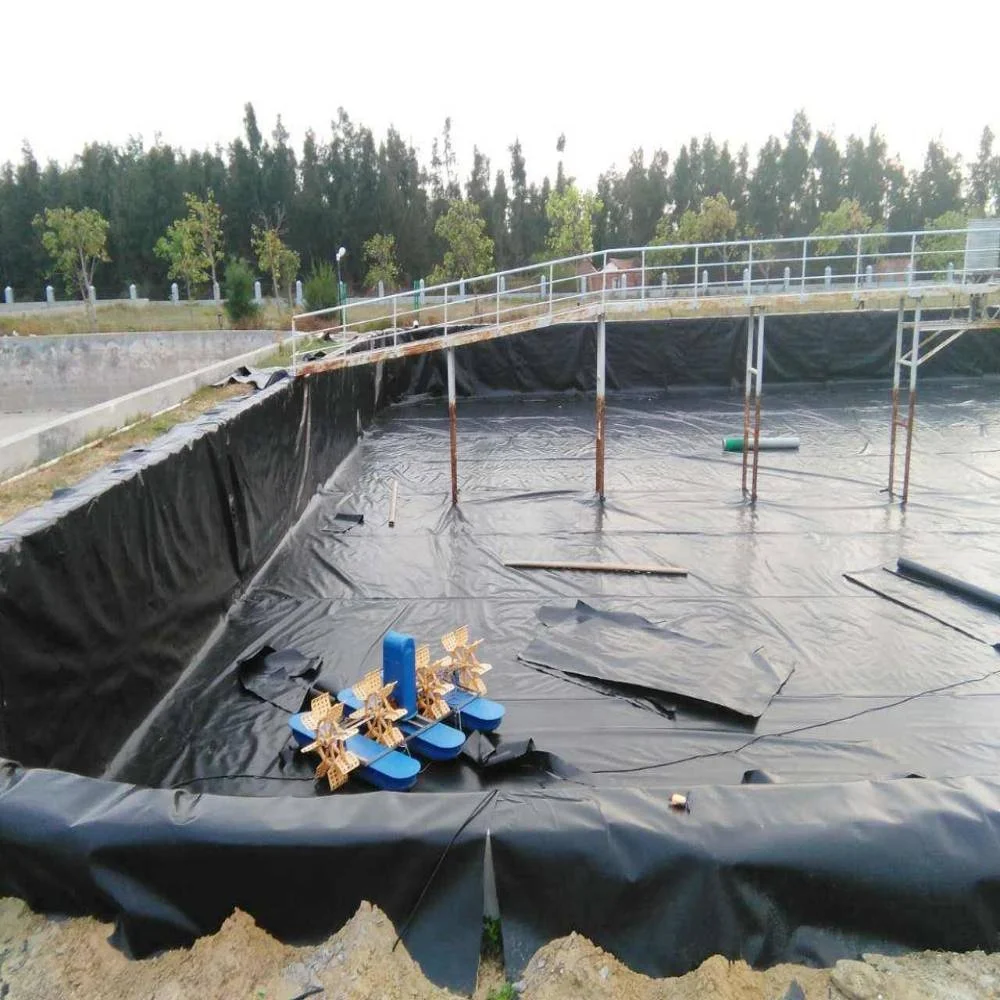

Benefits of BPM HDPE aquaculture waterproof membrane
1.Environmental friendly non-toxic.
2.Construction cost lower than cement base.
3.Much more smooth than cement base,fish and shrimps are not liable to be injured.
4.Easy to install and remove the waste in pond.
5.The black membrane is preferred due to its lightproof and absorption of heat,restraining the grass from destroying the membrane while keeping warm for the creatures.

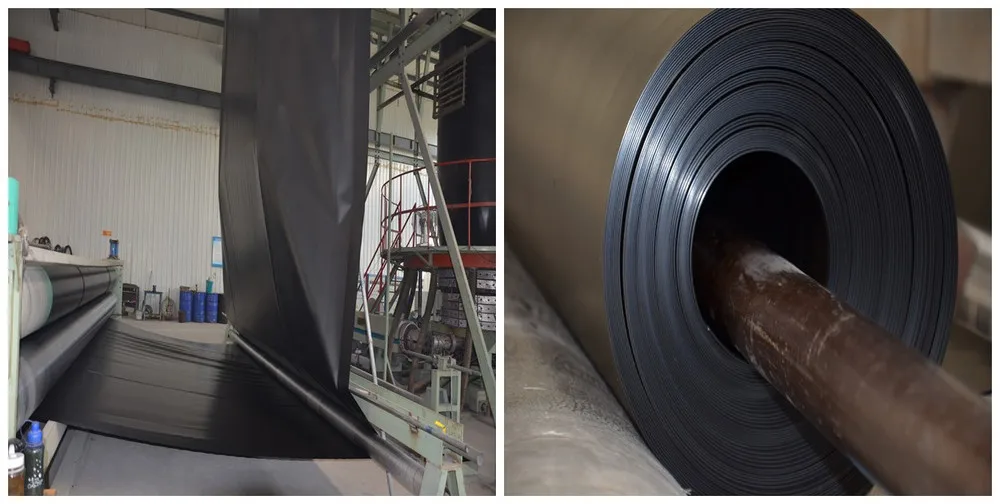

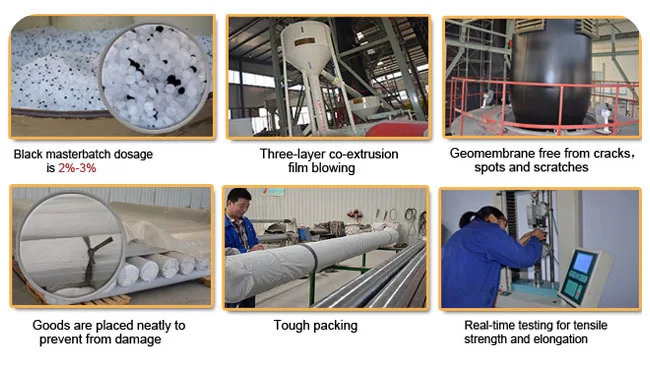

Factory Show
Properties | Test Method | Test Value | |||||||
0.75 mm | 1.0 mm | 1.25 mm | 1.50 mm | 2.00 mm | 2.5 mm | 3.0 mm | |||
Maximum Deviation of thickness | -15% | ||||||||
Density(min.ave.) | D1505/D792 | 0.940g/cc | |||||||
Tensile Properties(min.ave) | Yiled Strength; Break Strength | D6693 | 11 N/mm | 15 N/mm | 18 N/mm | 22 N/mm | 29 N/mm | 37 N/mm | 44 N/mm |
20 N/mm | 27 N/mm | 33 N/mm | 40 N/mm | 53 N/mm | 67 N/mm | 80 N/mm | |||
Yiled Elongation | 12% | ||||||||
Break Elongation | 700% | ||||||||
Tear Resistance(min.ave) | D1004 | 93N | 125N | 156N | 187N | 249N | 311N | 374N | |
Puncture Resistance(min.ave) | D4833 | 240N | 320N | 400N | 480N | 640N | 800N | 960N | |
Carbon Black Content(range) | D4218 | 2.0-3.0% | |||||||
Oxidative Induction Time(OIT)(min.ave) Standard OIT | D3895 | 100min | |||||||
Oven Aging at 85℃ Standard OIT(min.ave.)-% retained after 90 days | D5721 D3895 | 55% | |||||||
UV Resistance High Pressure OIT(min.ave)-% retained after 1600hrs | D3895 D5885 | 50% |

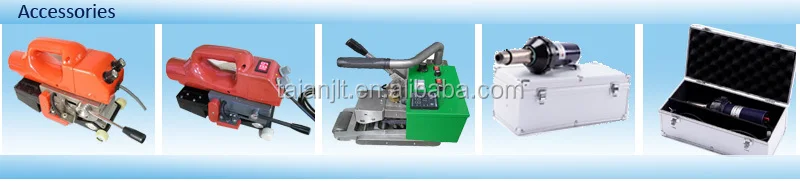

Welding Machines for Sale
