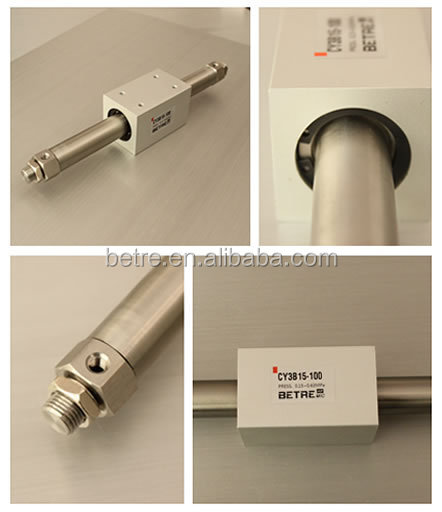

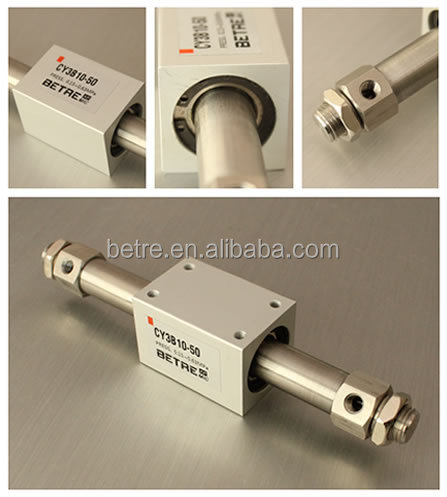

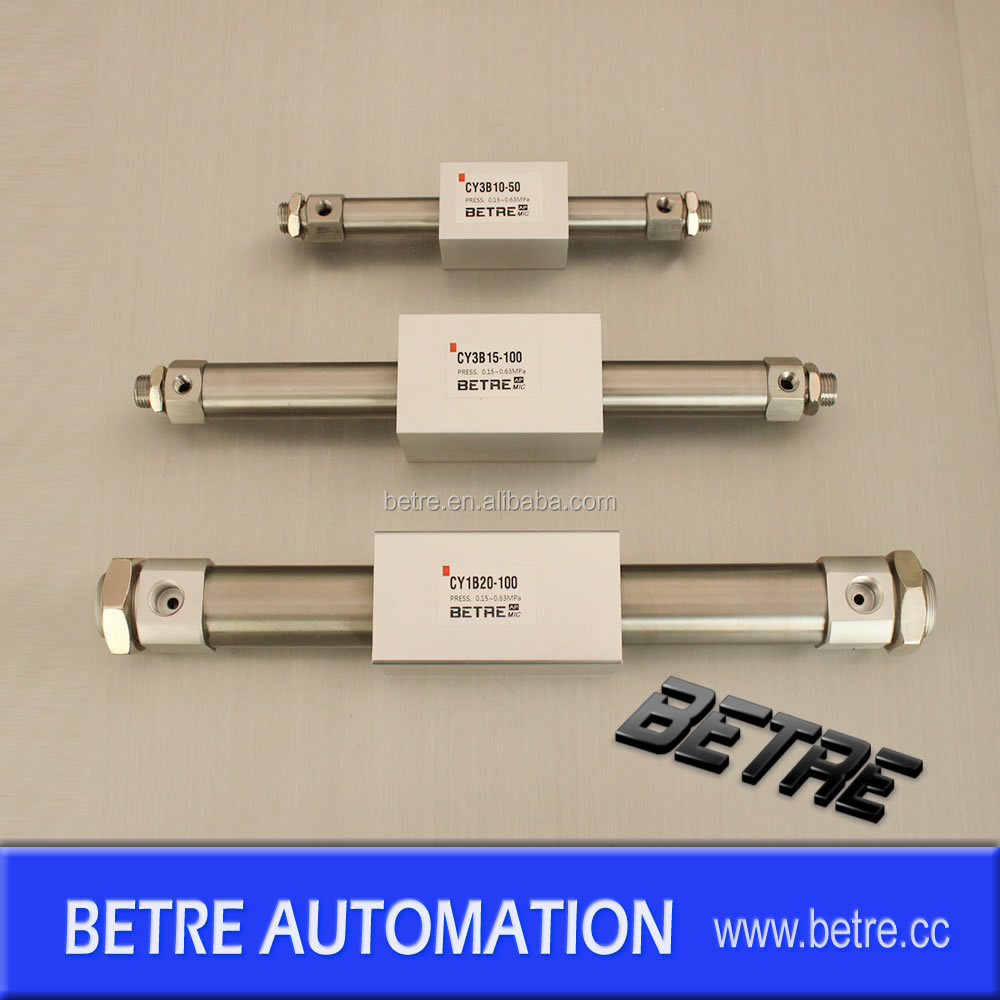

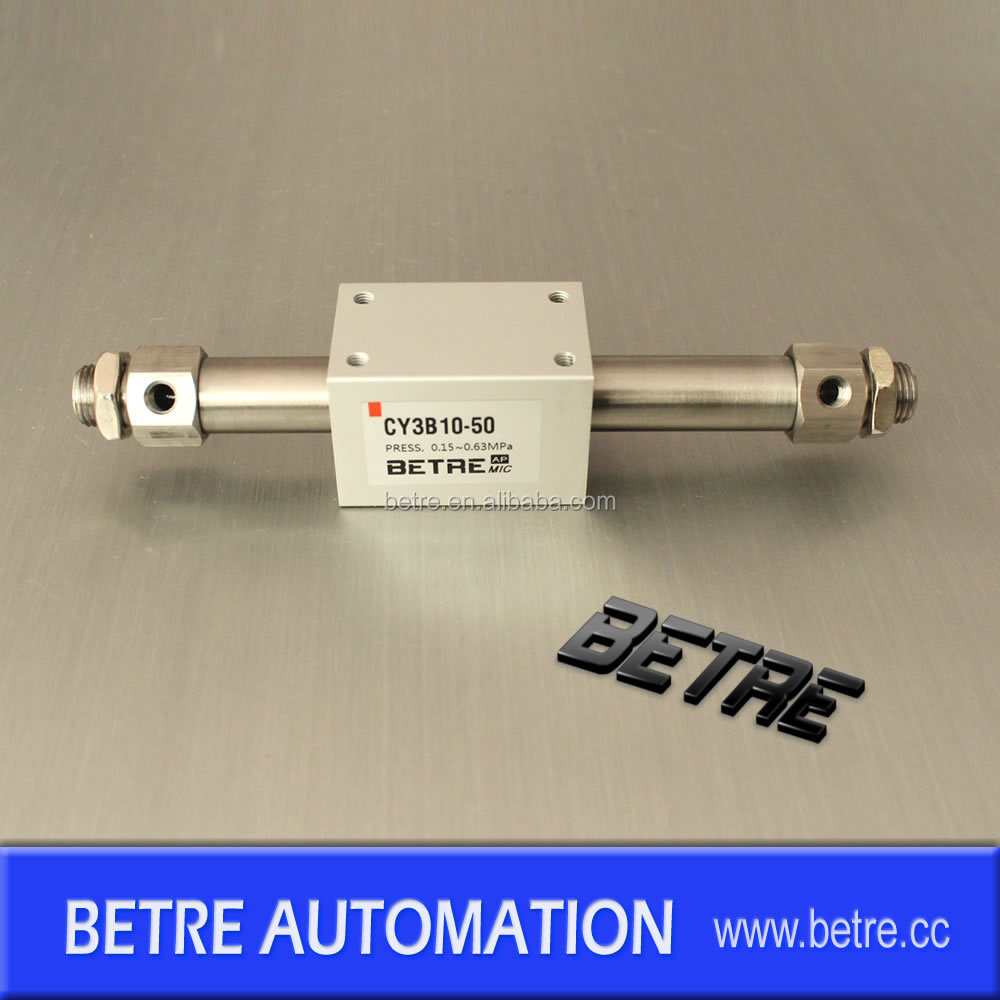

High Quality SMC Type  Magnetically Coupled Rodless Cylinder  CY3B Series







Specification

Bore size(mm)	6	10	15	20	25	32	40	50	63
Fluld	Air
Proof pressure	1.05MPa
Max.operating pressure	0.7MPa
Min.operating pressure	0.16	0.16	0.16	0.16	0.15	0.14	0.12	0.12	0.12
Amblent and fluld temperature	-10 to 60℃ (No freezing)
Plston speed	50 to 500 mm/s
Cushlon	Rubber bumper
Lubrication	Not required (Non-lube)
Stroke length tolerance(mm)	0 to 250 st: +1.0 , 251 to 1000 st: +1.4, 1001 st to: +1.8
Mounting orientation	Horizontal,Inclined,Vertical Note)
Mounting nut(2 pcs.)	Standard equipment (accessory)
Magnet holding force(N)	19.6	53.9	137	231	363	588	922	1471	2256

  Note) When vertically mounting, it is impossible to perform an intermediate stop by means of a pneumatic circuit.



Standard Stroke

Bore size (mm)	Standard stroke(mm)	Maximum available stroke(mm)
6	50,100,150,200	300
10	50,100,150,200,250,300	500
15	50,100,150,200,250,300,350,400,450,500	1000
20	100,150,200,250,300,350,400,450,500,600,700,800	1500
25		3000
32
40	100,150,200,250,300,350,400,450,500,600,700,800,900,1000	3000
50		5000
63

Note 1) Long stroke specification (XB11) applies to the strokes exceeding 2000 mm. (Refer to page 1711.)

Note 2) The longer the stroke, the larger the amount of deflection in a cylinder tube. Pay attention to the mounting bracket and clearance value.

Note 3) Intermediate stroke is available by the 1 mm interval.

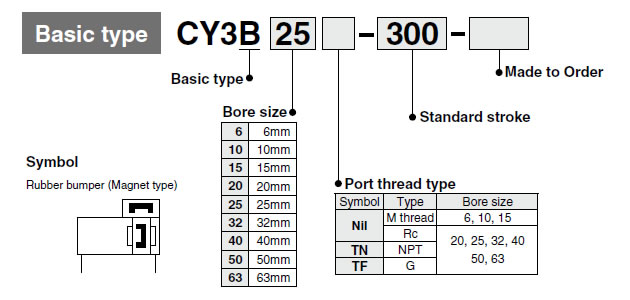

Ordering Information

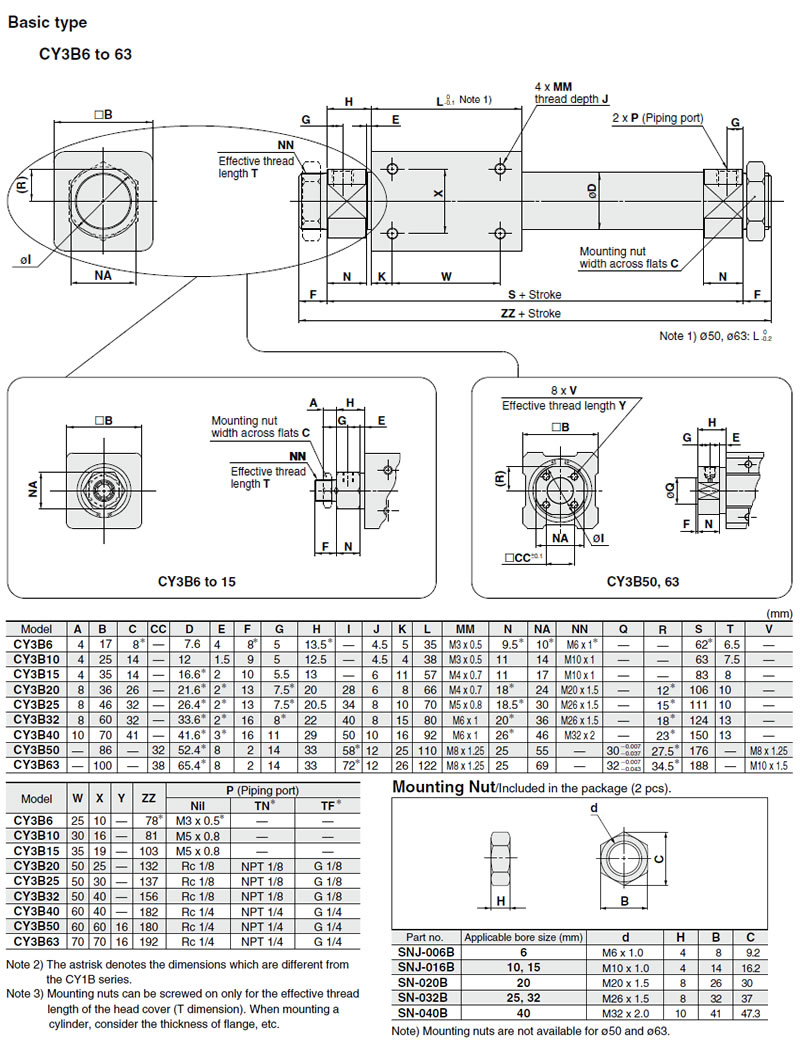

Dimensions(mm)
