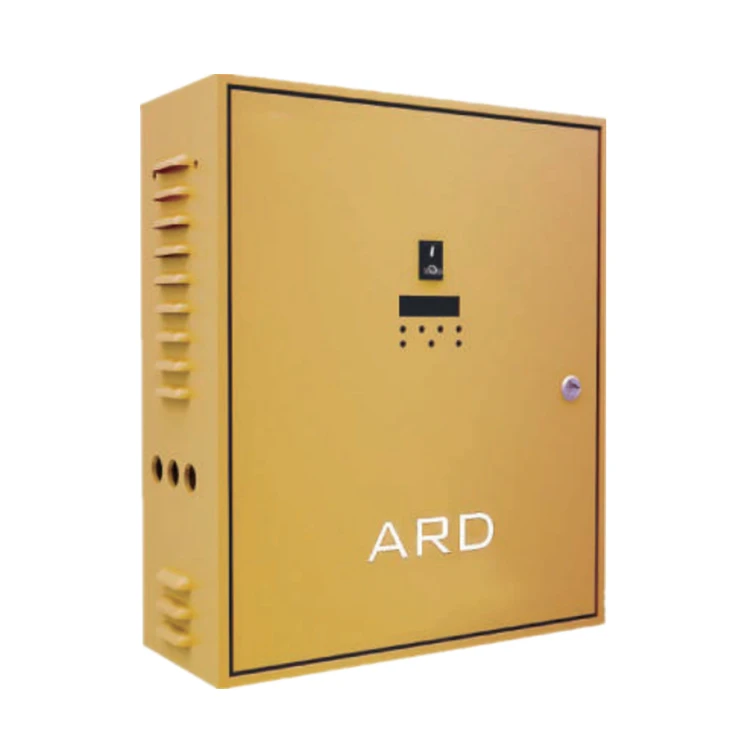

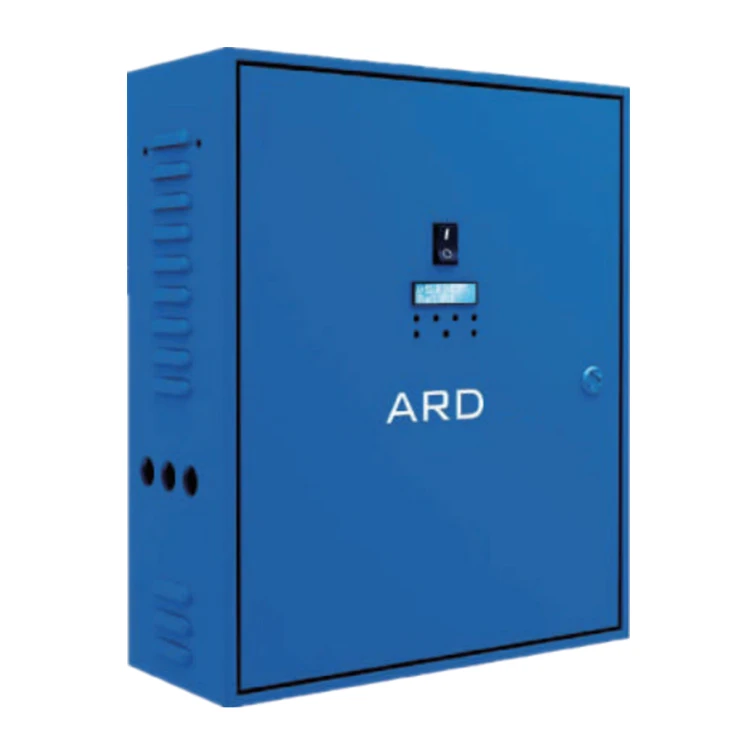

Автоматическое спасательное устройство для
- Категории: Elevator Parts >>>
- Поставщик: Nova,Elevator,Parts,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Single Phase
Parameter | NV65XM-ARD-10E | NV65XM-ARD-15E | NV65XM-ARD-18.5E |
Rated charging voltage | 55V | 55V | 55V |
Rated charging current | 0.3A | 0.3A | 4A |
Rated output voltage | 380Vac sine wave | 380Vac sine wave | 380Vac sine wave |
Rated output frequency | 50Hz (60Hz) | 50Hz (60Hz) | 50Hz (60Hz) |
Rated output current | 1.32A | 2.63A | 3.68A |
Rated elevator direction | The direction of lightload | The direction of lightload | The direction of lightload |
Inverter power | ＜=10KW | ＜=15KW | ＜=22KW |
Storage battery | 12V/74H×4 | 12V/12AH×4 | 12V/24AH×4 |
Size(without bracket) | 450×630×165 | 505×705×180 | 780×605×195 |
Weight(without battery) | 30KG | 38KG | 48KG |
Weight(with battery) | 38KG | 47KG | 80KG |
Three Phase
Parameter | NV65XM-3ARD-15E | NV65XM-3ARD-22E | NV65XM-3ARD-37E | NV65XM-3ARD-55E |
Rated charging voltage | 55V | 82V | 82V | 82V |
Rated charging current | 1.4A | 1.4A | 2.4A | 2.4A |
Rated output voltage | 380Vac sine wave | 380Vac sine wave | 380Vac sine wave | 380Vac sine wave |
Rated output frequency | 50Hz (60Hz) | 50Hz (60Hz) | 50Hz (60Hz) | 50Hz (60Hz) |
Rated output current | 3A | 5.5A | 8.2A | 11A |
Rated elevator direction | The direction of lightload | The direction of lightload | The direction of lightload | The direction of lightload |
Inverter power | ＜=15KW | ＜=22KW | ＜=37KW | ＜=55KW |
Storage battery | 12V/74H×4 | 12V/12AH×6 | 12V/24AH×6 | 12V/24AH×6 |
Size(without bracket) | 530×600×190 | 600×715×220 | 600×715×220 | 600×715×220 |

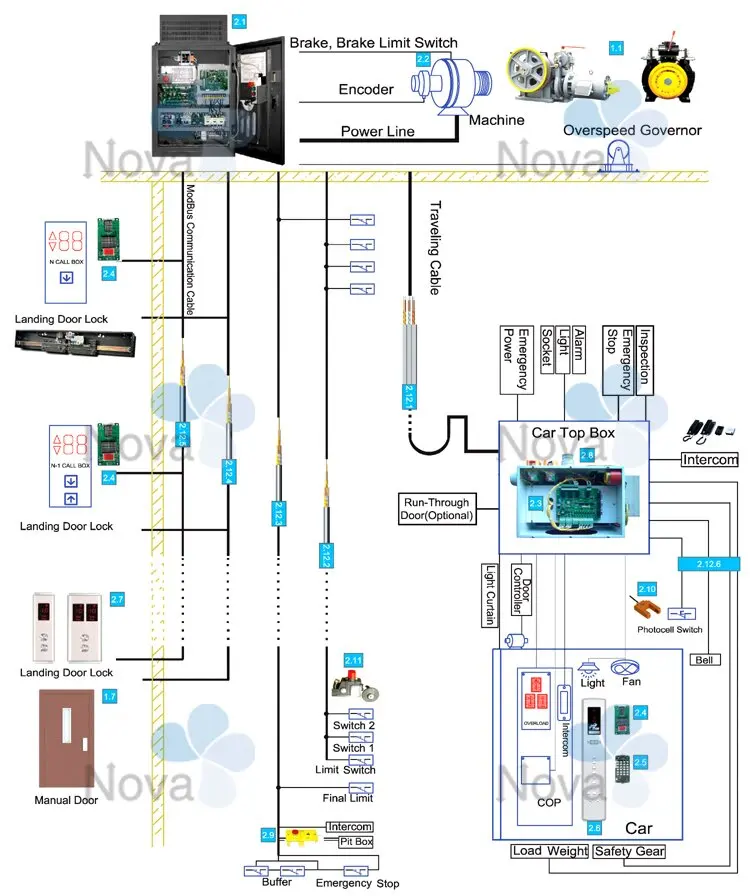

Elevator Accessories
Related Products
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Elevator Cabin includes
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safetey Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Elevator Cabin includes
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safetey Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.
Company Profile
Exhibition
Product Packaging
FAQ
1. Price
Re: please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
Re: please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
