Professional Manufacturer Cost Price Elevator Disconnect Switch Auxiliary Contact

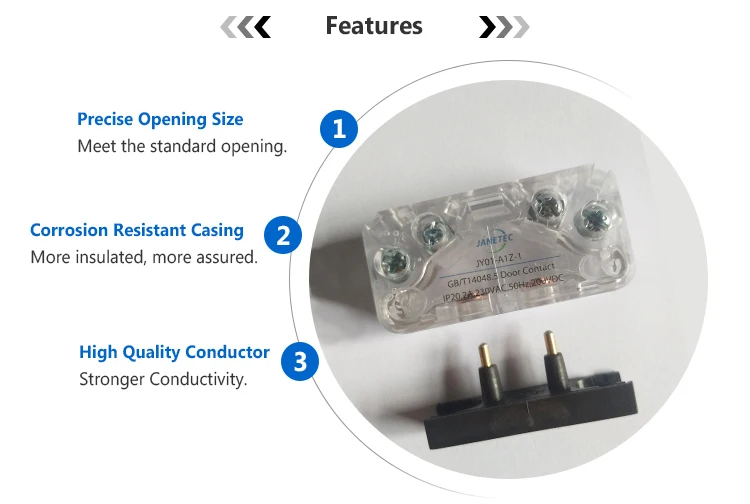

Product model:ZY-JY01-A1Z-1



(Minor differences between the printed image and the original product may exist!)

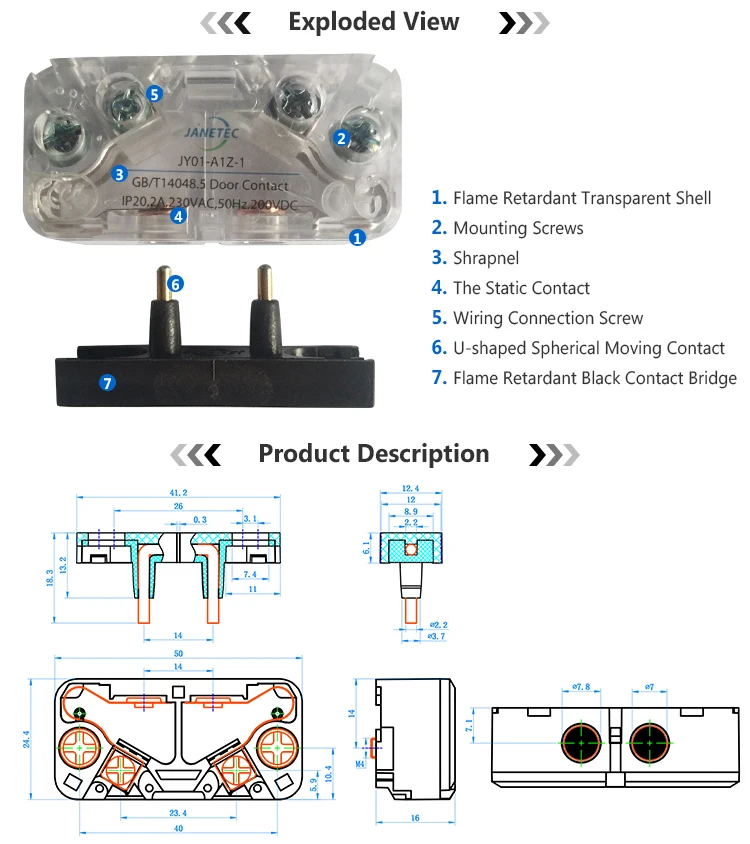

Component list:

Flame retardant transparent shell

Flame retardant black contact bridge

U-shaped spherical moving contact

Square copper nut

Shrapnel

The static contact

Wiring connection screw

Mounting screws

Component material:

Main body shell material:PC

Colour:White transparent

Contact bridge material:PA66+30GF

Colour:black

"U" type moving contact material:AgNi10/Cu

Static contact material:AgNi10/Cu

Material of square copper nut:brass

Shrapnel:Stainless steel

Reference standard:

Standard:EN60947,GB/T14048.

Compliance with the Directives:

Flame retardant grade:V0

Protection grade:IP20

Suitable for elevators

technical parameter:

Working temperature(Min/Max):-30℃/70℃

Wiring connection:M3.5 threaded terminal

Area of wiring section:0.5-1.5mm²

Rated operating voltage(Ue):230Vav,200Vdc

Rated working current(In):2A

Agreed heating current(Ith):4A

Rated insulation voltage(Ui):500V

Downward stroke/Operating Force:4mm/1.5±0.2N

Maximum switching frequency:60 times / minute

Mechanical life:More than 5 million times

Electrical life:More than 3 million times

Specification size:

Dimension unit:mm

Switch body size

-Width:16

-Height:24.4

-long:50

Contact bridge size

-Width:12

-Height:18.3

-long:41.2

Central Distance of Switch Installation Hole:40

Contact bridge mounting hole center distance:29.1

If necessary, you are welcome to negotiate!





>> Click here to know more details

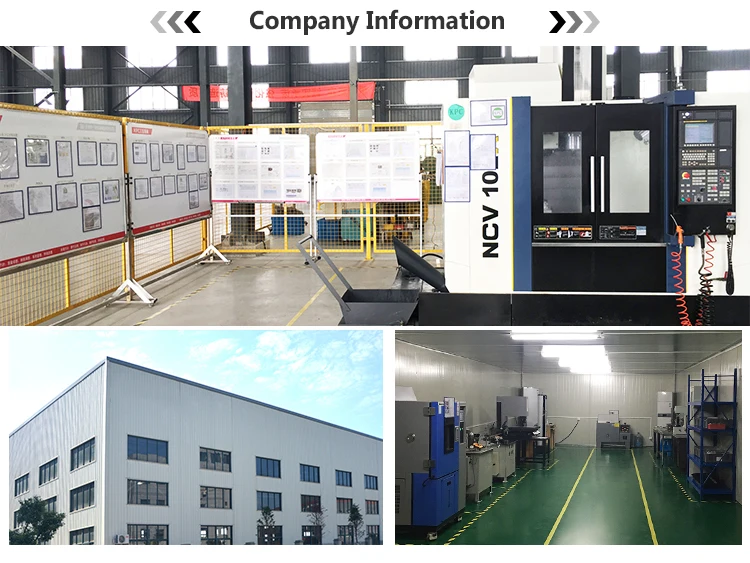

    Ningbo Jiangxuan Trading Co., Ltd. was established in January 2019. It is a foreign trade sales division. We have a production plant with elevator mechanical components in Ningbo and a production facility for electrical components in Shanghai. The company is committed to the development of industrial safety products,manufacturing and sales; we adhere to practical guidelines and work with our customers to create more industrially safe products.

    At present, the company mainly develops, produces and sells elevator door system parts. such as door contact switches, door locks and photoelectric switches. Through the unremitting efforts of our team, we obtained 3C certification in the first half of 2019, and established long-term cooperative relationships with many large international elevator companies and large elevator accessories companies. There are no accumulated steps, no more than a thousand miles; no accumulation of small streams, no rivers and seas, our company will be down-to-earth quality, strong quality, let customers use our products with confidence, this is our ultimate goal.
