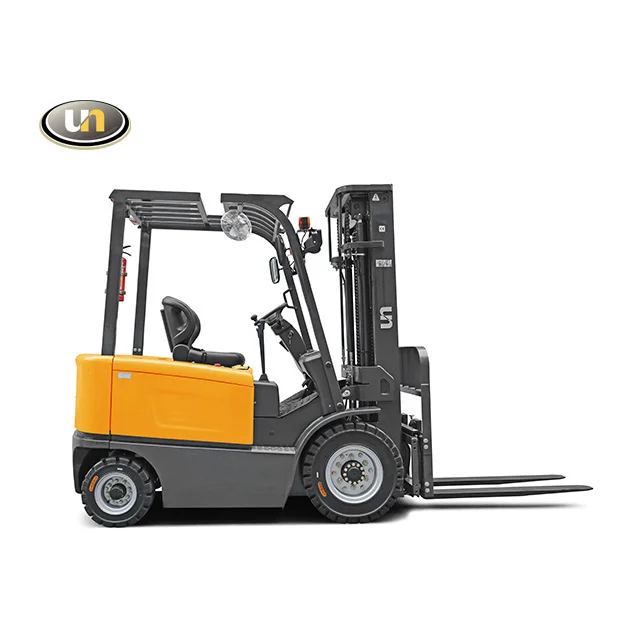

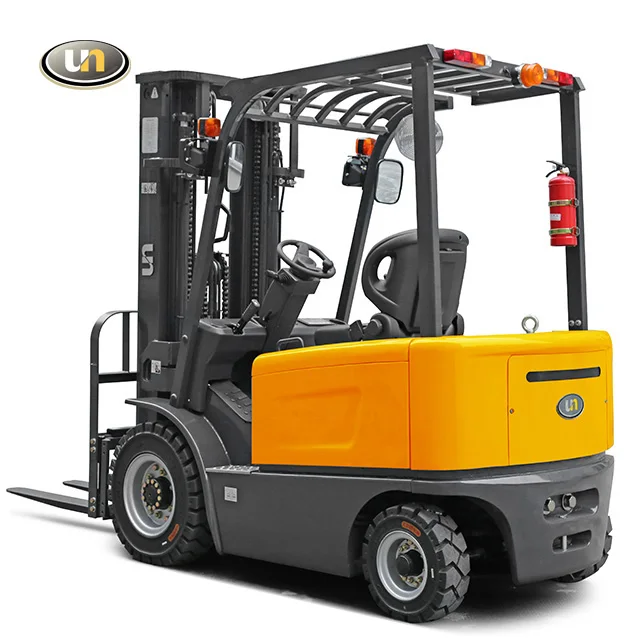

2ton Sit-on Battery Operated Forklift For Sale
Welcome to>> Zhejiang UN Forklift Co., Ltd
Product Description
MAIN SPECIFICATIONS | |||
Specification | Model | UN | FB25-AZ1 |
Rated Load Capacity | Q(kg) | 2500 | |
Load Centre | C(mm) | 500 | |
Lift Height | H3(mm) | 3000 | |
Free Lift | H2(mm) | 100 | |
Fork Size (L×W×T) | L/W/T(mm) | 1070×120×40 | |
F/B(α°/β°) | Deg | 6°/12° | |
Dimensions | Length (To Fork Face) | L1(mm) | 2380 |
Width | B1(mm) | 1150 | |
Mast Lowered Height | H1(mm) | 2055 | |
Mast Extended Height (With Backrest) | H4(mm) | 4070 | |
Overhead Guard Height | H5(mm) | 2125 | |
Turning Radius | Wa(mm) | 2080 | |
Fork Overhang (Wheel Center to Fork Face) | X(mm) | 478 | |
Front Tread | B2(mm) | 970 | |
Rear Tread | B3(mm) | 950 | |
Ground Clearance | H6(mm) | 120 | |
Wheelbase | Y(mm) | 1500 | |
Fork Spread (Min/Max) | (mm) | 250/1040 | |

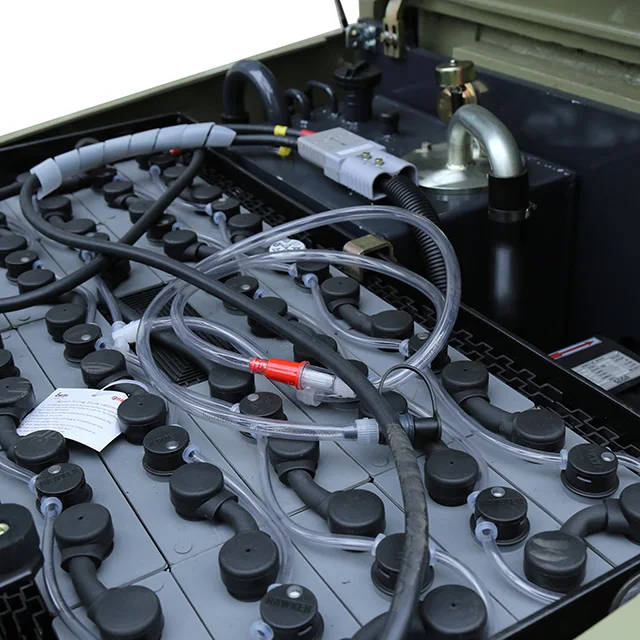

Drive | Battery (Standard) | V/Ah | 48/620 |
Controller Type |
| AC | |
Controller Manufacturer |
| ZAPI | |
Operating Pressure | Mpa | 17.5
| |

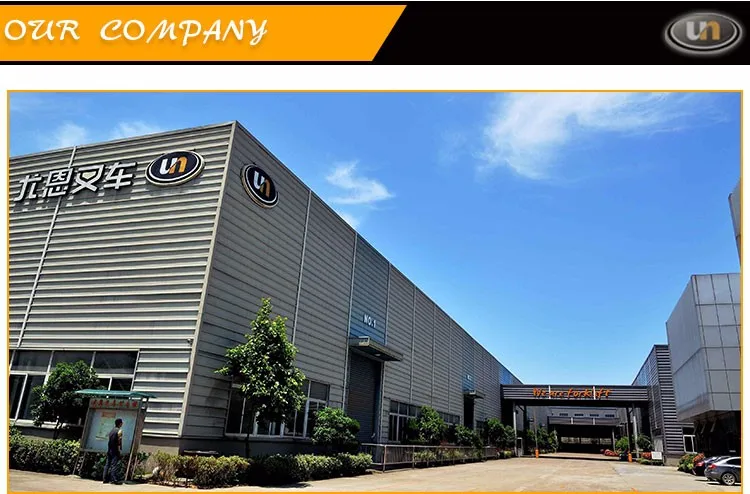

Company Information
ZHEJIANG UN FORKLIFT was established in 1978. Backed by over 35years of experience, UN FORKLIFT grows one of the most well-known global material handing equipment brands combining research, manufacturing, sales and service. UN FORKLIFT has developed a wide range of dealer network including Europe, North America, South America, Southeast Asia, Middle East, and its sales and service station extend to more than 130 countries and regions. UN FORKLIFT made a rapid progress in the past years. The newly established workshop has the production capacity of 15000 units/year. The promising strategy together with the advanced technology attracts a number of professionals working for the development of UN FORKLIFT. With all these achievements, we are proud of UN FORKLIFT and say we are forklift!
|
We are the one of topest forklift truck manufactures with 133,000 square meters in China, it has more than 35 years with Europe technology of forklift manufacturing experiences.
The universal UN-series forklift with CE certificate are offered like:
Diesel forklift truck(1.5-10.0t)
Gasoline/PLG forklift truck(1.5-5.0t)
Electric forklift truck: 3-wheel(1.3-2.0t), 4-wheel(1.5-5.0t)
Warehouse Equipment: reach truck(stand-on), reach truck(sit-in), double deep reach truck, VNA, electric stacker, electric pallet truck
How to choose the most suitable UN forklift trucks?
1. Power Type
2. Load Capacity
3. Mast Size and Height
4. Side Shifter, tyre and etc.
Packaging & Shipping
Certifications
FAQ
1.What's the Certificate do you have?
UN workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate. Epa approval can be available if needed.
2. Can you customize and design as the clients' requirement?
UN will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the first.
4. Can you produce the products labeled with the client's brand?
Yes, we do!
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery or LC at sight, or 70%balance upon BL COPY.
6. Delivery date:
If clients need normal products, we will deliver the products within 25days. If clients need customerized products, the delivery date depend on the requirements.
