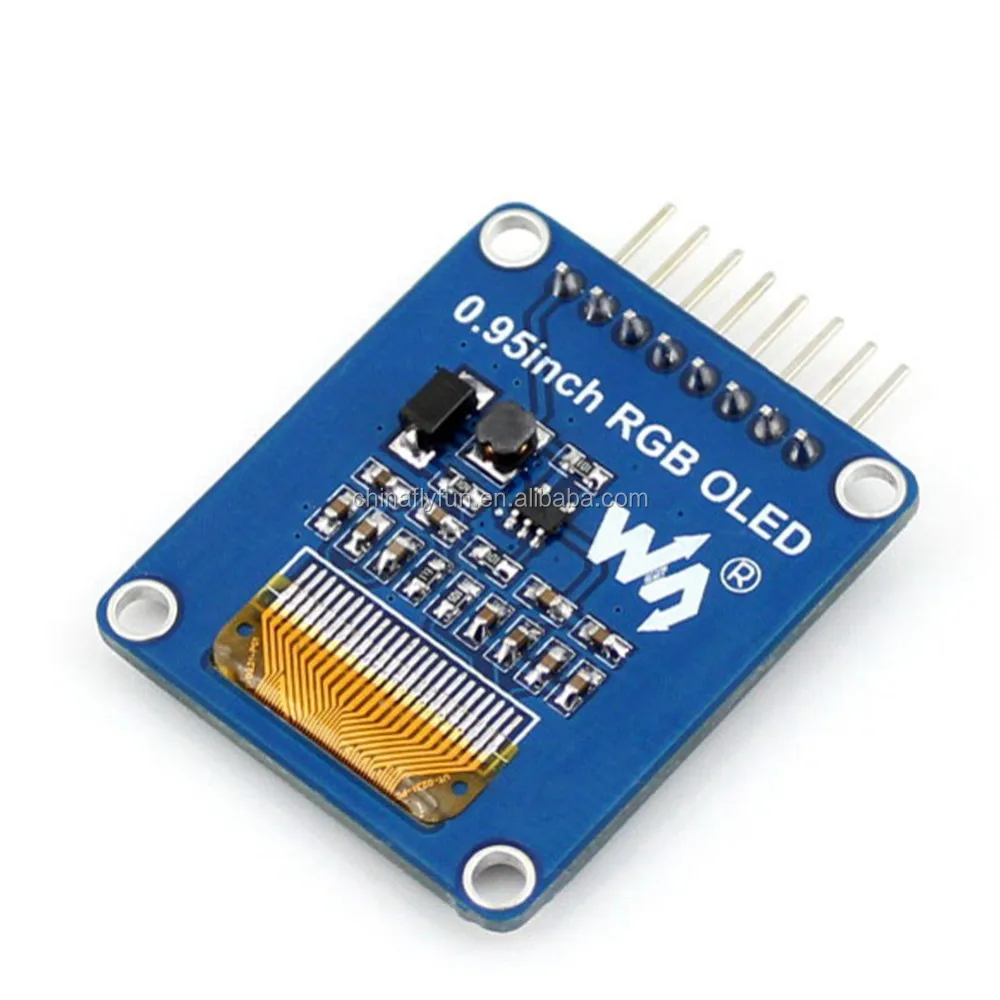

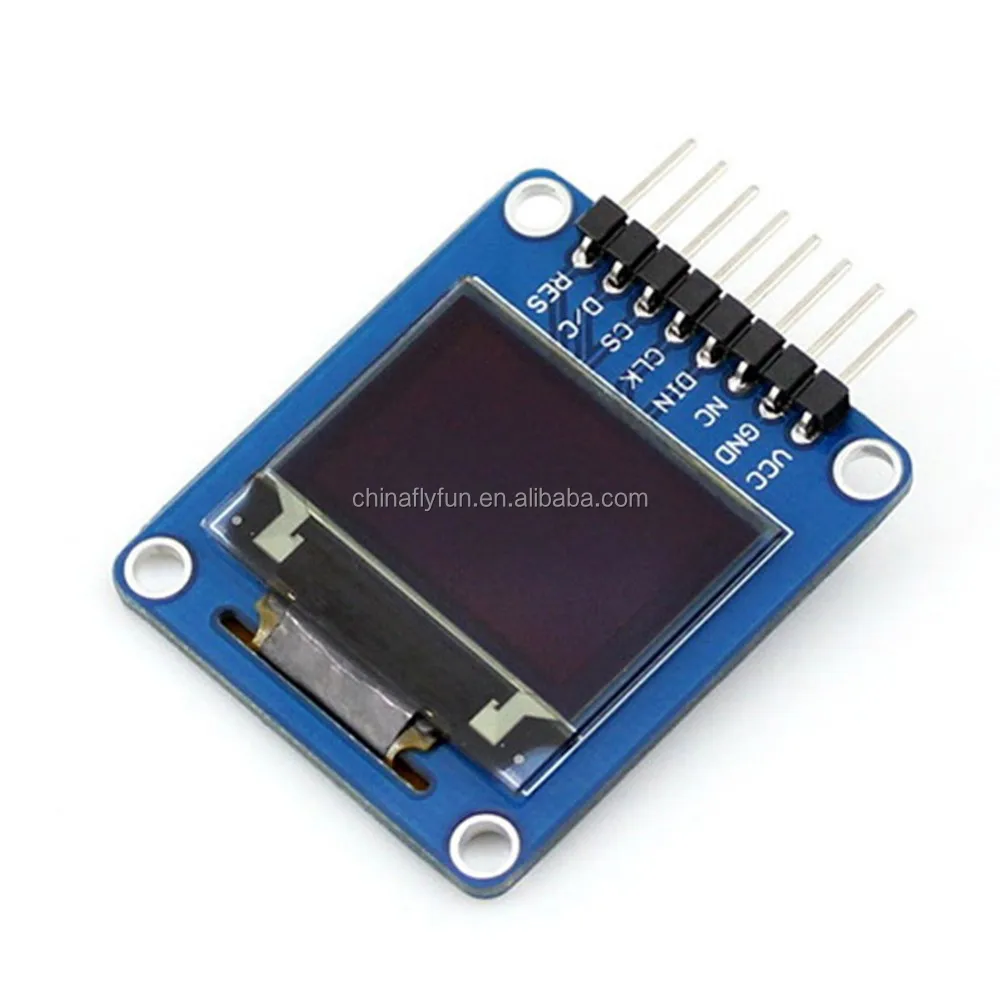

DIYmall 0.95'' inch SSD1331 RGB OLED LCD Display Module for Arduino





Key Parameters

Driver Chip     SSD1331
Interface     SPI
Resolution     96×64
Display Size     0.95inch
Colors     65K colorful
Visible Angle     >160°
Operating Temp. (℃)     -20~70
Storage Temp. (℃)     -30~80
Operating Voltage     3.3V / 5V

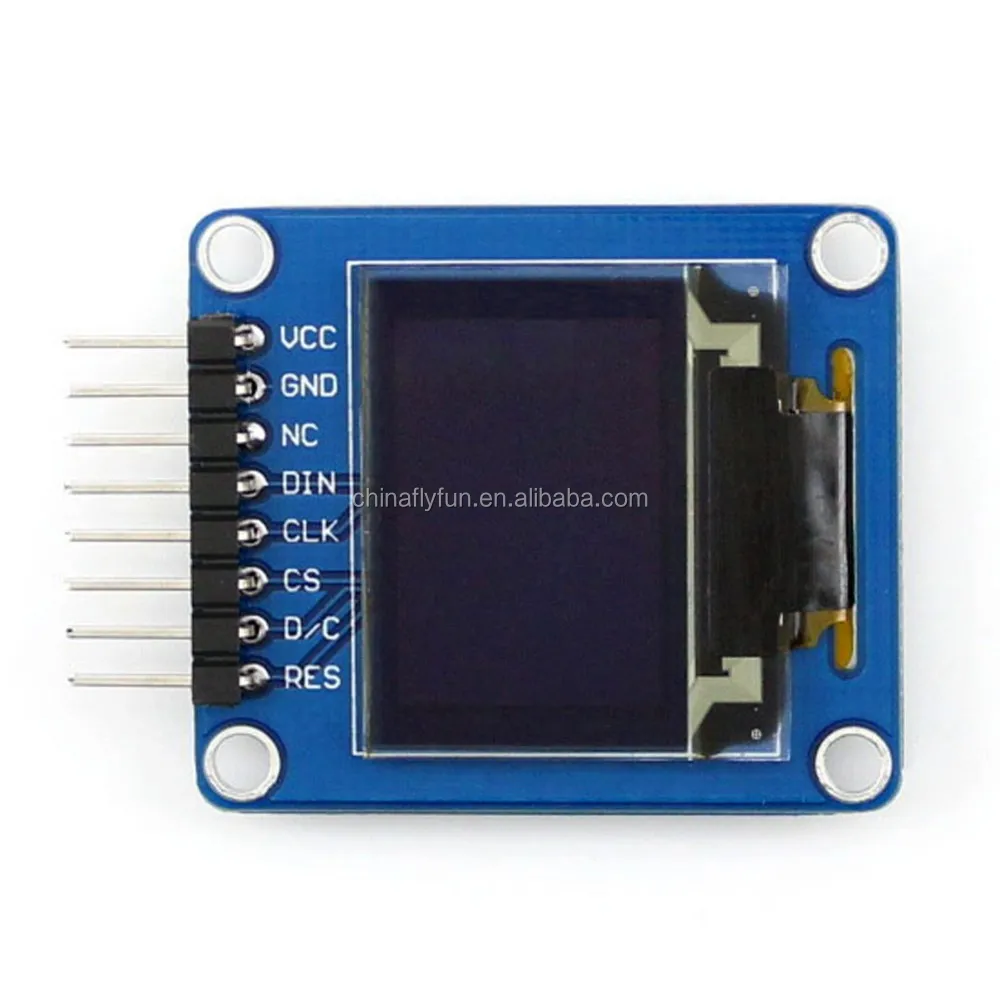

Interface
PIN NO.    SYMBOL    DESCRIPTION
1     VCC     Power positive (3.3~5V power input)
2     GND     Ground
3     NC     NC
4     DIN     Data input
5     CLK     Clock signal input
6     CS     Chip selection, low active
7     D/C     Command signal, low level for command, high level for data
8     RES     Reset signal, low active

Document link:http://www.waveshare.com/wiki/0.95inch_RGB_OLED_%28A%29

Package Included:
1 X 0.95inch RGB OLED
