FE 443 Z Sprag подшипник клетки сцепления для печатной
- Категории: Другие шарикоподшипники >>>
- Поставщик: Changzhou,Suma,Precision,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
FE 443 Z Sprag Bearing Cage Overrunning Clutch
for Printing Machine
Product Description
Description: fe overrunning clutch
Material: Chrome Steel GCr15
Structure: FE series Freewheelclutches transmit or support torque moment by friction contact
in one direction and permit idling in the opposite direction.
Application: indexing, backstop, overrunning
Sample: accept
Delivery time: 5-7 days after order confirmed.
Package: wooden box, carton or customized.
Payment terms: TT, L/C, D/A, D/P, Western Union, Paypal
Catalogue of overrunning clutch fe for your choice
| Dimensions [mm] | FE 400 | FE 400 Z | FE 400 Z2 | Idling speed Clutch | ||||
| dL | DL | Part Number | Torque M [N.m] | Part Number | Torque M [N.m] | Part Number | Torque M [N.m] | nmax [RPM] |
| 2 | 10 | FE 410 Z2 | 0.3 | 10,000 | ||||
| 4 | 12 | FE 412 Z | 3 | FE 412 Z2 | 1.8 | 10,000 | ||
| 5 | 13 | FE 413 Z2 | 2.9 | 9,000 | ||||
| 6 | 14 | FE 414 Z | 7 | FE 414 Z2 | 2.6 | 8,500 | ||
| 8 | 16 | FE 416 Z | 12 | FE 416 Z2 | 7.6 | 7,500 | ||
| 14 | 22 | FE 422 | 48 | FE 422 Z | 44 | FE 422 Z2 | 21 | 5,300 |
| 15 | 23 | FE 423 | 55 | FE 423 Z | 48 | FE 423 Z2 | 24 | 5,200 |
| 17 | 25 | FE 425 | 68 | FE 425 Z | 58 | FE 425 Z2 | 30 | 4,700 |
| 19 | 27 | FE 427 | 80 | FE 427 Z | 66 | FE 427 Z2 | 36 | 4,400 |
| 20 | 28 | FE 428 | 87 | FE 428 Z | 75 | FE 428 Z2 | 39 | 4,200 |
| 22 | 30 | FE 430 | 101 | FE 430 Z | 87 | FE 430 Z2 | 46 | 4,000 |
| 24 | 32 | FE 432 | 116 | FE 432 Z | 97 | FE 432 Z2 | 52 | 3,700 |
| 25 | 33 | FE 433 | 124 | FE 433 Z | 107 | FE 433 Z2 | 56 | 3,600 |
| 27 | 35 | FE 435 | 141 | FE 435 Z | 121 | FE 435 Z2 | 64 | 3,400 |
| 29 | 37 | FE 437 | 158 | FE 437 Z | 137 | FE 437 Z2 | 71 | 3,200 |
| 30 | 38 | FE 438 | 168 | FE 438 Z | 144 | FE 438 Z2 | 76 | 3,100 |
| 34 | 42 | FE 442 | 207 | FE 442 Z | 178 | FE 442 Z2 | 93 | 2,800 |
| 35 | 43 | FE 443 | 217 | FE 443 Z | 187 | FE 443 Z2 | 98 | 2,700 |
| 40 | 48 | FE 448 | 272 | FE 448 Z | 235 | FE 448 Z2 | 122 | 2,500 |
| 45 | 53 | FE 453 | 333 | FE 453 Z | 281 | FE 453 Z2 | 146 | 2,200 |
| 50 | 58 | FE 458 | 400 | FE 458 Z | 345 | FE 458 Z2 | 178 | 2,000 |
| 51 | 59 | FE 459 | 414 | FE 459 Z | 357 | |||
| 55 | 63 | FE 463 | 472 | FE 463 Z | 407 | FE 463 Z2 | 202 | 1,900 |
| 60 | 68 | FE 468 | 550 | FE 468 Z | 474 | FE 468 Z2 | 243 | 1,750 |
| 62 | 70 | FE 470 | 583 | FE 470 Z | 502 | 1,700 | ||
| 65 | 73 | FE 473 | 633 | FE 473 Z | 545 | 1,600 | ||
| 70 | 78 | FE 478 | 722 | FE 478 Z | 622 | 1,500 | ||
| 80 | 88 | FE 488 | 914 | FE 488 Z | 788 | 1,300 | ||

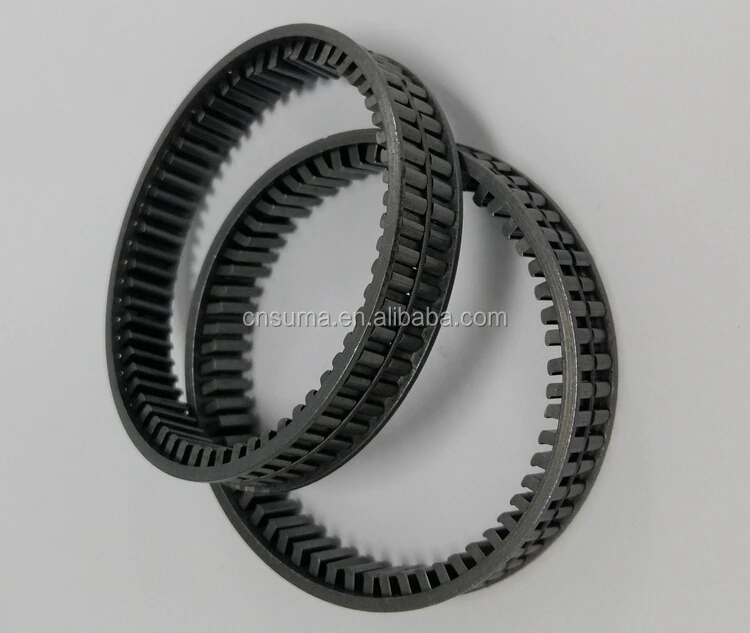

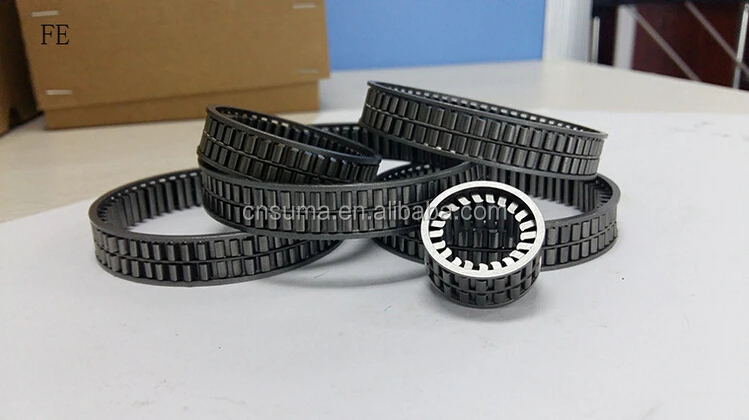

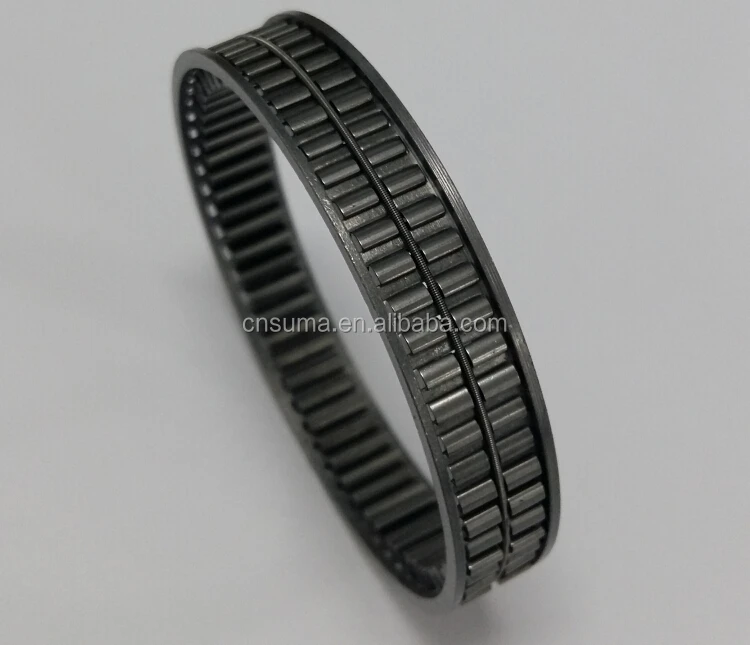

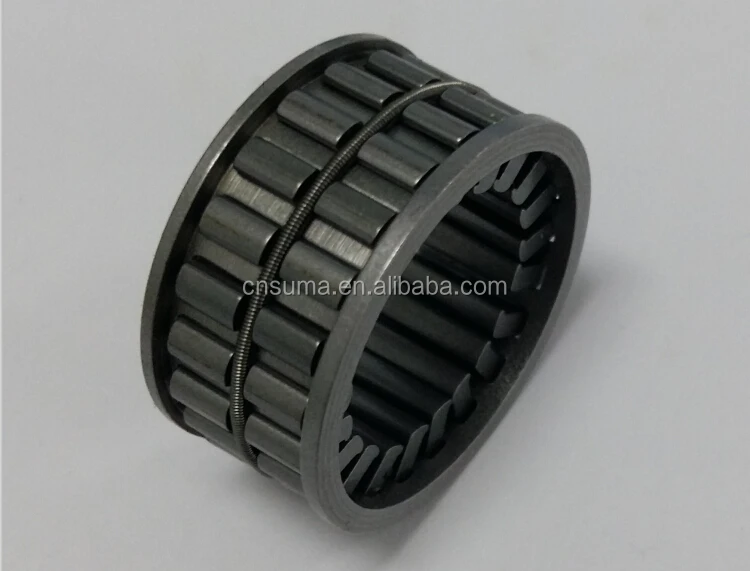

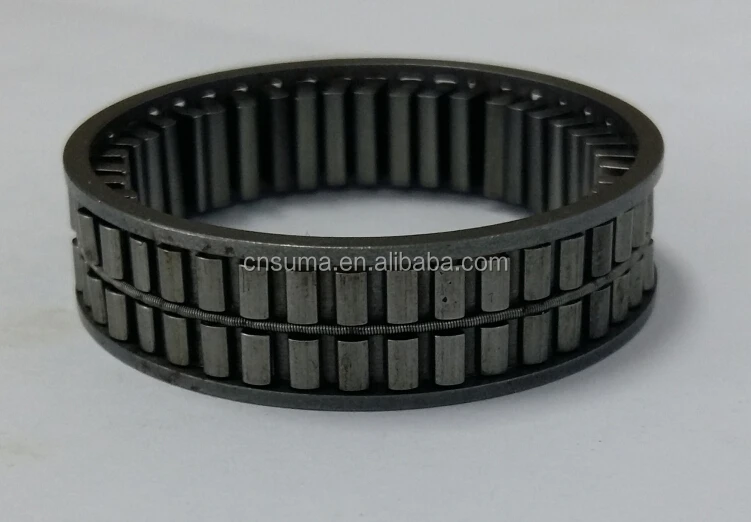

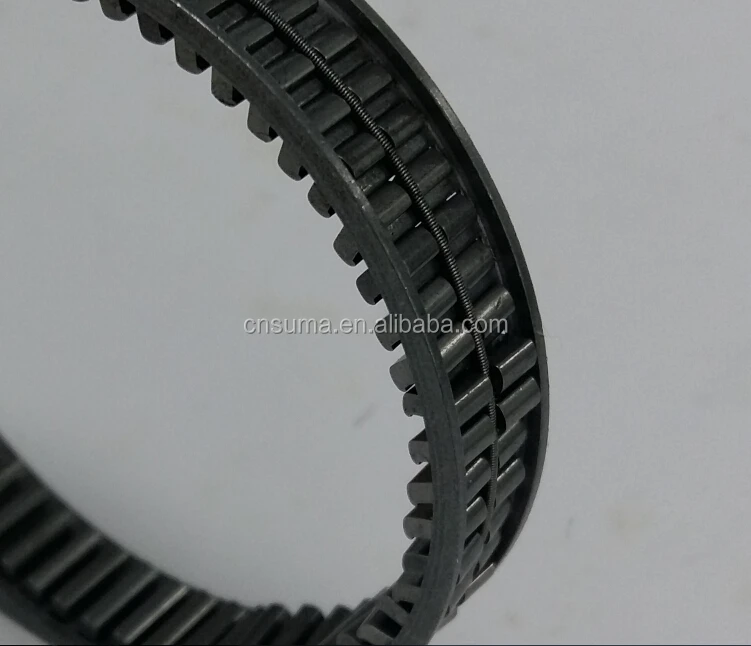

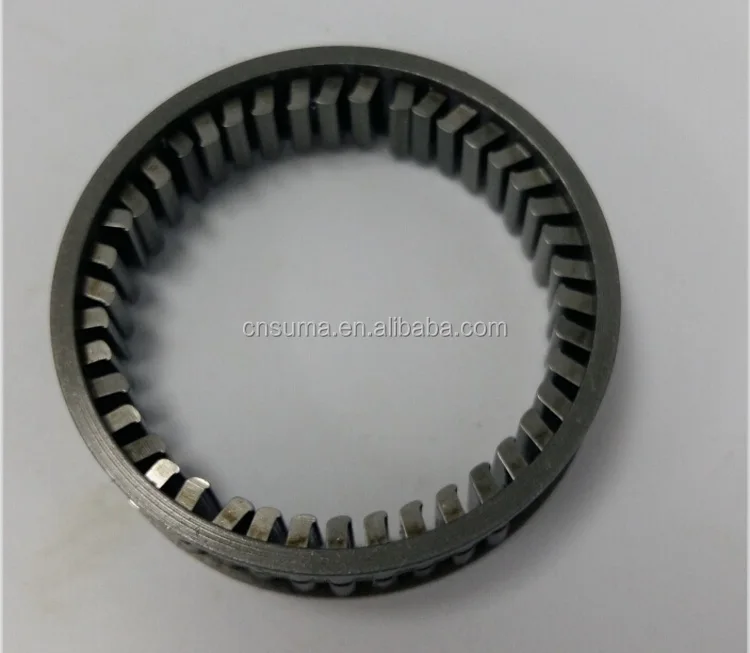

Detailed Images
Company Information
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Production flow
Certifications
Clients Visit
FAQ
Q: How do you pack the goods?
- Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
- Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
- Small items: In stock.
- Medium Items: 10-15 Days
- Big items: 20-25 Days
