Опорный подшипник скольжения подушки подшипники типа Y YAR 215-2F шарикоподшипники YAR215-2F Замена Подшипники для корпуса

Описание и отзывы

Характеристики

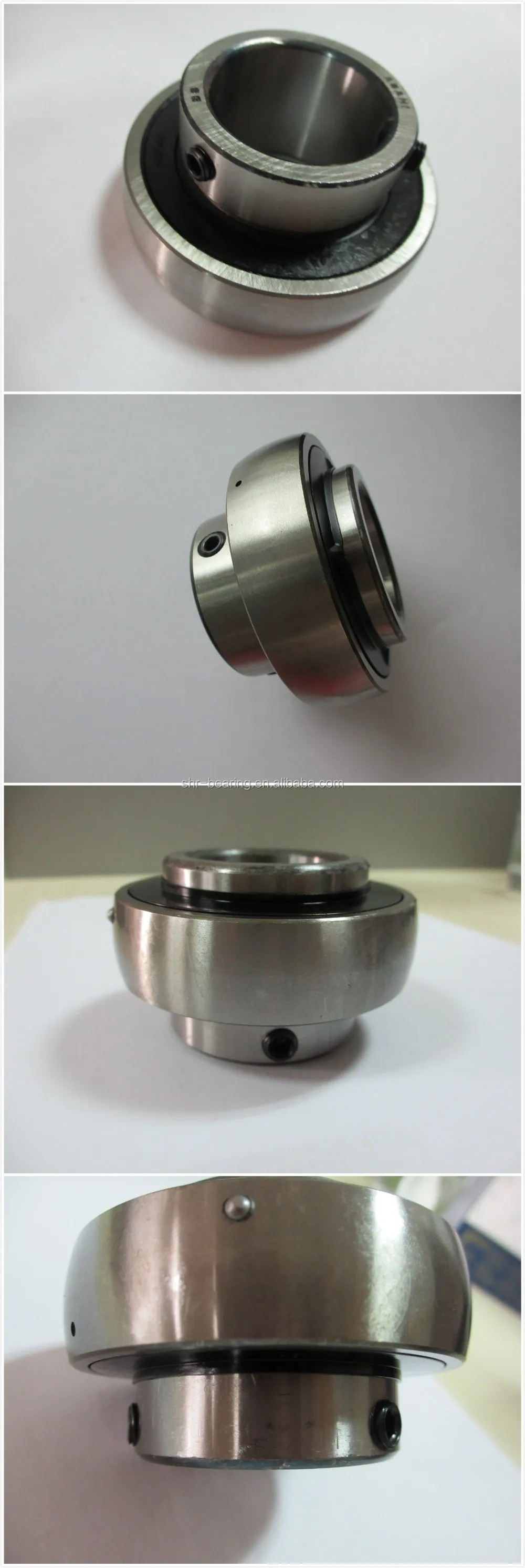

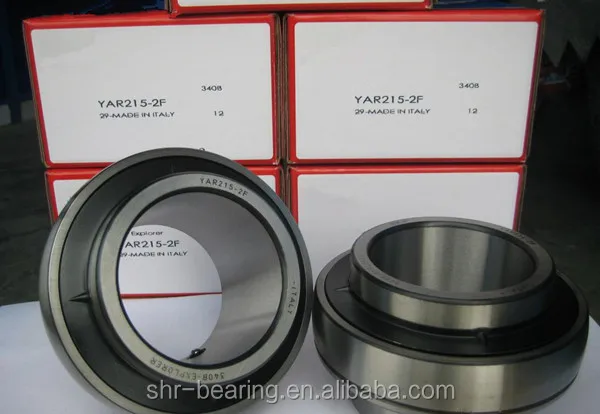

Pillow block Y-bearings YAR 215-2F Insert ball bearings YAR215-2F replacement bearings for housing block













Y-bearings, with grub screws YAR 215-2F

Bearing number : YAR 215-2F

Size (mm) : 130x75x73.3

Brand : SYBR

Bore Diameter (mm) : 130

Outer Diameter (mm) : 75

Width (mm) : 73,3

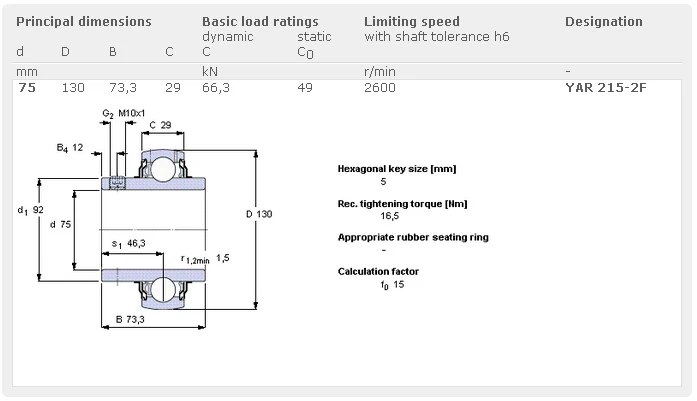

Bearing dimensions and specification in brand catalogue :

d - 75 mm

D - 130 mm

B - 73.3 mm

C - 29 mm

d1 - - 92.05 mm

B4 - 12 mm

r1,2 - min. - 1.5 mm

s1 - 46.3 mm

Basic dynamic load rating - C - 66.3 kN

Basic static load rating - C0 - 49 kN

Fatigue load limit - Pu - 2 kN

Limiting speed with shaft tolerance h6 - 2600 r/min

Calculation factor - f0 - 15

Mass bearing - 2.1 kg

Thread - G2 - M10x1

Hexagonal key size for grub screw - H - 5 mm

Recommended tightening torque for grub screw - 16.5 N·m








Other related data for Y-bearing pillow block bearing YAR215-2F bearing :

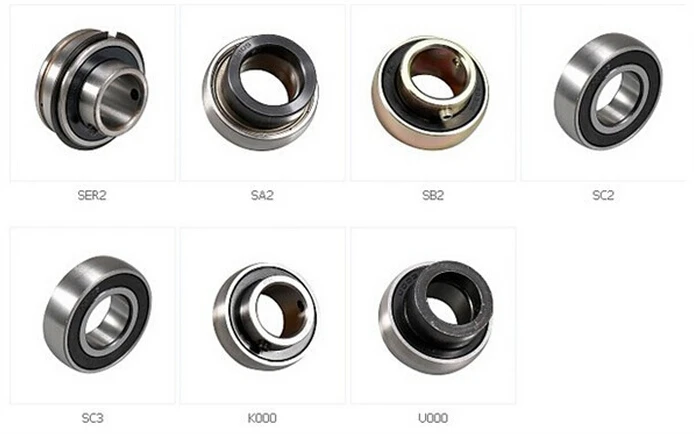

UC types insert bearings :

Unit No.	Dimensions mm in.			Weight
	d	D	B	(kg)
UC305	25	62	38	0.35
UC305-13	13/16	2.4409	1.4961	0.4
UC305-14	7/8	2.4409	1.4961	0.38
UC305-15	15/16	2.4409	1.4961	0.36
UC305-16	1	2.4409	1.4961	0.35
UC306	30	72	43	0.56
UC306-17	1/16	2.8346	1 .6929	0.61
UC306-18	1-1/8	2.8346	1 .6929	0.58
UC306-19	1-3/16	2.8346	1 .6929	0.56
UC307	35	80	48	0.71
UC307-20	1-1/4	3.1496	1.8898	0.77
UC307-21	1-5/16	3.1496	1.8898	0.74
UC307-22	1-3/8	3.1496	1.8898	0.71
UC307-23	1-7/16	3.1496	1.8898	0.68
UC308	40	90	52	0.96
UC308-24	1-1/2	3.5433	2.0472	1.01
UC308-25	1-9/16	3.5433	2.0472	0.97
UC309	45	100	57	1.28
UC309-26	1-5/8	3.937	2.2441	1.39
UC309-27	1-11/16	3.937	2.2441	1.35
UC309-28	1-3/4	3.937	2.2441	1.3
UC310	50	110	61	1.65
UC310-29	1-13/16	4.3307	2.4016	1.97
UC310-30	1-7/8	4.3307	2.4016	1.74
UC310-31	1-15/16	4.3307	2.4016	1.68
UC311	55	120	66	2.07
UC311-32	2	4.7244	2.5984	2.25
UC311-33	2-1/16	4.7244	2.5984	2.18
UC311-34	2-1/8	4.7244	2.5984	2.12
UC311-35	2-3/16	4.7244	2.5984	2.04
UC312	60	130	71	2.6
UC312-36	2-1/4	5.1181	2.7953	2.75
UC312-37	2-5/16	5.1181	2.7953	2.67
UC312-38	2-3/8	5.1181	2.7953	2.58
UC312-39	2-7/16	5.1181	2.7953	2.5
UC313	65	140	75	3.25
UC313-40	2-1/2	5.5118	2.9528	3.34
UC313-41	2-9/16	5.5118	2.9528	3.24
UC314	70	150	78	3.89
UC314-42	2-5/8	5.9055	3.0708	4.11
UC314-43	2-11/16	5.9055	3.0708	4
UC314-44	2-3/4	5.9055	3.0708	3.9
UC315	75	160	82	4.72
UC315-45	2-13/16	6.2992	3.2283	4.99
UC315-46	2-7/8	6.2992	3.2283	4.85
UC315-47	2-15/16	6.2992	3.2283	4.76
UC315-48	3	6.2992	3.2283	4.63
UC316	80	170	86	5.55
UC316-49	3-1/16	6.6929	3.3858	5.72
UC316-50	3-1/8	6.6929	3.3858	5.58
UC316-51	3-3/16	6.6929	3.3858	5.49
UC317	85	180	96	6.67
UC317-52	3-1/4	7.0866	3.7795	6.89
UC317-53	3-5/16	7.0866	3.7795	6.76
UC317-55	3-7/16	7.0866	3.7795	6.44
UC31S	90	190	96	7.56
UC318-55	3-7/16	7.4803	3.7795	7.85
UC319	95	200	103	8.7
UC319-58	3-5/8	7.874	4.0551	9.03
UC319-59	3-11/16	7.874	4.0551	8.85
UC319-60	3-3/4	7.874	4.0551	8.66
UC320	100	215	108	11.2
UC322	110	240 9.4488	117 4.6063	15.1
UC324	120	260 10.2362	126 4.9606	19
UC326	130	280 11.0236	135 5.3150	23.6
UC328	140	300 11.810	145 5.7087	29.4





Application for insert bearing :

a. Auto wheel hub, Auto engine, Auto axle

b. Agricultural machinery, Rotary plow bearings, Tractor, Water pump, Oil engine harvester, Seeder, Tricycle, Farm vehicle, Cultivator

c.Engineering machinery, Excavator, Dozer, Paver, Loader, Hoisting machinery, Piling soil machinery

d. Steel mill machinery, Oil field machinery, Motorship machinery

e. Hardware tool, Electric power tool, Household appliance industry

f. Electronic toys, Fitness equipment, Building machinery

g. Series Of Pumps, Antiseptic Pump, Water pump, Submersible pump, Sewage pump
