Housing bearing Split plummer block bearing SNL3134
Bearing Details
Materials of bearing SNL3134 Split plummer block SNL :
SNL plummer block housings in the 30, 31 and 32 series are also referred to as “Large SNL plummer block housings”. These plummer block housings enable the bearings to achieve maximum bearing service life with less need for maintenance. This supports user efforts to further reduce maintenance costs. Among other enhancements, SNL housings are designed for easy alignment and handling during installation. Another benefit is the choice of oil or grease lubrication for the bearings housed in SNL plummer blocks. A range of seals for oil lubrication and difficult environments provide trouble-free operation.
SNL plummer block housings are made of grey cast iron. For applications where the strength of grey cast iron is inadequate, dimensionally equivalent housings made of spheroidal graph-ite cast iron can be supplied. These housings are only available with four cast attachment bolt holes (series FSNLD) or without any holes in the base (series SSNLD).

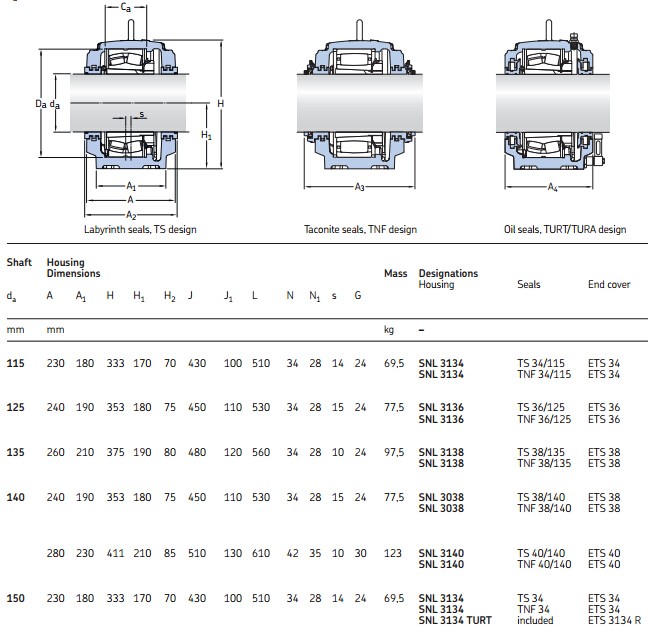

Bearing SNL3134 SNL plummer block bearings types Specification :
Shaft Dia (mm) | Housing | Seal | End Cover | Bearing | Adapter Sleeve |
| 150 | SNL3134 | TS34 | ETS34 | 22326CCK/W33 | H2326 |
Split plummer block housing bearings SNL500 series model list :
housing No. | Bearing No. | Bearing No. |
SNL507-606 | 1207EK | 2207EK |
SNL507-607 | 1307EK | 2307EK |
SNL508-607 | 1208EK | 2208EK |
SNL510-608 | 1308EK | 2308EK |
SNL509 | 1209EK | 2209EK |
SNL511-609 | 1309EK | 2309EK |
SNL510-608 | 1210EK | 2210EK |
SNL512-610 | 1310EK | 2310K |
SNL511-609 | 1211EK | 2211EK |
SNL513-611 | 1311EK | 2311K |
SNL512-610 | 1212EK | 2212EK |
SNL515-612 | 1312EK | 2312K |
SNL513-611 | 1213EK | 2213EK |
SNL516-613 | 1313EK | 2313K |
SNL515-612 | 1215K | 2215EK |
SNL518-615 | 1315K | 2315K |
SNL516-613 | 1216K | 2216EK |
SNL519-616 | 1316K | 2316K |
SNL 517 | 1217K | 2217K |
SNL520-617 | 1317K | 2317K |
SNL526 | 22226EK | 23226CCK/W33 |
SNL206-305 | 1305E | 2305 |

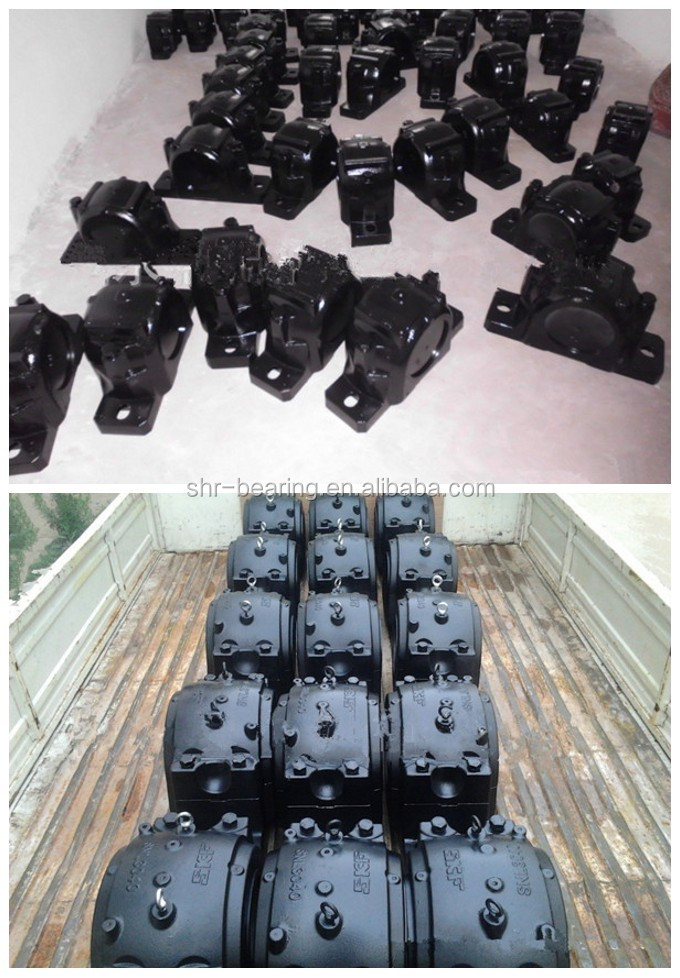

Bearing Pictures

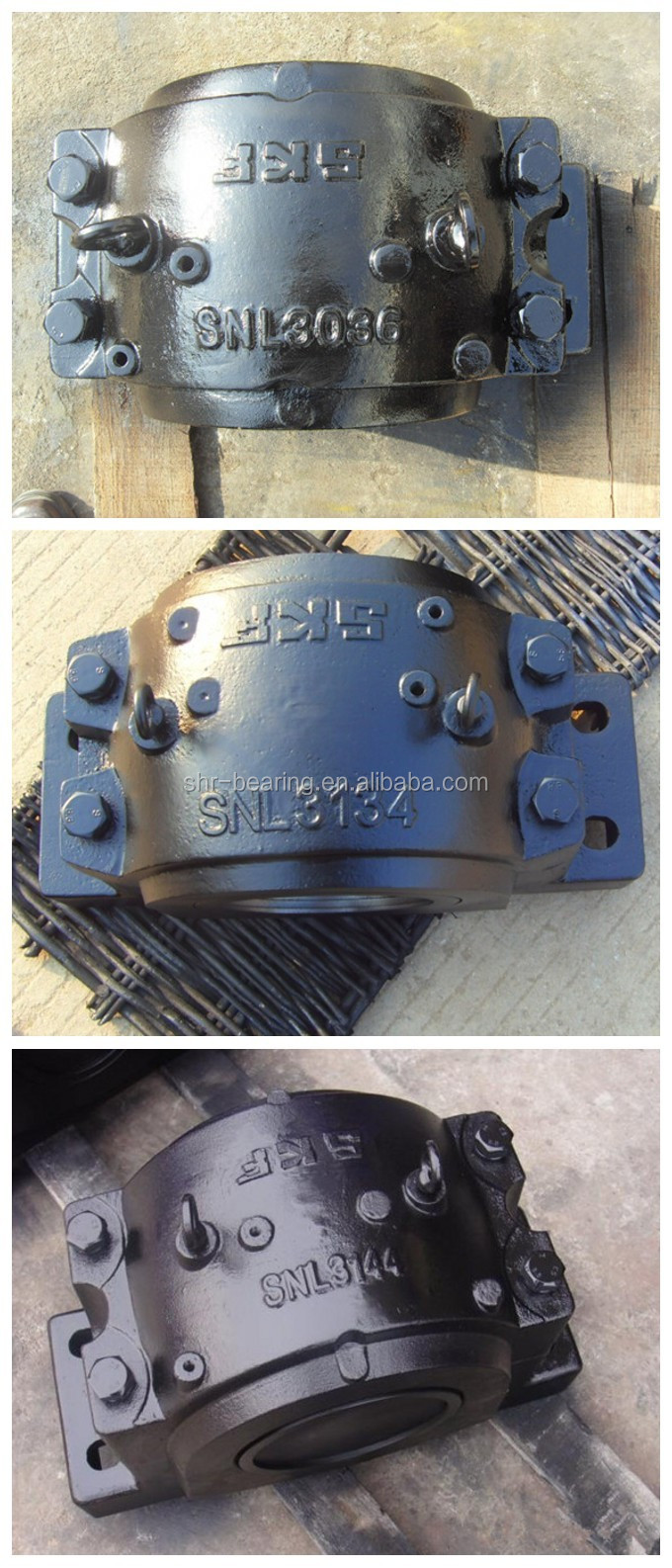

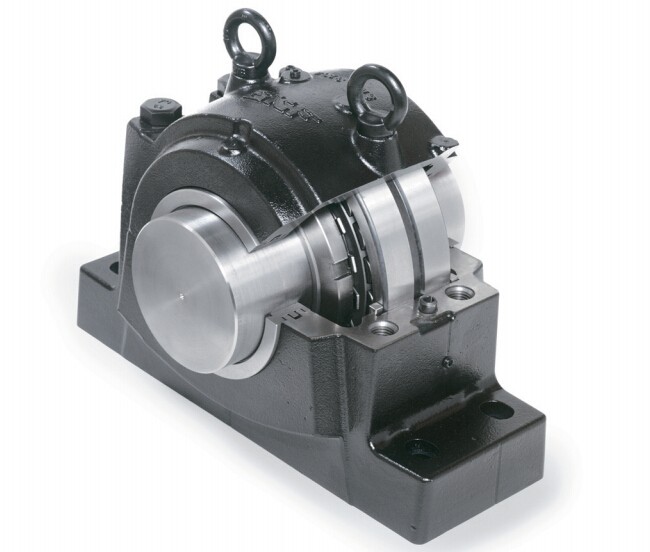

Housing bearing Split plummer block bearing SNL3134 pictures reference :

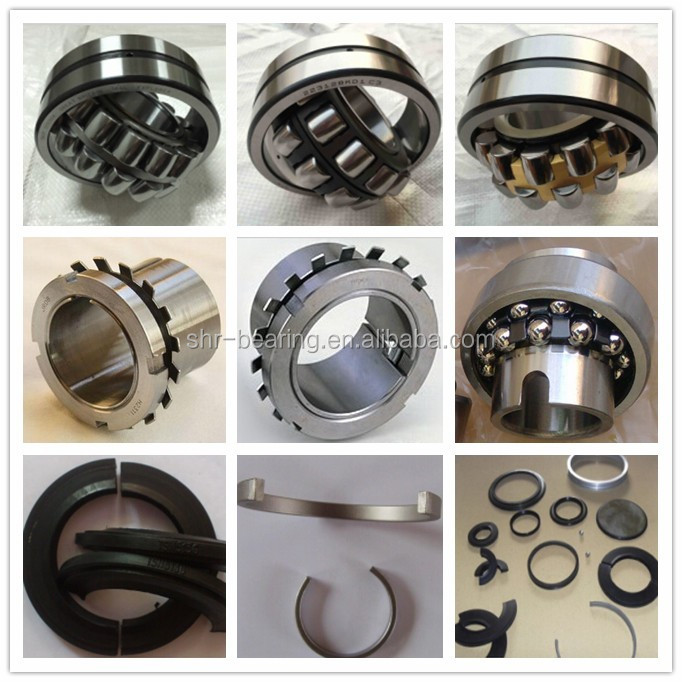

SNL Split plummer block housings accessories for your choose :
1) Spherical roller bearings
2) Adapter sleeves
3) Self-aligning ball bearings
4) Oil seals
5) Locating ring
6) End covers

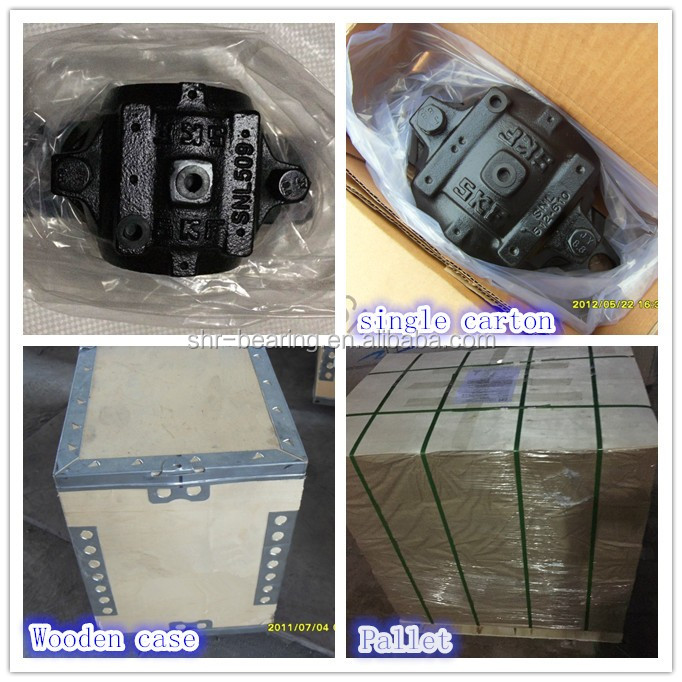

BEARING PACKING
Housing bearing Split plummer block bearing SNL3134 packing :
1) Small size plummer block housings are single cartons packing.
2) Big size plummer block housings are wooden case packing
3) Pallates at final .
BEARING KNOWLEDGE
SNL Split plummer block housings knowledge :
Bearing types :
- Self-aligning ball bearings
- Spherical roller bearings
- CARB toroidal roller bearings
Customer demands :
• Robust design
• No breakdowns
• Extremely effective seals
• Long maintenance intervals
• Condition monitoring facilities
• Fast and easy mounting and dismounting

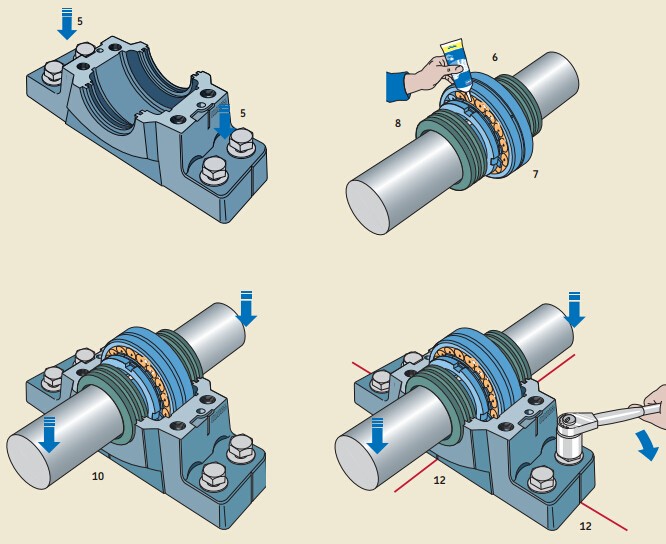

Mounting aid :
To simplify mounting and make alignment more accurate, cast indications in the end faces of the housing base indicate the housing bore axis and the vertical axis.
Heat conduction :
The extra ribs in the housing base provide additional surface area between the base and base plate to improve heat flow away from the bearing.
Lubrication :
SNL plummer block housings with standard seals are designed for grease lubrication. For oil lubrication, modified SNL housings are available. These housings are supplied only together with the seals specially developed for oil lubrication.
BEARING APPLICATION
Applications for SNL Plummer Block housings set :
• conveyors and drums
• roller beds and converters
• tube mills and rotary furnaces
• paper machines
• windmills
• pinions of open gears
• large electrical machines
• rudder post bearing arrangements
• ships’ shafting support bearing arrangements.
Company introduction
Our company information :
| Company name | shanghai shengyue bearing Co.,Ltd |
| Business type | manufacturer |
| Established year | 2012 |
| Business product | all kinds of bearings |
| OWN Brand | SHR |
| Export range | 81%-90% |
| OEM service | offer |
| Our advantages | 1. More than ten years bearing products exporting experiences. 2. OEM order and non-standard bearing order can be accepted. 3. Many sizes of bearing are available. Large quantity bearing can be provided. 4. A certain number of free sample can be provide to support our customer's after-sale services and warranty. |
Trading information :
| Price terms | EXW FOB CNF CFR, CIF |
| Payment terms | L/C ,T/T ,Western Union, Paypal |
| Express way | DHL FEDEX TNT UPS |
| Shipping port | shanghai ,qingdao ,nongbo, guangzhou |
| Packing | 1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets |
Our Factory :
How a bearing be made out ? ---- Production procedures :
How we test the bearings ?
Shipping express we cooperated :
Bearing catalog :
For any questions, please find us !
Contact with us :
==================================================================================
Shanghai Shengyue Bearing Co.,Ltd
Contact : Ms. Alice Xiong
Skype : alice.bear01
Tel:+86 18701870126
Email :shr0374(at)shr-bearing.net
Web:http://shr-bearing.en.alibaba.com/
Address: Room701,Yizheng Building,No.681 Xincun Road,Putuo District. Shanghai,China.
==================================================================================
