Product Description

VMC-640 China factory cheap sale high precision mini metal hobby cnc milling machine

One. VMC-640 China factory cheap sale high precision mini metal hobby cnc milling machine Features:

1.High rigidity structure,best stabilization.

2.Main structure achieves its best high rigidity and stablization through the analysis of finite element.

3.The stabilization of castings machining precision can be guaranteed through twice seasoning.

Two. VMC-640 China factory cheap sale high precision mini metal hobby cnc milling machine VMC-640(line rail):

Machine Type		Measure	VMC-640
Working table's size(length×width)		mm	700×420
Left-to-right travel(X axle)		mm	600
Front-to-back travel(Y axle)		mm	400
Spindle travel(Z axle)		mm	480
The distance from spindles center to vertical guide surface		mm	460
The distance from the spindle's bottom end to table surface		mm	80-560
Working table's T groove		mm	3-14
specifications of Ball screw's diameter			3210
Working table's bearing capability		kg	400
Machine's net weight		T	3
Spindle speed		rpm	6000
Rapid feed rate(X/Y/Z)		m/min	30/30/30
Spindle out power		kw	5.5
Precision	Positioning	mm	0.005/300
	Repeating	mm	0.003

Three. Chief Configurations of CNC Machine Tool VMC-640(line rail):

1, Electric parts of CNC Machine Tool VMC-640(line rail):

Travel No.	Name	Brand Habitat	Remarks
1	CNC System	MITSUBISHI/FANUC(Japan)	M70
2	Drive motor	MITSUBISHI/FANUC(Japan)
3	Spindle motor	MITSUBISHI/FANUC(Japan)
4	Relay	OMRON(Germany)
5	Contactor	SCHNEIDER(France)
6	Breaker	SIEMENS(Germany)
7	Transformer	JUCHE(China)
8	Switch power supply	MEAN WELL(Taiwan)
9	Electron hand wheel	Japan
10	Water tank motor	China

2, Machinery parts of CNC Machine Tool VMC-640(line rail):

Travel No.	Name	Brand Habitat	Remarks
1	Spindle	PUSON(Taiwan )	8000r/ min
2	Coupling shaft	Germany R+W
3	Pressurizes vat	HAOCHENG or SHENGYU(Taiwan )
4	Lead screw of three axles	HIWIN C3(Taiwan)
5	High accurate beeline lead rail of three axles	HIWIN(Taiwan) or THK(Japan)
6	Lubricant oil road	NIKKA YUKI(Japan )
7	Axletree	NSK (Japan )	(P level of high accurate avoid matching axletrees)
8	20 bamboo hat style or 24 manipulator tool store
9	Accurate round nut	Taiwan
10	Whole machine bolts	Taiwan	(High intensity 12.9 grade)

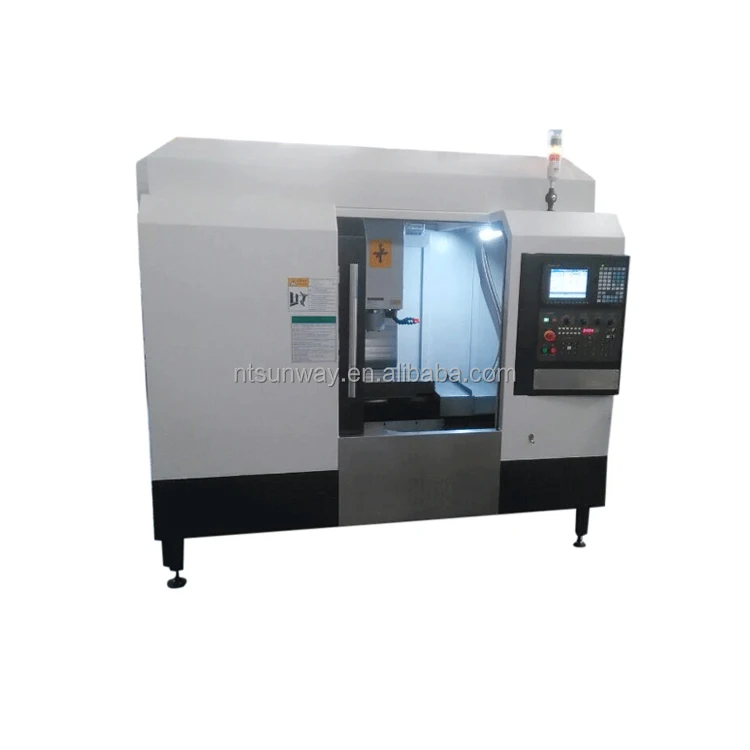

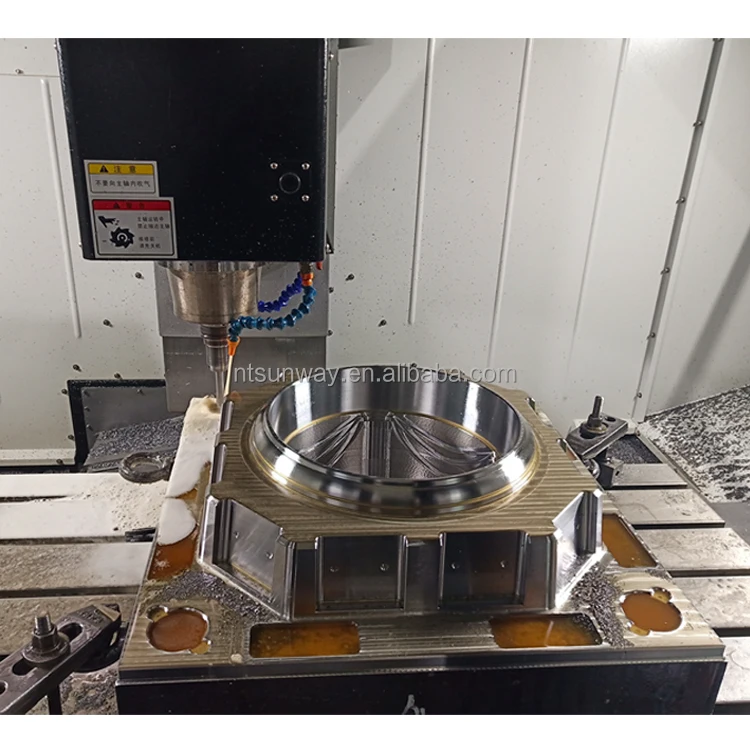

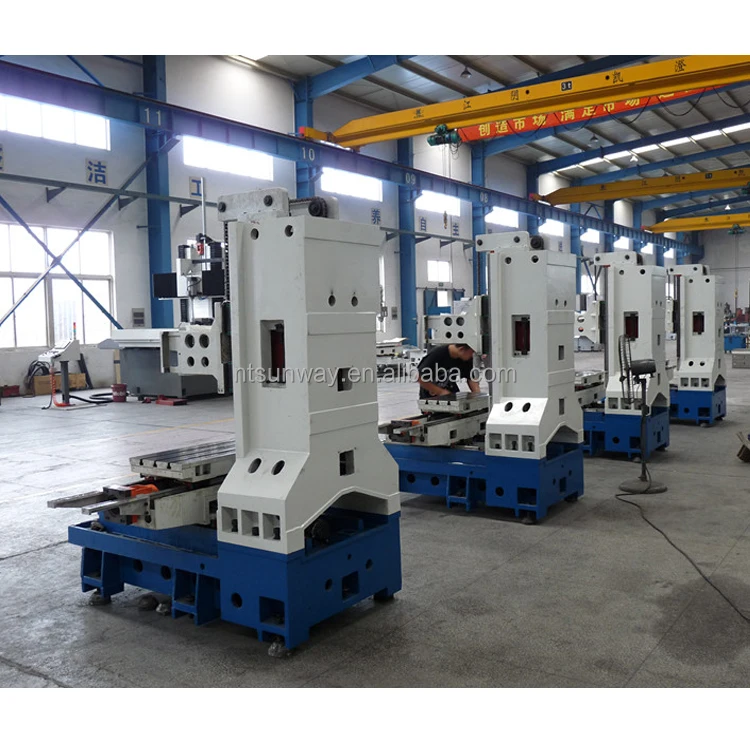

Four. CNC Machine Tool VMC-640(line rail) photos:

5 .jpg .jpg .jpg .jpg

Product Description

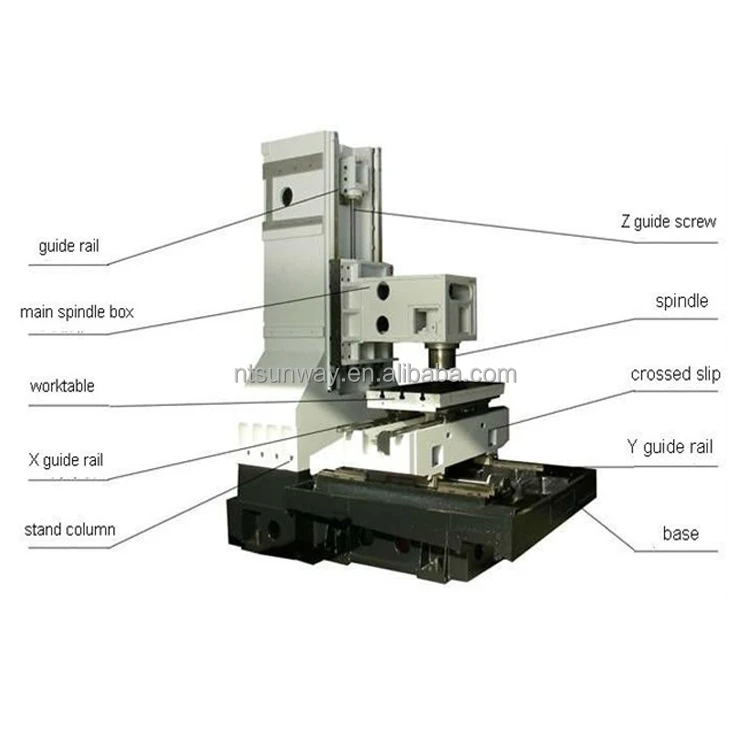

For hard rail type vertical machining center,the guide rails of machine tool are double-deck. machine base is box type design, coordinate with large span stand column, it is more wider 40% than other same type machine tool, the design is conform to mechanics principle.

Use C3 grade high precision ball screw and pre-pull treatment bearing to ensured the rigidity and precision.

The casting of machine tool which exported to DMG is high-grade, high quality gray casting iron with aging treatment, the TURCITE is from USA RULON, with hand scraping, the line rail is from Taiwan famous brand, ensure the precision and lengthen the working life of machine tool.

Use Japan Mitsubishi,Fanuc or other international brand control system

Use Taiwan Royal or Puson Spindle

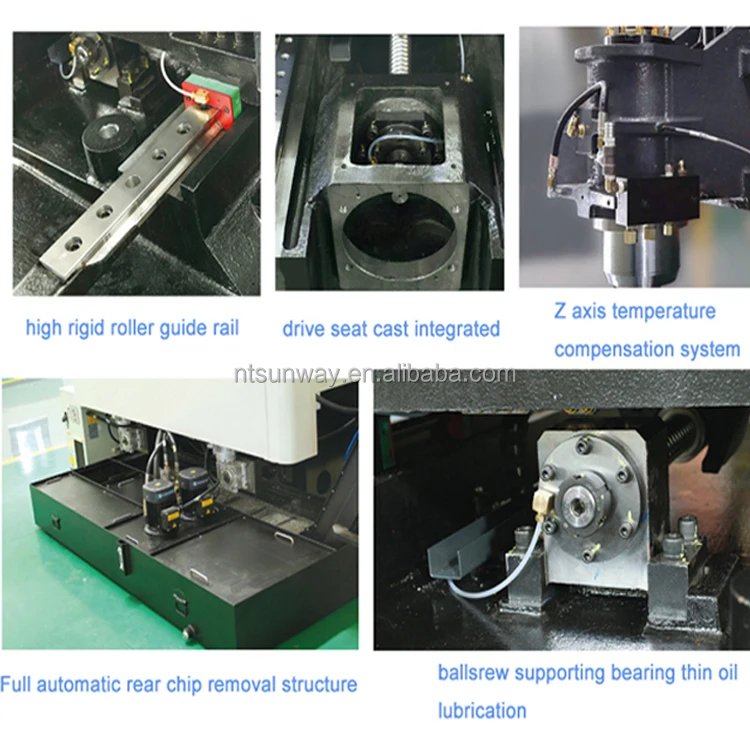

Use Taiwan Hiwin or PMI guide rail and ballscrew, Japan NSK or NARCH bearing to ensure the precision of machine tool

Use Taiwan Deta 24 arm type tool changer

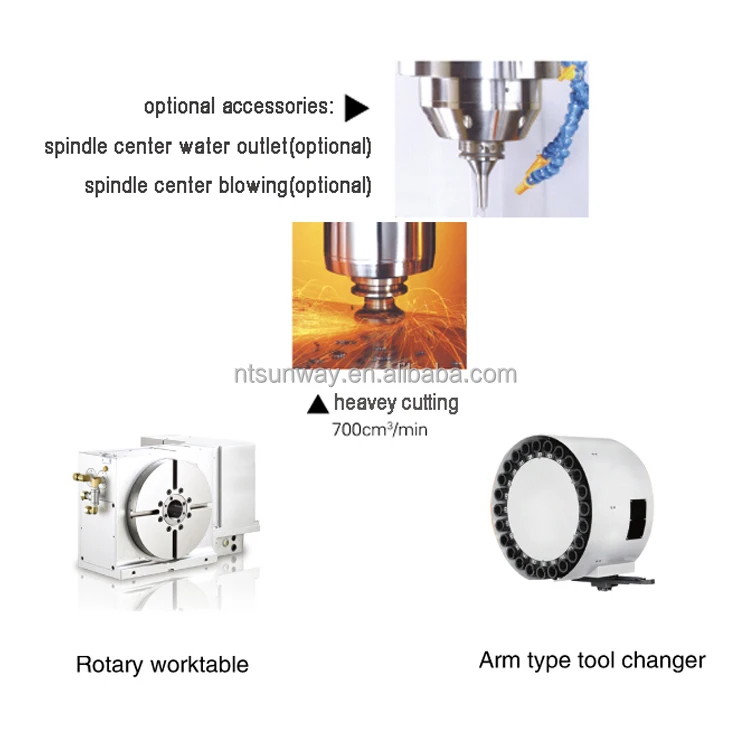

The forth axis and Chip conveyor, Renishaw tool guage are optional
