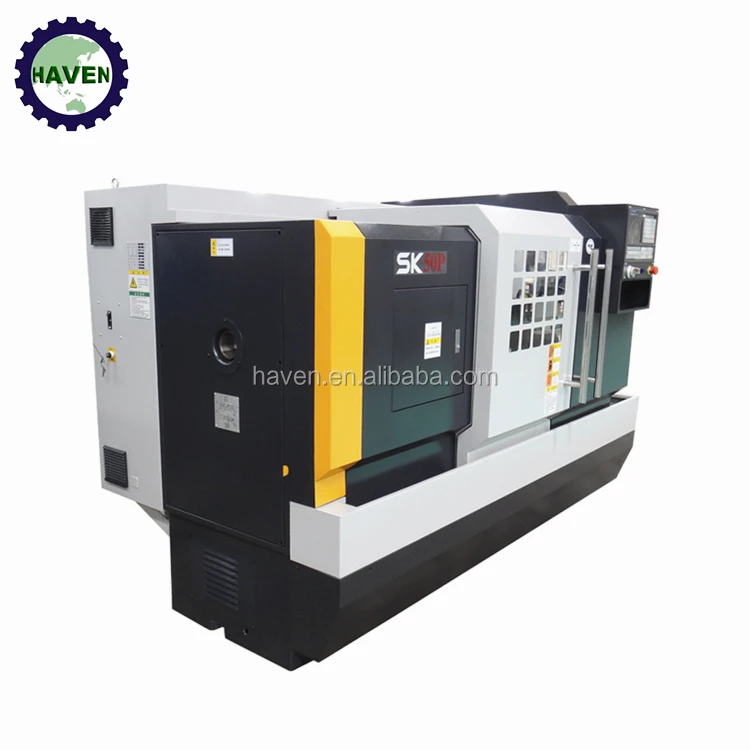

SK50P/1500 semi -auto horizontal cnc lathe machine and cnc metal turning machine
Product Description
SK40P/SK50P horizontal CNC lathes that spindle speed are changed mechanically in three gears together with control of a frequency changer. The lathe has 4 types (750, 1000, 1500, 2000). Equipped with 4-station (standard)/ 6-station turret (optional), the lathes are available for different cuttings. The sliding door ensures the operator’s safety. CNC systems such as Guangzhou 980T,FANUC 0i Mate-TD, Huazhong 21T, Sinumerik 802C basline/802DSL, Dasen 3i, KND1000T,etc. is provided on request. The lathes can perform internal and external cylindrical turning, arbitrary taper turning, arc turning, facing and threading. They are suitable for various middle or small batch production, especially for complicated and high accuracy workpieces.
Main specification:
ITEMS | UNIT | SK40P | SK50P | ||
Capacity | Max. swing dia. over bed | mm | Φ400 | Φ500 | |
Max. swing dia. over carriage | mm | Φ200 | Φ280 | ||
Max. turning diameter | mm | Φ400/Φ350* | Φ500/Φ350* | ||
Distance between centers | mm | 710/960/1460/1960 (620/870/1370/1870)* | |||
Max. turning length | mm | 570/820/1320/1820 (500/750/1250/1750)* | |||
Spindle | Type of spindle nose |
| ISO 702/Ⅱ D8 Short-taper cam-locking type | ||
Spindle bore diameter | mm | Φ77 | |||
Spindle speed | rpm | 3-step 21-1620 H:162-1620 M: 66-660 L: 21-210 | |||
Max. torque of spindle | N.m | 800 | |||
Spindle drive motor power(continuous or 30minutes) | kW | 7.5 | |||
Tailstock | Quill diameter | mm | Φ75 | ||
Quill travel | mm | 150 | |||
Tailstock quill taper | . | Morse No.5 | |||
Turret | X/Z rapid traverse rate | m/min | 6/12 | ||
Number of tool stations |
| 4(6 Option) | |||
Tool section | mm | 25×25 | |||
X travel | mm | 300 | |||
Z travel | mm | 650/900/1400/1900 | |||
Others | Dimensions(L) | mm | 2250/2500/3000/3500 | ||
(W) | mm | 1370 | |||
(H) | mm | 1690 | |||
Package dimensions (L×W×H) | mm | 2550/2800/3300/3800×1920×2200 | |||
Net weight | kg | 2050/2100/ 2150/2200 | 2100/2150/ 2200/2260 | ||

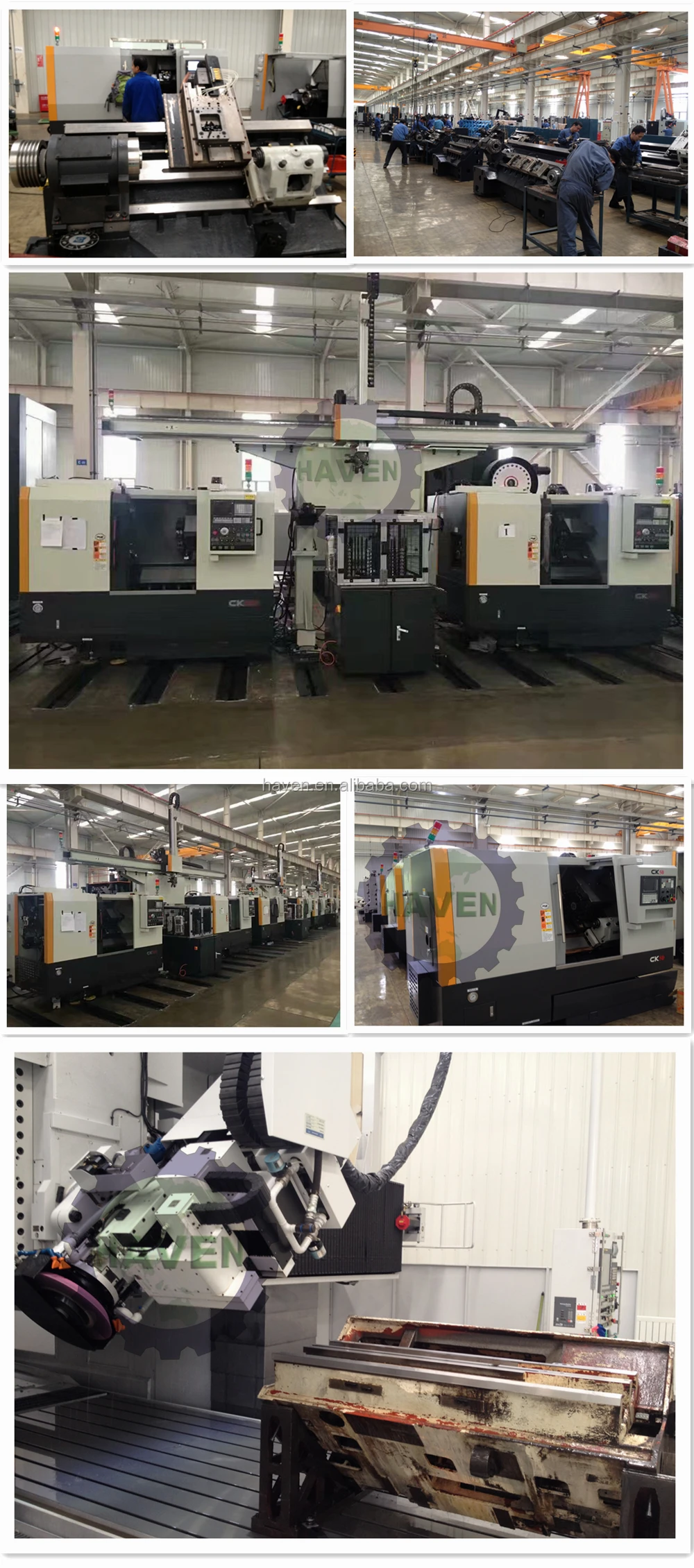

Our Workshop:
