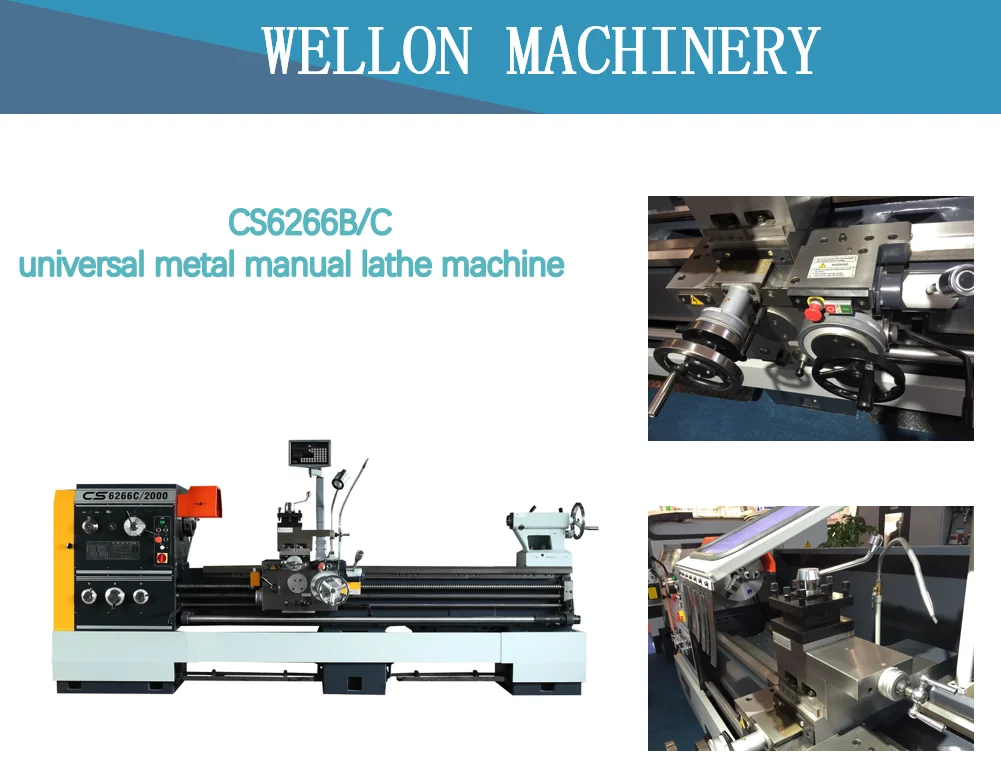

Металлический токарный станок с зазором CS6266C/Токарный
- Категории: Machine Tool Equipment >>>
- Поставщик: Tengzhou,Wellon,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Features:
Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Machine all kinds of flat stocks and those in irregular shapes;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
Technucal Parameter :
SPECIFICATIONS | UNIT | CS6266C | |
Capacity | Max. swing dia. over bed | mm | 660 |
Max. swing dia.in gap | mm | 870 | |
Max. swing dia. over slides | mm | 420 | |
Max. workpiece length | mm | 2000 | |
Bed width | mm | 400 | |
Spindle | Spindle bore diameter | mm | Φ105 |
Type of spindle nose | no | ISO 702/II NO.8 | |
Spindle speed | rpm | 12 steps 36-1600 | |
Spindle motor power | KW | 7.5 | |
Tailstock | Diameter of quill | mm | 75 |
Max. travel of quill | mm | 150 | |
Taper of quill (Morse) | MT | 5 | |
Turret | Tool O.D. size | mm | 25X25 |
Feed | Max. X travel | mm | 145 |
Max. Z travel | mm | 310 | |
X feed range | mm/r | 65 kinds 0.063-2.52 | |
Z feed range | mm/r | 65 kinds 0.027-1.07 | |
Metric threads | mm | 22 kinds 1-14 | |
Inch threads | t.p.i | 25 kinds 28-2 | |
Module threads | πmm | 18 kinds 0.5-7 | |
Diametricpitch threads | t.p.i.π | 24 kinds 56-4 | |
Others | Length | mm | 3800/4800 |
Width | mm | 1150 | |
Height | mm | 1880 | |
Weight | kg | 3200/3500 | |
Standard accessories:
Company Information
FAQ
1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
