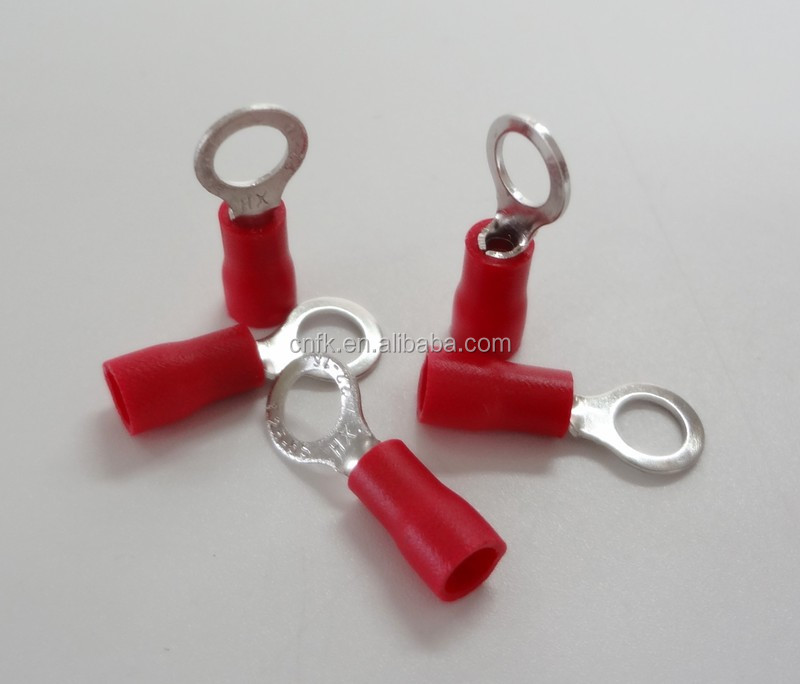

Fanke RV1.25-8 латунь медь-типный коннектор холодного отжима терминалы для
- Категории: Terminals >>>
- Поставщик: Zhejiang,Fanke,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Banner
Product Description
| Cable size:0.5-1.5mm2 (A.W.G 22-16) Max current:Imax=19A | ||||||||

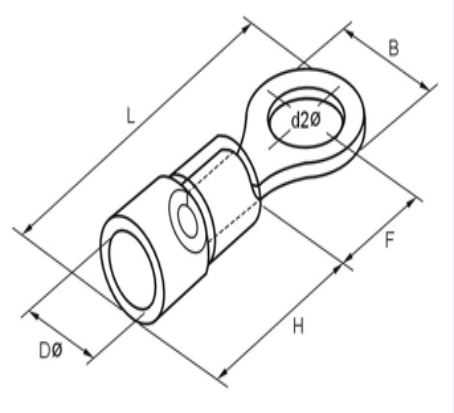

| Model | USA screw | Screw dia (d2. mm) | Dimension (mm) | Colour | ||||
| B | L | F | H | Dφ | ||||
| RV 1.25-3.2 | #4 | 3.2 | 5.7 | 17.8 | 4.95 | 10 | 4.3 | Red |
| RV 1.25-3.7S | #6 | 3.7 | 5.7 | 17.8 | 4.95 | |||
| RV 1.25-3.7M | #6 | 3.7 | 6.6 | 20.1 | 6.3 | |||
| RV 1.25-3.7L | #6 | 3.7 | 8 | 21.5 | 7 | |||
| RV 1.25-4 S | #8 | 4.3 | 6.6 | 20.1 | 6.3 | |||
| RV 1.25-4L | #8 | 4.3 | 8 | 21.5 | 7 | |||
| RV 1.25-5 | #10 | 5.3 | 8 | 21.5 | 7 | |||
| RV 1.25-5 L | #10 | 5.3 | 9.5 | 23 | 8.5 | |||
| RV 1.25-6 S | 1/4 | 6.4 | 9.8 | 23 | 8.5 | |||
| RV 1.25-6 | 1/4 | 6.4 | 11.6 | 27.5 | 11.1 | |||
| RV 1.25-8 | 5/16 | 8.4 | 11.6 | 27.5 | 11.1 | |||
| RV 1.25-10 | 3/8 | 10.5 | 13.6 | 31.6 | 13.9 | |||
| RV 1.25-12 | 1/2 | 13 | 19.2 | 35.4 | 16 | |||
| Cable size:1.5-2.5mm2 (A.W.G 16-14) Max current:Imax=27A | ||||||||
| Model | USA screw | Screw dia (d2. mm) | Dimension (mm) | Colour | ||||
| B | L | F | H | Dφ | ||||
| RV 2-3.2 | #4 | 3.2 | 6.6 | 20 | 6.5 | 10 | 4.9 | Blue |
| RV 2-3.7S | #6 | 3.7 | 6.6 | 20 | 6.5 | |||
| RV 2-3.7M | #6 | 3.7 | 6.6 | 21 | 7 | |||
| RV 2-3.7L | #6 | 3.7 | 8.5 | 22.5 | 7.75 | |||
| RV 2-4S | #8 | 4.3 | 6.6 | 21 | 7 | |||
| RV 2-4L | #8 | 4.3 | 8.5 | 22.5 | 7.75 | |||
| RV 2-5S | #10 | 5.3 | 8.5 | 22.5 | 7.75 | |||
| RV 2-5L | #10 | 5.3 | 9.5 | 22.5 | 7.25 | |||
| RV 2-6 | 1/4 | 6.4 | 12 | 27.6 | 11 | |||
| RV 2-8 | 5/16 | 8.4 | 12 | 27.6 | 11 | |||
| RV 2-10 | 3/8 | 10.5 | 13.6 | 30.2 | 13.9 | |||
| RV 2-12 | 1/2 | 13 | 19.2 | 35.4 | 16 | |||
| Cable size:2.5-4mm2 (A.W.G 14-12) Max current:Imax=37A | ||||||||
| Model | USA screw | Screw dia (d2. mm) | Dimension (mm) | Colour | ||||
| B | L | F | H | Dφ | ||||
| RV 3.5-4 | #8 | 4.3 | 8 | 24.5 | 7.7 | 12.5 | 6.2 | Black |
| RV 3.5-5S | #10 | 5.3 | 8 | 24.5 | 7.7 | |||
| RV 3.5-5L | #10 | 5.3 | 12 | 27.9 | 7.7 | |||
| RV 3.5-6 | 1/4 | 6.4 | 12 | 27.9 | 7.7 | |||
| Cable size:4-6mm2 (A.W.G 12-10) Max current:Imax=48A | ||||||||
| Model | USA screw | Screw dia (d2. mm) | Dimension (mm) | Colour | ||||
| B | L | F | H | Dφ | ||||
| RV 5.5-3.7 | #6 | 3.7 | 7.2 | 21.4 | 5.9 | 12.5 | 6.7 | Yellow |
| RV 5.5-4S | #8 | 4.3 | 7.2 | 21.4 | 5.9 | |||
| RV 5.5-4L | #8 | 4.3 | 9.5 | 25.5 | 8.3 | |||
| RV 5.5-5 | #10 | 5.3 | 9.5 | 25.5 | 8.3 | |||
| RV 5.5-6 | 1/4 | 6.4 | 12 | 31.5 | 13 | |||
| RV 5.5-8 | 5/16 | 8.4 | 15 | 33.7 | 13.7 | |||
| RV 5.5-10 | 3/8 | 10.5 | 15 | 33.7 | 13.7 | |||
| RV 5.5-12 | 1/2 | 13 | 19.2 | 38.1 | 16 | |||
