Резиновый стеклянный пластиковый гранулированный химический порошок бункер для взвешивания шнека/Спиральный Фидер потери

MORE INFO PLEASE CONTACT BELOW

ATTN: Michael Zhu

Email: uniweighyeah.net   or    uniweighgmail.com

rubber glass plastic granule chemical powder hopper weighing auger feeder/ loss in weight helix screw spiral batching feeder

It is a continuous weight-loss feeding system that utilizes the controllable vibration feeding machine to feed fixed quantities of materials. Its work theory is based on the loss of controlled weight. The loss of weight in unit time dG/dt compares with the actual materials feeding rate. The difference value between the actual material feeding and preset material feeding weed be taken as the feedback signal of the material feeding scale control circuit.

Details

  Vibrate feeder   High precision load cell weighing   Dynamic weighing controller   Dynamic precision 1/200   Standard Speed: 50-350kg/h   Suitable for nonviscous nich granule or powder continous feeding.

Technical specifications

Max. material feeding quantity: 350kg/h

Min. material feeding quantity:  50kg/h

Accuracy(depends on the material density and liquidity ): 0.5%F.S

Power: 220V+10%-15%,50Hz

Working Temperature: -10~+40°C

Working humidity: <85%RH

Weight: 80kg

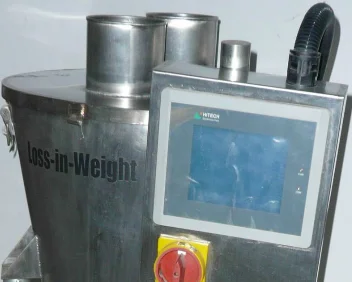

Material hopper and touch screen HMI

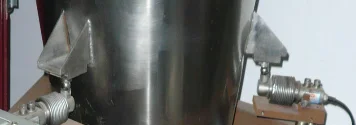

Shearbeam load cell

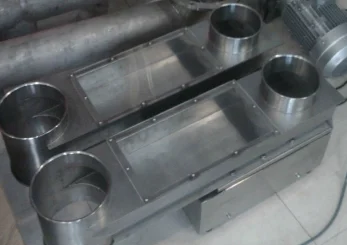

Vibrator feeder

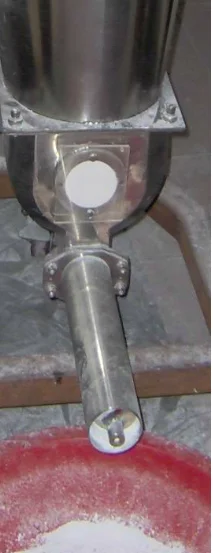

Auger feeder for optional
