Best Price Incline Platform/ Wheelchair Stair Lift with 8m maximum stroke
Product Description
Product introduction:
Inclined stair lift platform, installed in the corridor system uses a traction motor to move up and down along the track and carrying passengers safety device accessibility. It consists of the drive system, the guide rail, the rope wheel train, the mobile platform components. Used in the construction corridor system, wheelchair or climbing stairs difficult to climb stairs personnel and special equipment. Mainly by the main drive system, the auxiliary drive system, the main control system and safety system.
Technical parameters:
Platform size | 1000mm(L)* 700mm(W) | |
Max Platform Height | 8m | |
Min Platform Height | 80mm | |
Lifting Speed | 0-7m/min | |
Loading capacity | 250KG~350KG | |
Control voltage | 24V/DC | |
Power Output | 2.2KW | |
Power Input | 220V/50HZ/25A (or customized for local power supply) | |
Drive System | Hydraulic or screw | |
Control Mode | Inching Switch or Automatic | |
Drive Control | Self-resetting system | |
Overload | Protection Over current relay | |
Material of Platform | Plastic electrostatic spraying | |
Painting | Plastic electrostatic spraying | |
Guard panel & drive cabinet (framework) | Aluminum Alloy / 304 stainless steel
| |
Operation Panel | Polished aluminum Alloy | |
Safety Wane Working Range | 75° | |
Working Condition | Both indoors and outdoors | |
Working temperature | From -10°~60°C | |
Installation
| Non-pit installation, directly fixed to concrete floor (the concretefloor below the platform shall not be lower than the ground) | |
Control Device
| Calling box (installed on the wall nearby) and remote controller(Extra optional) | |
Emergency Stop
| The lifting and lowering process can be stopped immediately by pressing the emergency button. | |
Safety device | Safety Interlock | Lock the platform when it is out of control |
Safety Sensor | The operation must be stopped immediately the safety edge meets obstacles during operation. | |
Emergency lowering | The platform can be lowered by opening hydraulic valve manually or rolling screw rod. | |
Auto-flap | Turn up after lifting | |
Application:
It is widely used in residential areas, hotels, administrative offices buildings, subways, banks, stadiums, hospitals and other public places. For the aged and disabled people.

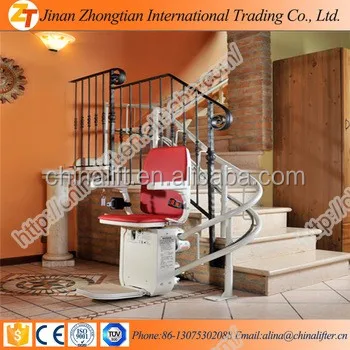

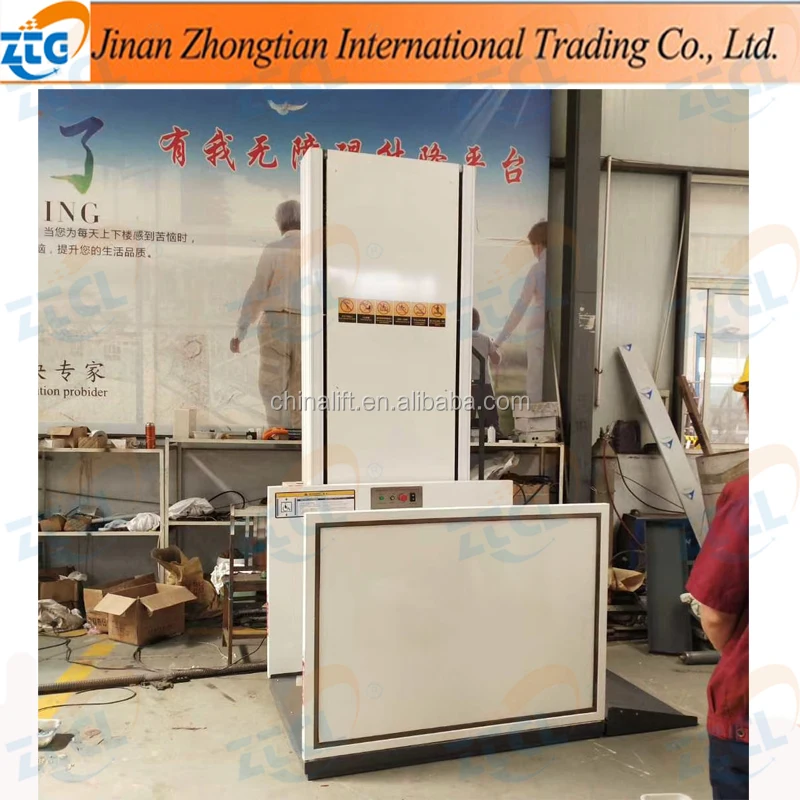

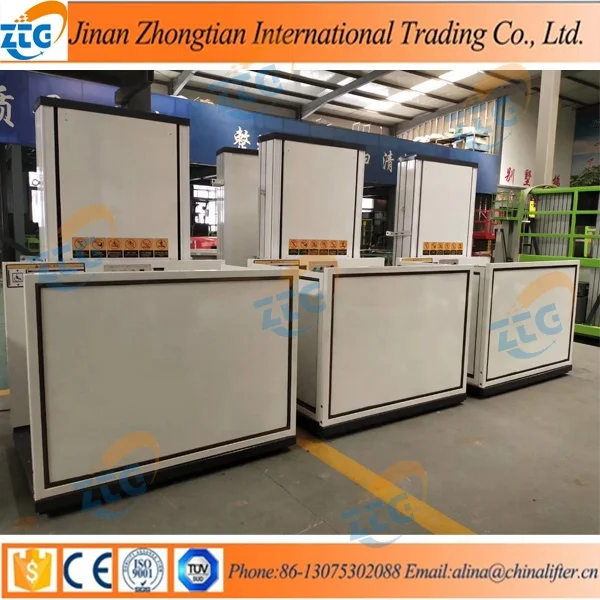

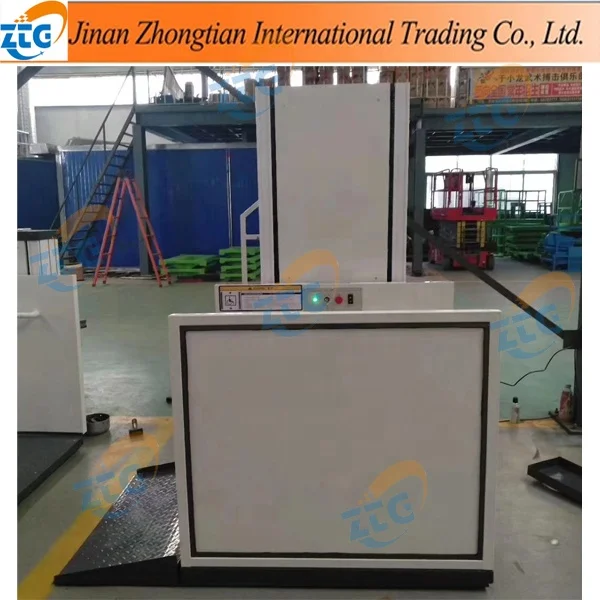

Product show
Packaging

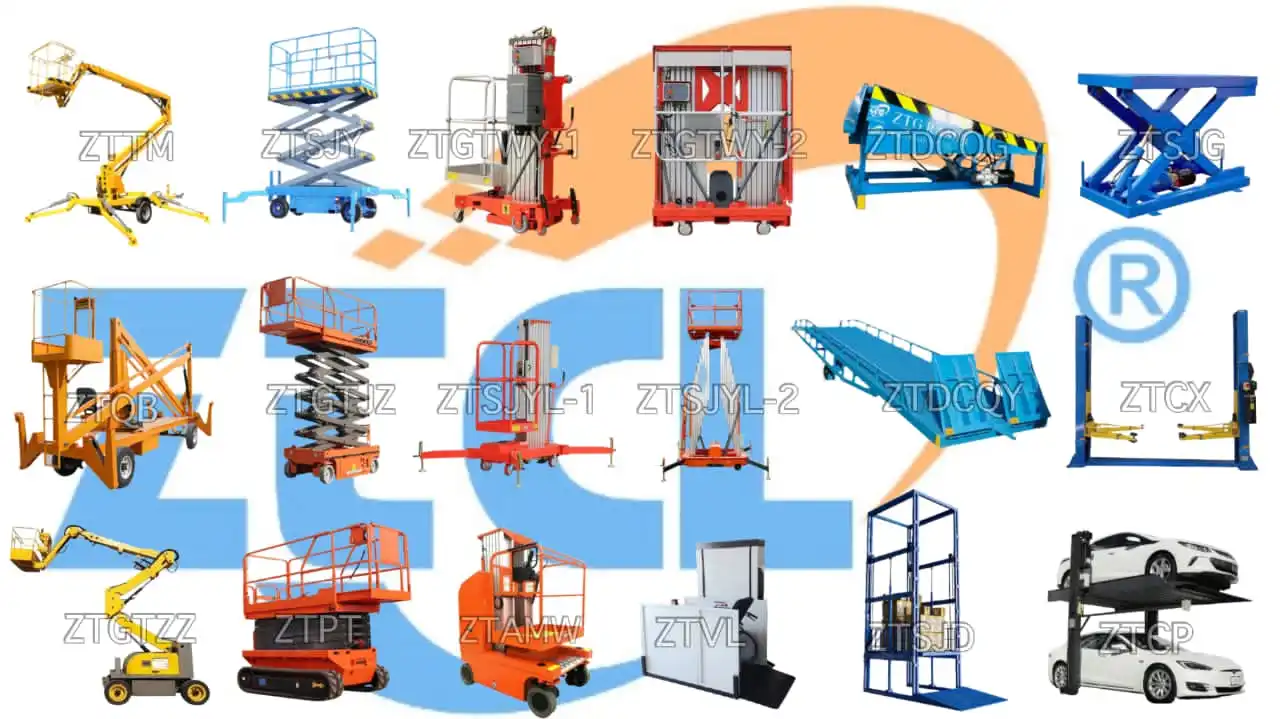

Other hot sale lifts
Certifications
Our Services
1.All the machines will be full tested before shipment
2. The total machine guarantee is 12 moths
3. 24 Hours technical support, email, telephone or video online
4. User-friendly english manual for machine using and maintaining
5. Several sets wearing parts will be free for you
FAQ
1. Delivery time
Within 7- 15 working days after we receive the order
2. Payment terms
T/T, L/C, Western Union,paypal, other kinds, pls contact with us.
3. MOQ
Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.
4. Custom-made
ZHONGTIAN lifts can be custom-made.
Company Information
ZHONGTIAN is real manufacturer engaged in research, development, manufacturing, sale and service of aerial work equipment from 4m to 44m.
1. We could help customer choose the right model specially..
2. Main elements are used world famous brand.
3. Provide timely delivery,Sales engineers are ready to solve all problem.
4. Provide spare parts, worksite installation guidance and training operation.
The latest transaction records And Trade Assurance:
