Двухрядный Сферический роликовый подшипник 22226 МБ, сделано в Китае
US $18.00-$20.00
Двухрядные сферические роликовые
- Категории: Spherical Roller Bearings >>>
- Поставщик: Changzhi,Huayang,Machinery,&,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

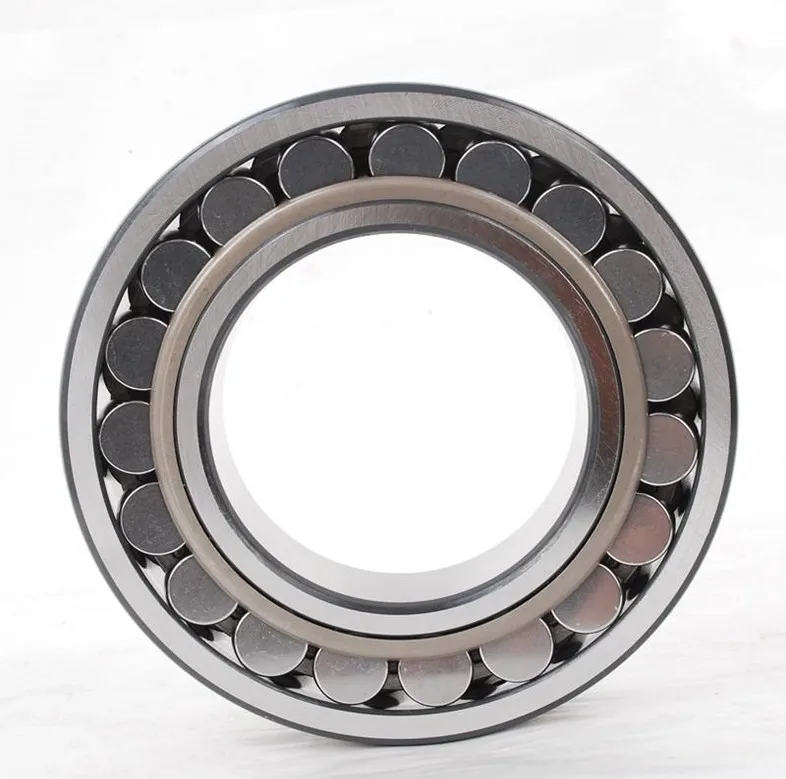

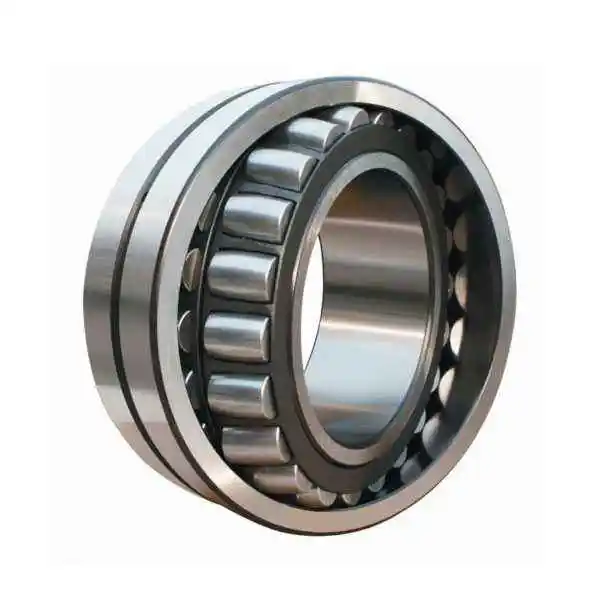

Spherical Roller Bearing

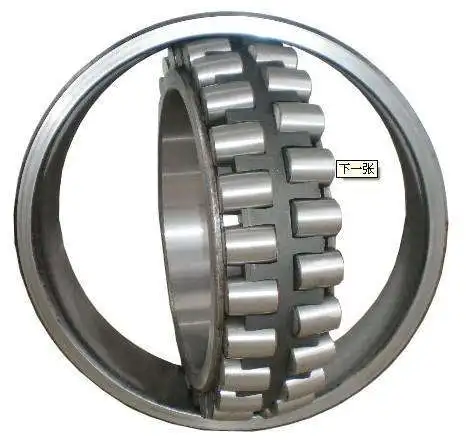

Spherical roller bearings have two rows of rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis . The centre point of the sphere in the outer ring raceway is at the bearing axis. Therefore, these bearings are self-aligning and insensitive to misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. Spherical roller bearings are designed to accommodate heavy radial loads, as well as heavy axial loads in both directions.
Symmetrical rollers
Symmetrical rollers self-adjust, providing optimal load distribution along the roller length. This keeps stresses low under all load conditions and extends bearing service life.
Roller tolerances
The rollers in an spherical roller bearing are manufactured to extremely tight dimension and form tolerances. Each roller is practically identical in size and shape to the other rollers in the set. This optimizes load distribution over the rollers to maximize bearing service life.
Special roller profile
The roller profile determines the stress distribution in the roller/raceway contact area. The special profile distributes loads more evenly along the rollers and prevents stress peaks at the roller ends to extend bearing service life .
Self-guiding rollers and a floating guide ring between the two rows of rollers
Self-guiding rollers reduce friction and frictional heat. A floating guide ring guides unloaded rollers so that they enter the load zone in the optimal position.
Technology Data
Following parts models for your reference,if you are interested in other models.Please send inquiry to us.Sincerely at your service.

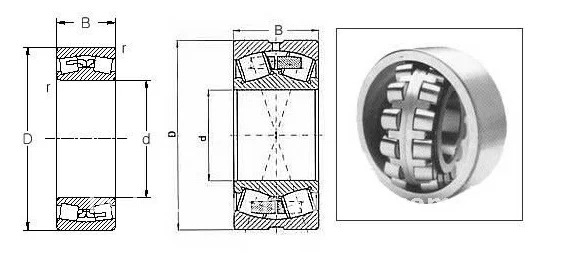

| Bearing No. | Dimensions | Weight | |||||
| Cylindrical bore | Tapered bore | d | D | B | d | D | KG |
| 24124CCW33 | 24124CCKW33 | 120 | 200 | 80 | 135 | 169 | 10 |
| 22224CCW33 | 22224CCKW33 | 120 | 215 | 58 | 143 | 186 | 8.7 |
| 22224E | 22224EK | 120 | 215 | 58 | 141 | 191 | 8.85 |
| 23224CCW33 | 23224CCKW33 | 120 | 215 | 76 | 141 | 183 | 12 |
| 22324CCW33 | 22324CCKW33 | 120 | 260 | 86 | 152 | 216 | 22 |
| 23026CCW33 | 23026CCKW33 | 130 | 200 | 52 | 148 | 180 | 6.1 |
| 24026CCW33 | 24026CCKW33 | 130 | 200 | 69 | 145 | 175 | 7.95 |
| 23126CCW33 | 23126CCKW33 | 130 | 210 | 64 | 148 | 184 | 8.55 |
| 24126CCW33 | 24126CCKW33 | 130 | 210 | 80 | 147 | 180 | 11 |
| 22226CCW33 | 22226CCKW33 | 130 | 230 | 64 | 153 | 200 | 11 |
| 22226E | 22226EK | 130 | 230 | 64 | 152 | 203 | 11 |
Product Application
Packaging & Shipping
Company Information
Changzhi Huayang Machinery&Electric Co., Ltd, is one of the leading manufacturers specialized in R&D, production and sales of bearing for many years.
Our company is committed to develop newest material bearing, such as plastic, ceramic, stainless steel bearing and higher standards and specifications Chrome bearings. Also can supply you with all kinds of bearing housing which is classified by material, Thermolastic Housings, Chrome Steel bearing housings and Stainless steel bearing housings.
Our Services
A. Full technical support from concept design to final product delivery
B. On-time delivery with no compromise on quality
C. Lower cost(medium-size factory, 3000 square meters), but high-end quality only(the same quality control system as per big factory)
D. Any questions to be sent will get response within 24 hours
E. Samples provided for free charge .
F. Strict Inspection ,and the best quality price with reasonable price bearings provided .
G. OEM service provided.
H. Warranty for 6 months
I. After sale service at any time
FAQ
Q: Do you accept the sample or drawing production?
A: Yes.
Q: What about the MOQ? Can you accept sample order?
A: Our company MOQ is 1pcs, we can accept sample order.
Q: Can you accept OEM/ODM?
A: Yes, we can. Customizing according to your requirement or drawing.
Q: Do you supply door to door service?
A: By air or express(DHL, FEDEX,EMS etc.).
Q: Could you tell me the materials of your bearings?
A: Chrome steel, carbon steel, and stainless steel, ceramic and plastic material.
Q: Your company is a factory or trading company?
A: We are trading company.
Q: What’s your guarantee on bearing quality problem?
A: Free to change in 2 months and in your next order, 10% value of order can be paid after receiving goods and checking out no quality issues.
