Mechanical pump inpro seal
Model: CH7224UU
Material:
| Stationary Ring: | silicon carbide SIC / Tungsten Carbide TC; |
| Rotary Ring: | graphite / silicon carbide SIC / Tungsten Carbide TC; |
| Secondary sealing: | NBR / FKM / package fluorine rubber / PTFE; |
| Spring and metal parts: | stainless steel |
Structure Feature:
- Double end face
- Unbalanced
- Small spring and driving sleeve to drive
- corrosion resistance mechanical seal
Range of application
Mud, sewage or solid particles containing media, weak base liquid. The product requires moving cold rinse and circulate as soon as possible, according to reasonable working conditions can be selected friction surface.
Operation parameters:
Type: 35 ~ 85 mm
Temperature: - 20 ℃ ~ + 150 ℃
Pressure: ≤0.8MPa
Linear speed: ≤3000r/min
Axial movement: ±0.5mm
Medium:
Weak acid and weak base liquid.

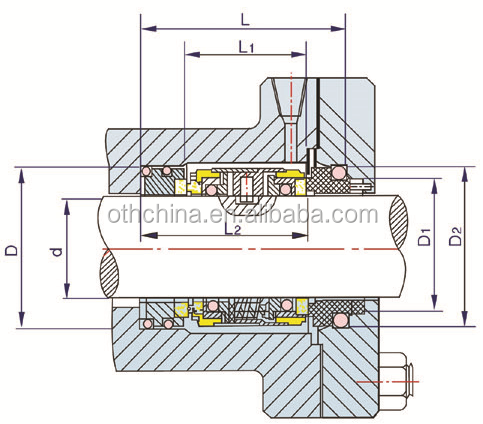

Size chart:

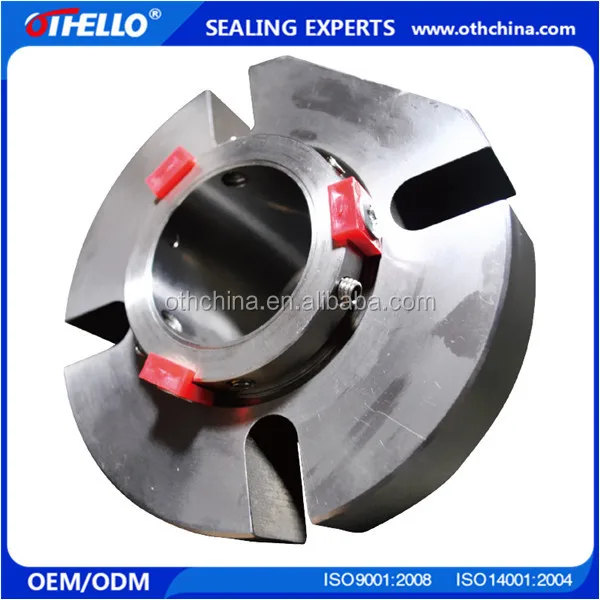

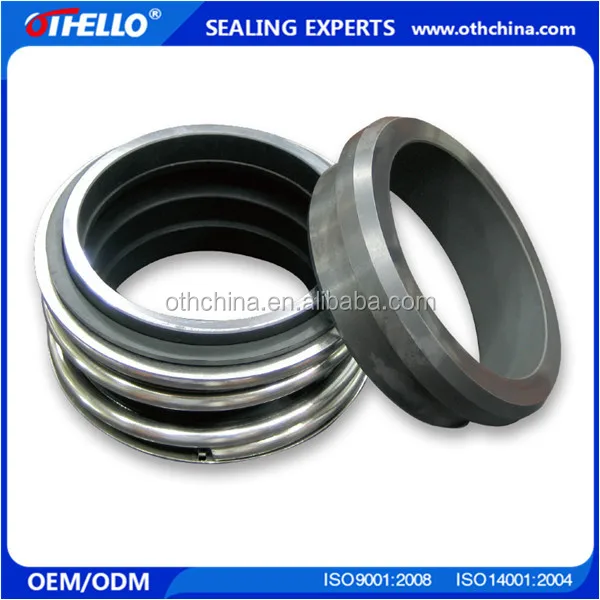

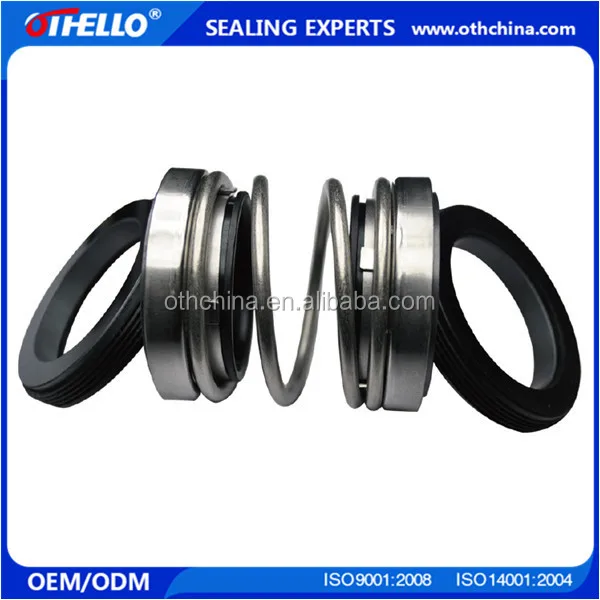

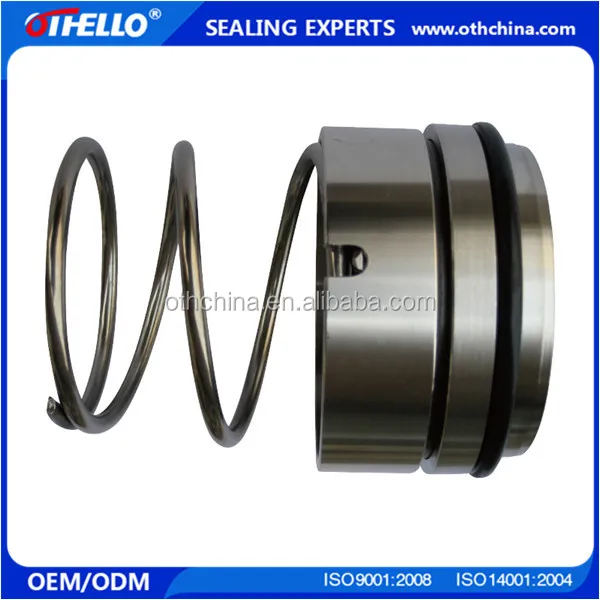

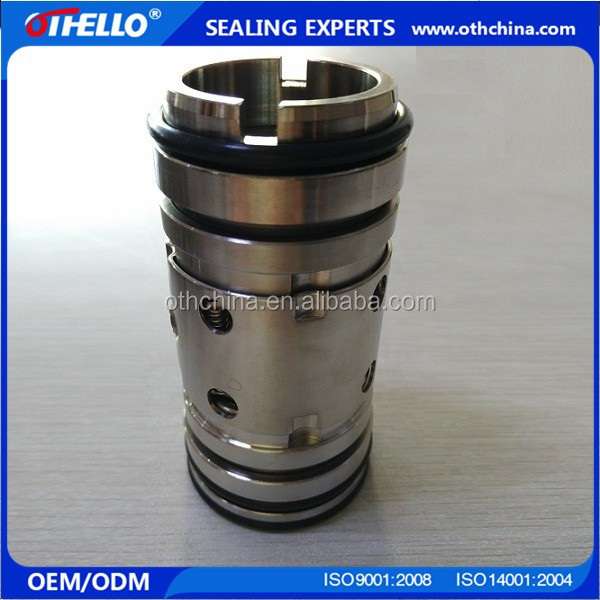

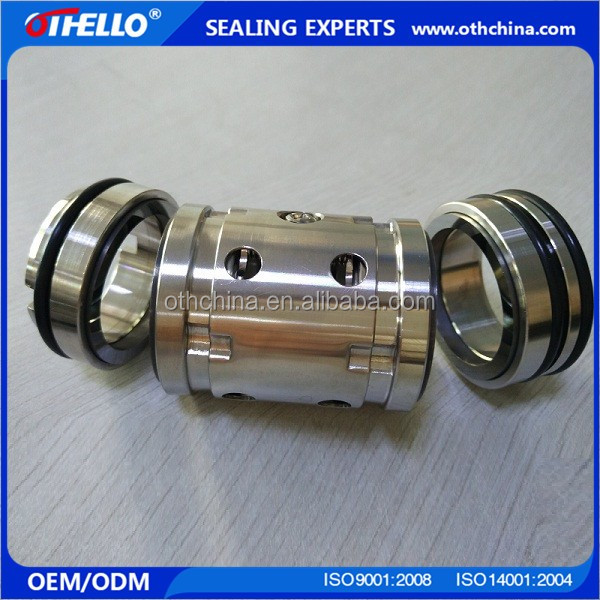

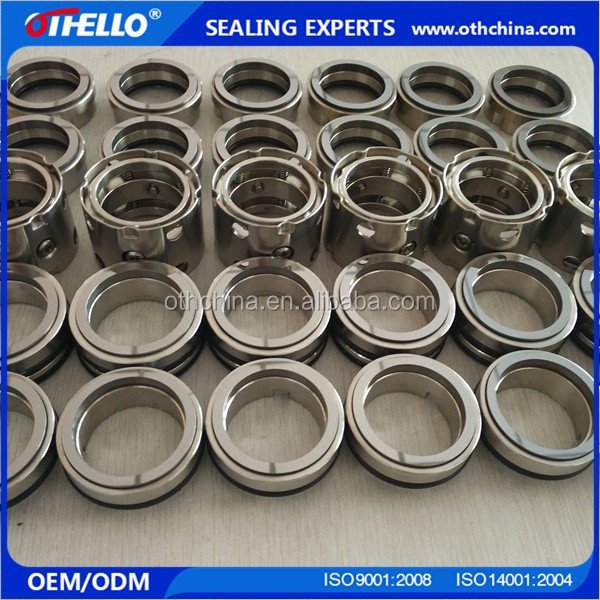

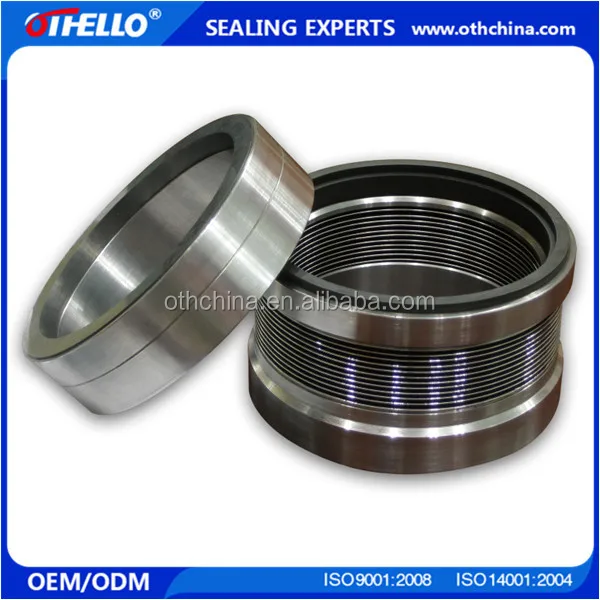

Photo:
Main products:
Gaskets sheet/ gland packing/ mechanical seal/ disc spring/ hydraulic seal/ oil seal/ water seal etc.
Our Advantage
1. High quality, passed ISO 9001 and ISO 14001 Certification.
2. Provide free sample, accept small trial order.
3. Large stock, timely delivery.
4. Tier one supplier of China Petroleum & Chemical (SINOPEC).
5. Alibaba Trade Assurance Supplier.
6. Have experienced technical team, provide a full range of technical services.
3. Large stock, timely delivery.
4. Tier one supplier of China Petroleum & Chemical (SINOPEC).
5. Alibaba Trade Assurance Supplier.
6. Have experienced technical team, provide a full range of technical services.
7. 100% QC inspection before shipment
8. Best quality and Best service with competitive price
8. Best quality and Best service with competitive price
FAQ
1.How can I get a sample?
Normally small sample (sizes less than 150*150mm) can be sent free of charge .Freight collect or
Negotiable .
2. Can you accept small orders?
Yes, You can place your small order . Pls kindly tell us your ordering weight or pieces, we would
quote for you immediately . Because the unit price cost and freight cost of small order would be
higher than MOQ'S.Pls also consider our MOQ ,the cost can be reduced .
3. Can we order a large quantities with a discount price ?
Yes, you will be quoted a better price if qty is large .The larger the volume is, the more discount
you can enjoy.
If you are interested in our products ,please feel free to contact with us anytime. Your coming
will be highly welcomed!

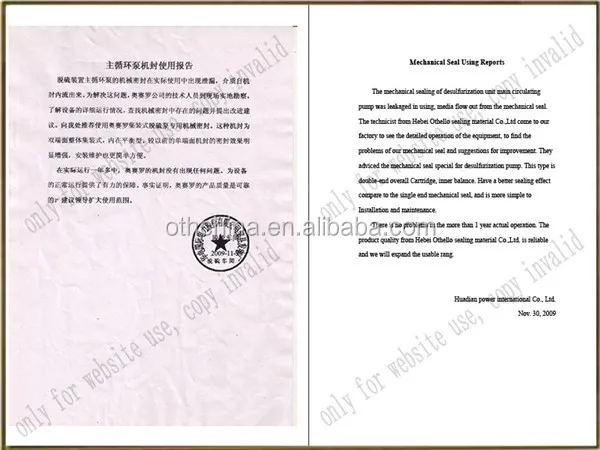

Using reports of OTHELLO Mechanical Seal
