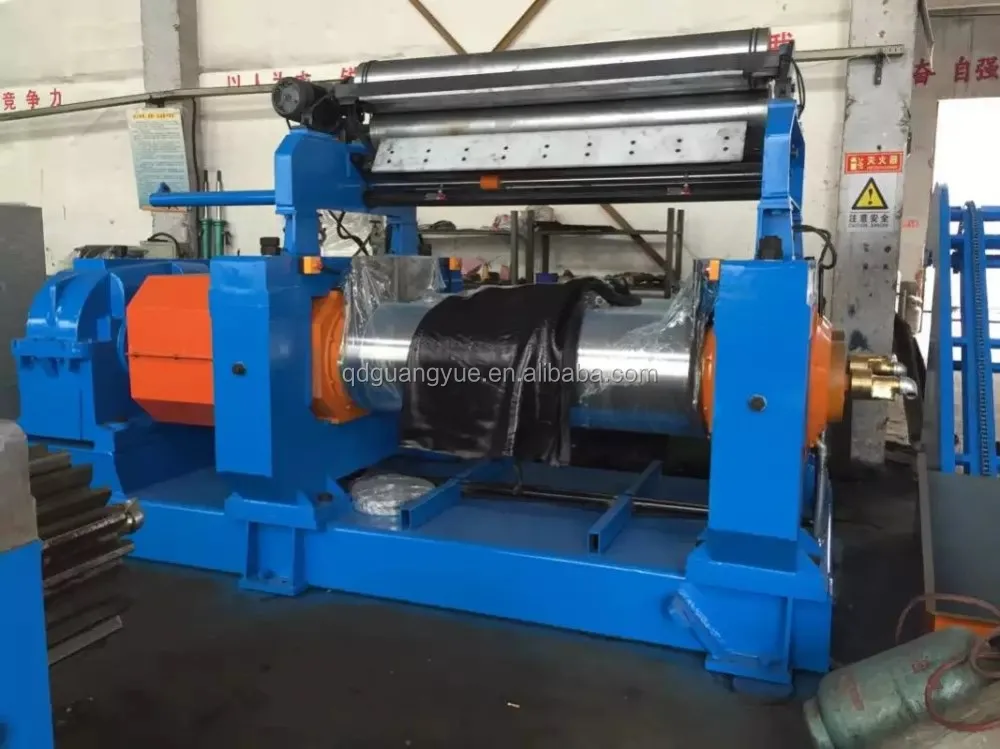

 Plastic mixing mill machine

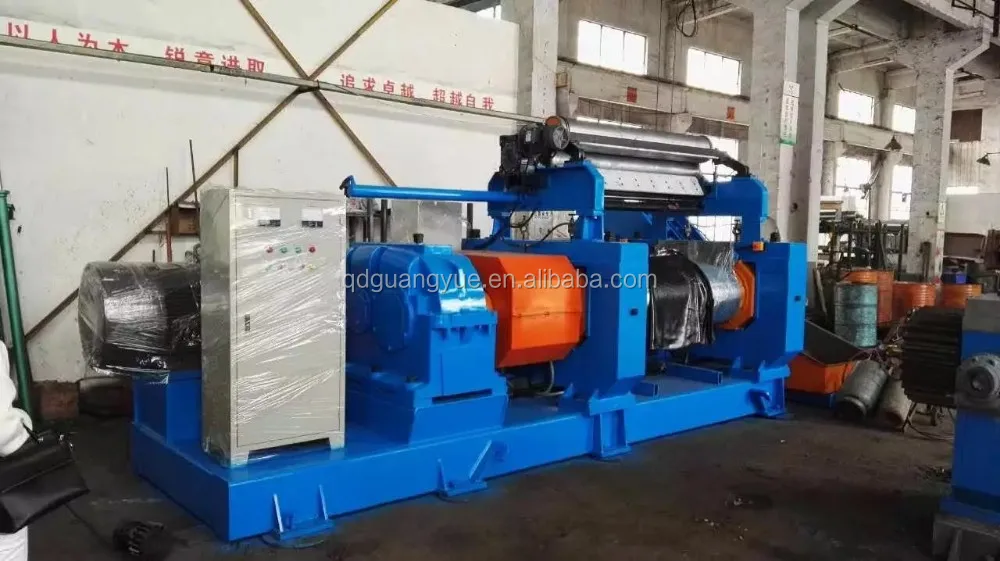

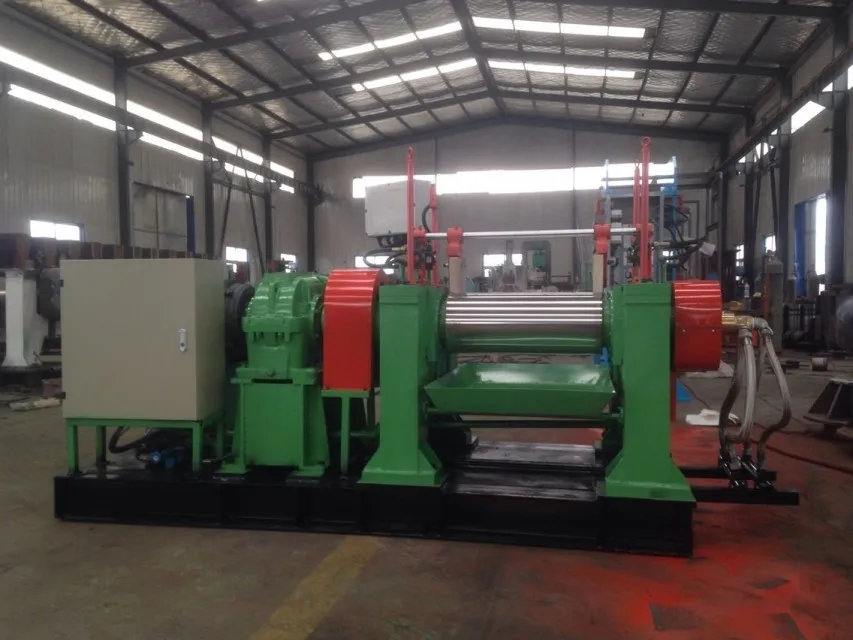

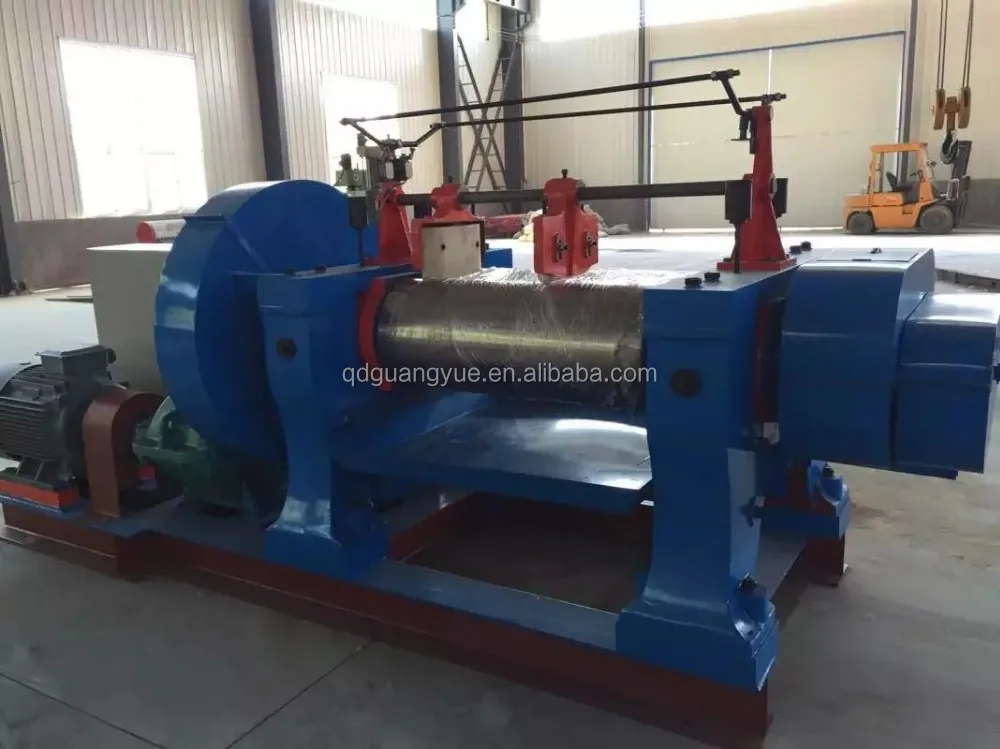

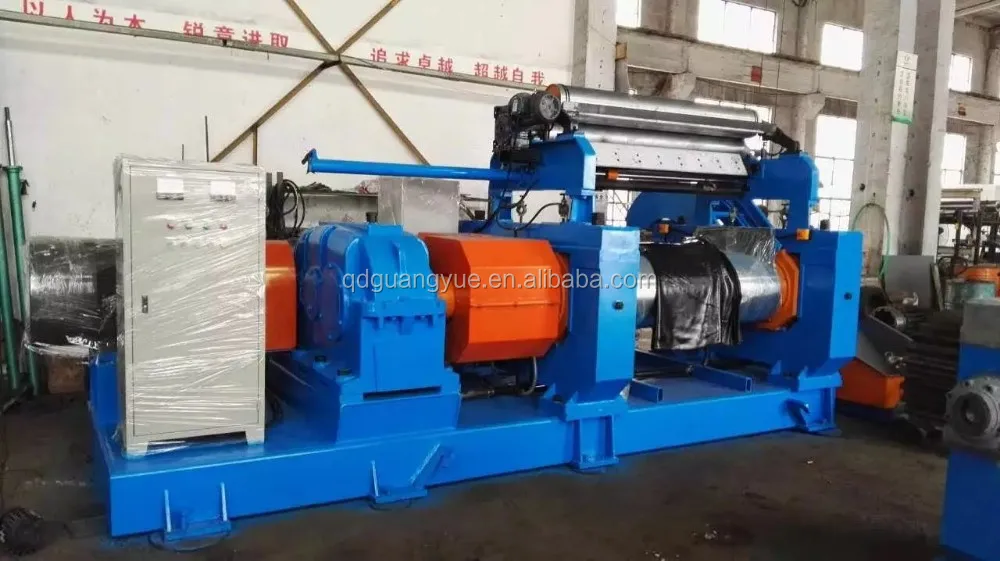

Machine Overview:



Two roll Mixing Mills are designed to ensure perfect and uniform blending of natural and synthetic rubber with other raw materials. These mills provide uniform mixing of the material to the desired level. Most of the mixing mills are driven by electronic motor and different models have different output



Main features:



Roll bearing

Two rigid pillars with removable tops carry the rolls, which are placed either in friction/bush bearings or high quality anti-friction roller bearings. Roller bearings are pretty much standard nowadays, as they allow for 20 – 30 % in power-savings. A lubrication system is no longer required.



Roll nip setting

Adjustment of the front roll used to be made by hand (manual by ratchet) or later motorized by worm gear.



Nowadays hydraulic pistons adjust the rolls and also protect rolls from high forces that can build up in between the rolls (roll safety). They also open roll gap immediately when pushing the safety bar in front or back in case of emergency (required by European Safety standards CE).



Rolls

A mixing mill has 2 horizontal rolls set up back to back. They are made of ground chilled cast iron, with surface hardness ranging from 475 – 520 HV (Vickers hardness) up to 520 – 580 HV (or 68 - 72 HSD). The depth of hardened layer ranges from 10 to 16 mm.



Rolls are made with a central bore for cooling through a spray-type lance (low cost type cooling) or peripheral drills, where bores are closer to the surface for better cooling and more equal distribution.



The rotary joints connected to the spraying lance are supplied from tempering units to provide constant temperature during the mixing process.



Material Guides or Compound guides

At the ends of the roll faces the roll nip is being limited by the compound guide cheeks. The compound guide cheeks of split design with “centre tongue” avoid lateral escape of compound from the working area in any case.



Friction

The standard drive provides fixed speed and fixed friction ratio. The front roll typically runs slower than the back roll. Depending on the compound mixed the friction can range from 1:1.1 for a standard mixing mill, 1:1.25 for silicone or plastics mills, 1:1.8 for breaker mills for new rubber, 1:2.5 for refiner mills with narrow gap of 0.05 mm, up to 1:3.2 for breaker mills for old rubber. A variable speed motor on each roll is required for infinitely variable friction ratio.









  parameters of Plastic mixing mill machine





Model		XK-160	XK-250	XK-300	XK-360	XK-400	XK-450	XK-560
Diameter of rolls(mm)		160	250	300	360	400	450	560
Working length of rolls(mm)		320	620	750	900	1000	1200	1530
Linear speed of front roll(m/min)		11.24	14.4	15.1	16.25	18.65	24.5	29.09
Speed ratio of front & rear roll		1:1.35	1:1.17	1:1.27	1:1.25	1:1.27	1:1.27	1:1.2
Max. roll gap(mm)		4.5	8	8	10	10	15	20
Feeding capacity per batch(kg)		1-2	10-15	15-20	20-25	18-35	25-50	50-65
Driving motor power(kw)		7.5	18.5	22	30	37	55	75
Bearing body structure		Rolling bearing/nylon bushing/copper bushing
Lubrication mode		Grease/thin oil pump
Gap adjusting mode		Manual/electric
Overall dimension(mm)	L	1140	2900	3580	3780	4250	5000	5900
	W	900	1500	1550	1850	1850	2280	2180
	H	1370	1550	1695	1740	1760	1850	2000
Weight(ton)		1	3.2	5.2	6.5	7.3	12.5	22







 100% Real Manufacturer,   Welcome to visit us sincerely.



If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.

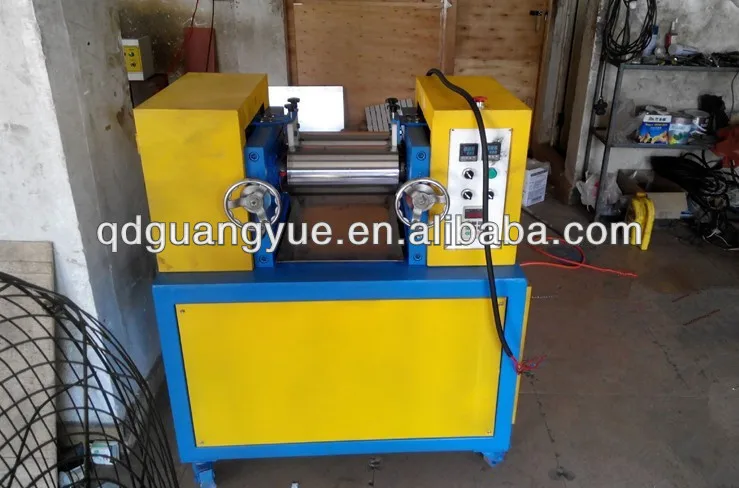

1.XK-160 lab rubber mixing mill . Mainly used for lab use









2. xk-400 rubber mixing mill.production is about 350 kg/h . From this model , we









































PARTS DISPLAY

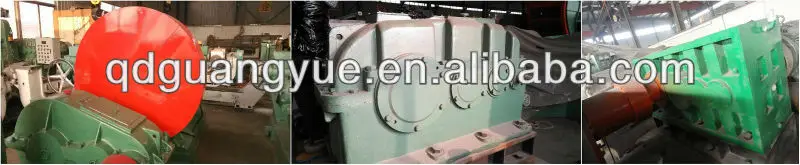

1.Reducer (three configuration can choose)

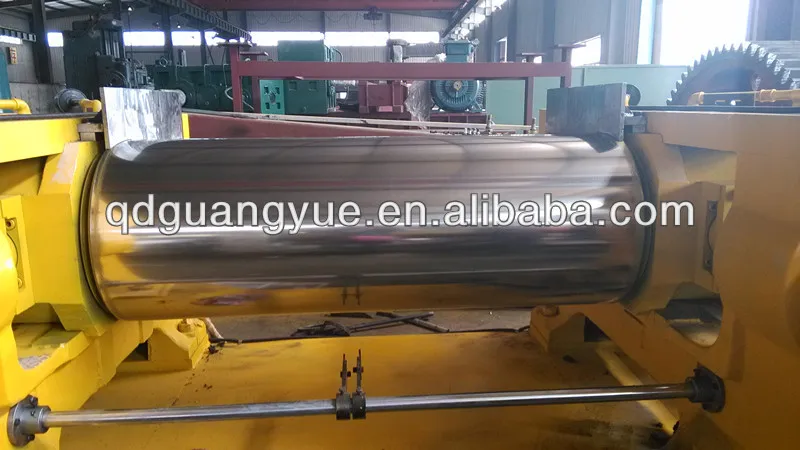

2.Rollers

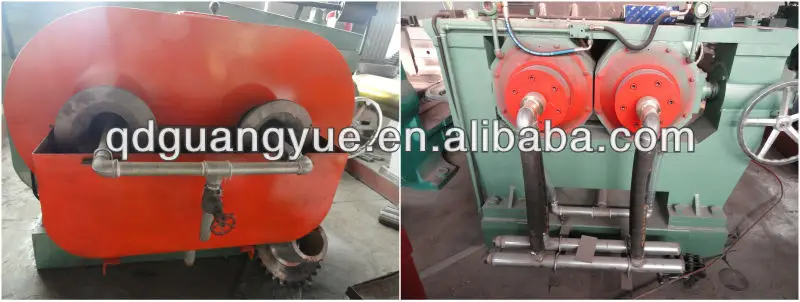

3. Water cooling system

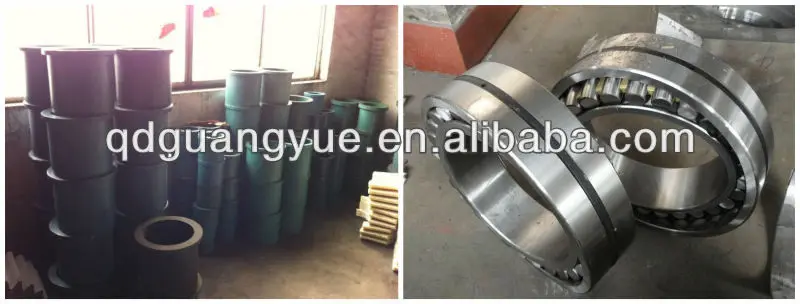

 4.nylon bush and bearing bush

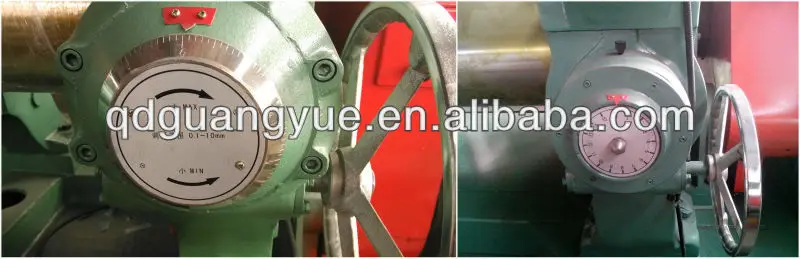

5.Rolles gap adjust system







About the parts ,Just choose which type you want

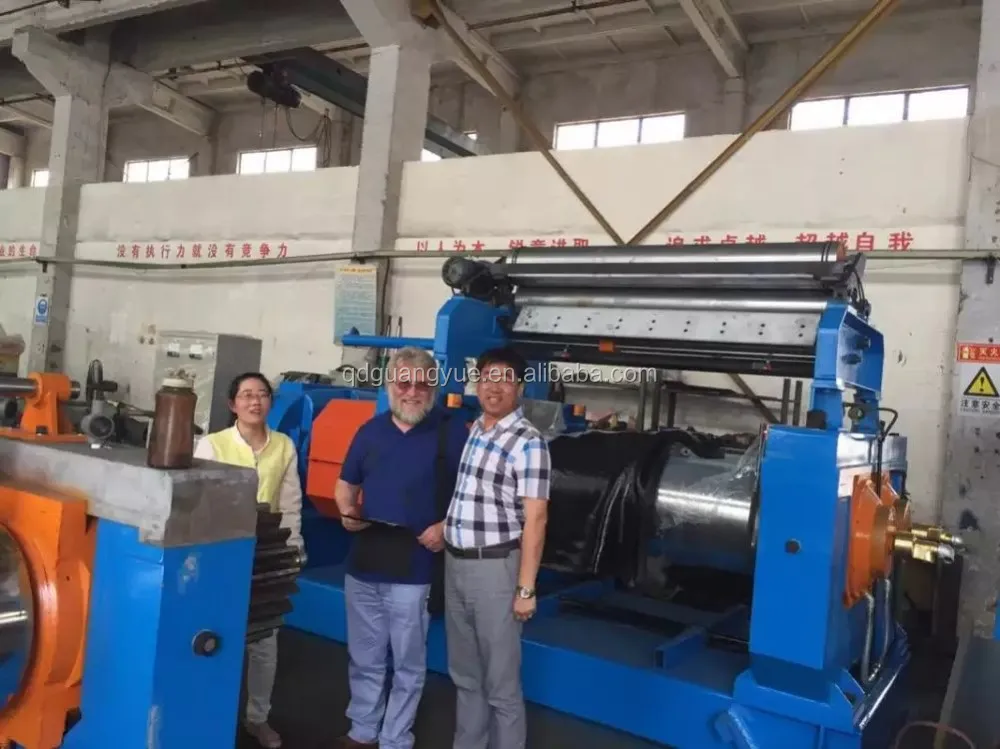

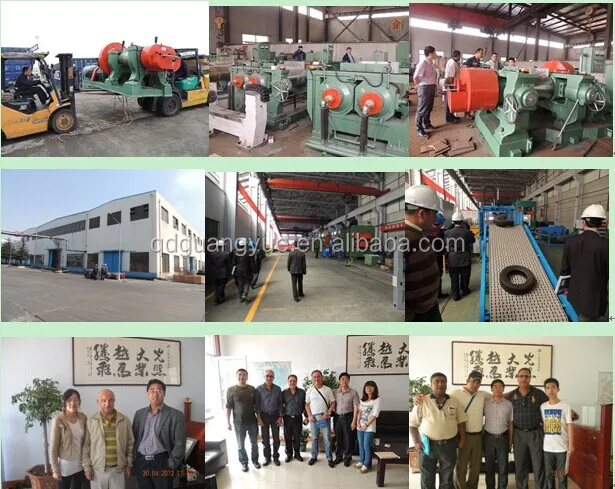

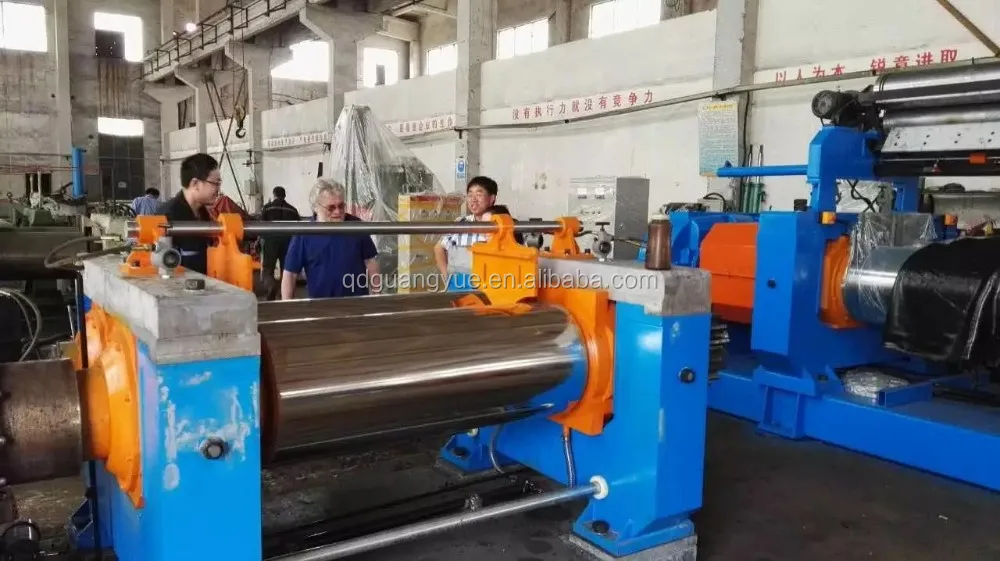

Customers











  CERTIFICATE











Version : xk-160 xk-230 xk-250 xk-300 xk-360 xk-400 xk-450 xk-560



Certificate and identification: ISO 9001, CE , SGS

Application : The mill is used for rubber plasticating, mixing, warming and sheeting.

General design:

1. The mill consists mainly for rolls, frame, bearing, roll nip adjusting, screw, heating and cooling device, emergency stop, lubrication system and such sections as electrical controls and, etc.

2. The main electric motor arrives the front and rear rolls to rotate oppositely through reduar, driving geras and friction gears.

Features:

1. The rolls are made of chilled alloyed castiron. Their working surfaces are of high hardness and wear-resistant. The working temperature of the bored roll is controllable by steam, cooling water or oil that pass through them thus, to meet the requirements of milling process.

2. Roll nip adjustment is realized by hand or electricity which can obtain high accuracy and sensitivity



Others



Roller bearing can be divided into 3 kinds, nylon bush , bearing bush and copper bush .

Nip adjustment can be divided into manual and electric .

Stock blender can be added in light of your needs











We can produce different size according to your parameter requirement. and we allow proper discount according to the quantity you order







We confident that you will find our product with high quality and reasonable price. If you have any question, pls dont feel any hesitate to contact me.
