Винтовой конвейер для силоса цемента цементного от
- Категории: Силос >>>
- Поставщик: Shandong,Zeyu,Heavy,Industry,Science,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
screw conveyor for silo cement,cement silo manufacturers

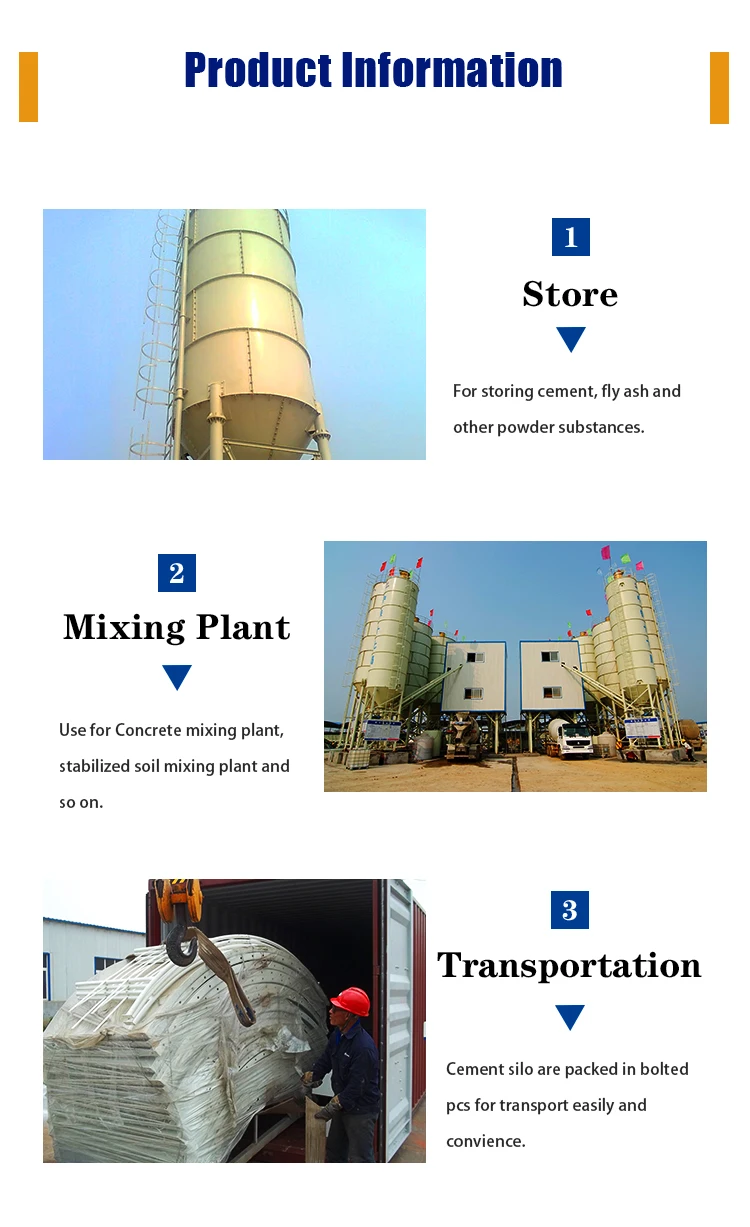

Product Information
Specification
No. | Model | Dia | Thickness of plate | Legs | Weight | Height of body | Total height | Height of legs |
1 | 50T | 3.16m | 5.4.3mm | 219*5.5 | 4t | 5.1m | 13.5m | 4.2m |
2 | 100T | 3.16m | 5.4.3mm | 219*5.5 | 6t | 9.3m | 19m | |
3 | 150T | 3.6m | 6.5.4mm | 219*9 | 10t | 10.7m | 21m | |
4 | 200T | 4.5m | 6.5.5mm | 273*7 | 13t | 9.3m | 19m | |
5 | 250T | 4.56m | 6.5.5mm | 273*9 | 15t | 10.7m | 21m | |
6 | 300T | 5m | 8.6.5mm | 325*9 | 19t | 10.7m | 21m | |
7 | 350T | 5m | 8.6.5mm | 325*10 | 22t | 11.7m | 22m | |
8 | 400T | 5.5m | 8.6.5mm | 426*10 | 24t | 12m | 23m | |
9 | 500T | 6m | 8.6.5mm | 426*12 | 26t | 12m | 23m |
Composition And Characteristics

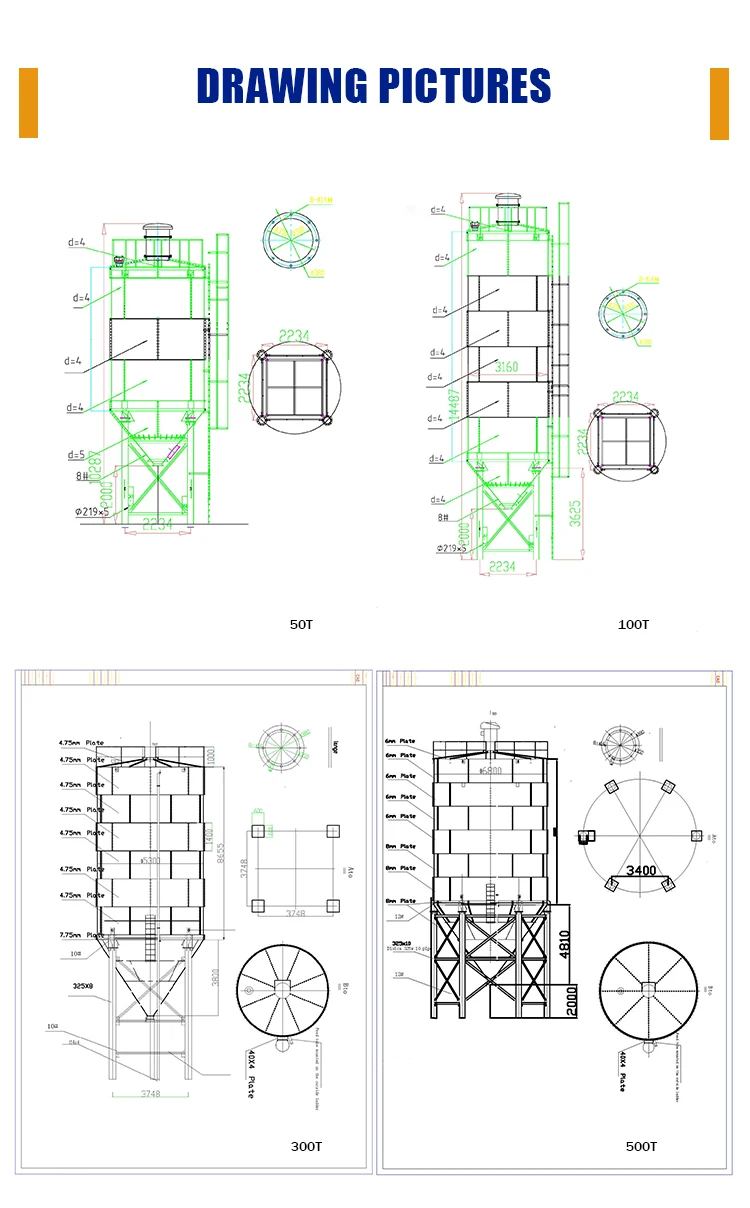

Drawing Pictures

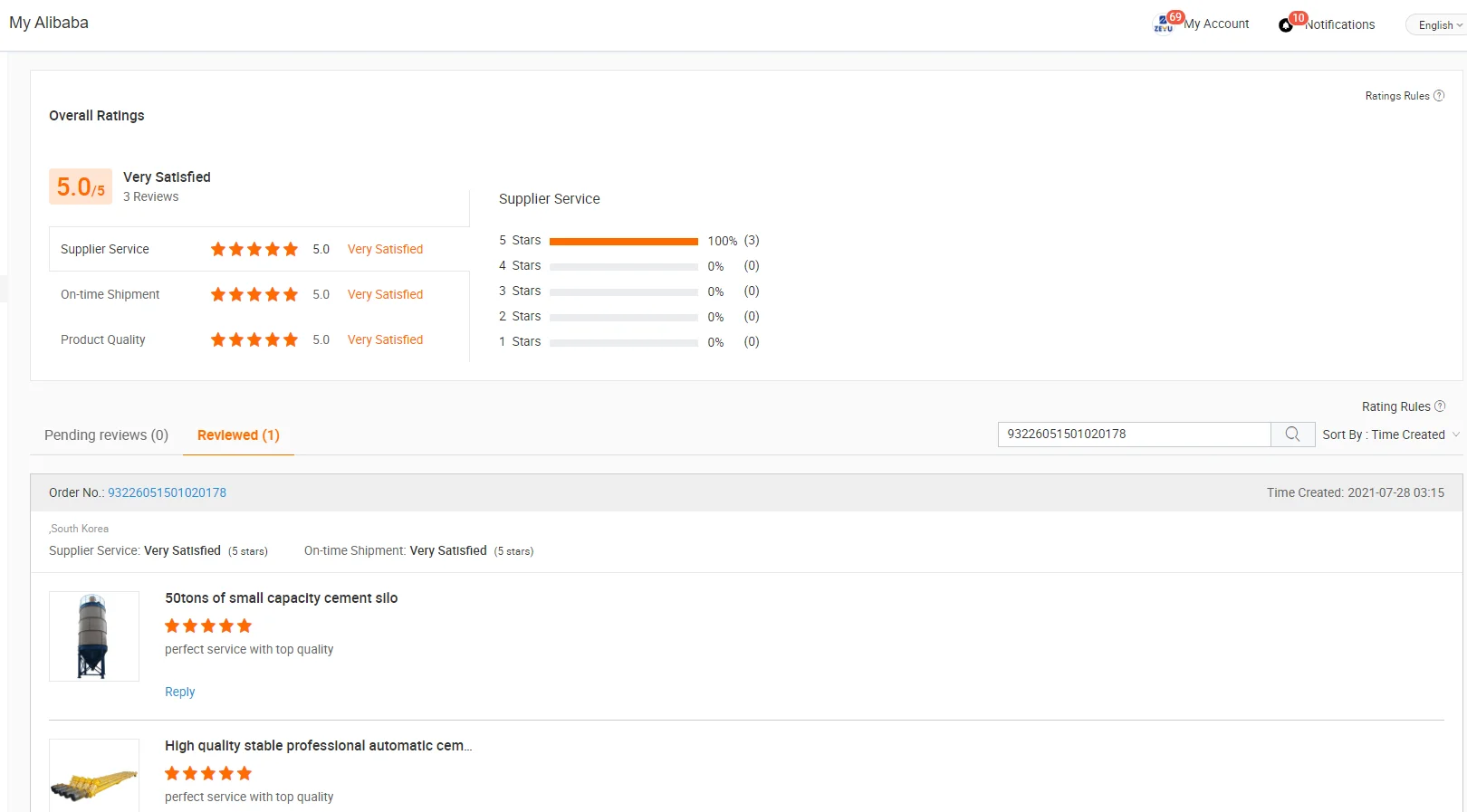

After the customer executes the order, five-star evaluation
Perfect service and high quality
Perfect service and high quality
Company Profile
Certifications
FAQ
