Амортизатор SMC типа

Описание и отзывы

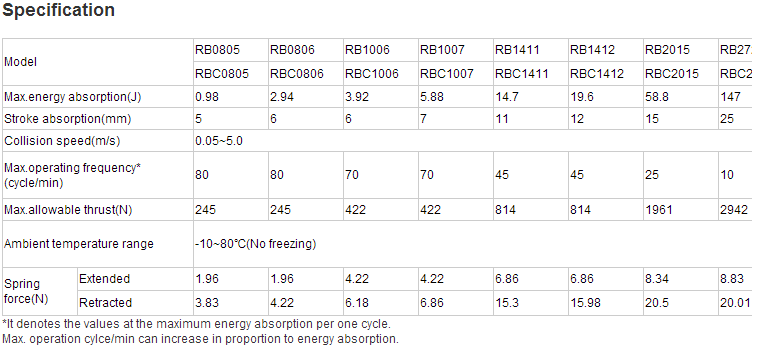

Характеристики

Shock Absorber

Standard Type Series RBC

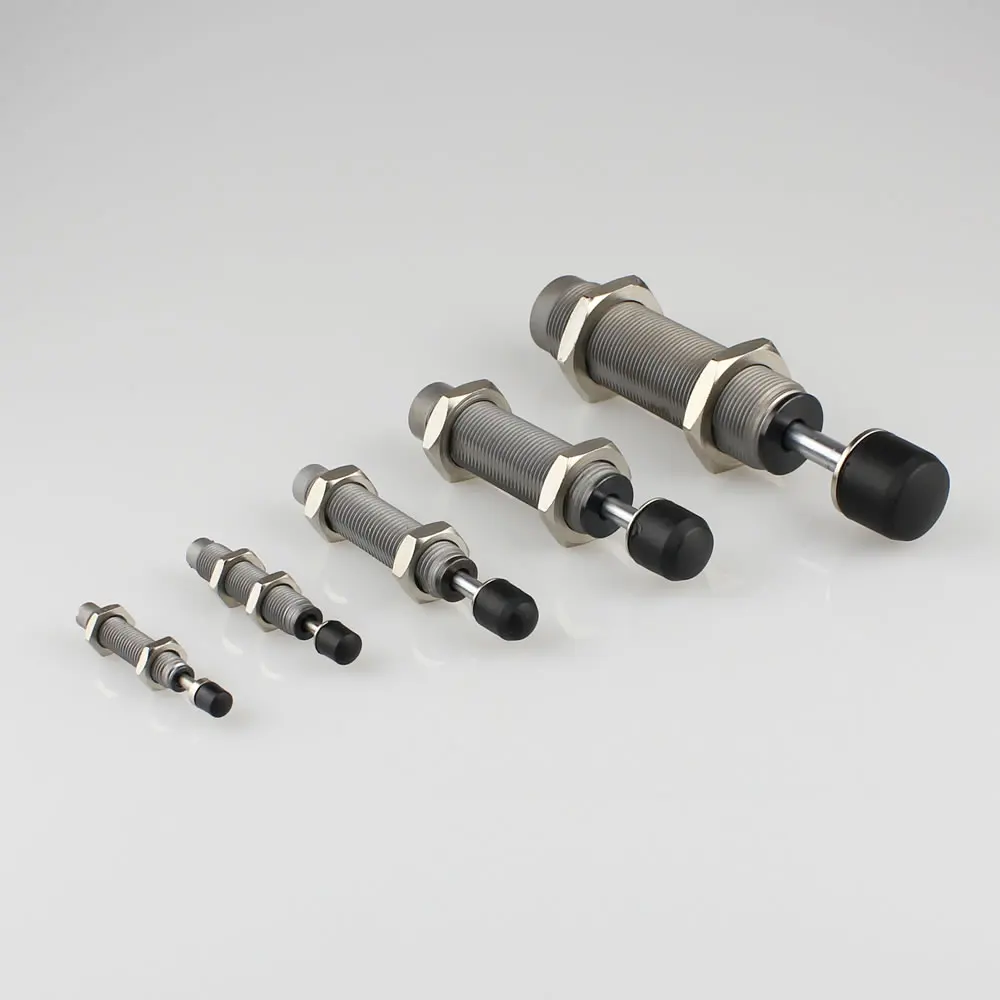

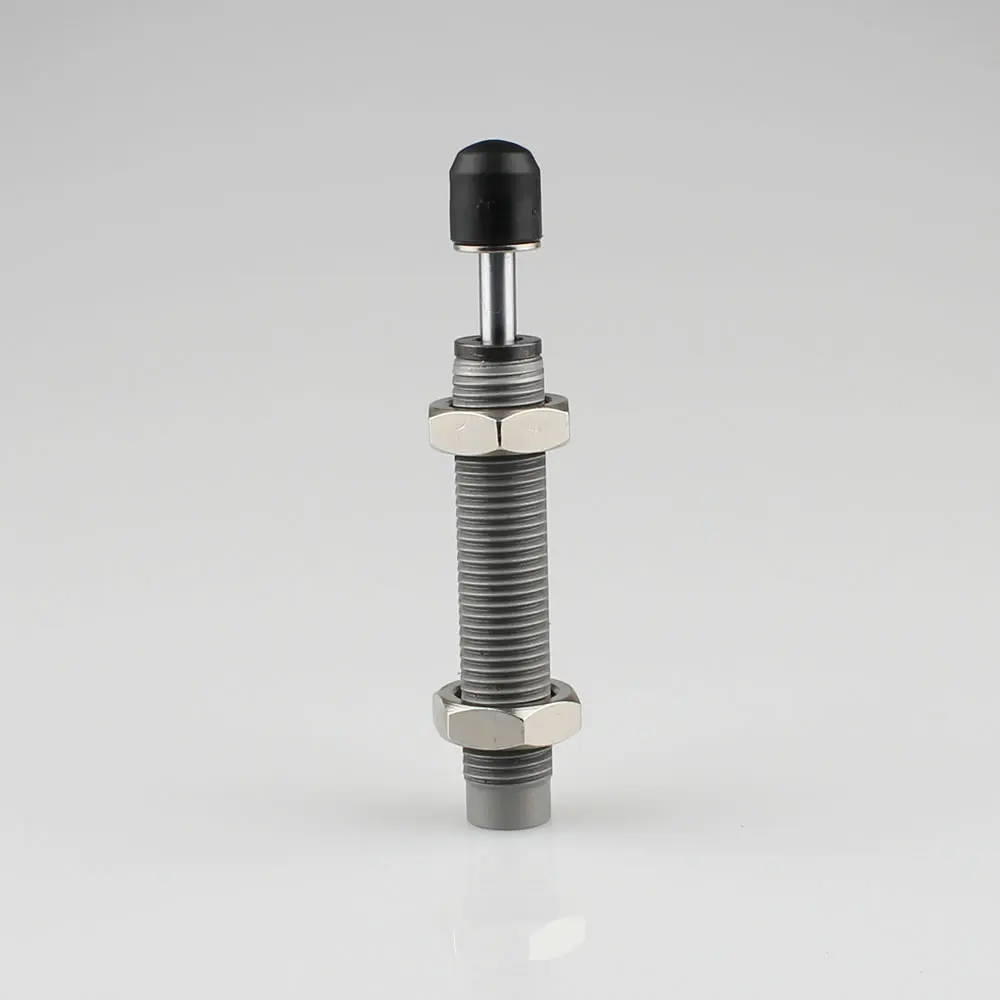

Product Pictures

1. Proper selection of buffer can achieve smooth deceleration and good shock absorption performance.

2. Buffer should avoid lateral load as far as possible in the working process. Eccentricity angle should be less than 3 degrees, and the buffer should be firmly locked.

3. In order to prolong the service life, the piston rod stroke must stop 1 mm before touching the bottom. It can cooperate with the positioning stop nut installation to accurately adjust the stroke and positioning.

4. When installing more than two buffers on the same side, please confirm the step-by-step action.

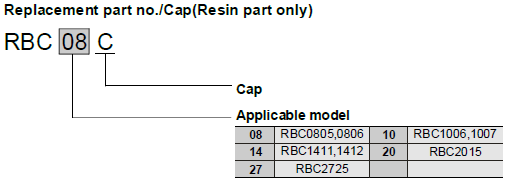

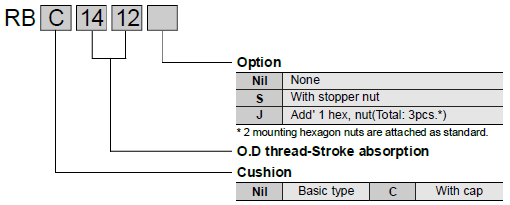

Ordering Information

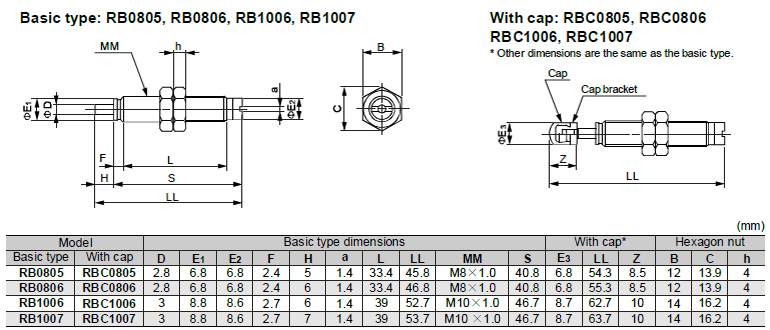

Dimension



Factory & Manufacture Equipments



Manufacture Process



Warehouse



Show Room & Metting Room



Spare Parts



Finished Products



Package
