Автоматическая машина для металлического размалывания производство Китай Портативный станок сварки фаской шлифовальная снятия фаски
- Категории: Chamfering Machines >>>
- Поставщик: Shanghai,Taole,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Name:
Automatic Metal Milling Machine Portable Weld Beveler Chamfering Machine GMMA-12D-R
Products Specs:
| Model | GBM-6D | GBM-12D | GBM-12D-R | GBM-16D | GBM-16D-R |
| Clamping Plate Thickness | 4-16mm | 6-30mm | 6-30mm | 9-40mm | 9-40mm |
| Min.Processing Plate Width | ≥55mm | ≥75mm | ≥75mm | ≥115mm | ≥115mm |
| Net Weight for Machine | 33kg | 155kg | 235kg | 212kg | 315kg |
| Beveling Width | 6mm/time Max: 8mm | 12mm/time Max. 18mm | 12mm/time Max.18mm | 16mm/time Max. 28mm | 16mm/time Max.28mm |
| Beveling Angle | 25°, 30°, 35°, 40°, 45° | 25°-45° (adjustable) | 25°-45° (adjustable) | 25°-45° (adjustable) | 25°-45 (adjustable) |
| Beveling Speed | 1.2 - 1.8m/min | 1.5 - 2.6m/min | 1.5 - 2.6m/min | 1.2 - 1.6m/min | 1.2 - 1.6m/min |

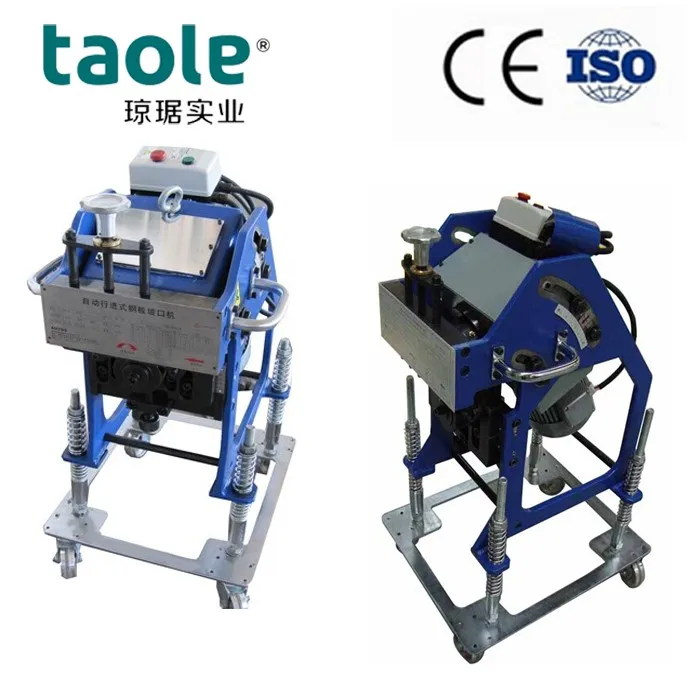

Real Pictures:

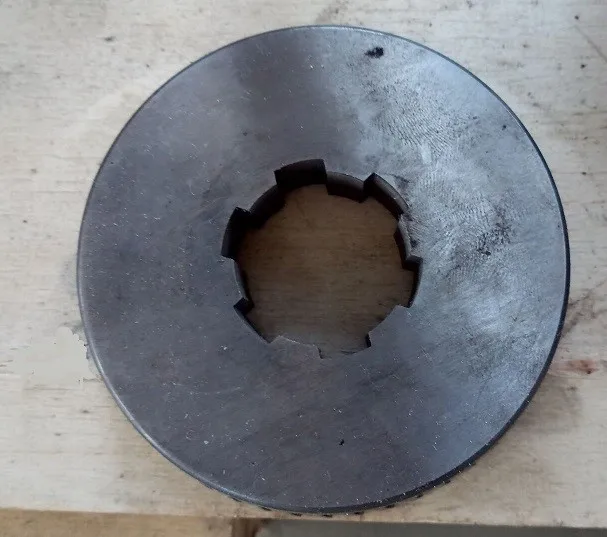

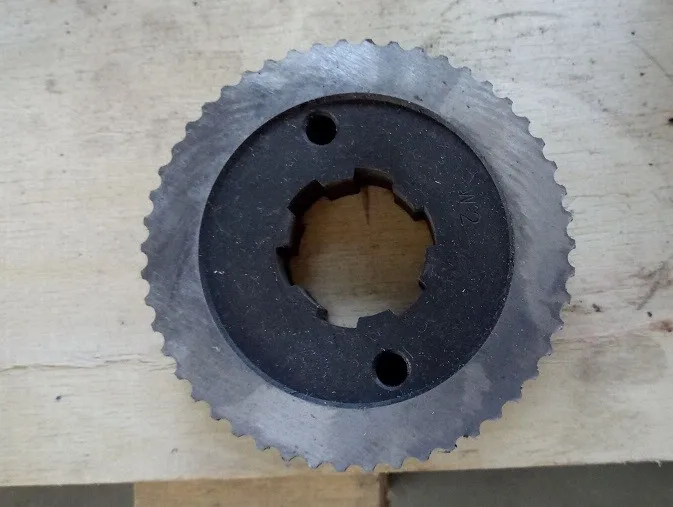

Cutters:

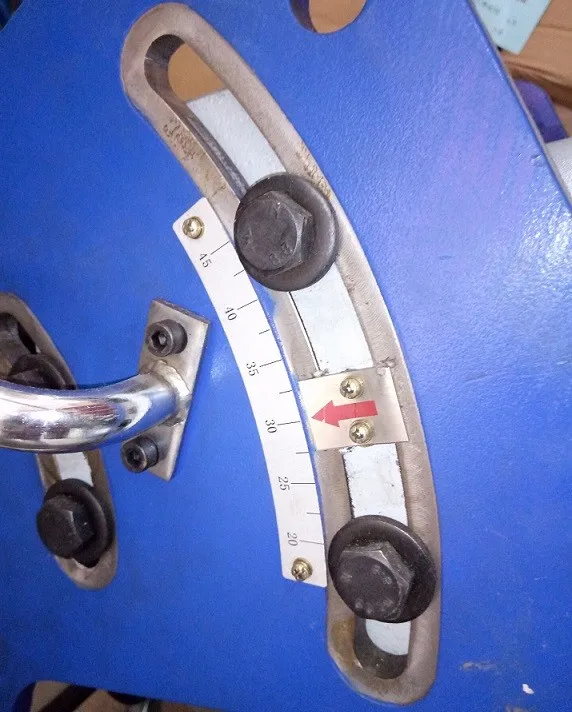

Adjustable angels:
Working:

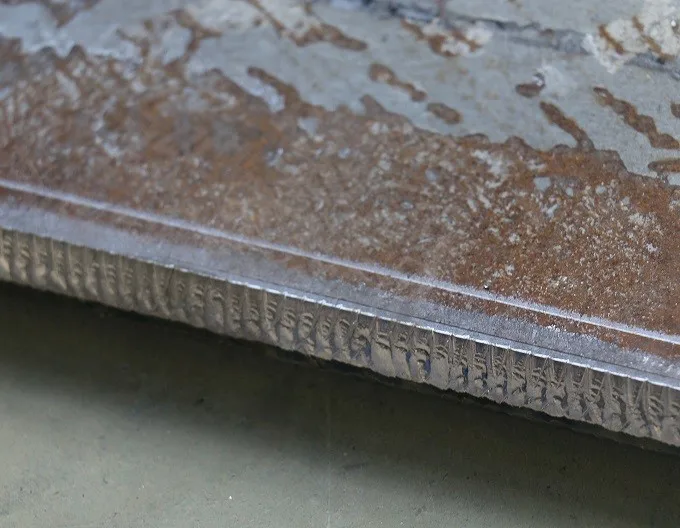

After Beveling:

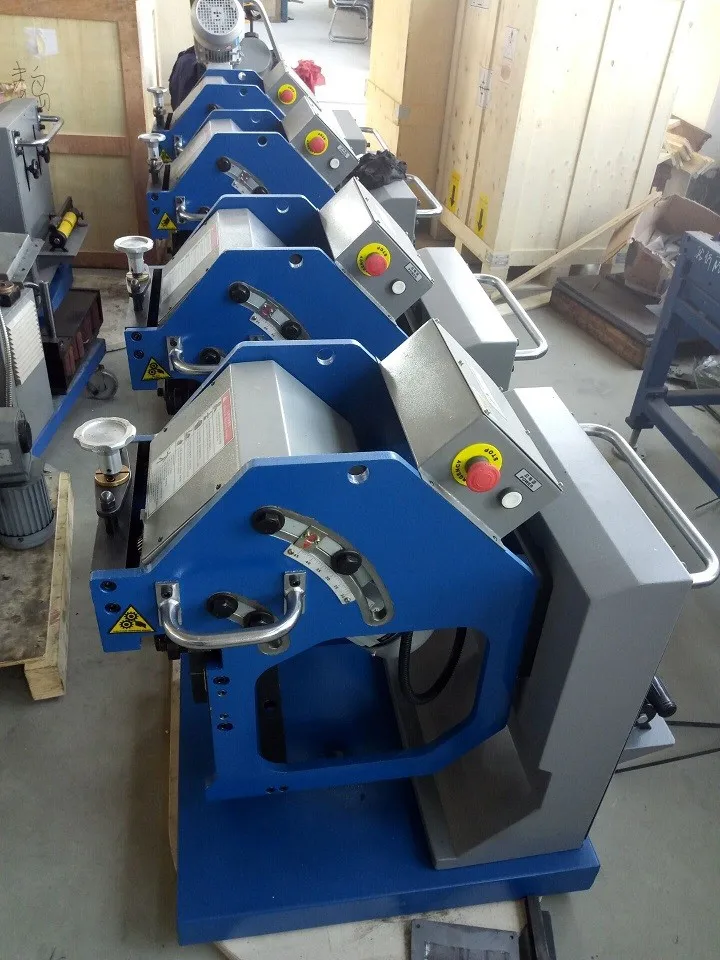

Products:
Features:
- High quality transmission reducer with efficiency and stability.
- Shock absorption to move with fast bevelling.
- Process with electric and easy adjustable for even un-professional worker to reduce labour cost.
- Low noise while processing by imported motor.
- Processing material could be : Stainless stell,carbon steel,AL Alloy ,Clad Plate .etg
- Feeding used efficient gear system.
- Electrical wiring comply with CE standard and safty systerm.
- Special parts used high wear-resisting and hardness material
- Favourite price for a high quality tool.
- Accessories & parts and tools will be offered in a tool box with manual .
Order Guide:
Before you place order to us, please let us know the following information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your Plate material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed

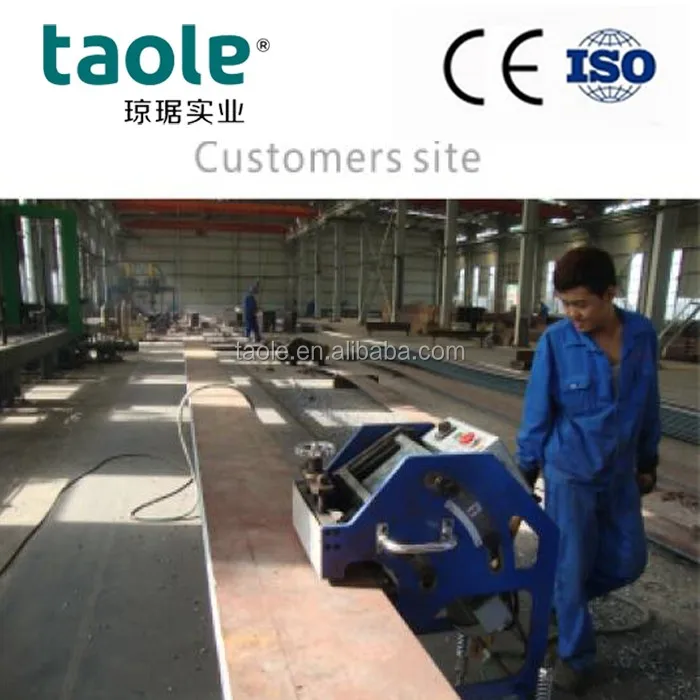

Processing Reference from Customer Site:
Note: Below Link for Other 4 Model Metal Plate Beveling & Chamfering Machine
1) GBM-12D Specially for plate thickness 6-30mm,25-45degree,Working 1.5-2.6m/min
2) GBM-12D-R Same with 12D but Turnable for double side bevel
3) GBM-16D Specially for Plate thickness 9-40mm,25-45degree,working 1.2-1.6m/min
4) GBM-16D-R Same with 16D but turnable for Double Side Bevel
Packae details:
