Промышленные пластиковые мульти-хоппер Автозагрузчик машина цена WSAL-2HP-3 из материала высокого качества
- Категории: Plastic Loader >>>
- Поставщик: Wensui,Intelligent,Equipment,Inc.
Поделиться:
Описание и отзывы
Характеристики
Product Features
✔ One host machine feeds to several hoppers to save cost and space.

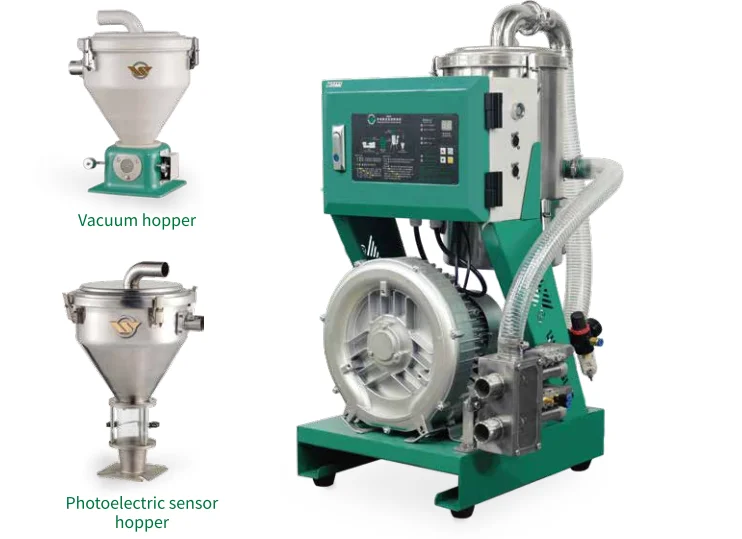

✔ Vacuum hoppers and sensor hoppers are available.
✔ Applicable for drying and conveying in one system with simplified systematic structure and high efficiency.
✔ Fully automatic microcomputer controlled.
✔ integrated control , easy and safe to operate.
✔ Easy maintenance.
✔ Vacuum hoppers and sensor hoppers are available.
✔ Applicable for drying and conveying in one system with simplified systematic structure and high efficiency.
✔ Fully automatic microcomputer controlled.
✔ integrated control , easy and safe to operate.
✔ Easy maintenance.
Specifications
Model | WSAL-1.5HP-2 | WSAL-2HP-3 | WSAL-3HP-4 |
Motor(HP) | 1.1 | 1.5 | 2.2 |
Conveying Capacity (kg/h) | 500 | 650 | 750 |
Pump Lift(m) | 4 | 4 | 5 |
Static Wind Pressure(bar) | 0.21 | 0.25 | 0.28 |
Storage Bin Volume(L) and Number of Bin | 6×2 | 6×3 | 6×4 |
Conveying Tube Inner Diameter (mm) | Φ38 | Φ38 | Φ38 |
Size of Standard Hose | Φ38mm×4m 4pcs | Φ38mm×4m 6pcs | Φ38mm×5m 8pcs |
Dimension L*W*H(cm) | 61×37×67 | 54×56×123 | 54×62×123 |
Net Weight(kg) | 55 | 58 | 66 |
Product Details

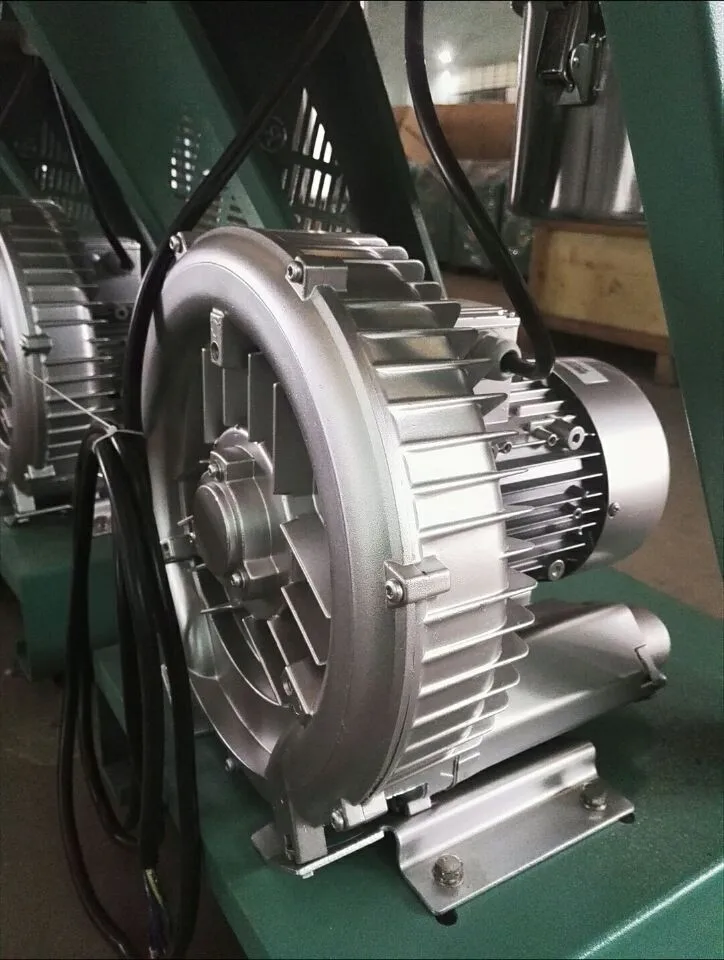

High Pressure Blower.
High Suction, Low noise,Strong suction

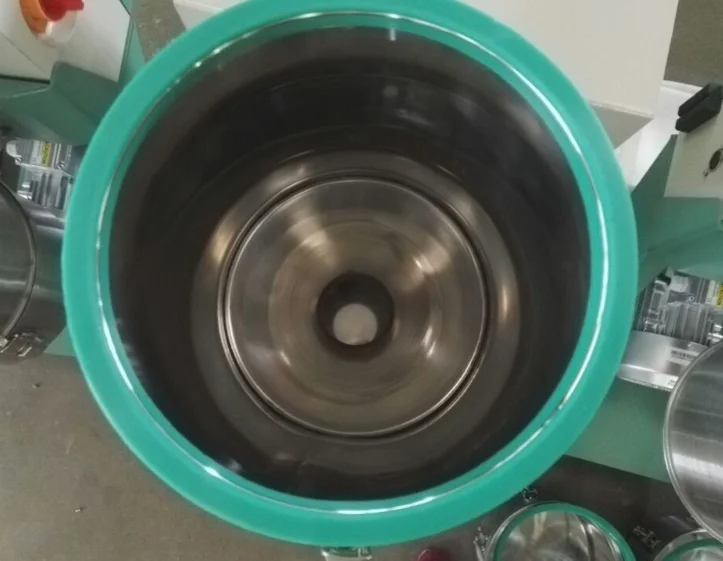

Vacuum hopper.
Stainless Hopper , High quality
Air Filter.
Used to protect the motor when conveying powder material.
Plastic elbow.
Easy to connect
Filter Screen.
Thickened reinforced filter screen.
Certifications
Exhibition
Package

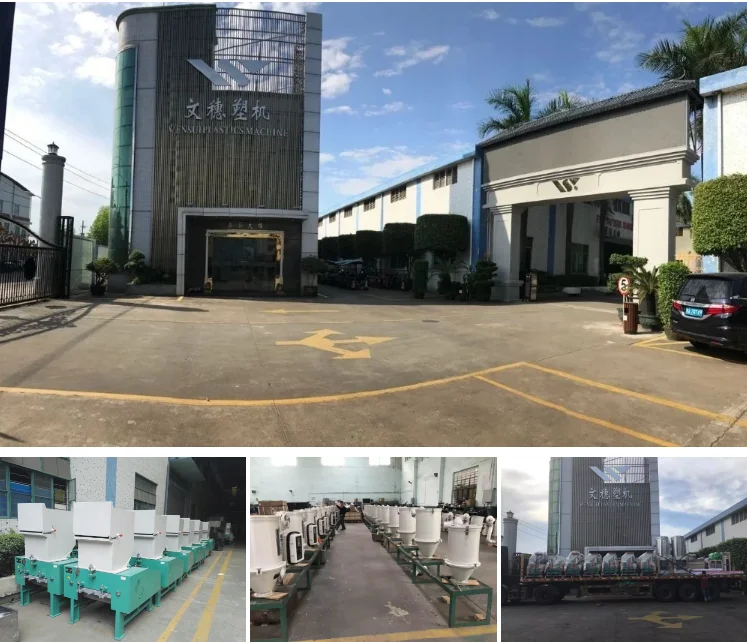

Our Company
Wensui, founded 30 years ago, focused on one stop solution for all kinds of injection workshops, the most professional factory for auxiliary machinery production and development, and a very famous brand all over the Asia. Welcome to browse our website www.wensui.com if necessary.
Our products range as following:
1. Automation Series
2. Granulating & Recycling Series
3. Drying & Dehumidifying Series
4. Mixing & Separating Series
5. Heating & Cooling Series
6. Feeding &Conveying Series
7. Shredder and Prodution lines (Washing line, recycling line, crushing line … )
Our products range as following:
1. Automation Series
2. Granulating & Recycling Series
3. Drying & Dehumidifying Series
4. Mixing & Separating Series
5. Heating & Cooling Series
6. Feeding &Conveying Series
7. Shredder and Prodution lines (Washing line, recycling line, crushing line … )
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. Founded 30 years ago, focused on one stop solution for all kinds of injection workshops, the most professional factory for auxiliary machinery production and development, and a very famous brand all over the Asia.
Q: How long is your delivery time?
A: Generally it is 7-10 days if have in stock. Or it's 45 days if the goods are not in stock, it is according to quantity.
A: We are factory. Founded 30 years ago, focused on one stop solution for all kinds of injection workshops, the most professional factory for auxiliary machinery production and development, and a very famous brand all over the Asia.
Q: How long is your delivery time?
A: Generally it is 7-10 days if have in stock. Or it's 45 days if the goods are not in stock, it is according to quantity.
