GMMA-80A Автоматическая нержавеющая стальная пластина фаскосъёмная машина для толщиной 6-80 мм
- Категории: Chamfering Machines >>>
- Поставщик: Shanghai,Taole,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Name:
Automatic Stainless Pipe Grooving Machine Steel Plate Chamfering Machine GMMA-80A
Specs:
| Product Type | GMMA-20T | GMMA-25A-U | GMMA-60R | GMMA-60L | GMMA-60S | GMMA-80A | |
| Plate Length (mm) | >10 | >300 | >300 | >300 | >300 | >300 | |
| Plate Width (mm) | >10 | >80 | >80 | >80 | >80 | >80 | |
| Clamp Thickness (mm) | 2-30 | 8~60 | 8~60 | 8~60 | 6-60~ | 6~80 | |
| Milling Angle a (°) | 30 ~ 60 | 0~-45 | ±10~60 | 0~90 | 0~60 | 0~60 | |
| Milling Width w (mm) | NO | 0~55 | 0~55 | 0~56 | 0~45 | 0~70 | |
| Milling Depth d (mm) | NO | NO | NO | 0~15 | NO | NO | |
| Milling Width e (mm) | NO | NO | NO | 0~50 | NO | NO | |
| Feeding depth f (mm) | NO | 0~15 | NO | 0~15 | NO | 0~15 | |
| 0° Milling width B (mm) | NO | 50 | NO | 56 | NO | 60 | |
| Single Milling Width (mm) | 15 | 15 | 15 | 15 | 15 | 20 | |
| Milling Speed (r/min) | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 | |
| Feeding Speed (mm/min) | 0~1600 | 0~1500 | 0~1500 | 0~1500 | 0~1500 | 0~1500 | |
| Power Supply | AC380V 50Hz | ||||||
| Total Power (w) | 1620 | 4800 | 3400 | 3400 | 3400 | 4920 | |
| Motor Rotation (r/min) | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | |
| Net Weight (kg) | 135 | 260 | 225 | 195 | 250 | 245 | |

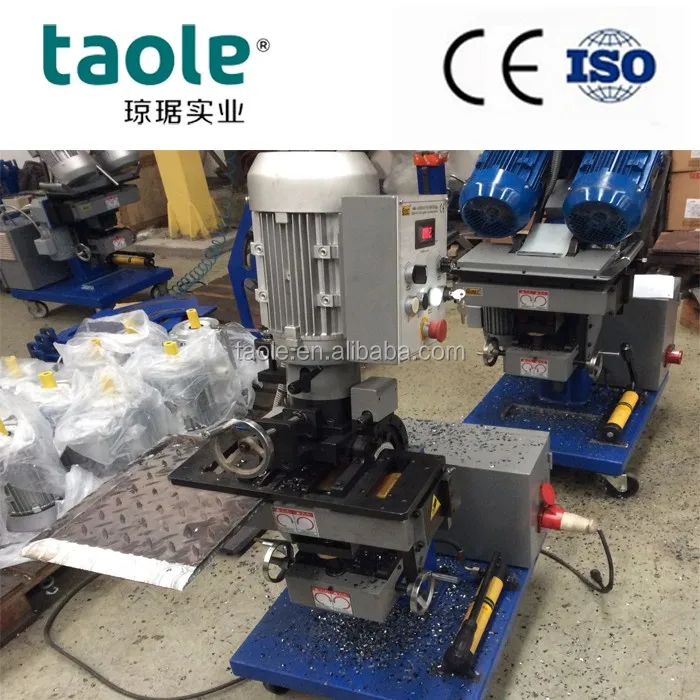

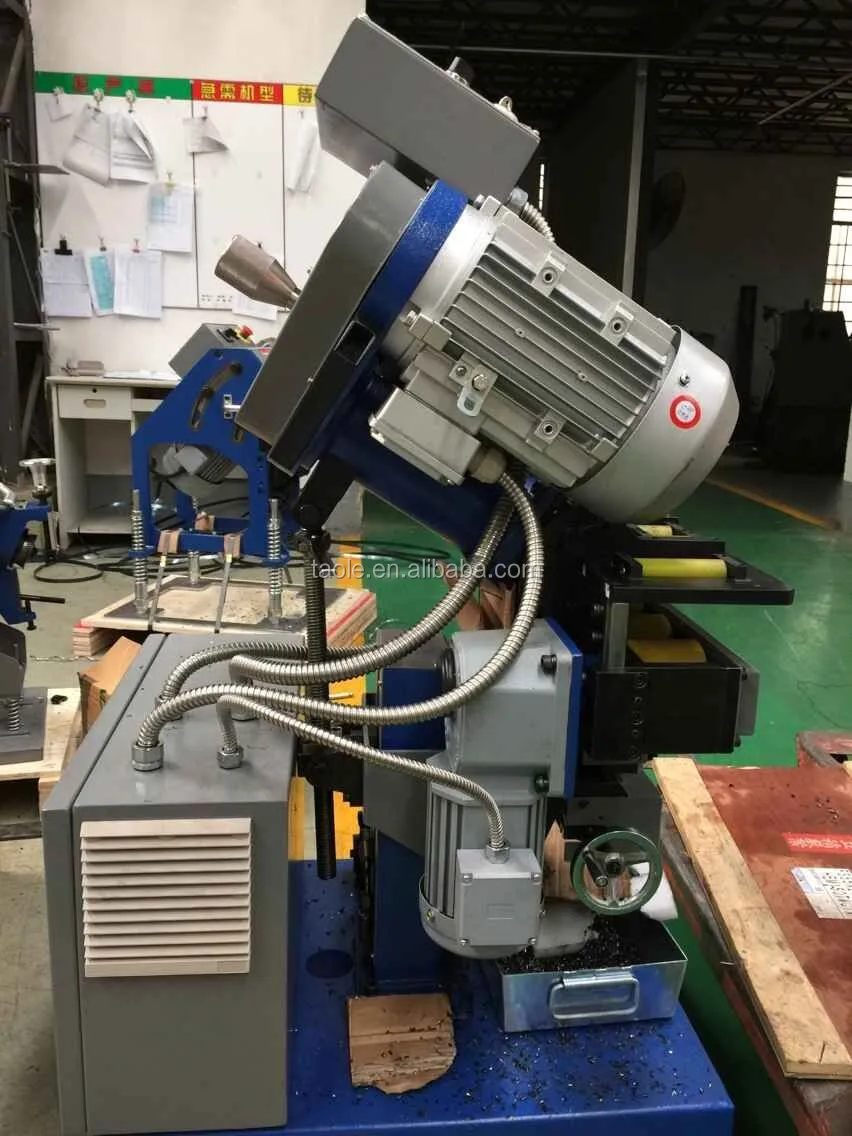

Products Pictures:GMMA-80A

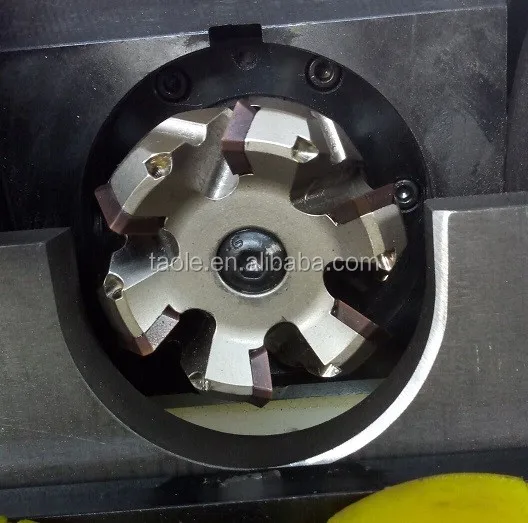

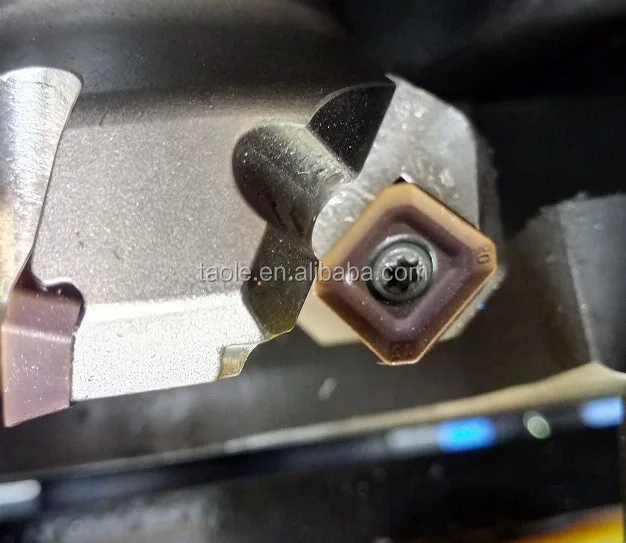

Cutters:

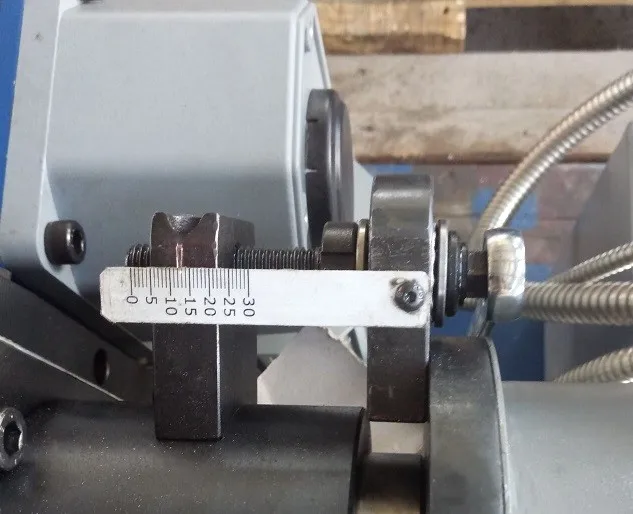

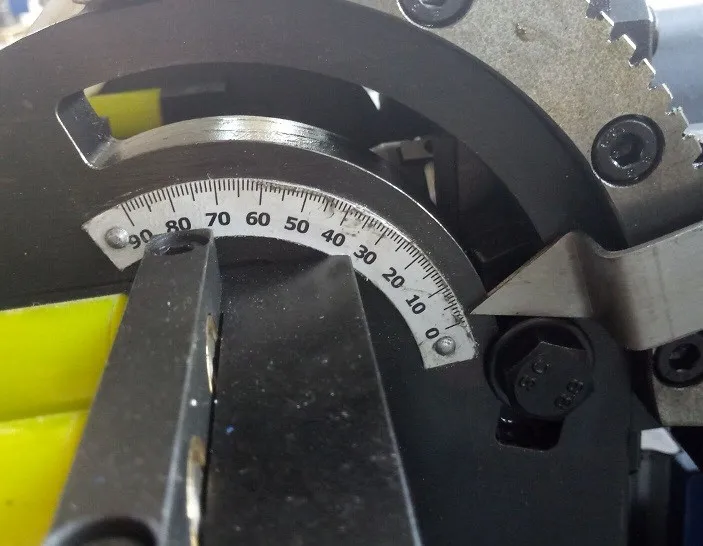

Adjusting angels:

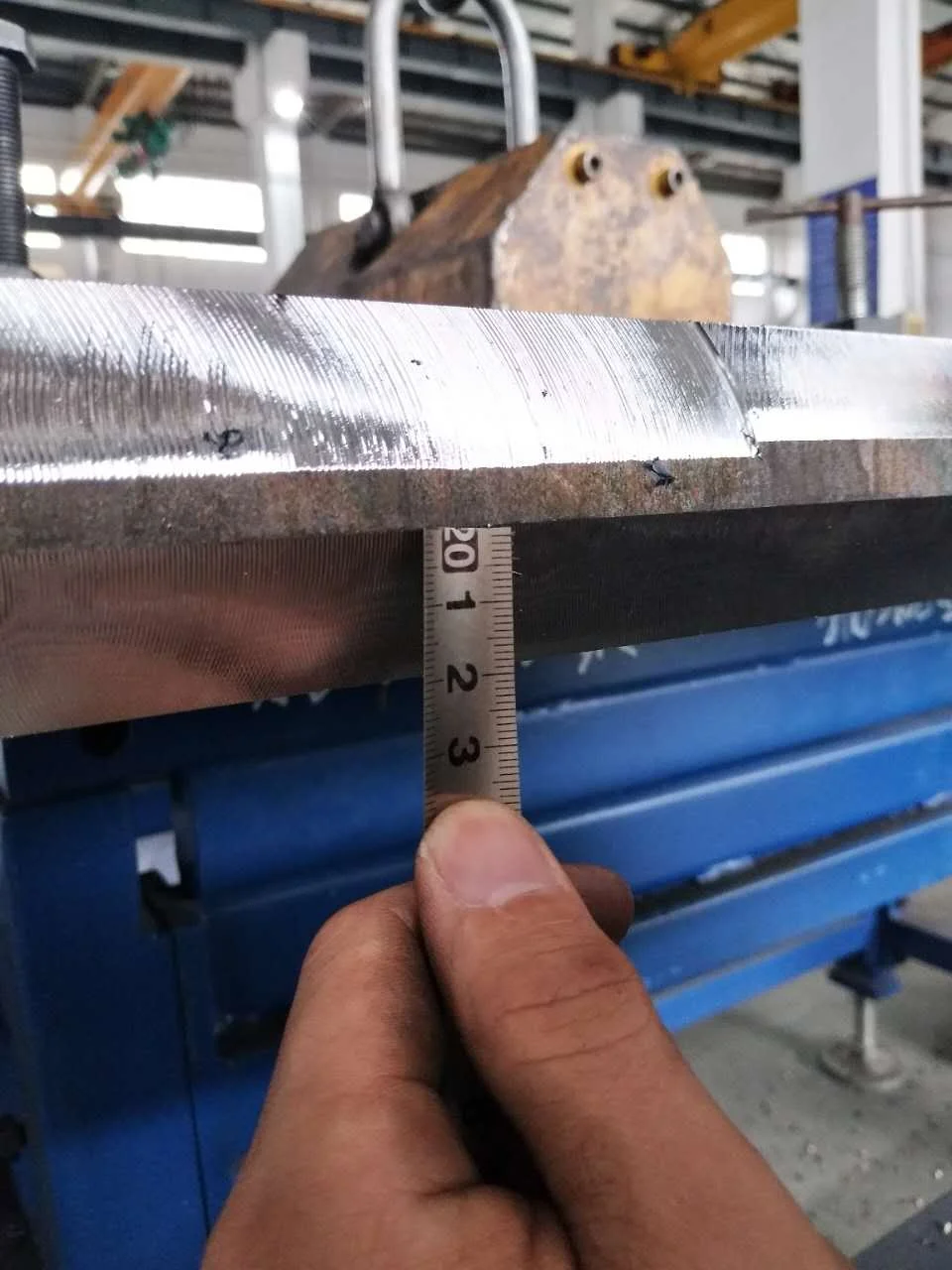

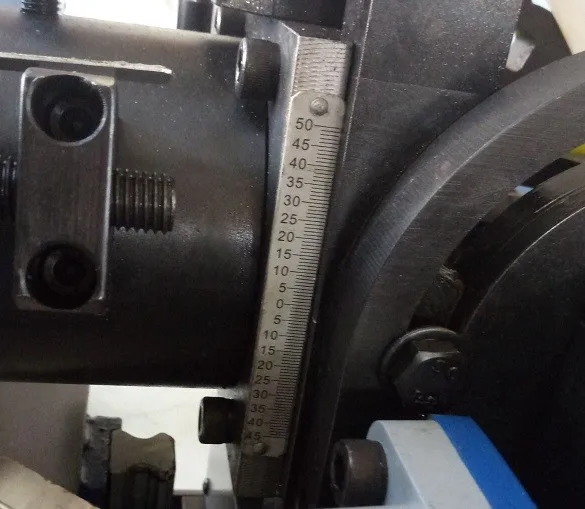

Feeding speed, beveling width:

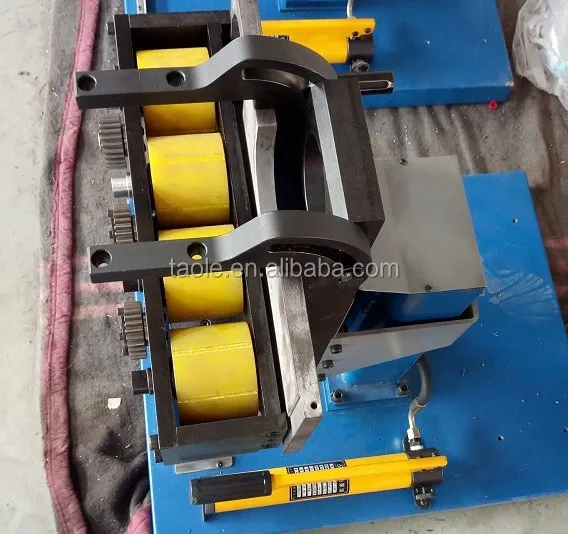

Parelling Rolls:
Operating Table:

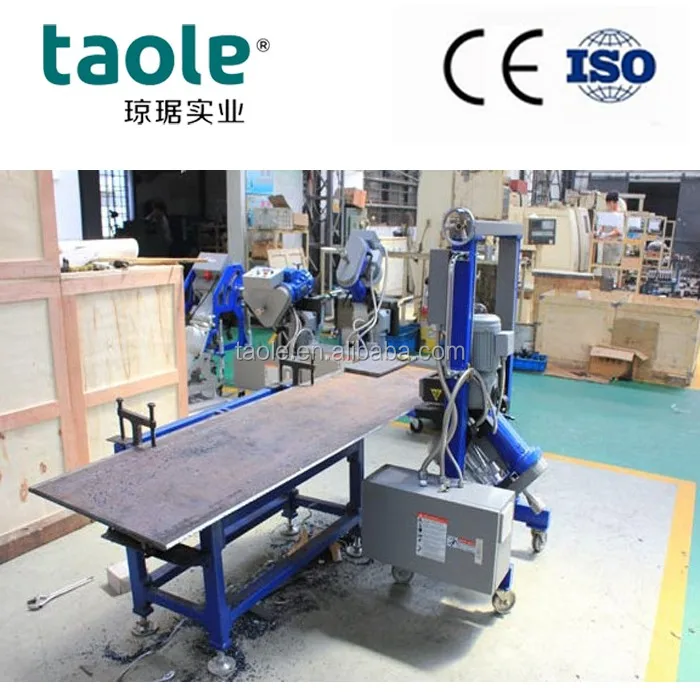

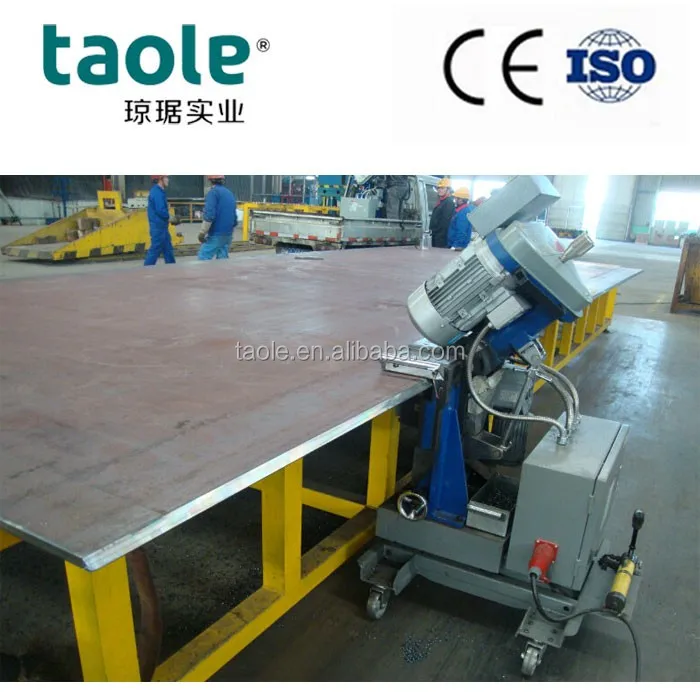

Working:GMMA-60R

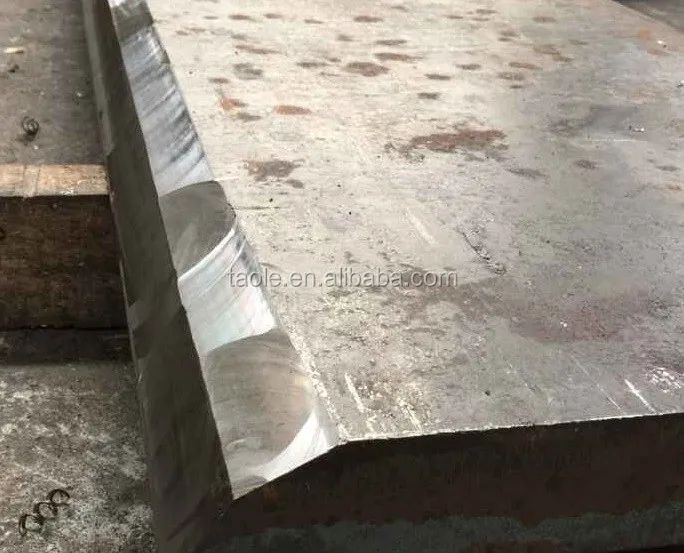

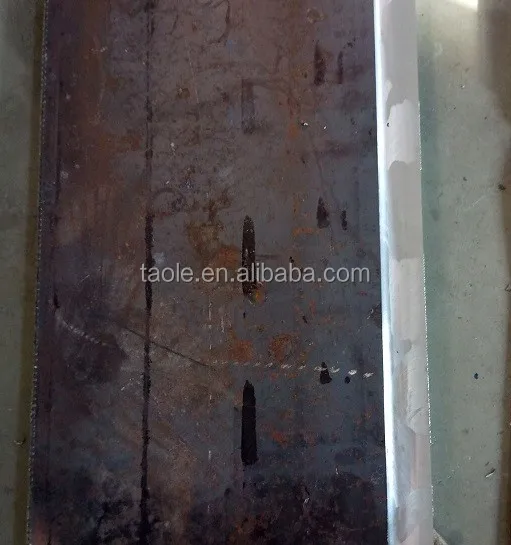

After Milling:
Features for GMMA Series
1. Safety lock, Rear feed motor design and independent design of electric box. more sage.
2. OL Protection
3. Digital Display, Easy processing with Operation.
4. Feed adjustable,speed adjustable
5. Angle Adjustable in range
6. Milling surface reach Ra 3.2-6.3
7. 7 Models with different advantages as per customer's needs.
8.OEM/ODM available as a manufacture with own designing team and developing department.
9. Self-Moving and Cold working
10.High Efficiency milling Cutters with interchangeable Inserts.
Our Guide:
Before you place order to us, please let us know the following information:
1. Choose the right Model
2. Confirm your electric power supply ( Voltage, frequency and phase)
3. Confirm the milling angel required
4. Confirm the welding joint required (U,V or others)
5. Advise your processing material ( Carbon steel, stainless steel or others)
6. Other special demands about machine
7. The spare parts needed
Cases Showing:
Packages:
