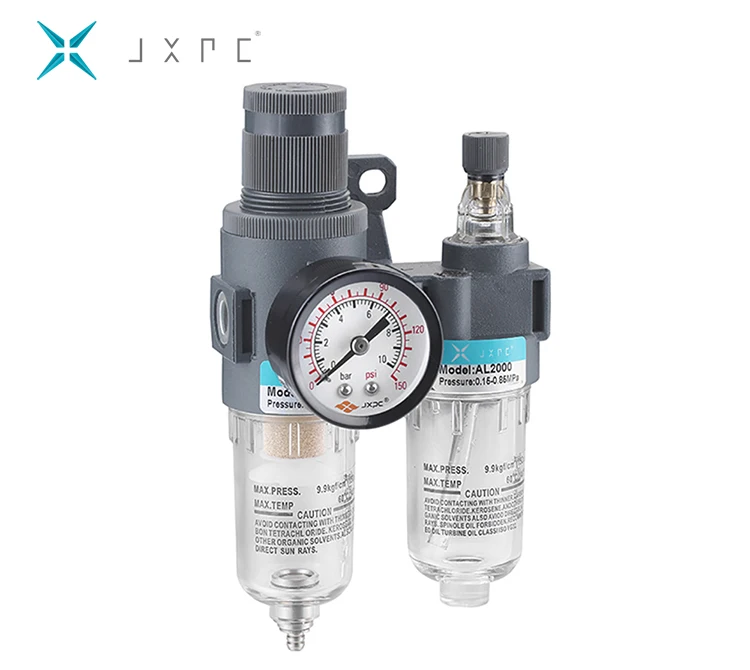

Пневматический пневматический очиститель источника воздуха Airtac
- Категории: Пневматические детали >>>
- Поставщик: Ningbo,New,Jiaxing,Automatic,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
- Temperature Range: 5-60 Degree
- Filter Precision: 25um(5,40um is Optional)
- Body Material: Aluminum Alloy
- Prepares Air Properly For All Types Of Compressed Air Tools And Equipment
- The Filter Removes Solid Particles And Condensates With Compressed Air
- Step Less Regulator Accurately Maintains Air Pressure Over A Wide Range Of Flows
- Micro-Fog Lubricator Supplies Lubricating Oil To Working Pneumatic Equipment In Proper Proportion
- Protect Your Air Tools With Much Longer Life

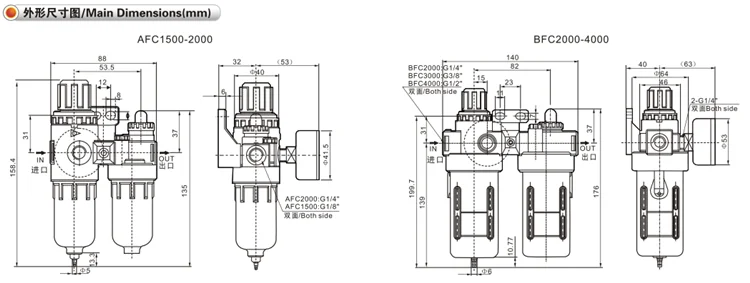

| AFC/BFC Series Air Source Treatment Unit(FR.L) Combination | ||||||
| Model | AFC1500 | AFC2000 | BFC2000 | BFC3000 | BFC4000 | |
| Working medium | AIR | |||||
| Port size | G1/8 | G1/4 | G1/4 | G3/8 | G1/2 | |
| Filter precision | 25um(5,40um is optional) | |||||
| Adjusting pressure range | 0.05~0.85Mpa | |||||
| Max.Adjusting pressure | 0.95Mpa | |||||
| Guaranteed.pressure | 1.5Mpa | |||||
| Working temperature | 5~60°C | |||||
| Filter bowl capacity | 15(CC) | 60(CC) | ||||
| Lubricator bowl capacity | 25(CC) | 90(CC) | ||||
| Recommended Oil | ISO VG32 or equicalent Oil | |||||
| Weight | 0.7kg | 0.9kg | ||||
| components | Filter Regulator | AFR1500 | AFR2000 | BFR2000 | BFR3000 | BFR4000 |
| Lubricator | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 | |
