COLLECTOR RING-ELECTRIC CONTROL FOR CENTER PIVOT IRRIGATION SYSTEM

Model No.:  HS8120-11RINGS 25A

 Working temperature:

Temperature: -20℃~60℃

Relative humidity:<95%

Specification:

1.Dynamic contact resistance:<10mΩ

2.Voltage:0-480V/240VAC

3.Current:@25Amp per ring

4.Contact material:brass & Carbon brush

5.House material:metal base & ABS cover/aluminium cover

Feature:

1.with 11 rings the collector ring gives total connection between the main electric panel and the spans

2.Bearing rotate,make sure good performance.

3.the collector ring is water proofed

4.Stainless steel shaft makes long lifetime.

Installation:

The collector ring is installed on the center pivot irrigation frame,consists of rotation part and fixation part.The rotatry structure of rotating prt connected device called "roter:,the fixed part installed on the bracket of the equipment,called "stator"

The "rotar" is fixed through the G1" threaded hole or the G 1/2" threaded hole on the base side.The "stator" is installed on the base through the mouting shaft G1"

Drawing:

Features:

Electric controlers parts:

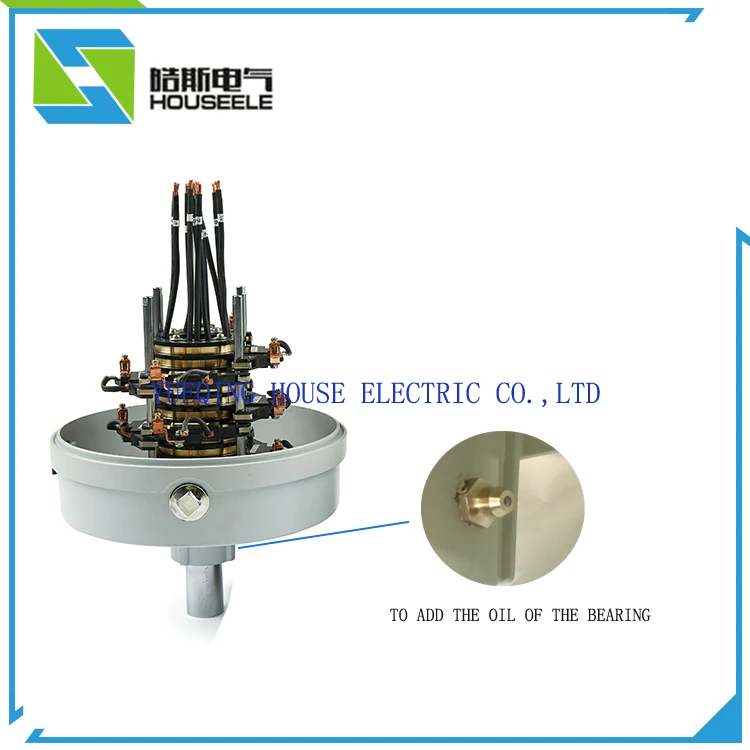

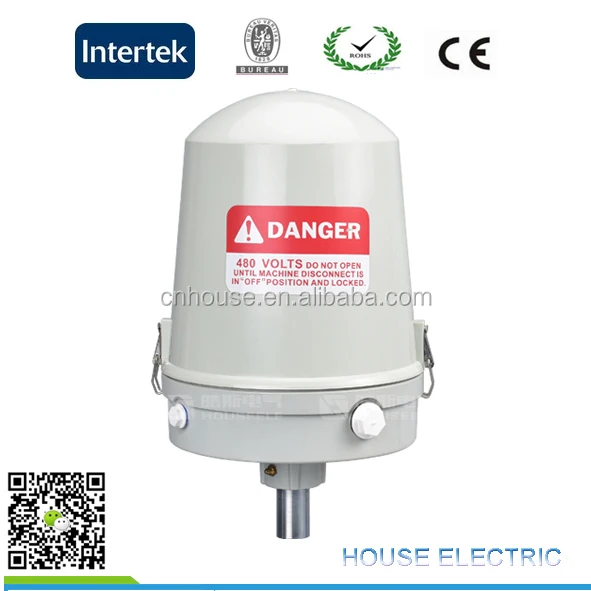

  11 ring slip ring for center pivot irrigation system,collector ring

 collector ring

  11 ring slip ring for center pivot irrigation system,collector ring

  11 ring slip ring for center pivot irrigation system,collector ring

 Welcome to contact us! 11 ring slip ring for center pivot irrigation system,collector ring
