Concrete roof board  forming Machine for Precast hollow core slab

Precast Concrete Hollow Core Slab Machinery/equipment manufacturing of reinforced Concrete







Haitian pre-stressed hollow core slabs height of 50mm, 100mm,120mm, 200 mm, 220 mm, 265 mm, 320 mm and 380 mm.500mm. Width across the lower edge is 1200mm. Length is determined by the customer in accordance with the project and can be up to 19 meters.



Hollow core slabs are manufactured by extrusion. The hollow core slab machine, as main reinforcement used high-strength steel cable of diameter of 7 to 15.2 mm. Number and diameter of rope needed for the production, determined by the type of hollow core slab reinforcement, depending on operational load.



1.Advanced and matured technology

2.Fast molding speed :1.2-1.4m/min

3.Low labor strength and high efficiency

4.Long service life

5.Strong bearing

6.Only four workers needed

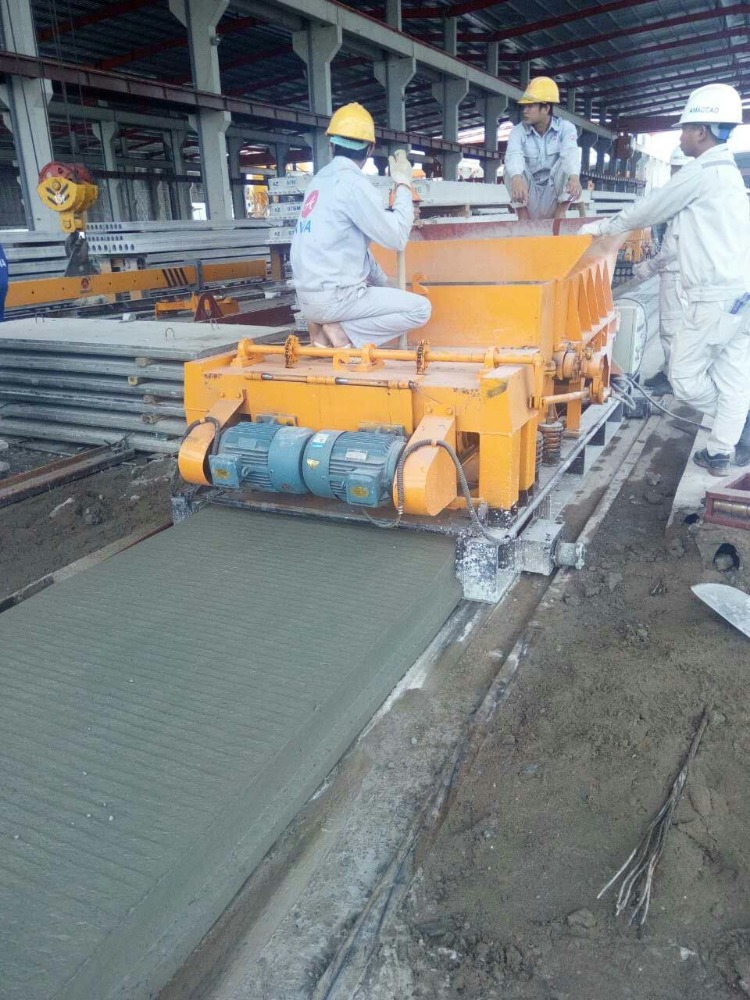

Introduction of the Hollow core slab machine precast:



Introduction: The machine is mainly used to make the floor slab of house or building. The machine is making the slab through mechanical squeezing. It uses the vibrator to compaction the slab makes the cement, sand and stone etc. fastening together.



 We are having many types of the concrete roof  slabs Forming Machine; different model can produce different kinds of slab to make different building.



About our company :

Haitian is a professional producer of pre-stressing concrete hollow core slab forming machine. It characters as bellow: suitable design, easy for operation and maintenance, durable spare parts etc. With smooth surface, solid construction ,high strength and precise dimension ,the hollow core slab meets all the national specification requirements required .The dimension range of the slabs are as bellow: Length is from 4.2m to 18m, width are 600mm,900mm and 1200mm, the thickness is 120mm,150mm,180mm,200mm,250mm, 300mm and 380mm.

Specification of the Precast Hollow core slab machine :





Slab size (Thickness*width) (mm)	Max. Length (m)	Max. Load (Kn/m2)	Dia. Of steel when max Load (mm)	No. of steel when max load	Holes no.
100x600	5.1	8.11	7	5	6
120x600	6	8.86	7	6	5
150x600	7.5	10.24	9.5	5	4
180x600	9	16.16	12.7	4	3
100x900	5.1	9.76	7	10	10
120x900	6	8.86	7	9	8
150x900	7.5	10.24	9.5	10	6
180x900	9	16.16	12.7	9	5
200x900	10.2	13.22	12.7	7	6
250x900	12.6	11.1	12.7	7	6
300x900	15	10.83	12.7	8	5

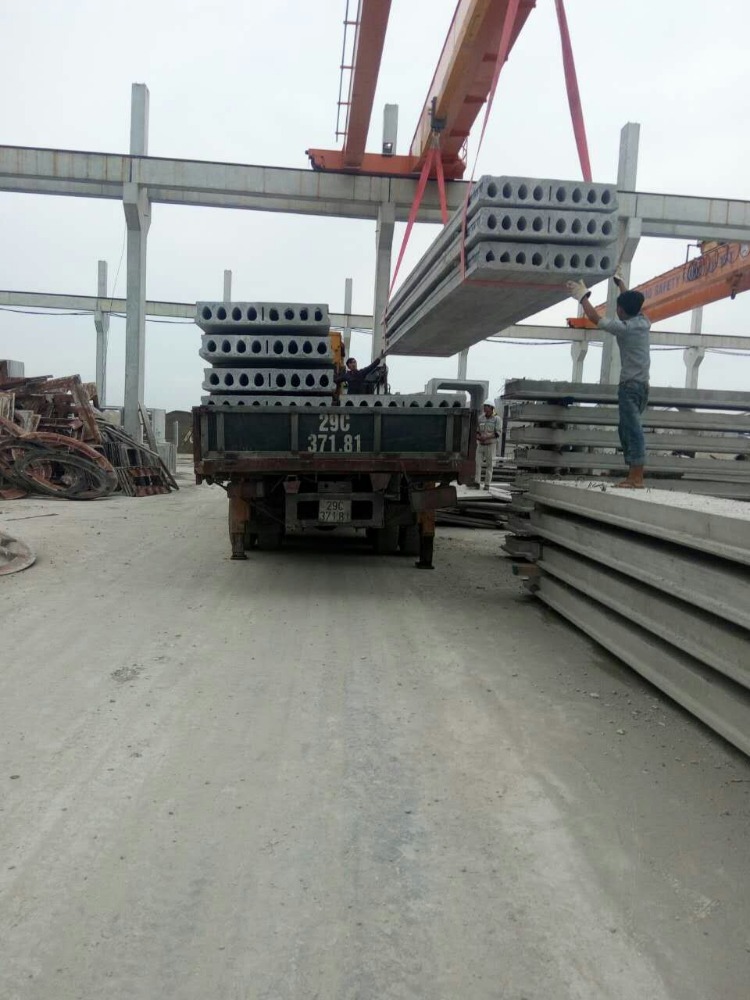

Whole production layout of the precast Hollow core slab machine:





Concrete floor palte machine. Making according to your request, Pls contact with me to talk more details!
