LMS Automatic Steel Light Steel Keel Roll Forming Machine Metal Stud Track Steel Guage Frame Ceiling Making Machine

• Keel machine Roll forming machine



• Light steel keel machine



• Integrated ceiling keel machine



  C channel, stud, track, runner, U channel, Drywall system roll forming machine width adjustable







  Machine introduction:

  LMS roll forming machine which takes the COPRA, designing software for cold rolling production and applies for the first step of rolling design, calculation, molding technique simulation, blueprint optimization and roller design to rough molding management, digital machining and quality control. LMS applies for the COPRA in the whole process. The greatness of COPRA is combined with LMS's great experience of twenty years completely and this make LMS be with might double in production for clients. Realize your dream with CORPA.

  Main Specification :
  material: steel coil

  material thickness : 1.6 mm

  production speed: 0-50m/min

  profile width : 38mm, heigth: 22mm



  Components:

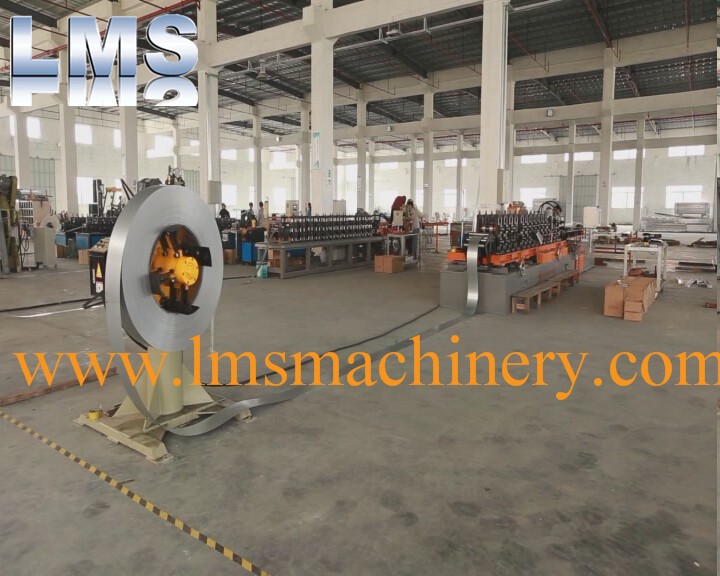

   A. Decoiler 1 set

   capacity: 2tons

   coil inner diameter: 460mm-530mm

   coil outer diamteter: max1300mm

   coil width: 20mm-200mm

   speed: max.80m/min

   maunal expansion

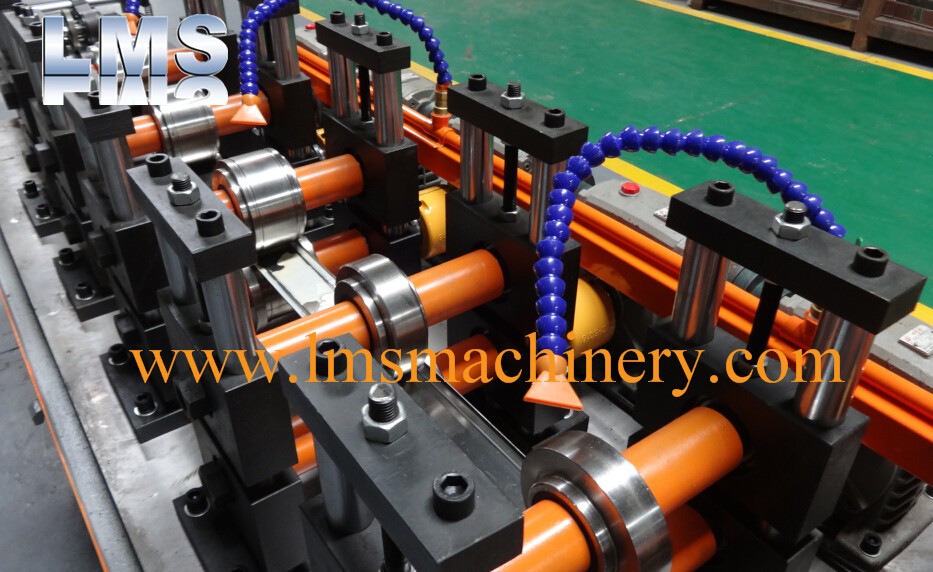

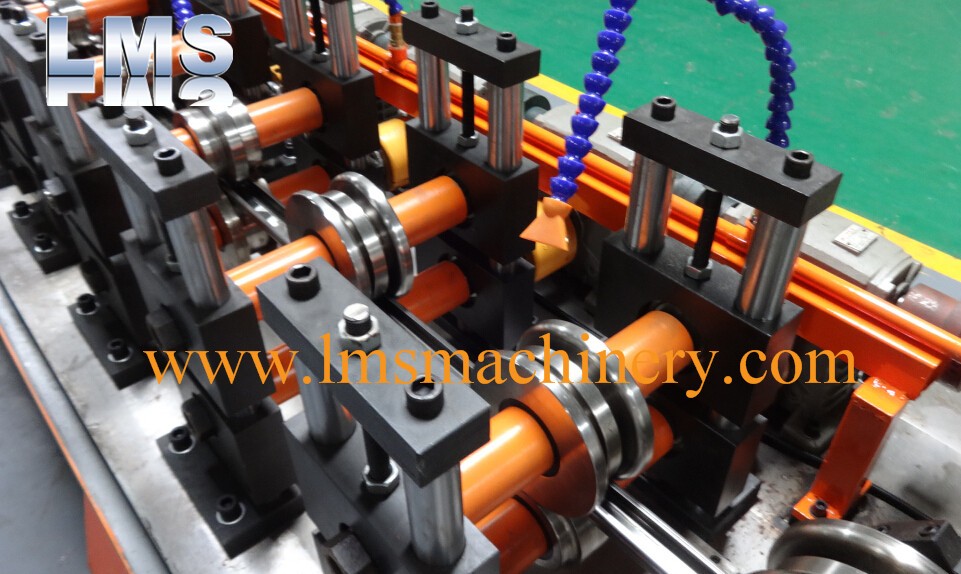

  B: Roll forming machine    1set

   roller station: 12 sets

   roller material: Cr12 mold steel

   heat treatment: HRC 58°C-60°C

   torii: independent guide column type,side wall thickness: 54mm

   drive: motor and worm speed reducer

   main shaft material: 40Cr, shaft diameter: 48mm

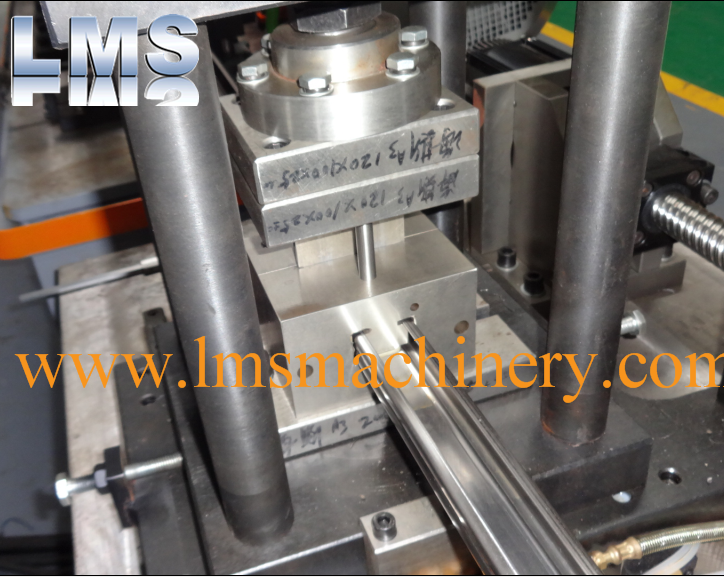

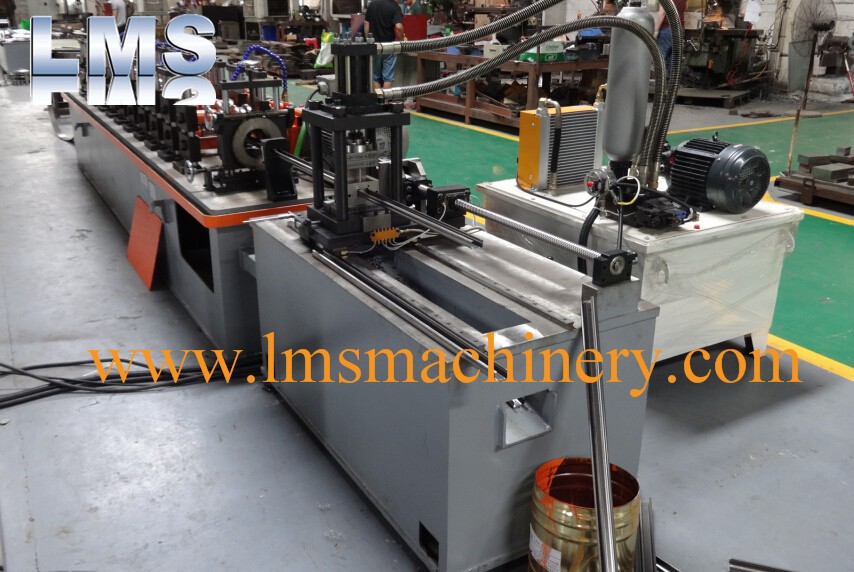

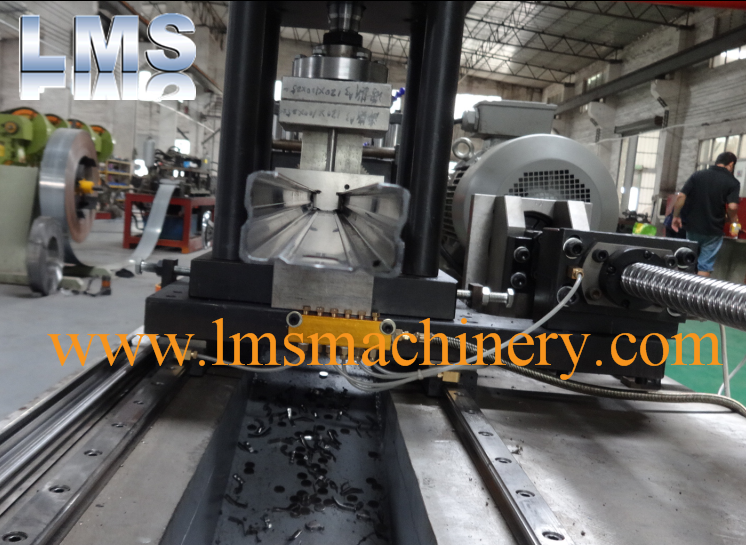

  C: Cut-off part    1 set

   hydraulic system

   automatic punching and cutting, no stop and no speed reduce

   blade material: Cr12Mov

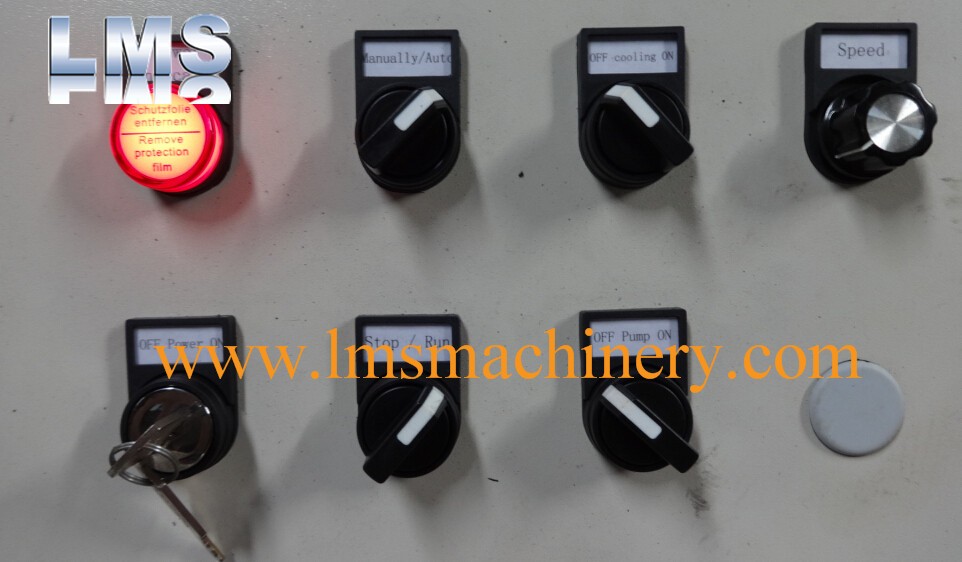

  D: Electronic system   380V 50Hz

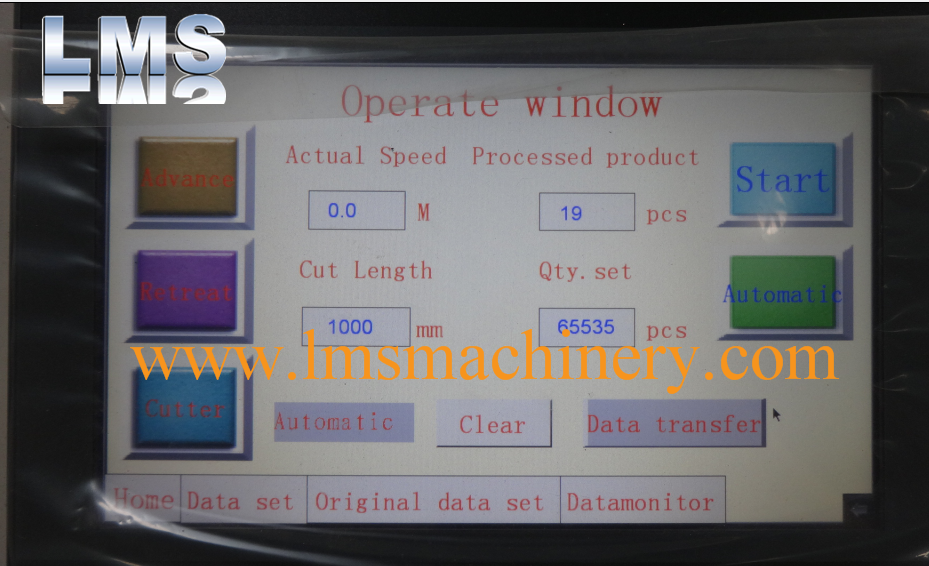

   PLC control

   PLC                                                     FATEK

   Frequency converter                         SHIHLIN

   Servo motor and drive                      YASKAWA







   INSTALLATION, MAINTENANCE AND OPERATOR TRAINING


   In correct operation & maintaining, excluded the electric elements, guaranteed against malfunction due to manufacturing defects for 12 months from the date of loading. Repairs will be made free of charge.
