JW36 315 тонн автоматическая машина для штамповки листового

Описание и отзывы

Характеристики

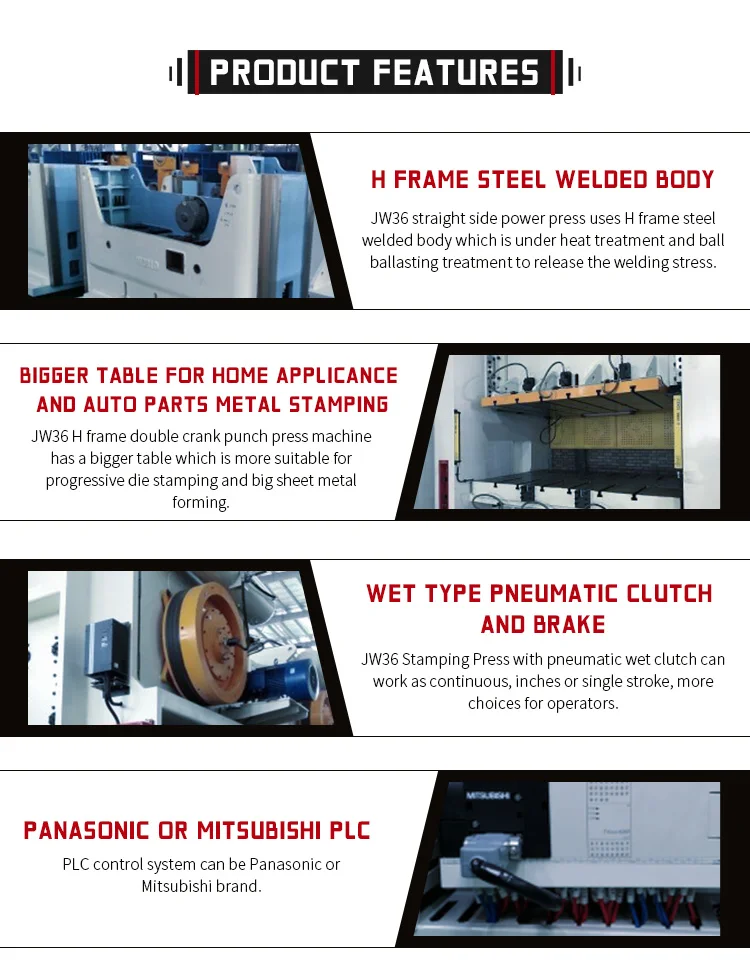

Main Features of H frame punching press machine:

1.  Welded steel plate framework, H frame body, high intensity and rigidity;

2.  Double crankshaft pitmen totally eliminating side forces by reverse rotation;

3.  Combined wet multi discs friction clutch and brake;

4.  Hydraulic overload protecting device;

5.  Eight-side lengthen guide with high precision;

6.  Electric die height adjustment with digital display;

7.  Electric cam device with intelligent top dead center stop function and several safety unction;

8.  Balancing cylinder adopts manual lubrication system



ITEM		UNIT	JW36-315
Nominal Capacity		KN	3150
Slide Stroke Length		mm	300
Slide Stroke Speed	Fixed	Times/min	35
	Variable(optional)	Times/min	25-35
Max. Die Set Height		mm	550
Die Set Height Adjustment		mm	120
Side Window Size	Front-Back	mm	1020
	Height	mm	460
Distance Between Columns		mm	2680
Bolster Size	Front-Back	mm	1100
	Left-Right	mm	2600
	Thickness	mm	190
Slide Bottom Size	Front-Back	mm	1000
	Left-Right	mm	2300
Bolster Surface Height		mm	1150
Overall Dimensions	Front-Back	mm	3020
	Left-Right	mm	3650
	Height	mm	4400
Motor Power		KW	37
Weight(approximate)		kg	45000

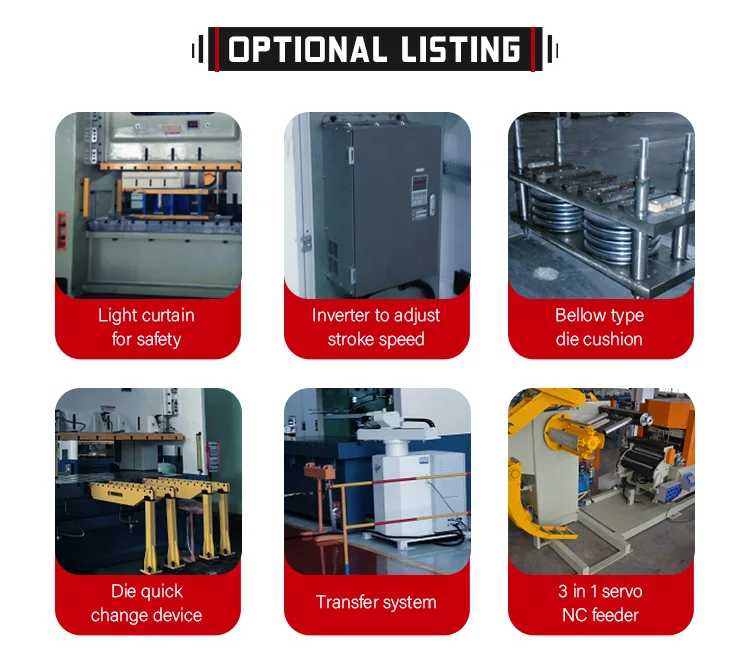

Standard Equipments:                                                                                    Optional Equipments:

1) Wet clutch                                                                                                     1) Dry clutch

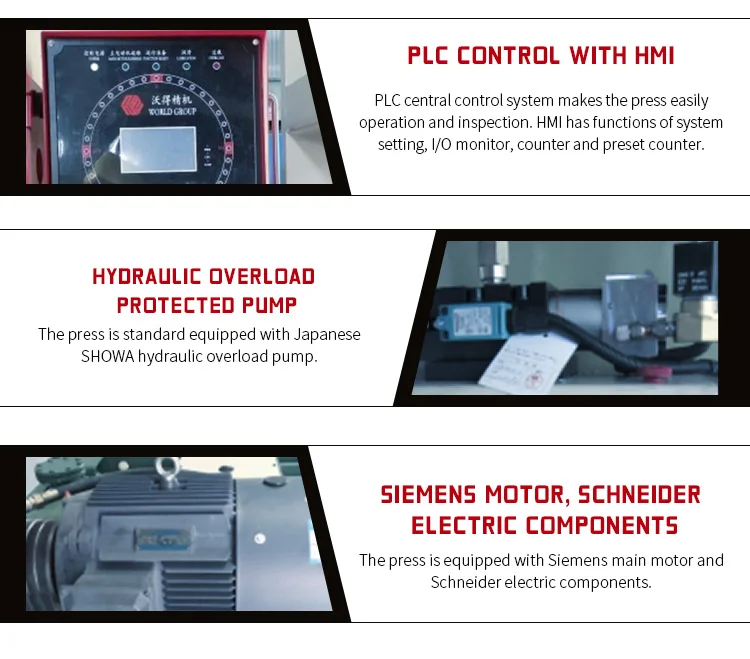

2) PLC                                                                                                               2) Light curtain

3) Hydraulic overload protecting pump                                                             3) Inverter

4) Touch screen                                                                                                4) Variable speed motor

5)  Cam controller                                                                                             5) Foot pedal

6)  Die height adjusted motor                                                                           6) Cushion

7)  Auto lubrication system                                                                               7) Auto feeding shaft

8)  Manual lubrication system                                                                           8) NC feeder

9)  Double hand control panel                                                                           9) Die quick change device

10) Electronic crankshaft angle indicator

11) Predetermined counter

12) Balance cylinders for slide and upper die

13) Work light

14) Absorbing pads
