XK6330 сделано в Китае универсальный фрезерный станок с
- Категории: Фрезерные станки с ЧПУ >>>
- Поставщик: Zaozhuang,DS,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

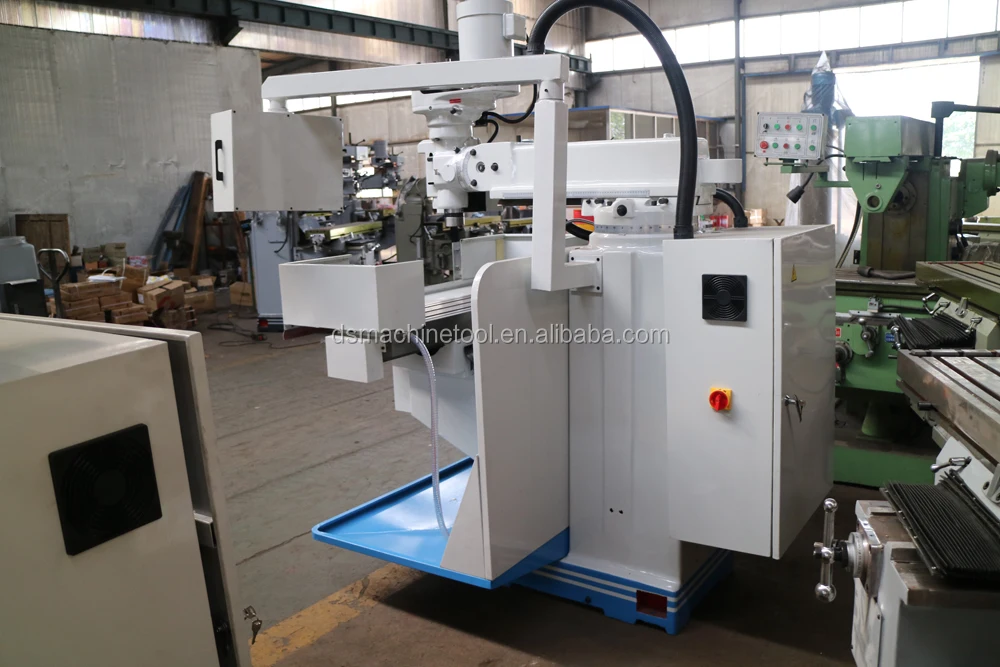

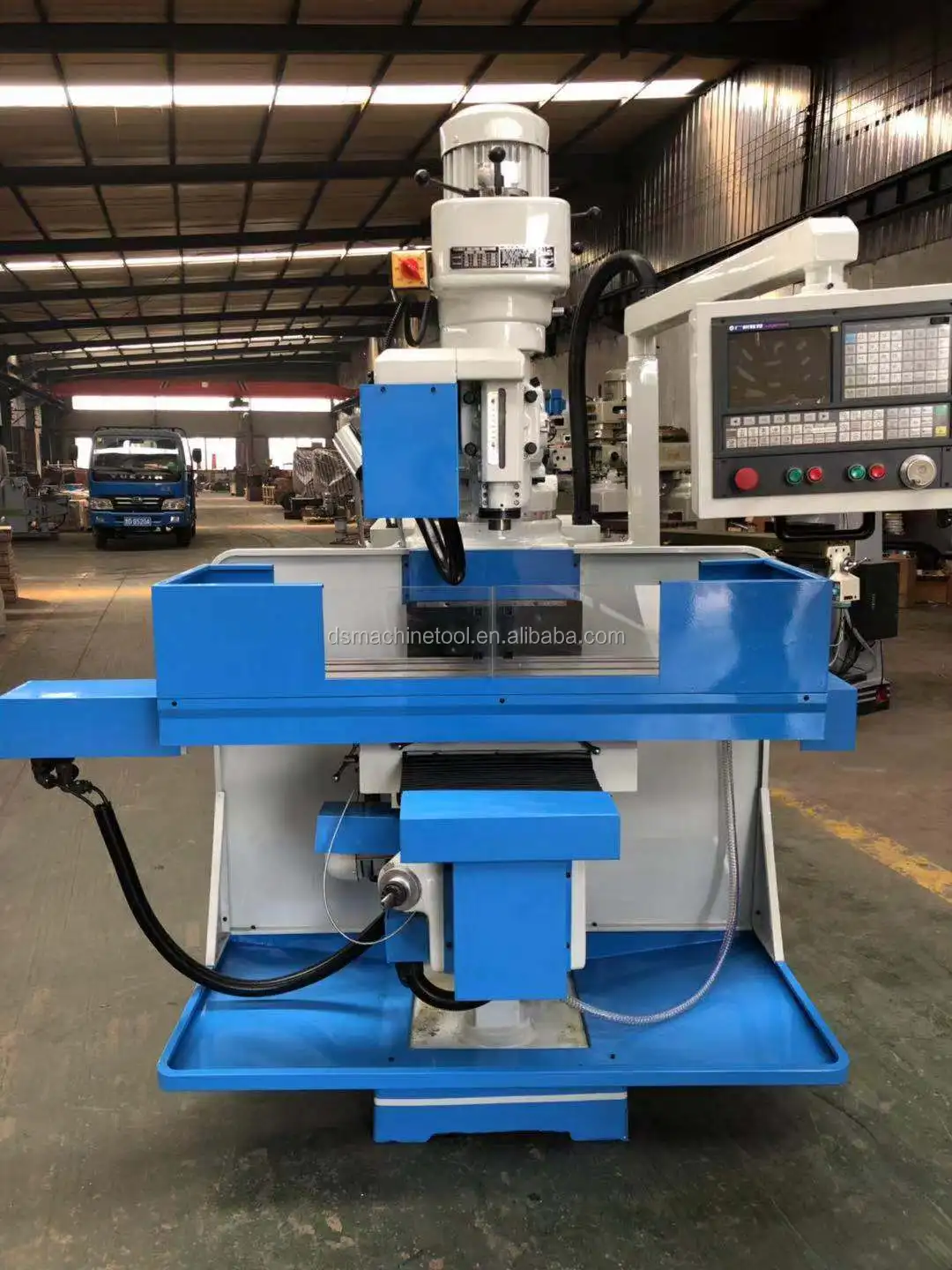

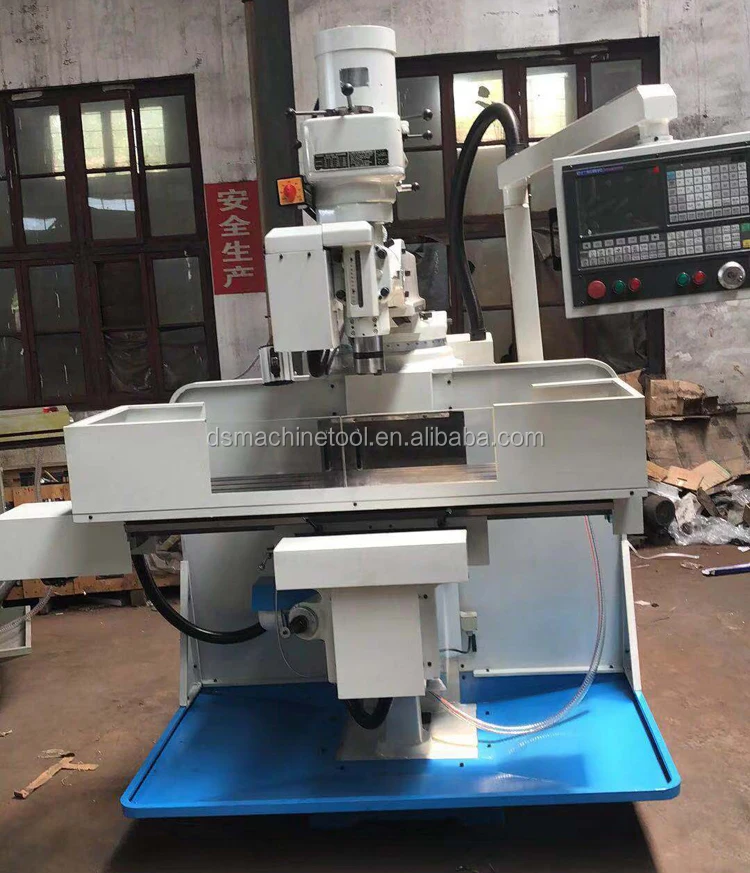

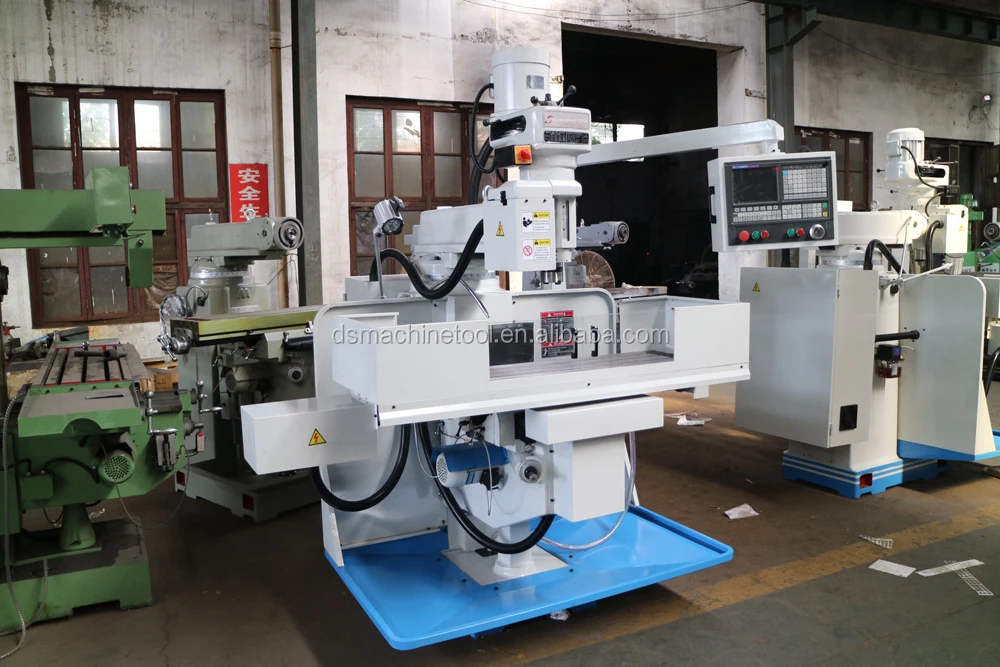

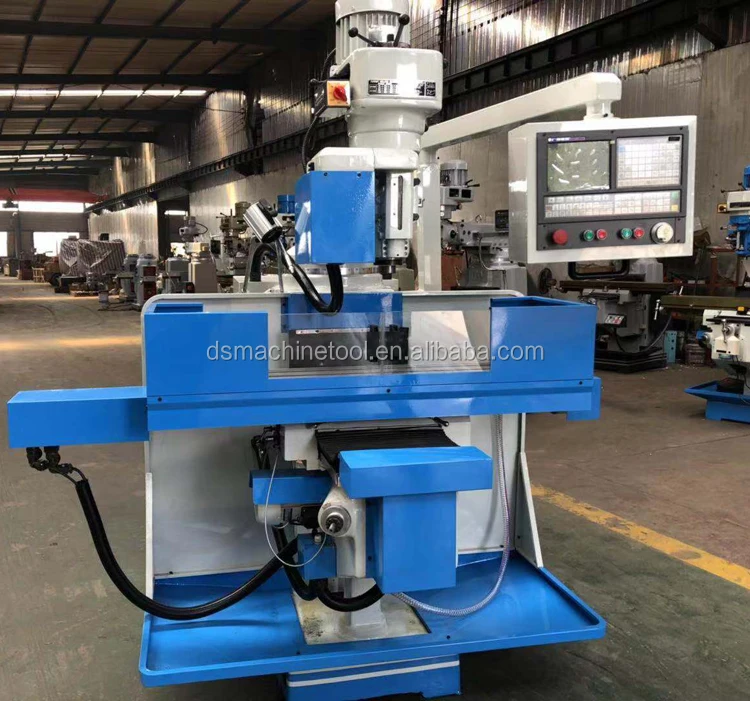

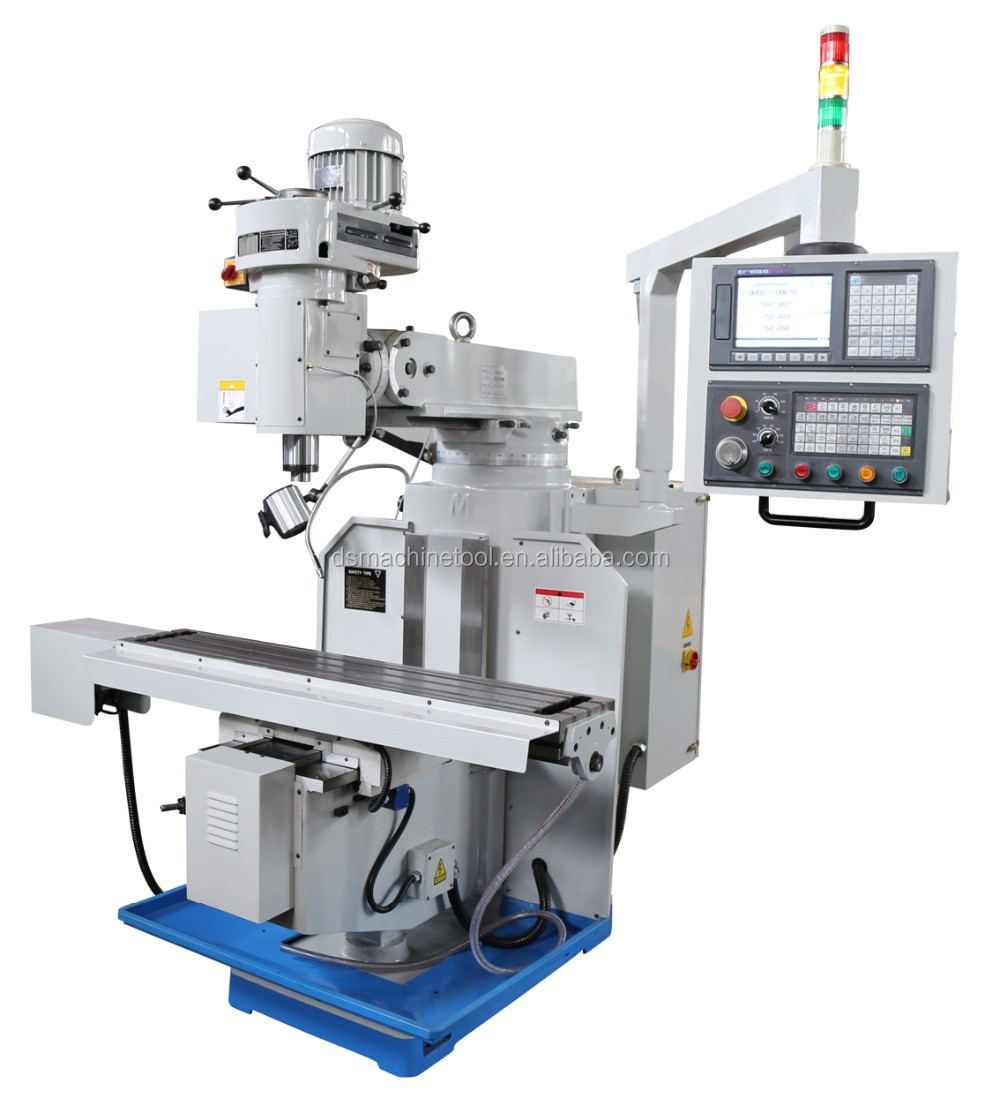

XK6330 Made in China Universal CNC Milling Machine
The machine with high precision cast iron, guide and working mesa after super audio quenching to HRC48-52 degrees, X/Y attached with a wear resistant, wear resistant variant, high service life.

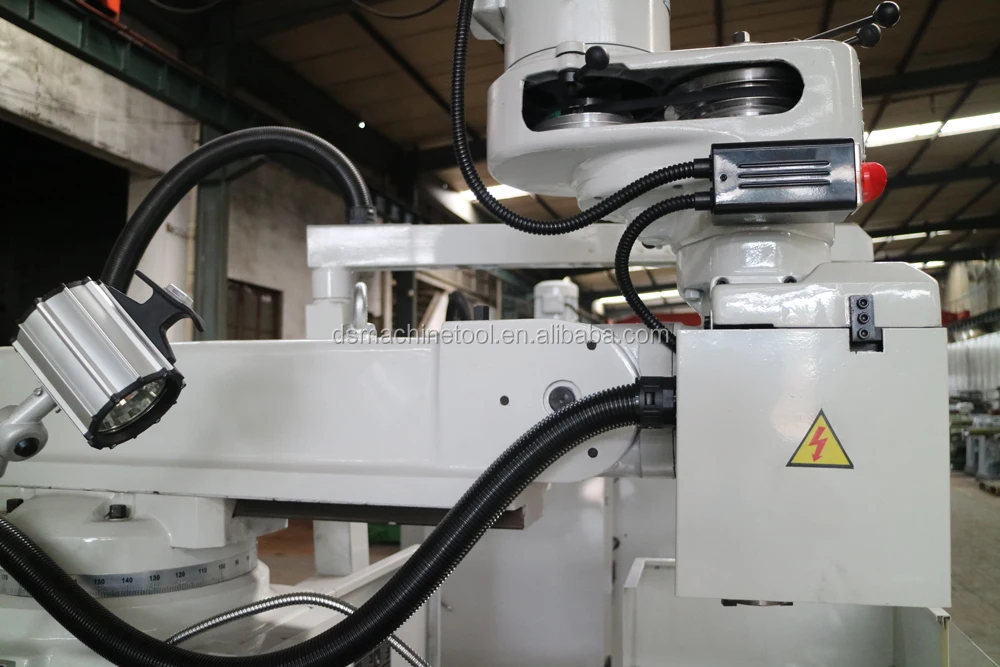

1.High speed turret milling head,motor: 2.2KW(3HP)
2.Spindle and X Y axis servo drive feed
3. Have automatic lubrication system
pecification | XK6330 |
Table size (mm) | 1370*254 |
Max. travel of table (mm) | 750*400*120 |
T-slot number width distance (mm) | 3/16/65 |
Max.table load (kg) | 350 |
Spindle taper | R8 |

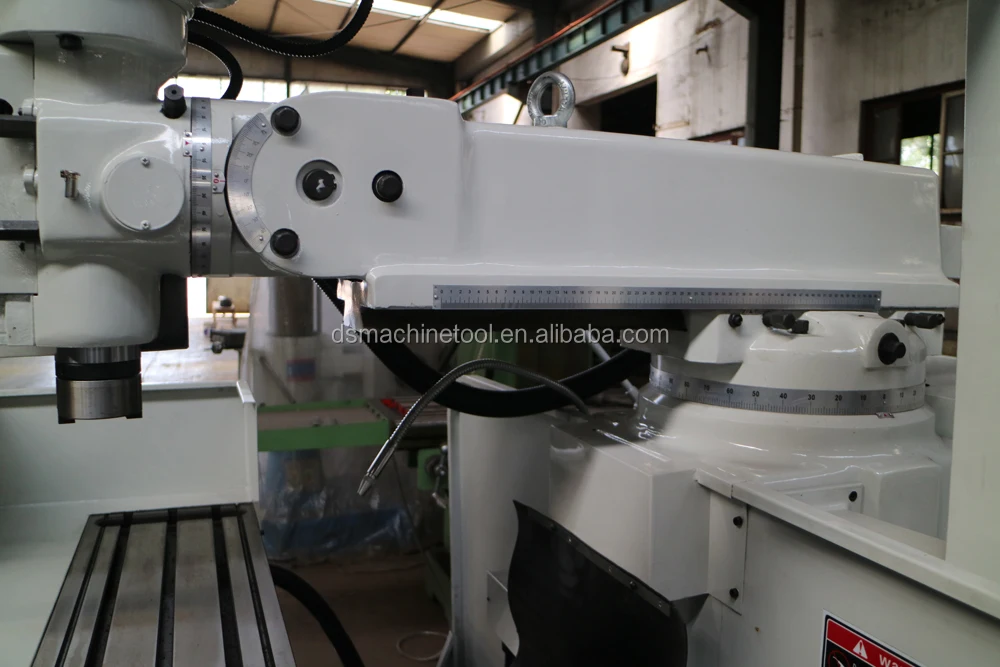

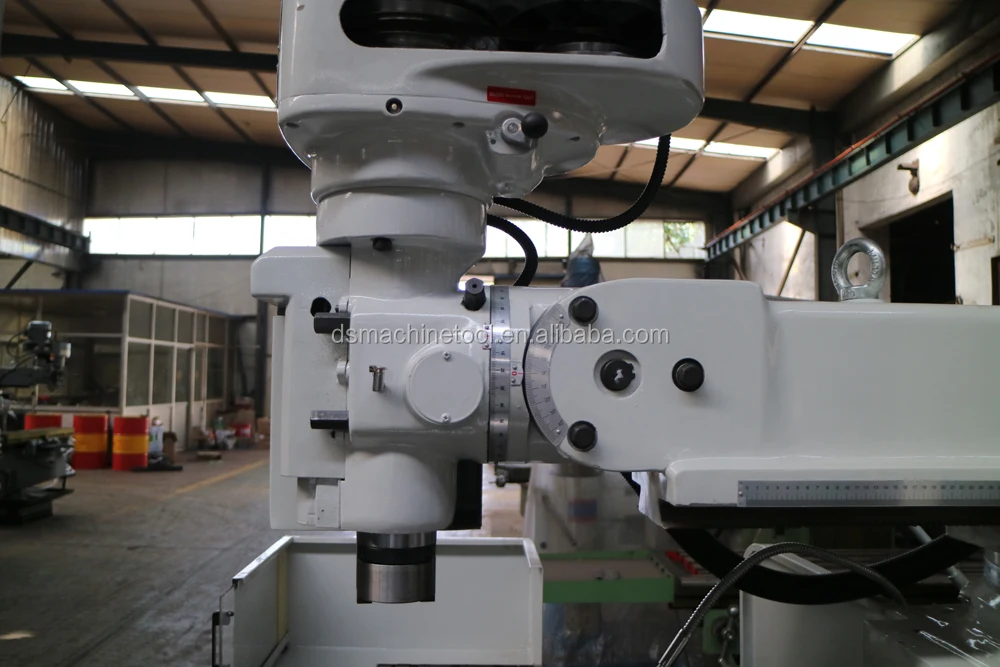

Milling head tilt angle | Left / right:90 degree |
Milling head tilt angle | forward / backward 45 degree |
Spindle travel (mm) | 125 |
Spindle speeds range (r.p.m) | 66-4540 |
Distance between spindle nose and table surface (mm) | 0-460 |
Distance between spindle center and column (mm) | 155-635 |
Three axes servo motor | X:6 N/M ; Y: 7.5 N/M; Z (Spindle) : 4 N/M |
Three axes fast moving | X: 5m/min; Y: 3m/min; Z (Spindle): 0.4m/min |
Main motor (kw) | 2.2 |
CNC system | GSK OR KND etc |
Positioning Accuracy (mm) | ±0.01/300 |
Repositioning Accuracy (mm) | 0.01/300 |
Geometric Accuracy (mm) | ±0.02/1000 |
Net Weight (kg) | 1450/1650 |
Machine dimension (mm) | 1900*1850*2250 |
