XKW715 large universal bed type 3 axis cnc milling machine
Product Description
Introduction of Machine
XKW715 universal bed type 3 axis cnc milling machine is our company to absorb Korea, Japan and other foreign advanced technology and independent development of one of the CNC products. The whole structure is reasonable, rigid, stable quality, reliable, beautiful appearance. The machine can be used as a stand, horizontal milling, its X, Y, Z three-axis can be linked, suitable for engineering, automotive, mold, mining and other industries large and medium parts and two-dimensional, three-dimensional surface precision machining.
The main components of the machine bed for the bed, column, slide, table, spindle box, operating station, lubrication system, cooling system, CNC system, security protection system and other components.
Main features
1.the machine base are used high-quality high-strength cast iron, the machine has a good rigidity, shock resistance and precision to maintain;
2.the machine carrying capacity, processing a wide range
3.machine tool spindle vertical, horizontal milling can be easily converted. Universal rotary milling head can make the spindle in the space at any angle of rotation and adjustment, a clamping can be completed multi-angle, multi-faceted and other complex parts processing;
4.X, Y, Z three-way rail hardened, rail surface paste plastic processing, with high strength, low friction characteristics
5.the machine is equipped with timing, quantitative lubrication system;
6.easy to operate, adapted to large and medium parts of the precision machining
Specification
Specifications | Units | XKW715 |
table travel(X,Y) | mm | 1500X550 |
table size | mm | 2100X500 |
number/width/distance of T-slot | mm | 4-20-100 |
max.load of table | kg | 2000 |
distance from vertical spindle nose to table surface | mm | 0-650 |
distance from horizontal spindle nose to table surface | mm | 8-660 |
distance from spindle axis to vertical guideway | mm | 610 |
distance from spindle axis to table surface | m/min | 8-660 |
X,Y feed speed | mm/min | 2.5-3000 |
X,Y rapid feed speed | mm/min | 6000 |
Z feed speed | mm/min | 2.5-2500 |
Z rapid feed speed | mm/min | 3000 |
taper of spindle |
| ISO50(7:24) |
spindle speed range | rpm | 35-1345(12 steps) |
spindle motor power | kw | 7.5 |
feed motor power | kw | 1.4(X) 2.5(Y,Z) |
coolant motor power | w | 550 |
positioning accuracy | mm | ±0.04 |
repeat positioning accuracy | mm | 0.02 |
overall dimension | mm | 3650X2380X2750 |
machine net weight | kg | 7300 |

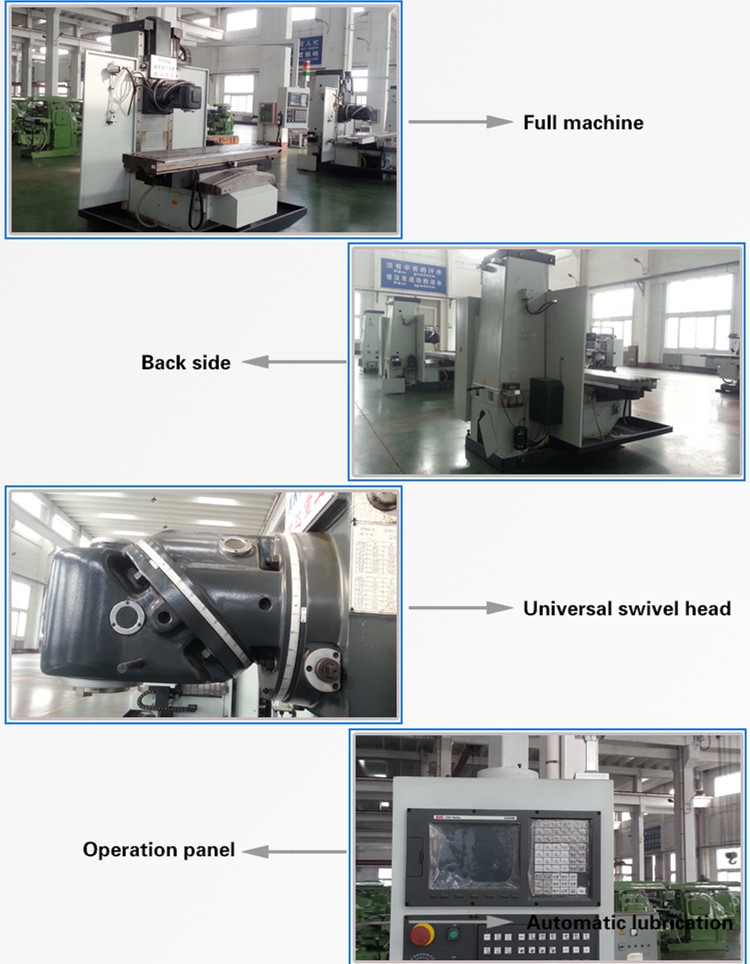

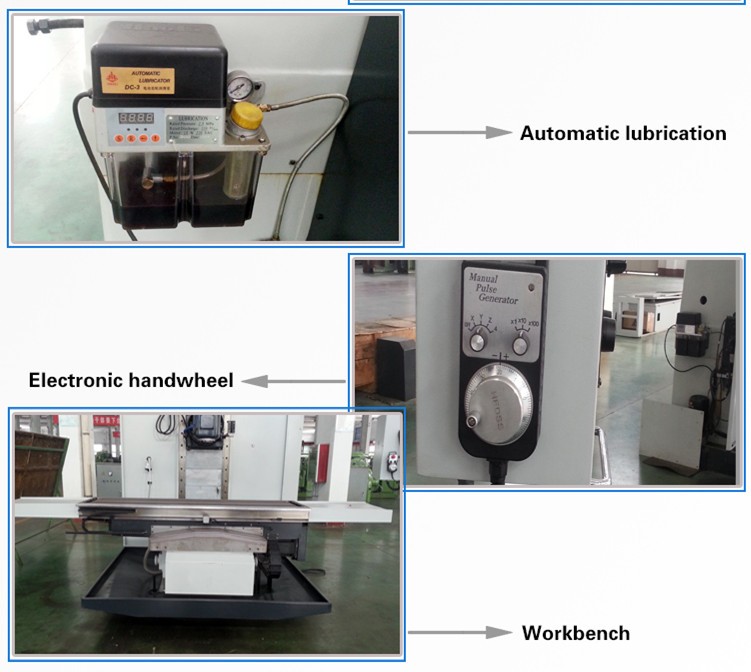

Detailed Images

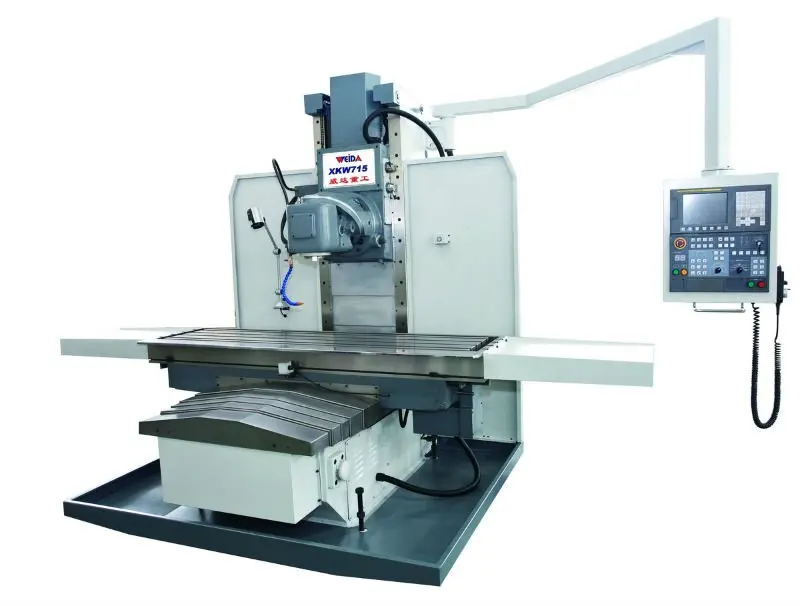

XKW715 3 axis cnc milling machine mainly includes universal milling head,bed, table,column, headstock etc . Milling head can swivel 360 degrees. You can rotate it to any position.The machine is with control panel. This is convenient for the users to operate the machine.

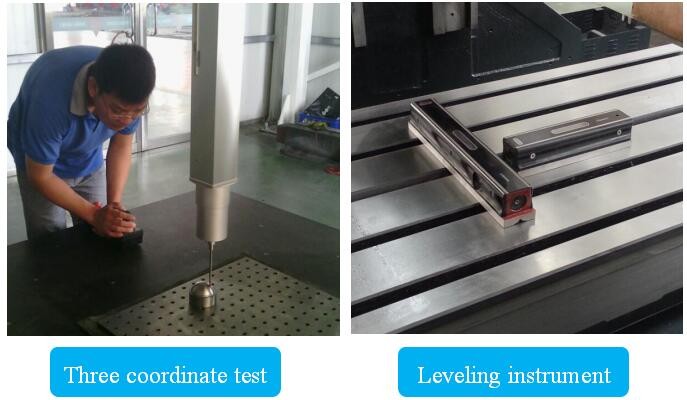

Professional testing

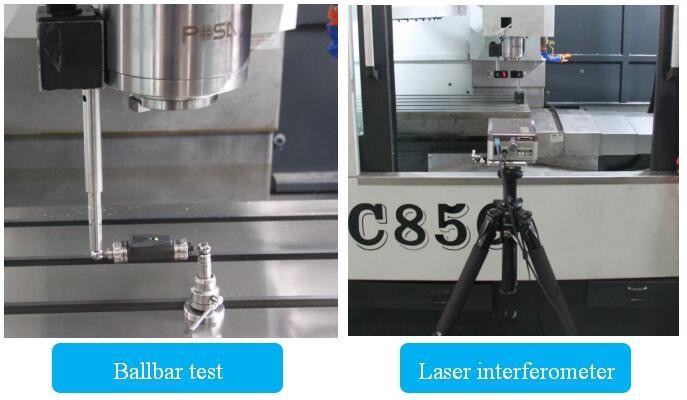

We will test every machines carefully in different status by our professional engineers to make sure our machines quality. For 3 axis cnc milling machine, we will test the accuracy by Renishaw laser interferometer and will make ball bar test, as well as cutting test before delivery.With the sequence testing, we can make sure the machines' qualification.

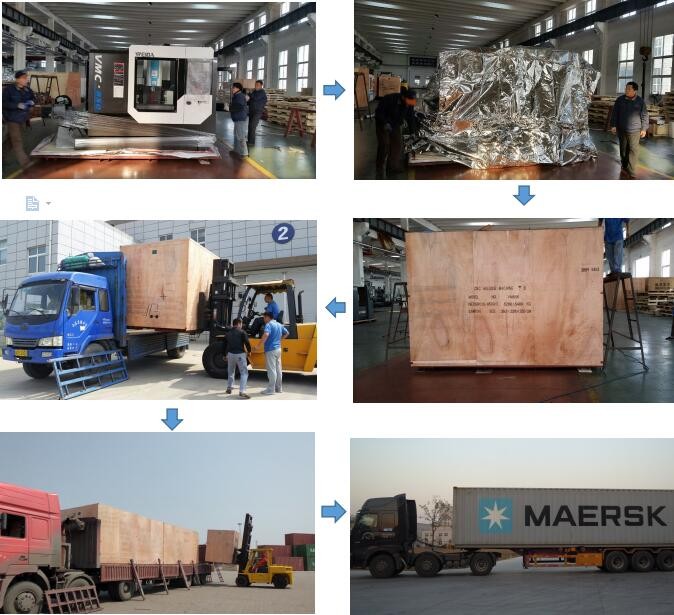

Packaging & Shipping
Machine :XKW715 3 axis cnc milling machine
Package: plywood case
Container: 20' flat rack container
Packing dimension: 228*246*286cm
delivery time: about two months

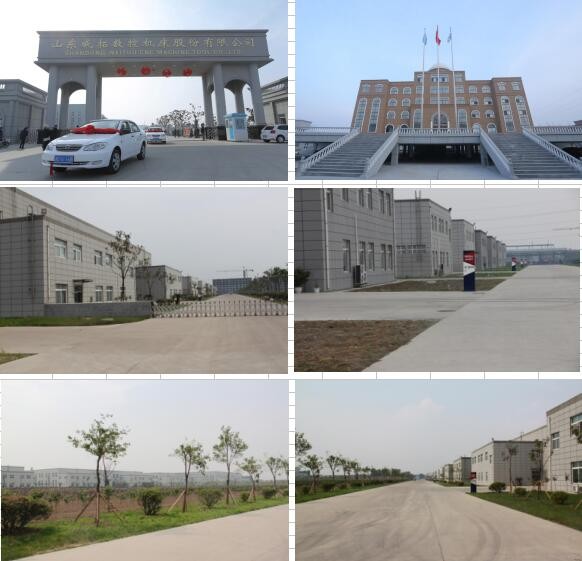

Company Information
Shandong Weida Heavy Industries co., ltd. is a large scale joint enterprise with the right of import&export.
It covers an area 500,000 square meters,the building zone is about 350,000square meters,and the total
assets is more than RMB500million, there are 365 engineers and 632sets of production equipment&
measuring test instrument in the company.
We are the biggest manufacturer of machine tools in the south of Shandong Province. Our main products have developed to 8 series:cnc gantry type machining center, vertical/horizontal machining center,
cnc milling machine,horizontal boring machine,radial drilling machine,bed vertical universal milling
machine,vertical milling machine,milling drilling machine,altogether more than 90 specifications.
We also have passed through ISO9001:2008 certification of CQC,and got CE certificate in 2006.
Shandong WEIDA heavy industries Co., Ltd.wish to cooperate sincerely with friends at home and abroad to
realize mutual development.

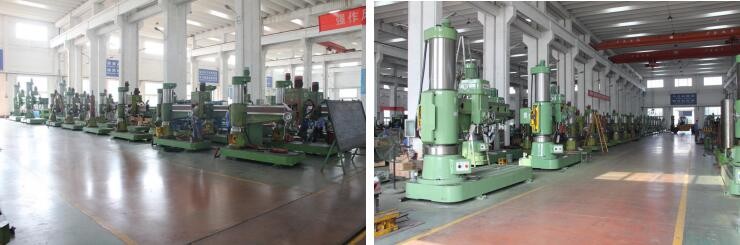

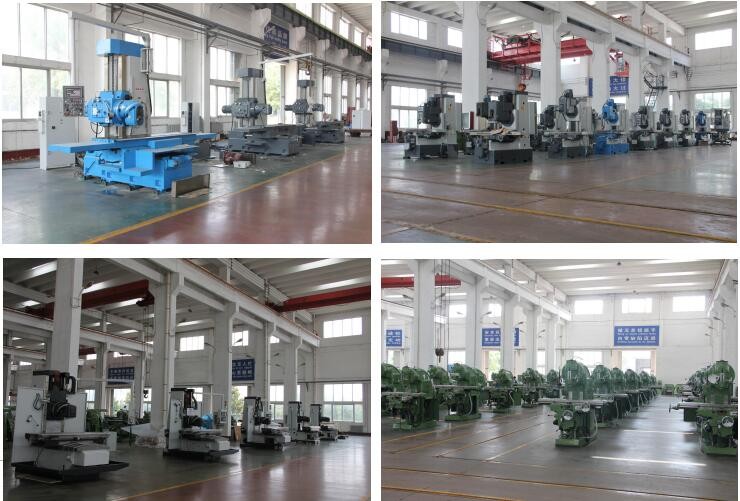

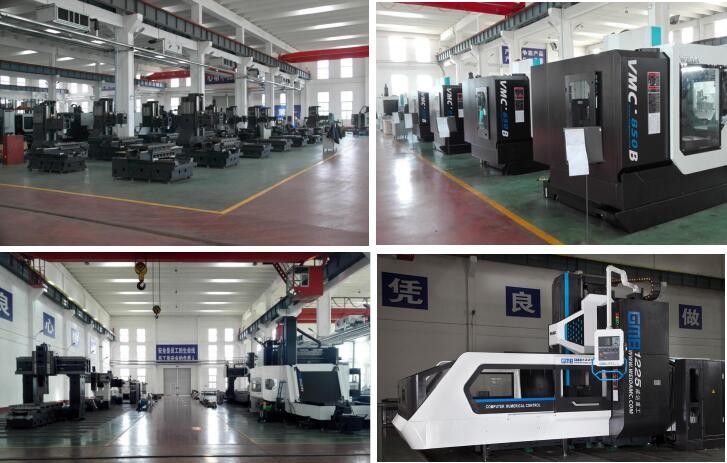

Workshop
We have different workshops to produce different machines,it mainly includes cnc workshop,milling machine workshop, radial drilling machine workshop,processing department etc.
1.For cnc workshop, we will produce vertical machining center,gantry type machining center,horizontal machining center.
2.For milling machine workshop, we produce conventional milling machine, cnc milling machine.
3.For radial drilling machine workshop, we mainly produce five models Z3032,Z3040,Z3050,Z3063,Z3080.
Certifications
We have got CE and ISO 9001:2008 certification.
Trade Shows
Every year, we will attend many exhitions at home and abroad. At home, we will attend CIMES,CCMT, CANTON fair etc..At abroad, we will attend EMO held in Hannover or Milano, Metalloobrabotka in Moscow, and other exhibitions,such as Mexico,Turkey,Colombia, Brazil,Indonesia,Thailand, Iran exhibitions etc.
Our machines are sold well and known by many famous customers.
We are always trying our best to exhibit best machine to you. We warm welcome to make business with you if you are willing. We will be your good supplier. Because we have good quality machine and good service.
FAQ
| Are you a trading company or a manufacturer? | 1.Professional manufacturer with factory for more than 15 years 2.We have the right of export and import |
| What's your delivery term? | FOB,CIF,CFR |
| What's your payment term? | Normally, TT 30% before production, balance before delivery |
| LC at sight is acceptable | |
| Do you accept OEM service? | YES. |
| What's your delivery time? | Normally, it will be about two months. Different machine, the time may be different. |
Customer visiting
