IGBT инвертор плазменный резак-60

Описание и отзывы

Характеристики

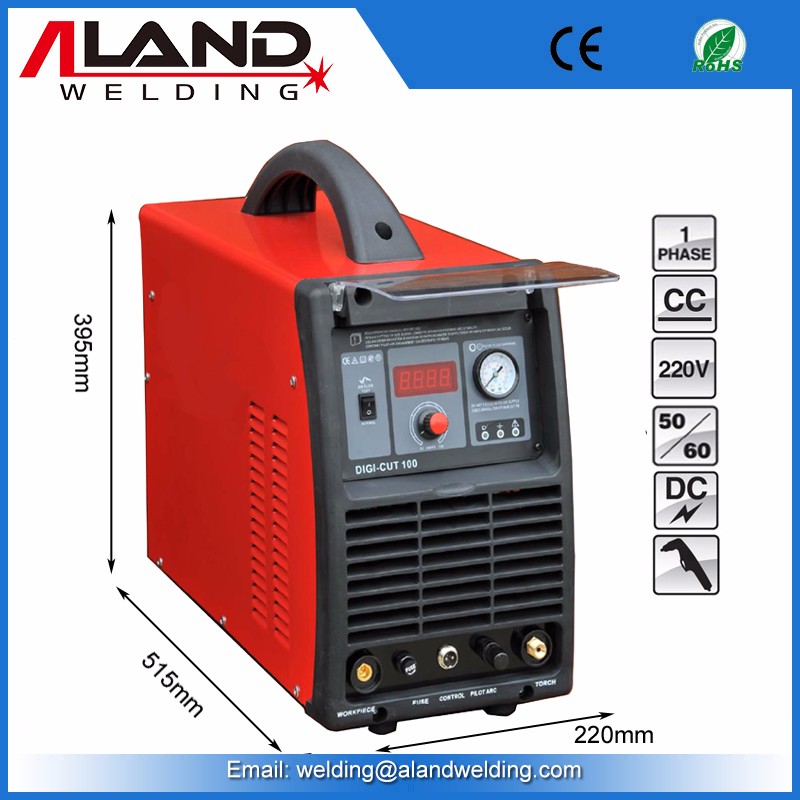

  IGBT Inverter Plasma CUT-60 Air Plasma Cutter

Specification

Model	DIGI-CUT70	DIGI-CUT60	DIGI-CUT80	DIGI-CUT100
Input voltage	1x220V, 50/60Hz	3x220V/380V/400/415V, 50/60Hz
Input power capacity		8.8KVA	13KVA	17KVA
No-load voltage	250V
Current range	20-70A	20-60A	20-80A	20-100A
Rate duty cycle	60%	35%
Air pressure	0.2-0.4MPa	0.2-0.5MPa
Gas post flow time	10S	10S
Max. Cutting Thickness	28mm	25mm	32mm	35mm
Dimensions (LWH)	515x220x395mm
Weight(kg)	24	20	25	28

Features & Advantages

1. Professional machine for industry

2. Cut any type of metal with ease.

3. IGBT new inverter technology

4. Single or three phase power supply, Fuse 20A/25A

5. Light weight and with Heavy duty cycle

6. HF arc start (HV or without HF)

7. 2T/4T control function (Auto/standard)

8.(Continuous) pilot arc

9. Unique two types gas flow control

10. Amps & voltage dual digital display, pressure gauge on front panel

11. Overheating and Current protection
