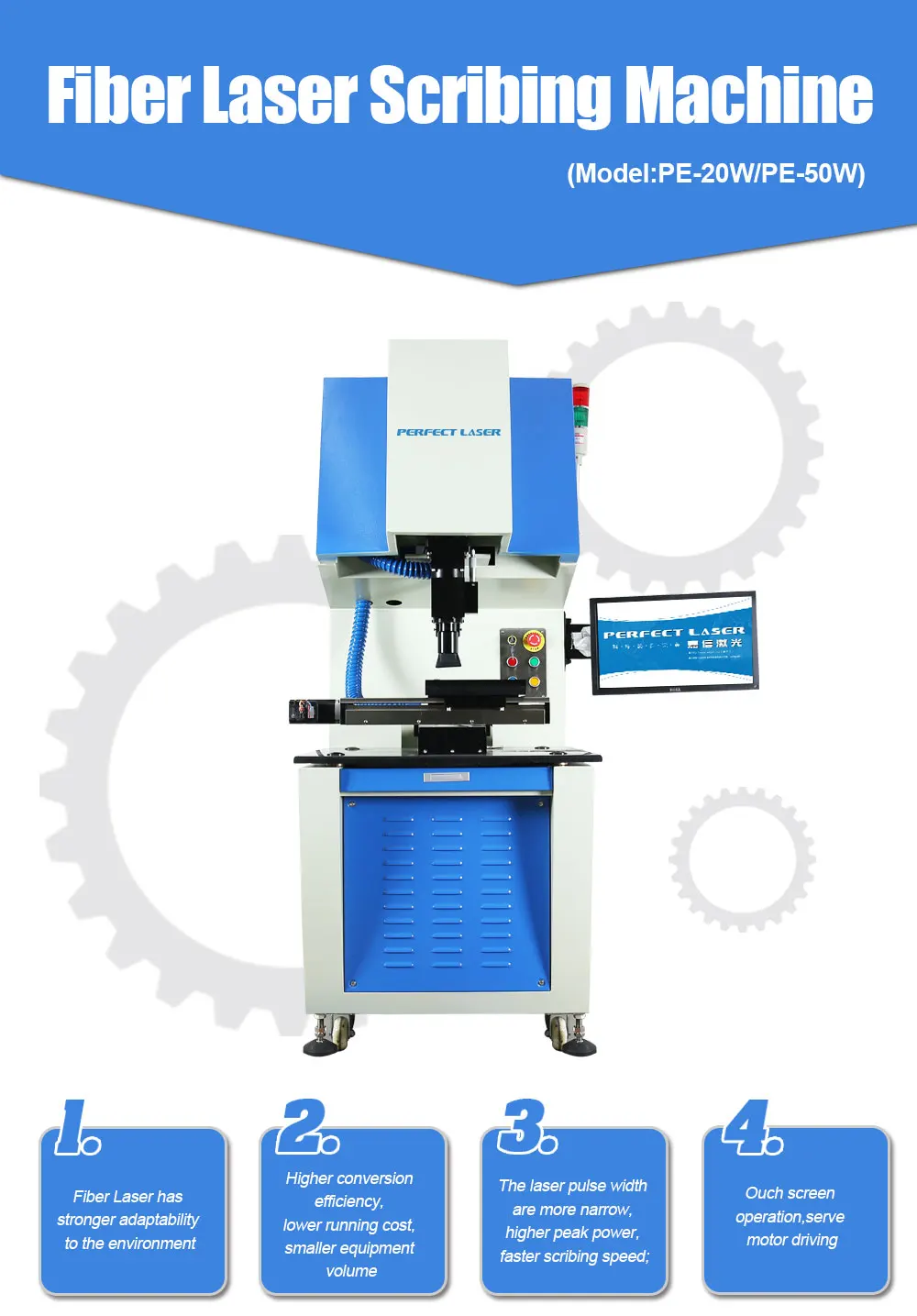

Ytterbium Fiber Laser Scribing Machine For Primary Use In Solar Cell Half Cut
(Model: PE-20W/PE-50W)
Crystal: sales013(@)perfectlaser.net; Whatsapp:+86 136 5989 3728; Skype: perfectlaser013

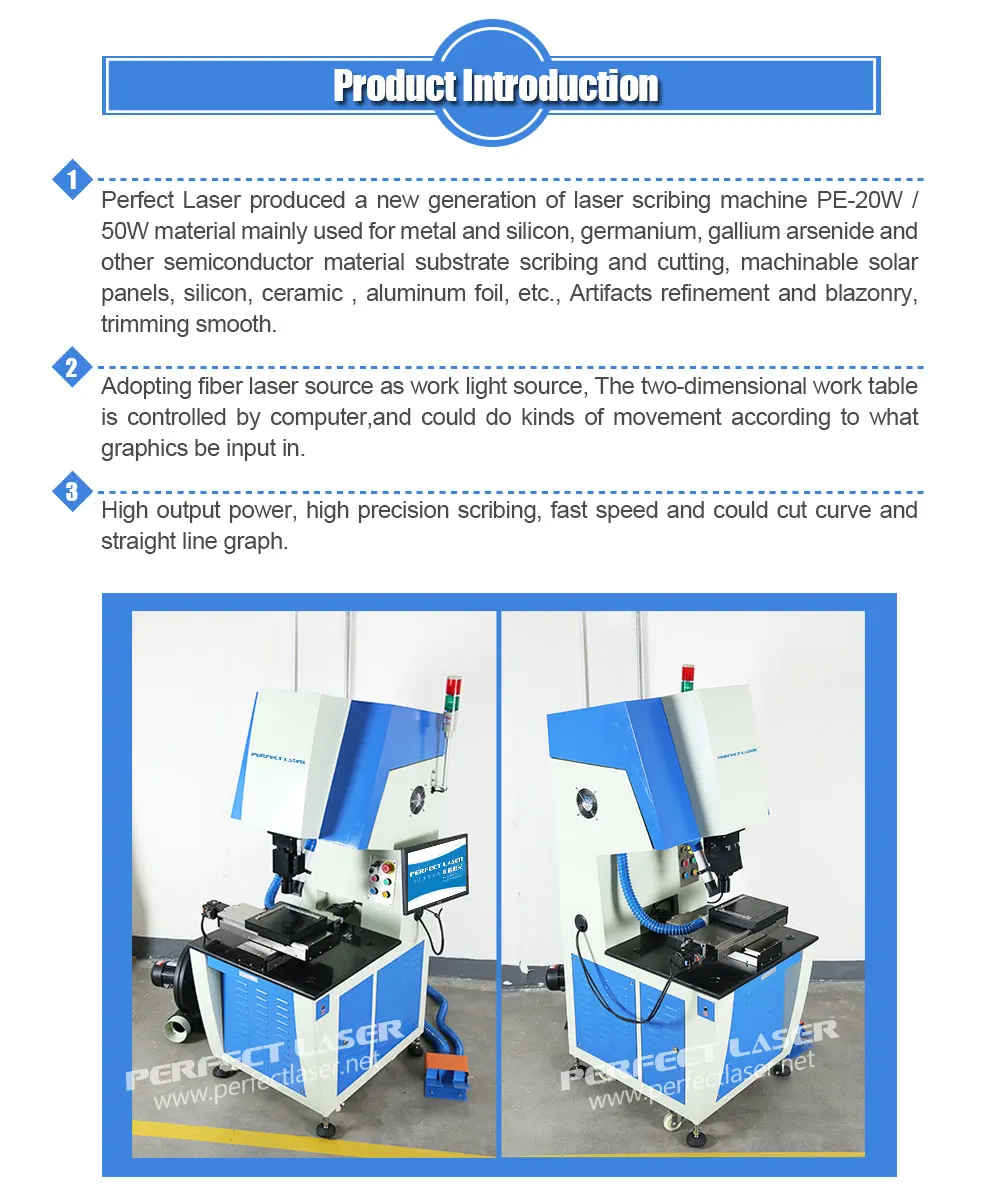

Product Description
Fiber Laser Scribing Machine is mainly used on Solar photovoltaic industry, monocrystalline silicon and polycrystalline silicon solar battery (cell) and silicon (wafer) of scribing processing (cutting section).
For Fiber Laser Scribing Machine, Adopting fiber laser source as work light source, The two-dimensional work table is controlled by computer,and could do kinds of movement according to what graphics be input in. High output power, high precision scribing, fast speed and could cut curve and straight line graph.

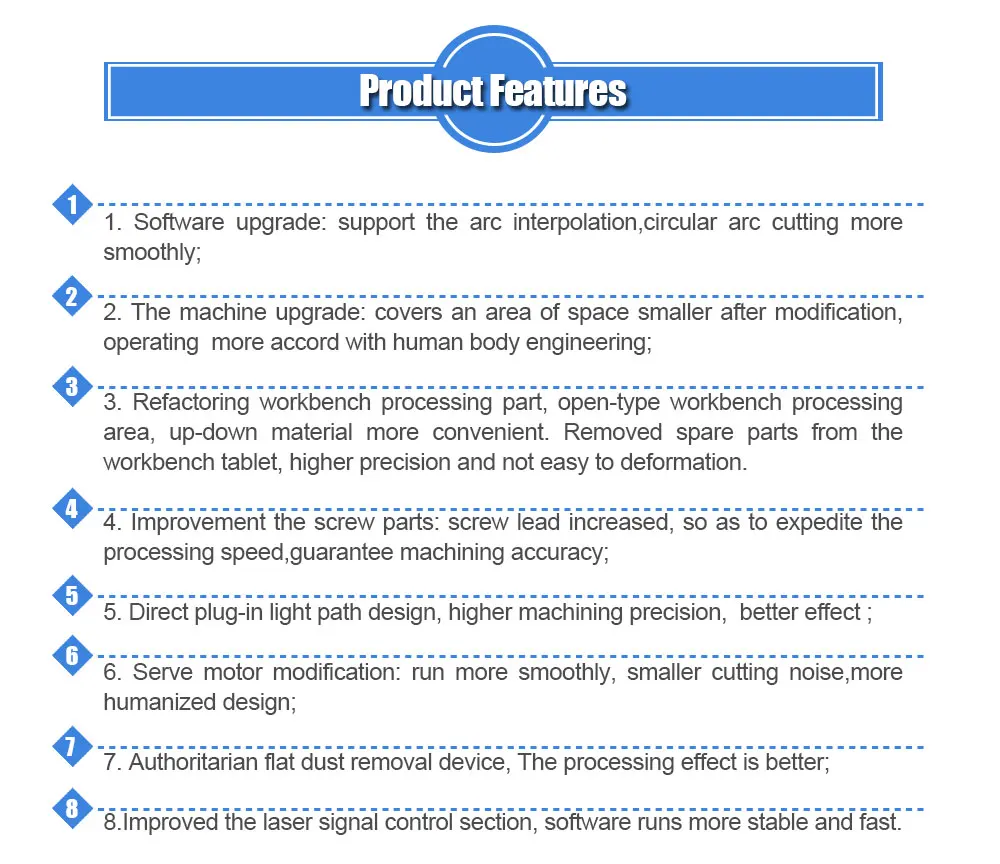

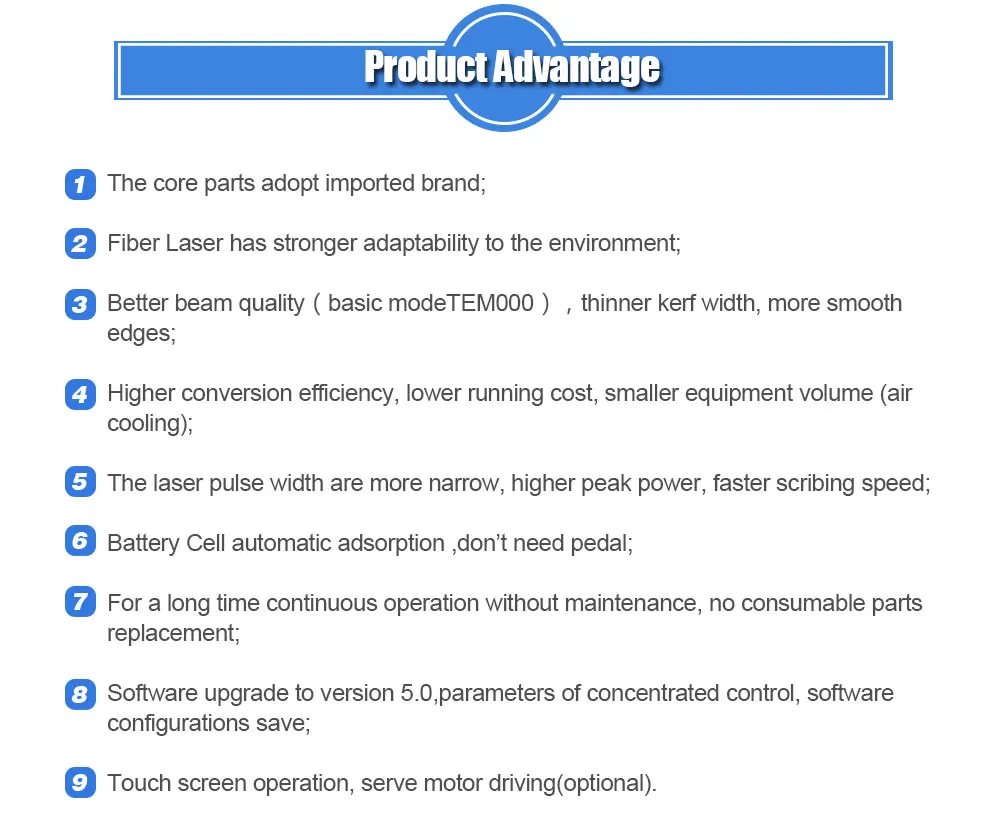

Machine Features
1. Software upgrade: the solar cell scribing machine supports the arc interpolation,circular arc cutting more smoothly.
2. The wafer laser scribing machine upgrade: covers an area of space smaller after modification, operating more accord with human body engineering.
3. Refactoring workbench processing part, open-type workbench processing area, up-down material more convenient. Removed spare parts from the workbench tablet, higher precision and not easy to deformation.
4. Improvement the screw parts of the wafer laser scribing machine: screw lead increased, so as to expedite the processing speed, guarantee machining accuracy.
5. Direct plug-in light path design, higher machining precision, the wafer laser scribing machine can receive better effect .
6. Serve motor modification of laser scribing solar cells machine: run more smoothly, smaller cutting noise,more humanized design;
7. Authoritarian flat dust removal device: the processing effect of the solar cell scribing machine is better.
8.Improved the laser signal control section, software runs more stable and fast.

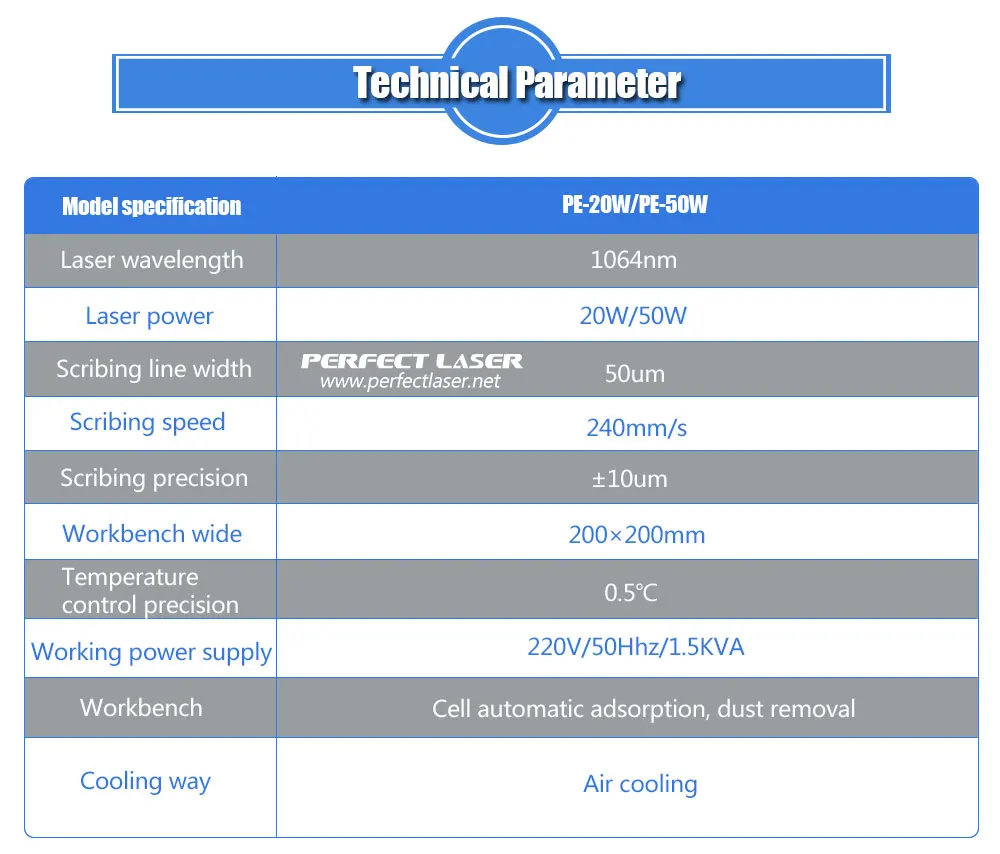

Technical Data
Model specification | PE-20W/50W Laser Scribing Machine | |
Laser wavelength | 1064nm | |
Laser power | 20W | |
Scribing line width | 50um | |
Scribing speed | 240mm/s | |
Scribing precision | ±10um | |
Workbench wide | 200×200mm | |
Temperature control precision | 0.5℃ | |
Working power supply | 220V/50Hhz/1.5KVA | |
Workbench | Cell automatic adsorption, dust removal | |
Cooling way | High precision and constant temperature circulating water cooling professional integration | Air cooling |

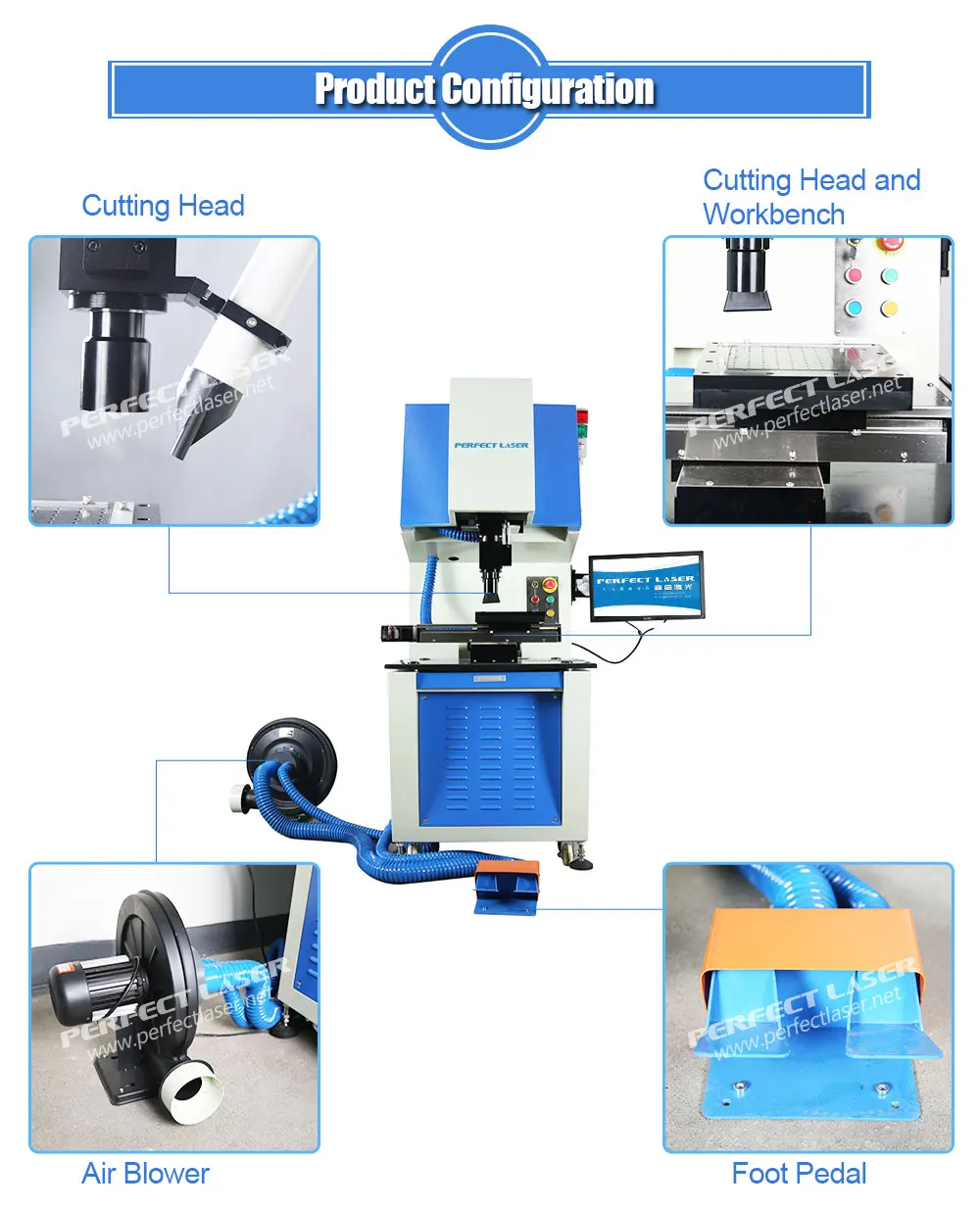

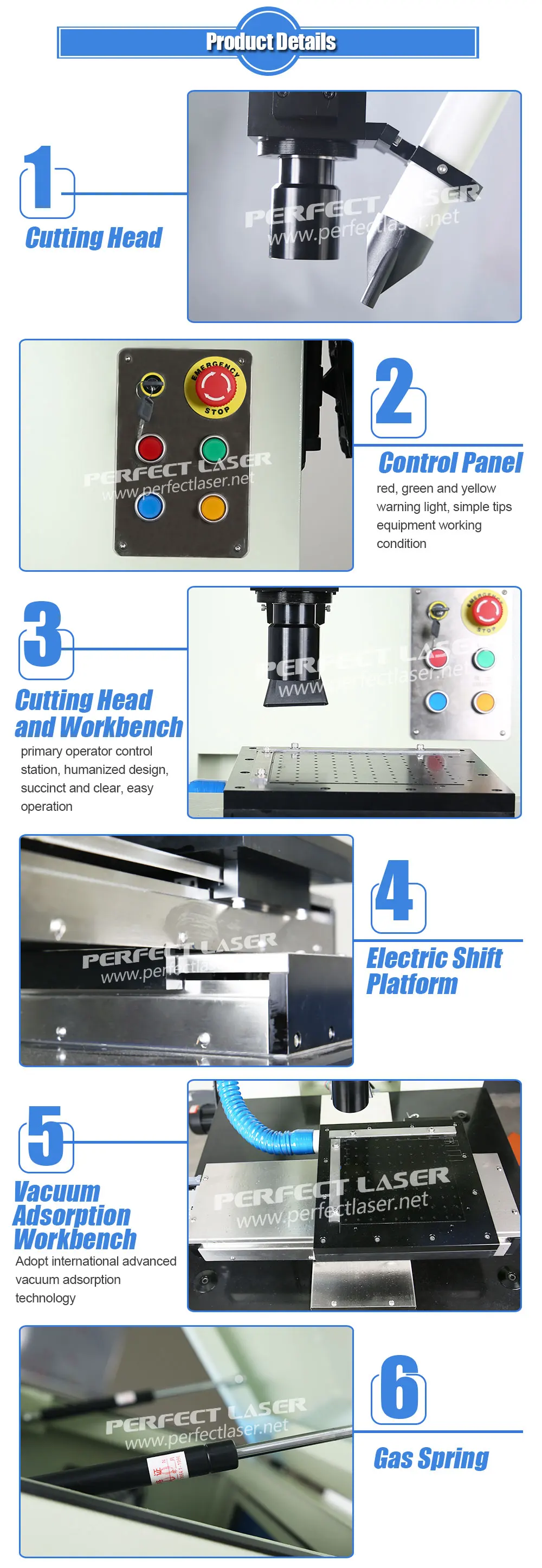

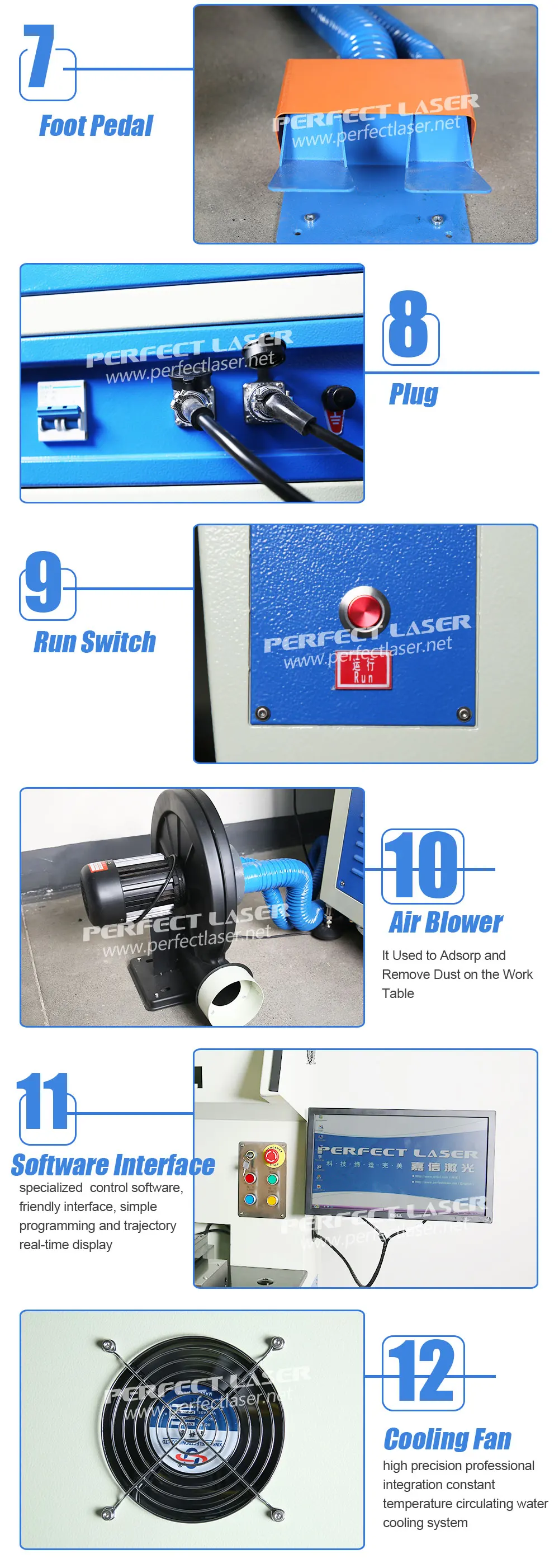

Machine Details
Our Services
Company Introduction
We, Perfect Laser, as a 21 years history industrial manufacture in laser equipment field, 13 year Golden Supplier in Alibaba, with CE/ISO certification, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
Online contact
Perfect Laser Co., Ltd. (China)
Contact: Crystal / Sales Manager
MP: 0086-13659893728
Tel: 0086-13659893728
Fax: 0086-27-86775865
E-mail: crystal(@)perfectlaser.net
Whatsapp: 0086-13659893728
Skype: perfectlaser013
Wechat: 0086-13659893728
QQ: 1723919568
Add: HengRuichuangzhi Technology Park,No.13YangQiaohu Road, Jiangxia Dist, WH, Hubei,China(430200)
