Популярная Бетономешалка PLD 1200-III mini с тремя корзинами по конкурентоспособной

Описание и отзывы

Характеристики

Main Features

 1.Automatically finish the proportioning and measuring of sand and stone.
 2. The control system is made up of controller and strong electricity part.
 3. The controller has visual features like high weighing accuracy, rapid reacting speed, stable and reliable performance,  strong anti-jamming ability, simple operation, etc.
 4. It can control the specified proportioning times, and accumulate the total times automatically.
 5. Customers can choose the numbers of proportioning bins according to different use.
 6. This series of products adopt electronic weighing, digital display.

Product Introduction

1. PLD series Concrete Batching Machine is automatic material distribution part used before the mixing process.
2. It can fulfill automatically 3-6 kinds of material batching process like sand, stone and cement according to concrete ratio designed by user.
3. This machine consists of material storage bucket, weighing system, material supplying system, and electric control system, ect. The material feed-in is conducted by belt conveyor.
4. The batching machine is widely used in all kinds of large and medium-sized construction project and concrete mixing station.

Parameters	PLD1200- II	PLD1200-III	PLD1600-III	PLD1600-IV	PLD2400-III
Weighing hopper capacity(m3)	1.2	1.2	1.6	1.6	2.4
Hopper capacity(m3)	2*2.5	3*2.5	3*3.5	4*3.5	3*10
Productivity(m3/h)	60	60	80	80	120
Ingredients accuracy	±2%	±2%	±2%	±2%	±2%
Maximum capacity(kg)	2000	2000	3000	3000	4000
Aggregate species can be equipped	2	3	3	4	3
Feeding height(mm)	2800	2800	3000	3000	3200
Convery belt speed(m/s)	1.25	1.25	1.25	1.25	1
power(kw)	4*3	4*4	4*4	4*5	11
Dimensions(mm)	5900*1800*3000	8900*1800*3000	9600*2000*3200	12500*2000*3200	9900*2000*4000
Weight(kg)	2500	3000	3500	4000	8500

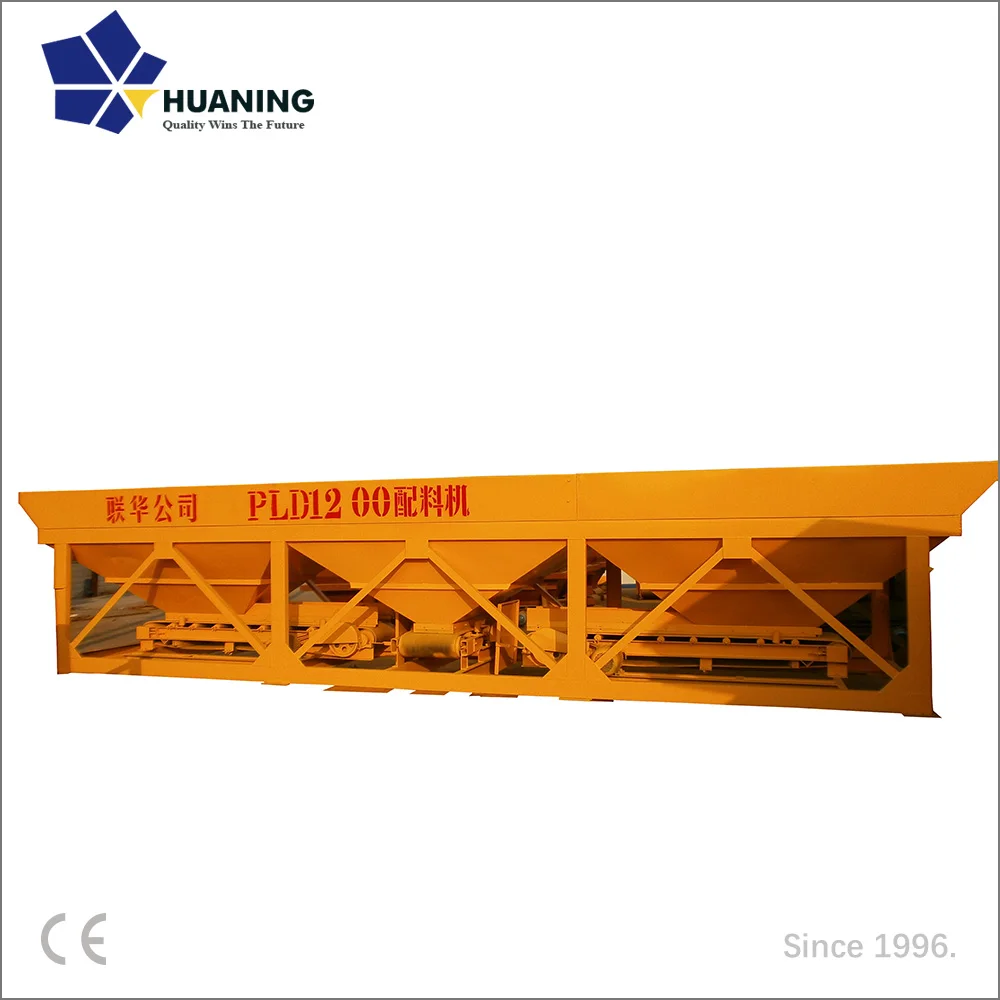

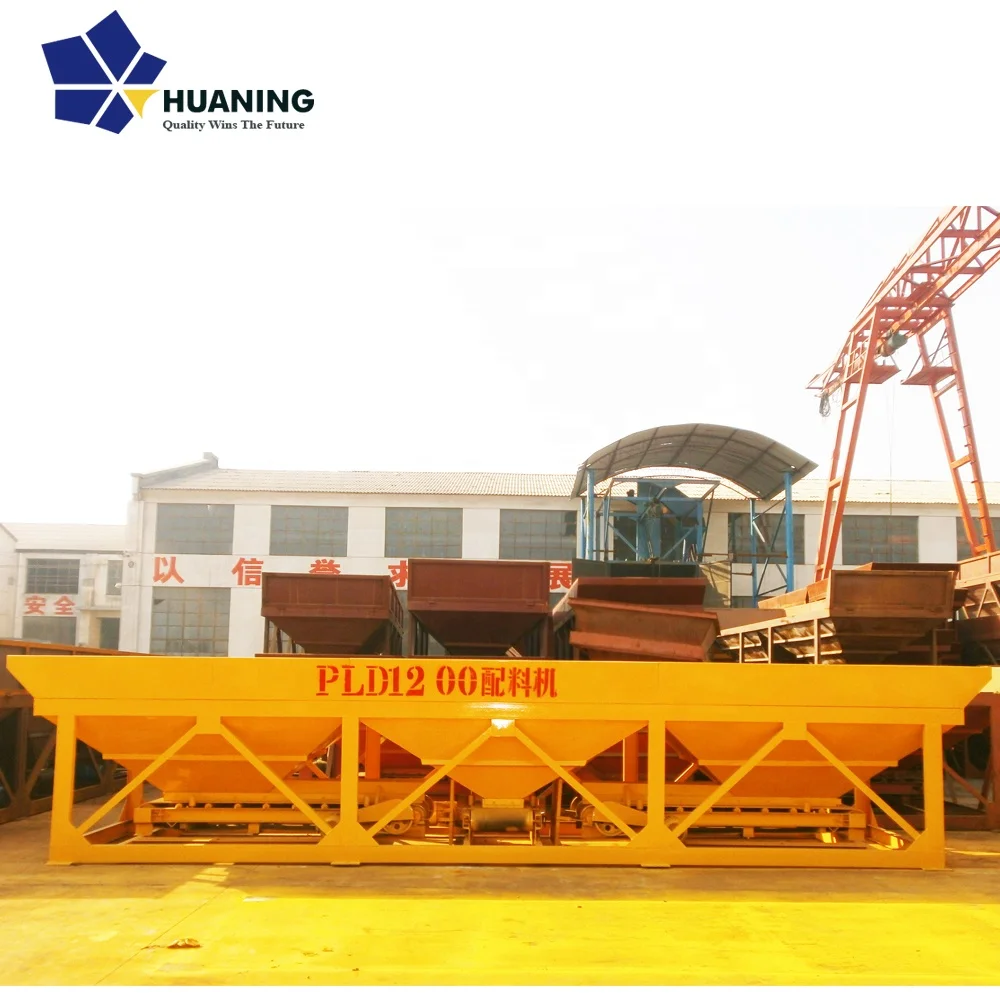

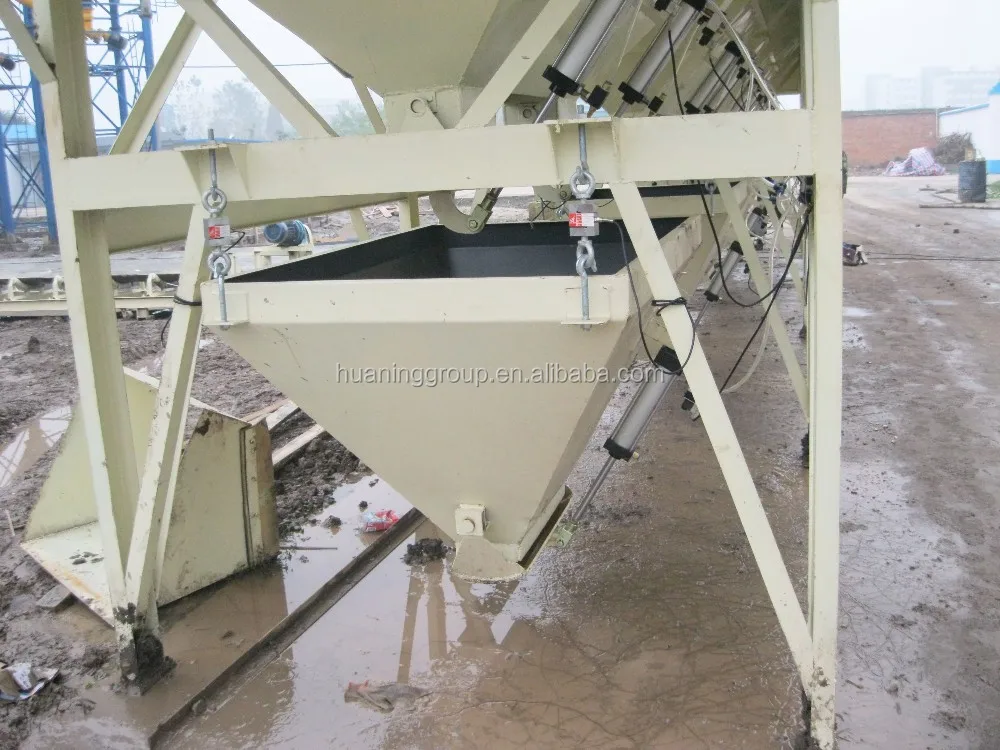

Details of PLD1200 Concrete Weighting Machine
