Product Description
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Vibrating Feeder Introduction:
Vibrating feeder can feed block of granule materials from the material storage to charging device evenly and continuously.It can realize even feeding for crushers in sandstone production line and make rough screening for materials.Widely applied in combined operation of crushing and screening in the industries line metallurgy, mine, mine ion, building materials, chemicals, etc.
Vibrating feeder techinical parameters:
| Model |
Max feed size (mm) |
Capacity (t/h) |
Motor Power (kw) |
Installation angle (°) |
Weight (kg) |
Dimension (mm) |
| GZD-600x3000 | 300 | 30-80 | 2.2x2 | 10 | 2798 | 3000x1310x780 |
| GZD-850x3000 | 400 | 80-120 | 1.5x2 | 10 | 3607 | 3110x1800x1600 |
| GZD-950x3800 | 500 | 120-200 | 2.2x2 | 5 | 3980 | 3850x1950x1630 |
| GZD-1100x4200 | 580 | 200-300 | 3.0x2 | 5 | 4170 | 4400x2050x1660 |
| GZD-1100x4900 | 580 | 300-400 | 3.5x2 | 5 | 4520 | 5200x2050x1700 |
| GZD-1300x4900 | 650 | 400-500 | 5.5x2 | 5 | 5200 | 5200x2350x1750 |
| ZSW-380x95 | 500 | 96-160 | 11 | 0 | 4082 | 3920x1640x1320 |
| ZSW-490x110 | 630 | 120-280 | 15 | 0 | 5352 | 4980x1830x1320 |
| ZSW-490x130 | 750 | 400-560 | 22 | 0 | 7800 | 4980x2580x2083 |

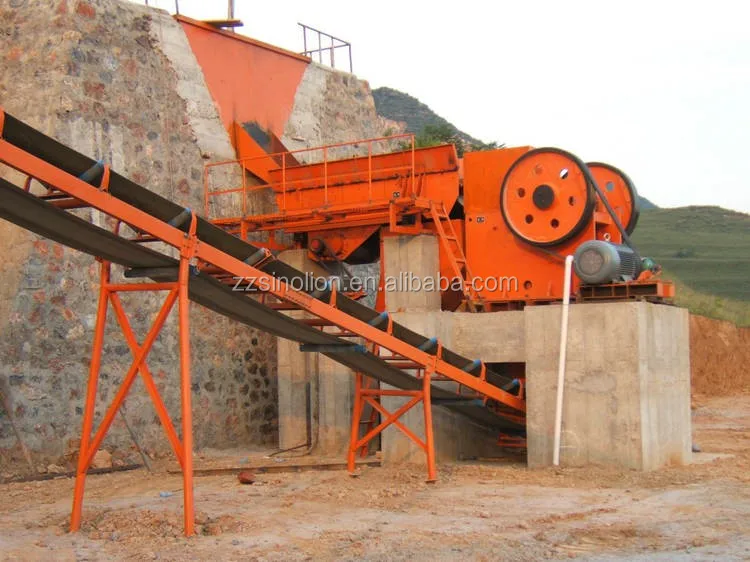

Working site
