Низкая цена 6000 psi Впускной Регулятор газа высокого давления с

OPERATING PARAMETERS

Maximum Inlet Pressure

500psig, 3000psig

34.5bar,  207bar

Outlet Pressure Ranges

0-25,  0-50,  0-100, 0-150,  0-250psig,

0-1.7, 0-3.4, 0-6.9,   0-10.3, 0-17.2bar

Design Proof Preesure

150% maximum rated pressure

Leakage

Internal: Bubble-tight

External: <2×10^-8 atm cc/ sec He

Operating Temperature

-40°F to 140°F/-40°C to 60°C

Flow Capacity

C_v=1.0

C_v=1.8 (Optional)

_{MEDIA CONTACT MATERIAL}

_Body

_{Brass, 316 Stainless Steel}

_Bonnet

_{300 Series Stainless Steel}

_Diaphragm

_{316 Stainless Steel}

_Seat

_{3000psig / 207 bar Inlet: CTFE}

_{500psig/ 34.5 bar Inlet: Teflon}

_Seal

_Teflon

_{Remaining Parts}

_{316 Stainless Steel, Brass,Hastelloy* or Monel}

_OTHER

_{Internal Volume}

_{6 cc}

_{Weight (withoutgauges)}

_{3.5 lbs / 1.6 kg}

_ADVANTAGES

• _{Available in  316 Stainless Steel or Brass}
• _{Choice of inlet pressure rating: 500 or 3000 psig / 34.5 or 207 bar maximum}
• _{Five outlet pressure ranges are available}
• _{True metal-to-metal diaphragm seal to minimize diffusion}
• _{Gauge ports are standard}
• _{Optional high flow model(Cv=1.8) is available}
• _{Panel mounting is optional}
• _{Non-venting is standard}
•

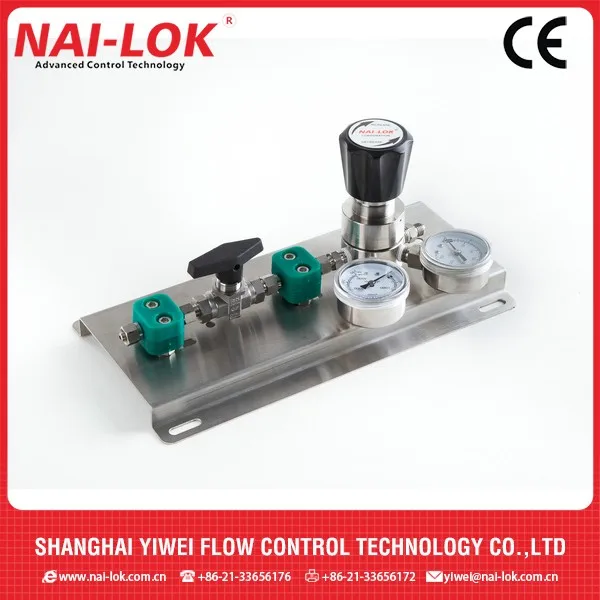

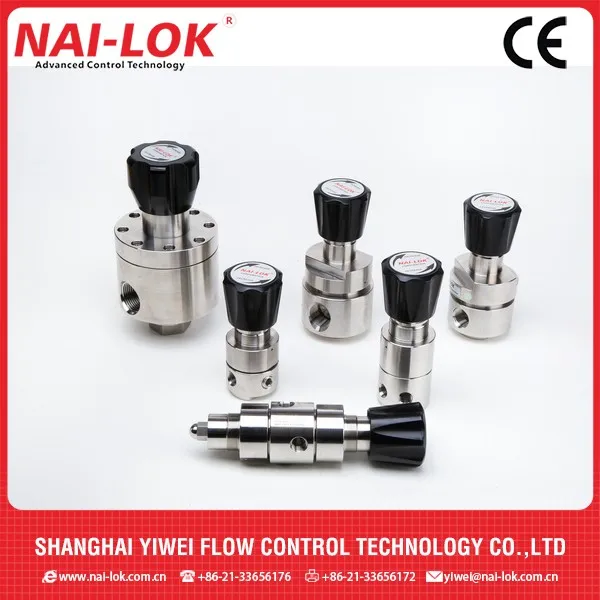

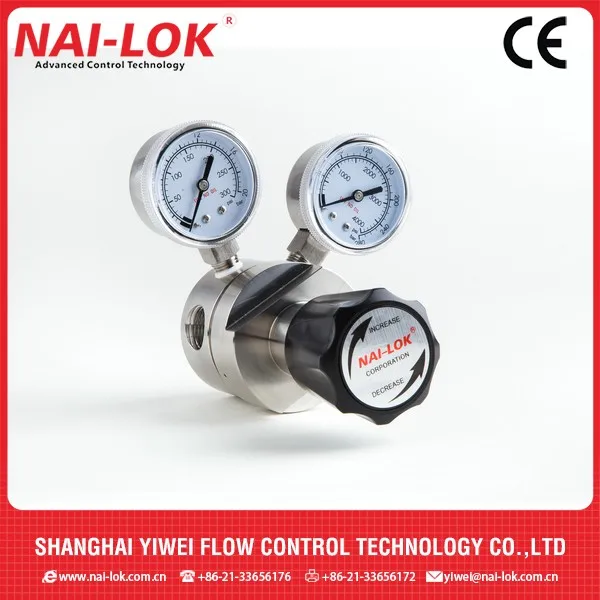

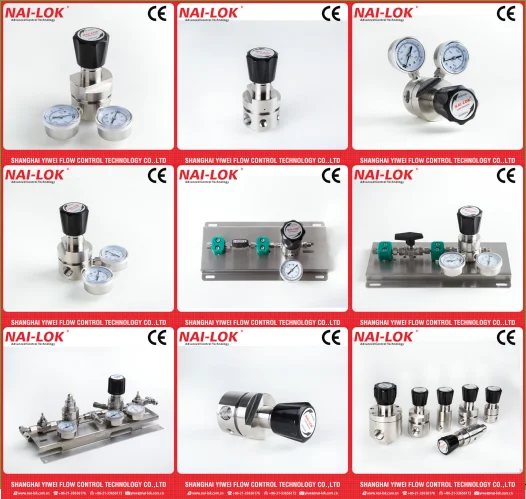

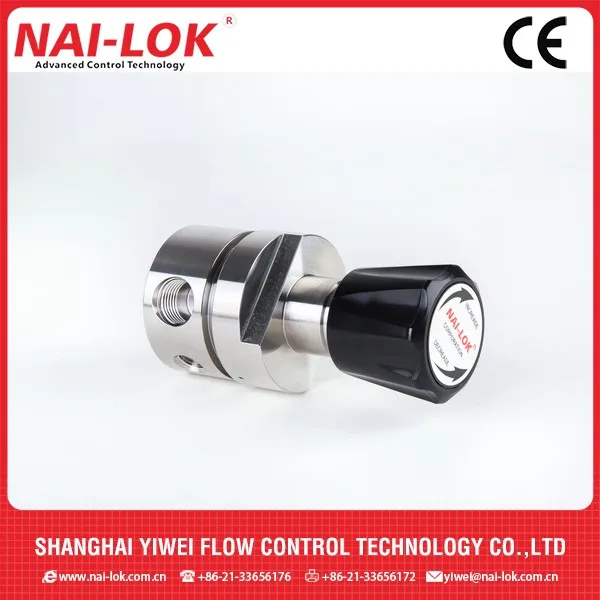

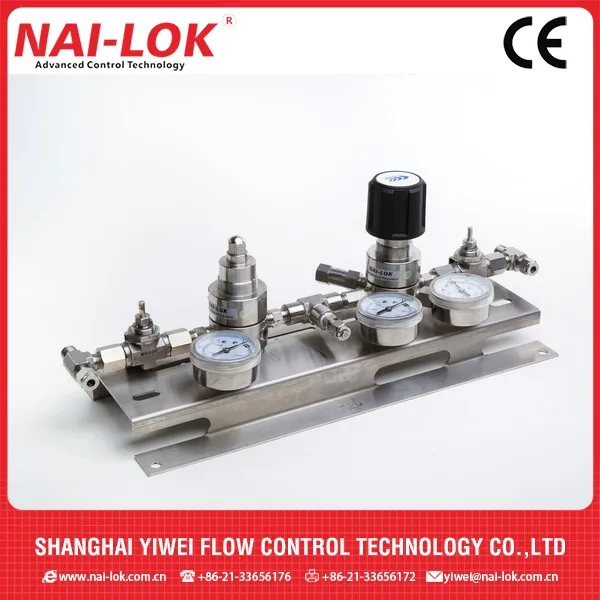

PRODUCT SHOW
