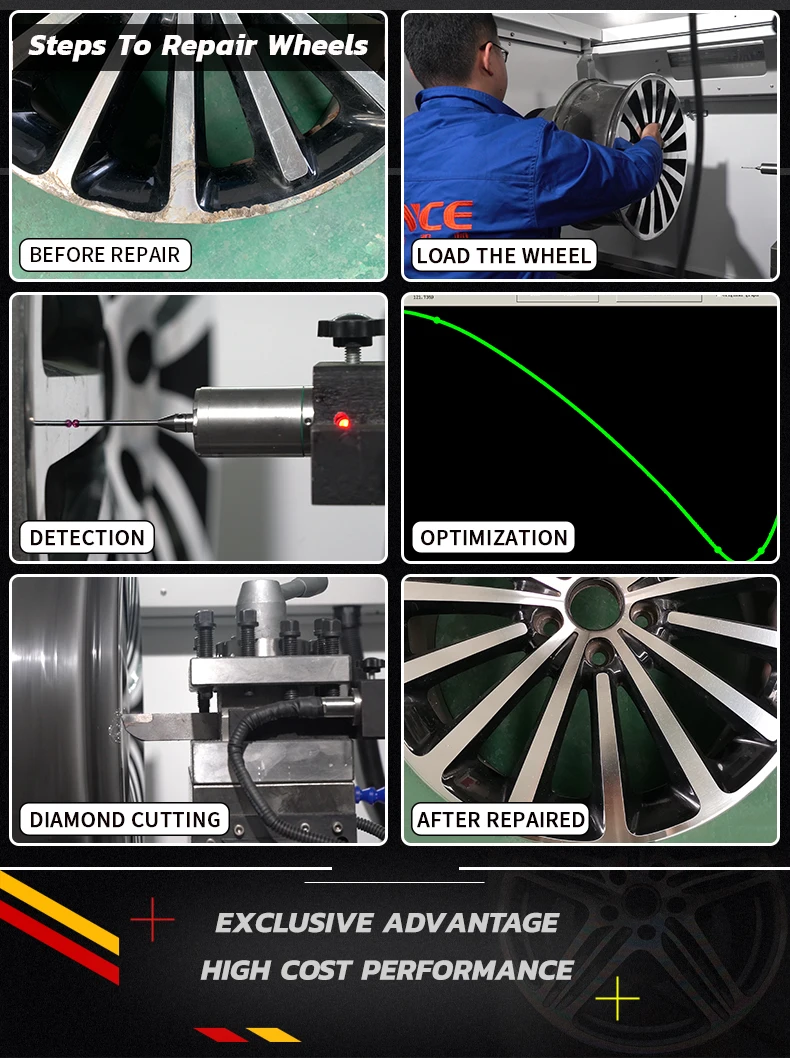

In order to meet the request for alloy wheel end-face repair, our company developed the lathe with special function for alloy wheel repairing. Detect the surface curve of alloy wheel and generate the machining program automatically, and using the diamond cutter to repair the wheel end-face. After probe, the program will be automatically generated, it is very easy to operation, and the operator do not have to know everything on programming.

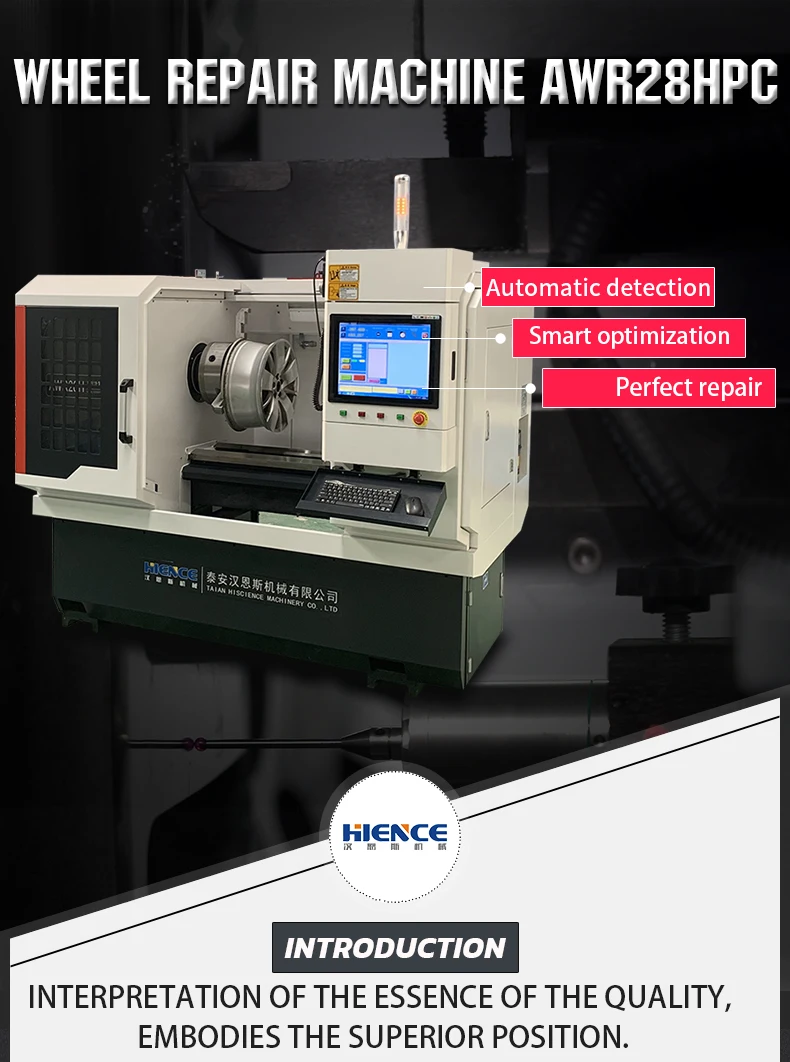

AWR28H-PC | ||
Max. swing over bed (mm)(inch) | Φ770(30’) | |
Max. Diameter of wheel(mm) (inch) | Φ710(28’) | |
390 | ||
Max. Stroke of the Z-axis (mm) | 880 | |
Width of the rail (mm) | 300 | |
Length of the rail (mm) | 1320 | |
Size of the three-jaw chuck (inch) | 13’ | |
Range of spindle speed (RPM) | ||
Spindle speed control | ||
Spindle bore (mm) | Φ82 | |
Taper of spindle bore | 1:20(Φ90) | |
Taper of spindle nose | ||
Adjustable stroke of carrier in X direction | 100mm | |
Max. size of tool post | ||
Stations of tool carrier | 4 position | |
Min. setting unit of motor | (Z) long 0.001mm, (X) cross 0.001mm | |
Moving speed of post | (Z) long 8m/min, (X) cross 6m/min | |
Motor power | 7.5KW | |

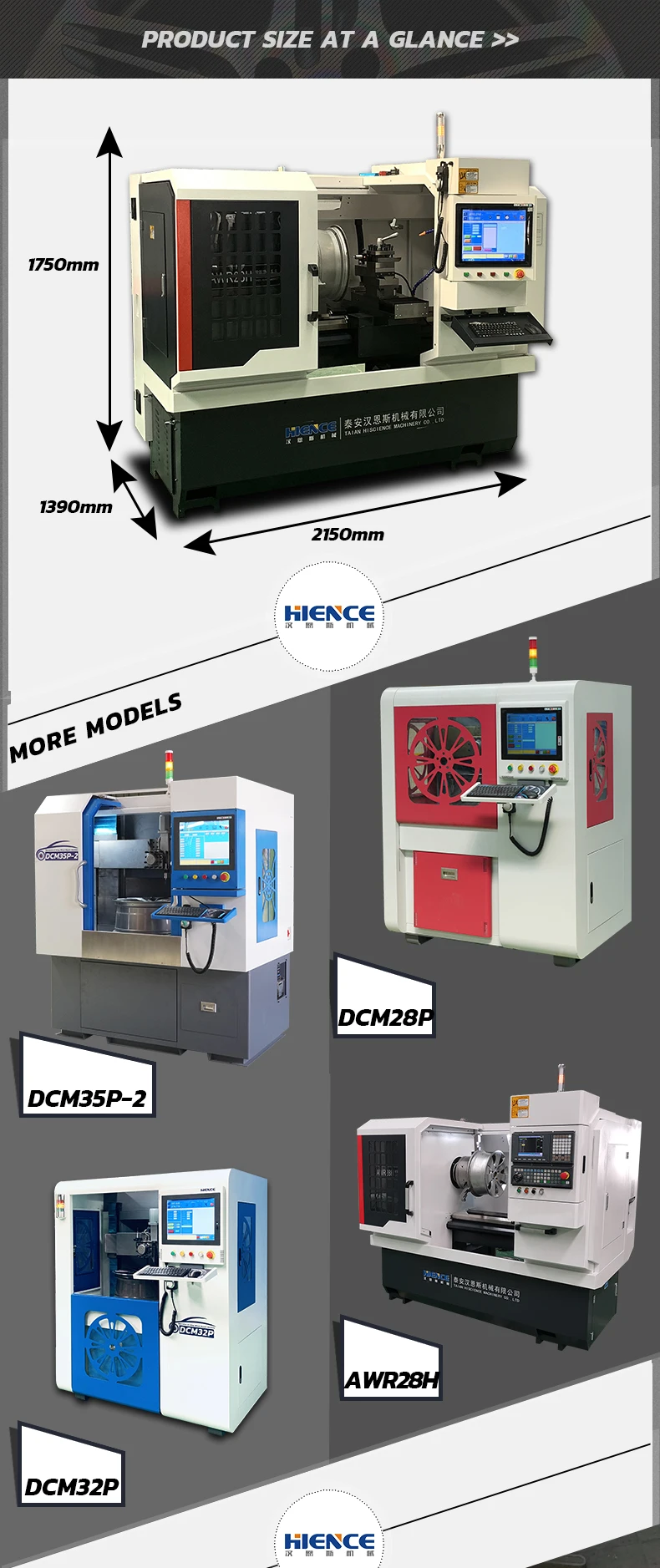

Machine size | (L/W/H) (mm) | 2200/1620/1870 |
Package size | ||
Weight | 2200KGS | |

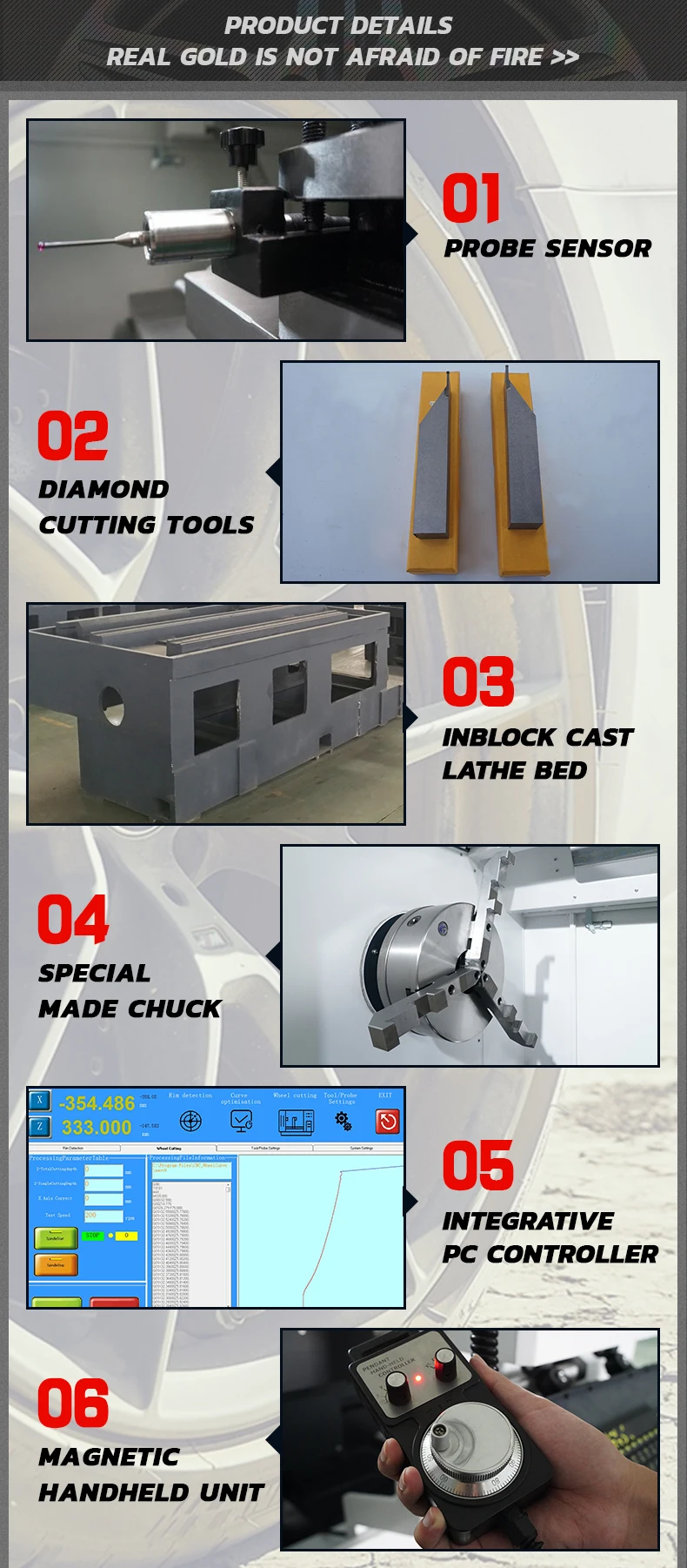

1.Can probe and cutting alloy wheels automatic. Can set start and end detection point by one key.
2.Can probe and cut different difficult deep dish wheels by longer probe and longer cutter.
3.Can realized different cutting effect according to your request by adjust detection parameters, can realize rainbow line.
4.Can save program for next save models wheels, so no need to probe again for same model wheels. Can save time and money.
5.We offer detailed training video and manual with machine,you can learn the machine by yourself.
