The description of raymond grinding mill price :

The raymond grinding mill price is suitable for processing various non-flammable and non-explosive mineral materials with Moh’s hardness less than 9.3 and humidity less than 6%, it is widely used in the fields of metallurgy, construction, chemical industry, mining, highway construction etc,. The granularity of the finished powder size can be adjusted between 50 and 325 mesh (315-45 micron).Examples of processing materials include quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramic, iron ore, carborundum, bauxite, rock phosphate, coal and other materials, total about 400 kinds of materials.

Working Features of raymond grinding mill price:

It has the similar working principle as Raymond mill, but its grinding device is fixed with 1000-1500kg pressure springs. When the machine works the grinding roller , which under the action of high pressure spring and centrifugal force, rolls close up to grinding ring, its rolling pressure is 1.2 times higher than that of Raymond mill given an identical condition and its capacity increase 20% to 30%; When the grinding roller and grinding ring, stable capacity and fineness are guaranteed.

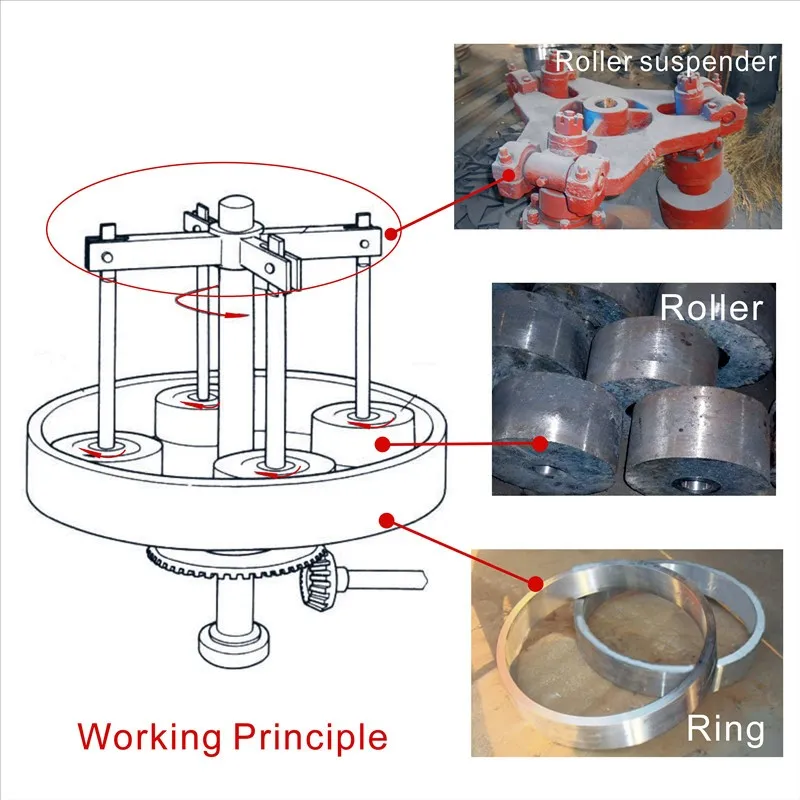

The Working Principle of raymond grinding mill price:

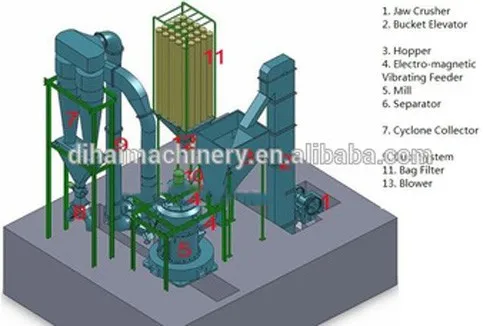

Big materials are crushed by jaw crusher to the required particle sizes, and carried by bucket elevator to the storage hopper, and are fed evenly and continuously by vibrating feeder into the main unit for grinding. The grinded powder are carried by the airflow from the blower to the classifier to be classified, the particles which meet the fineness enter cyclone collector through pipe, and are separated and collected there. They are discharged at the discharging valve to become finished raymond grinding mill prices; the airflow is sucked to the blower by return pipe on the top of cyclone collector. The whole airflow system is a sealed circulation, and is circulated under positive and negative air pressure.

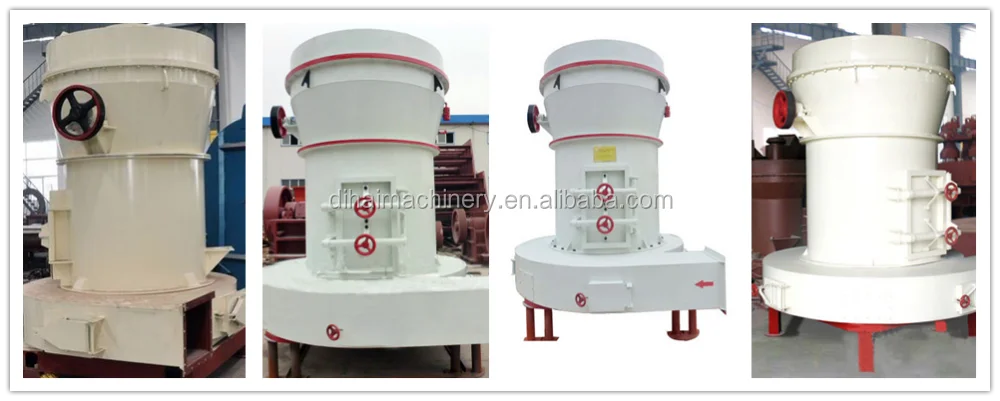

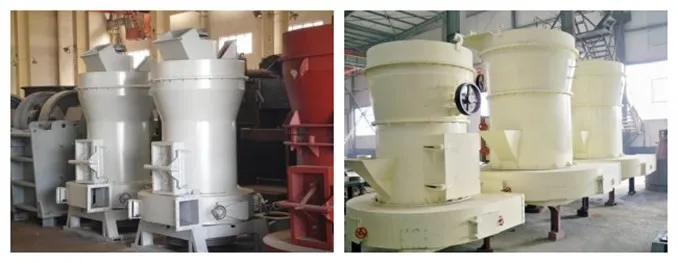

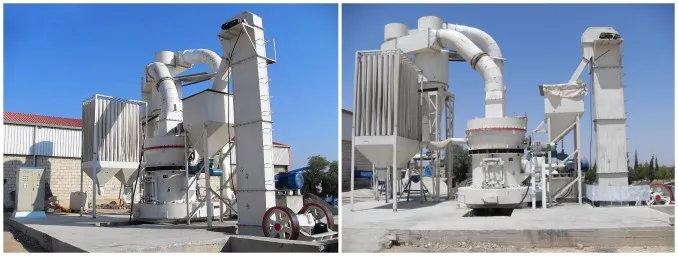

The whole picture of raymond grinding mill price:

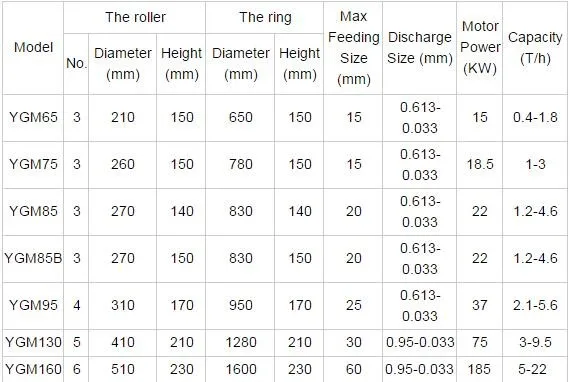

Parameter of grindng roll for raymond grinding mill price:

1.One standard container is needed for large goods.
2.Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box.
3.Other Equipment will be packed by Color-Stripes Plastic Cloth.

Henan DiHai Machinery Manufacturing Co.,Ltd

 Henan DiHai Machinery Manufacturing Co.,Ltd is a company group with its manufacturing department,international trade department offering a variety of large complete sets of high quality concrete mixing plant,concrete mixer,dry mortar mixing plant, cement silo, Grinding Mill, Crusher,Stone impact grinding mill for bariteion Line,Ball Mill, Sand making&washing machines, etc.

Henan DiHai Machine Manufacturing Co., Ltd. is a professional machine mining manufacturer with decades of years' experience, the formation of a unique, content-rich corporate culture. The building of enterprise culture Henan Teng Fei Machine Manufacturing Co., Ltd. cohesion and solidarity of the aggregation point, the power source for the sustainable development of enterprises.

Our customers

Our Services

According to your inquiry, We will reply to you in 24 hours.

2.Best After-sales: We will send the technical personnel to the site for installation, commissioning and training work.

3.Warranty period 12 Months, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair

4.We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.

Six reasons for choosing our impact raymond grinding mill price

1.This impact grinding mill for barite have been exported to more than 20 countries,believe that we have certain experience to provide the best service for you.

2.According to customer requirements,flexible customization.

3.Environmental protection,energy conservation,reliablity,high efficiency.

4.The technical presonal will be send abroad for installation,commissioning and training work.

5.After receiving the order,shipment in 7-15 working days.

6.Best quality with best price,your best choice.

1.How is the quality of your impact raymond grinding mill price?

 Our impact raymond grinding mill price are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.

2.How about price?

 Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity.

3.Service and Payment Terms?

 A. We usually accept T/T, L/C.

 B. T/T: 30% in advance as down payment, the balance before delivery.

C. We take pictures of finished impact raymond grinding mill price before delivery.
