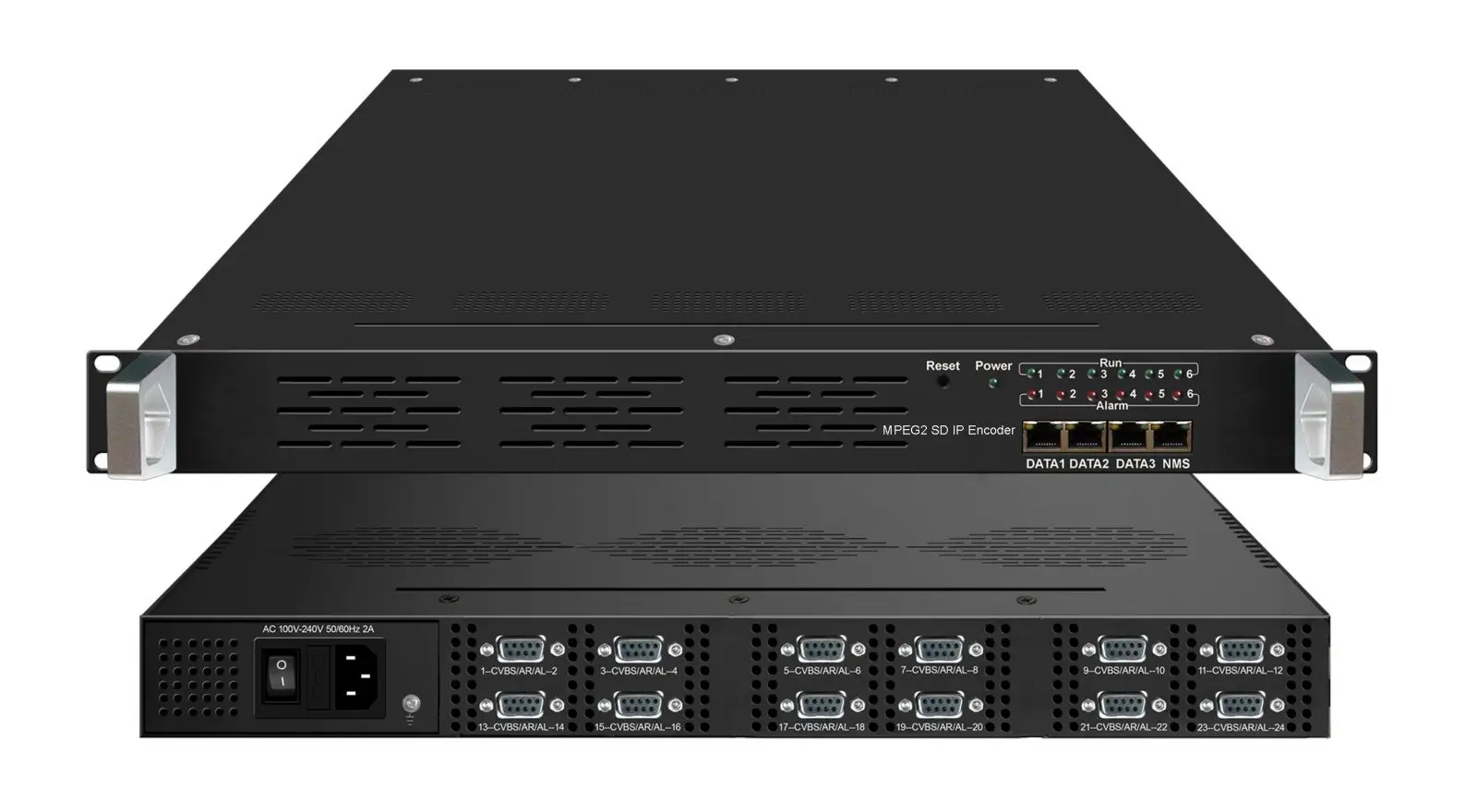

Цифровой кабельный ТВ кодер HD Mpeg4

Input

8/12/24CVBS inputs , RCA interface

Video

Resolution

720×480_60i, 544×480_60i, 352×480_60i

352×240_60i, 320×240_60i,176×240_60i, 176×120_60i

720×576_50i, 704×576_50i, 640×576_50i, 352×288_50i, 320×288_50i, 176×288_50i, 176×144_50i

Encoding

MPEG-2

Bit-rate

0.5Mbps~8Mbps each channel

Rate Control

CBR/VBR

GOP Structure

GOP_0_B, GOP_1_B, GOP_2_B, GOP_3_B

Advanced Pretreatment

De-interlacing, noise reduction

Audio

Encoding

MPEG-1 Layer 2, AC3(2.0)

Sampling rate

48KHz

Resolution

24-bit

Bit-rate

64Kbps,128Kbps,192kbps,256kbps,320kbps,384kbps each channel

Multiplexing

Function

PID remapping (automatically or manually)

Accurate PCR adjusting

Generate PSI/ SI table automatically

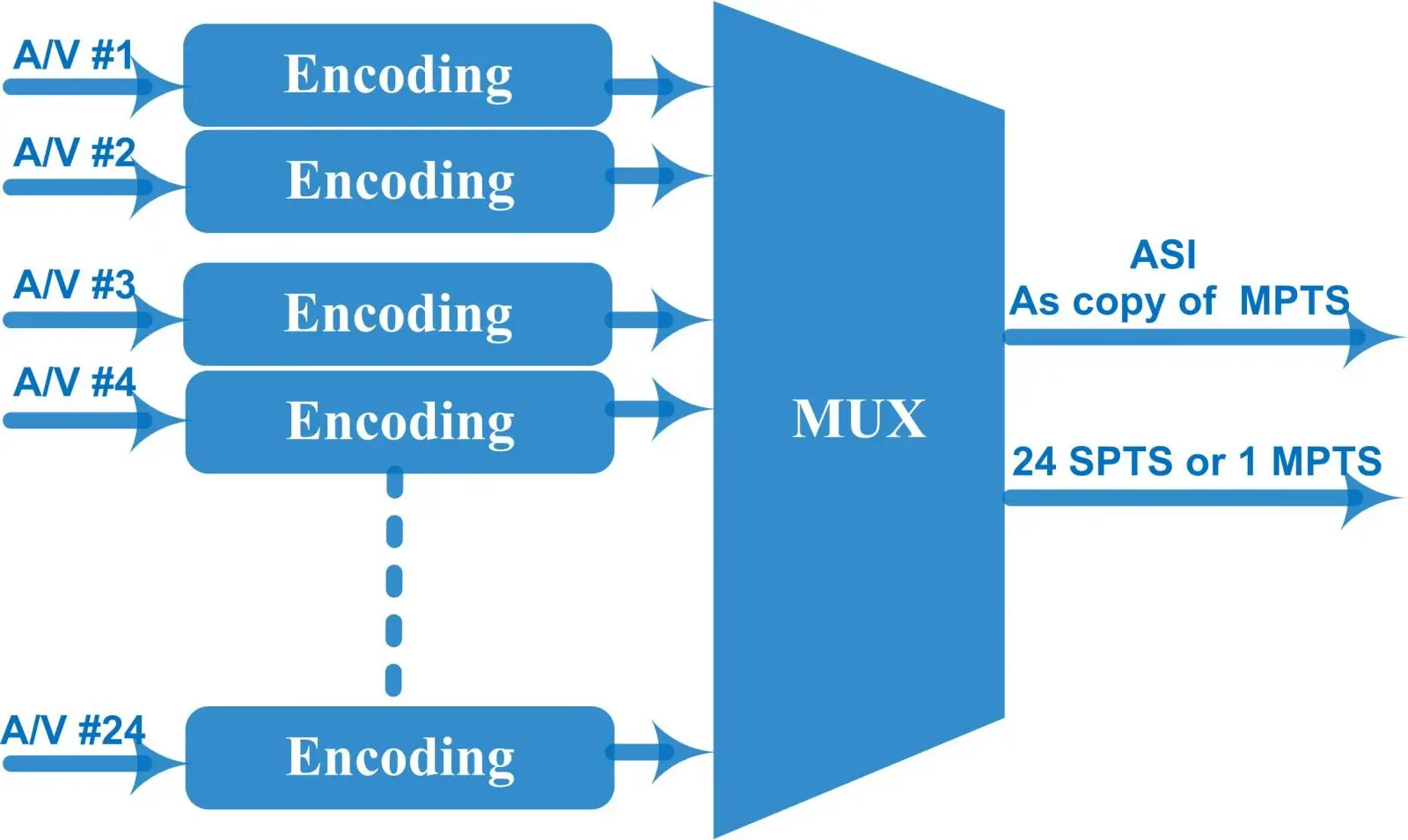

Stream output

1 ASI as copy of MPTS

IP (MPTS/SPTS) output over UDP/RTP/RTSP

8/12 CVBS inputs with 8/12 SPTS and 1 MPTS output

24×CVBS inputs with 24 SPTS or 1 MPTS output

System function

Network management (WEB)

Chinese and English language

Ethernet software upgrade

Miscellaneous

Dimension(W×L×H)

482mm×410mm×44mm

Approx weight

8kg

Environment

0~45℃(work);-20~80℃(Storage)

Power requirements

AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz

Power consumption

20W
