Product Description

Product Application

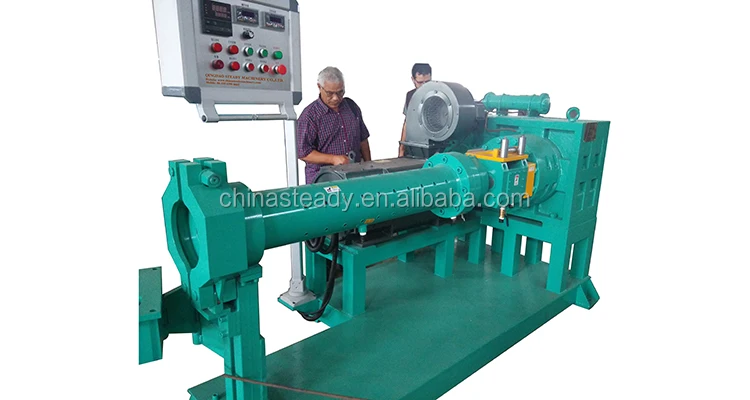

The rubber plastic garden Hose Extruder line is applicable for rubber(or plastic) hose extruding(the machine can be used to extrude pipe, sheet, strip, pellets by changing mold head).


The machine can be used to extruding various profiles.

Main Features

1) The rubber garden Hose Extruder is simple structure ,easy in installation and maintenance.

2) The  plastic garden hose extruder adopts advanced world famous brand components in hydraulic parts ,electric parts and operation parts.

3) The garden hose extruder is energy saving, high productivity , good plasitcization and refined glue quality characteristic.

4) The plastic garden hose  extruder can be equipped with various extrusion heads as required by users.

5) A machine body temperature measuring and indicating device is installed.The feeding zone is equipped

with side rolls for the enhancement of feeding capability.

6) The screws and bushes are subjected to nitrogenation treatment to get enough strength and wear-resistance.
7)The reducer has a forced lubrication unit,which is featured by high transmission efficiency,long service life and low noise.
8) The machine is driven by a variable-speed motor.
9) The side rolls are designed as side-open type for easy rubber removal.

10) ISO, CE, SGS, GOST certificate.

Product Paramenters
Model
XJP-45
XJP-60
XJP-75
XJP-90
XJP-120
XJP-150
XJP-200
XJP-250
Screw Diameter(mm)
45
60
75
90
120
150
200
250
L/D Ratio
8-12
8-12
8-14
12-16
12-16
12-18
12-18
12-18
Screw Rotation Speed(rpm)
~70
~80
~60
~60
~50
~45
~33
~26
Production Capacity(kg/h)
30-50
80-160
100-200
250-450
600-1000
1000-2000
1600-2800
2800-3500
Motor Power(kw)
12-22
18.5-22
37-45
45-75
75-110
160-250
220-355
355-450
Overall Dimension(mm)
2160*1100*1600
2200*1310*1400
2300*1150*1600
3360*1150*1600
3750*1600*1550
5200*1650*1600
7150*1950*2300
8500*2450*2600
Weight(kg)
1200
1800
2100
3000
4200
5350
9800
15000
Certifications
Detailed Images

Machine Parts

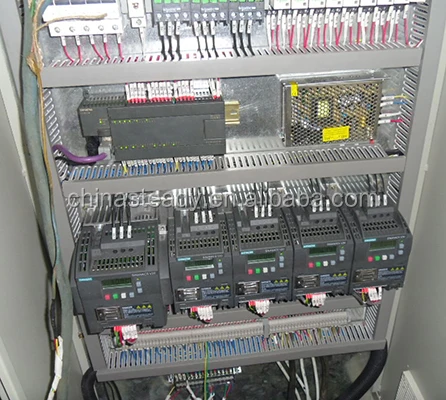

Name: Control Box

Brand: Siemens, Schneider, Mirle, CHNT

Original: Germany, France, Taiwan, China

The control box electronics adopts Schneider or CHNT brand. Inverter adopts ABB brand. And the wire layout desing is very scientific. So the machine electronics is very reliable even in the harsh working condition.
The speed adjusting is very easy to realize by just turning a small turning button on the panel.

Main Features

Name: Screw & Barrel
Brand: STEADY
Original: China
Our Screw & Barrel Advantage is as below, ensures it's service life is 2 times more durable than others:
The material is: 38CrMOALA
Temper Degree:HB240°~280°
Nitriding Hardness:HV850°~1000°

Machine Parts

Molds: We make various molds according to customers' work needs.

Main Features

Name: Machine Head
Brand: STEADY
Original: China
The machines head is design easy for the molds mount and dismantle.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Customer Photos
Packing & Delivery
Packaging
Size
2300 (L) * 1150(W) *1400 (H)mm
Weight
1.2 T



Packaging Details
All our package for export machines is export special fumigation free plywood wooden box with pallet base for forklift loading and downloading. If container is too tight,we will use PE film for packing or pack it according to customers special request.
Packaging
Size
2300 (L) * 1150 (W) * 1400 (H)
Weight
2.5T



Packaging Details
For all the big model machines or small machine exported with other machine or goods together, we'll loaded the machine directly into the container, and proper treatment for dust and rust proof.
