Цена:4 800,00 $ - 5 000,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description

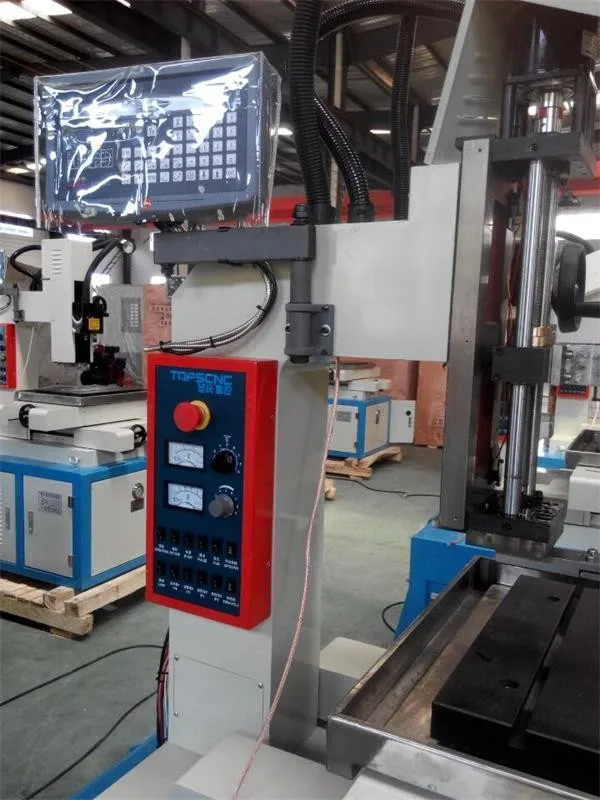

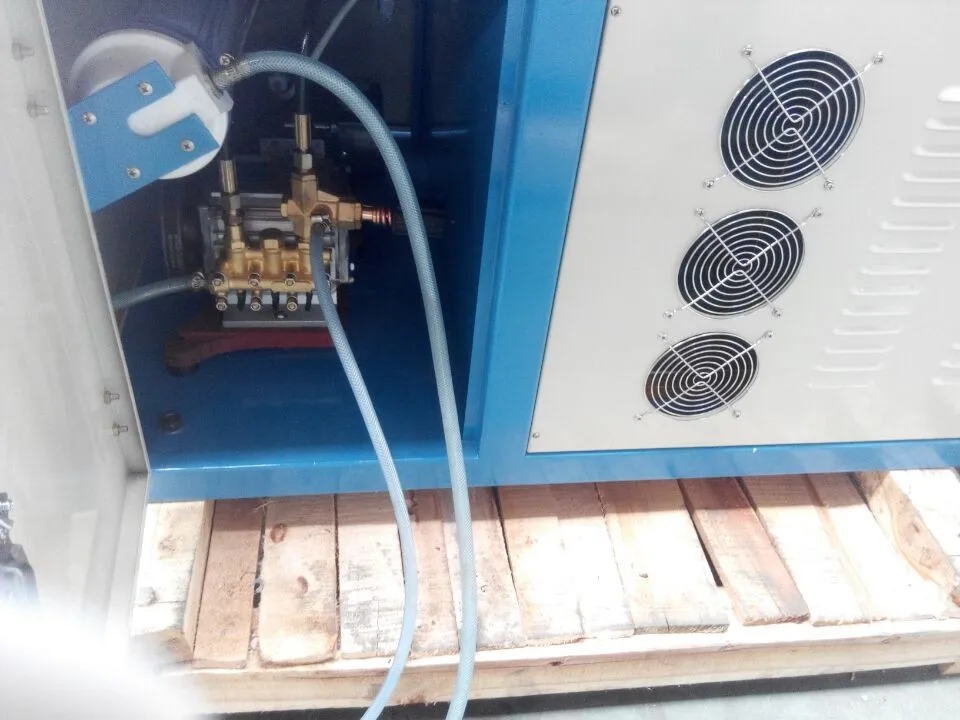

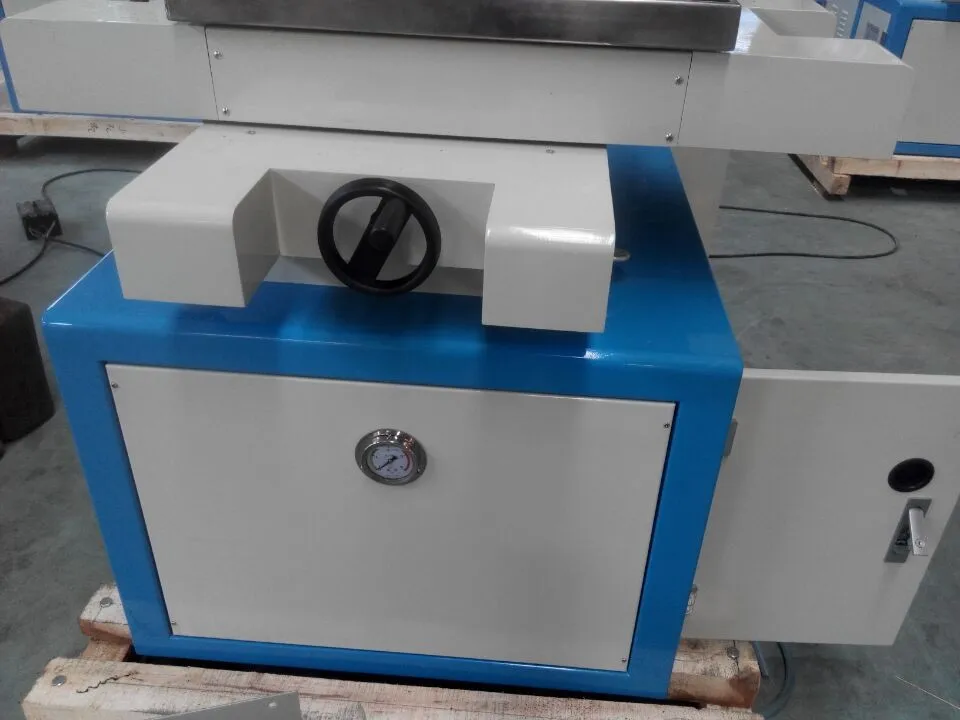

micro hole edm drill machine
Technique parameters
unit
DD703
DD703.30
DD703.40
Worktable size
mm
320x440
320x440
460x690
Worktable travel
mm
200×300
300×400
400x500
Z-axis travel
mm
280
300
300
Max.load on table
mm
200
200
200
Main spindle speed
rpm
60
Diameter of electrode
mm
φ0.3-φ3
MAX.distance from guider to worktable
mm
240
300
500
water tank
L
25
Filtering model
Shallow-gap filter
Working medium
water
MAX.working pressure
Mpa
7
Power supply
380V,3Ph,50Hz
Max.woking current
A
30
Power consumption
Kw
3
Machine weight
kg
700
850
1700
Machine demensions
mm
1060×750×1700
1060×750×1760
1800x1380x1800


Products Advantages




1) It can drill small holes on the materials. Such as stainless steel, quenched steel, carbide,copper, aluminium,etc.

2) It can drill the deep holes with diameters 0.3-3mm and depth-diameter ratio 200:1 or more.

3)Working speed is 30-60mm depth per minute it can directly drill on oblique curved surfaces.

4) It can water as workingfluid.

5) It can become a machine with multi-axis numerical control or numerical display for the user requirement.



Why choose us

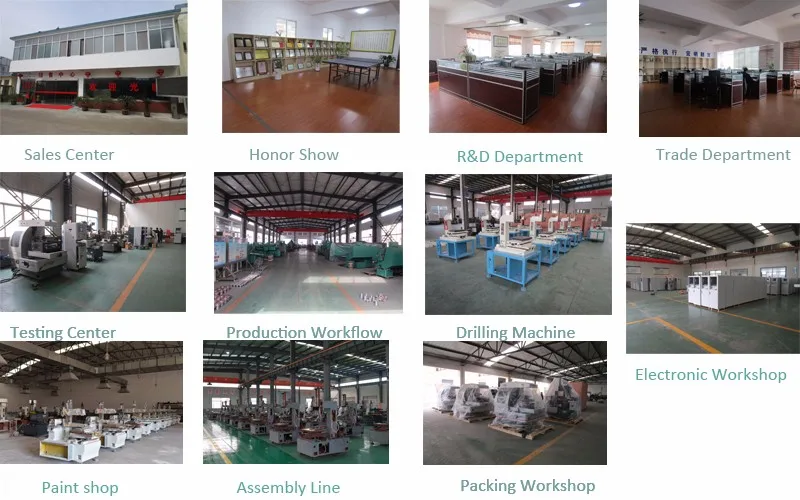

Our factory





Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.

The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut edm, Die sinking edm and Micro hole drilling edm.

The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. “Innovation, development and win-win situation” makes TOPSCNC enjoy high reputation in this line.

TOPSCNC people wish to share success with you in the future!



TOPSCNC Customer






Certificate




Our Service


1) Quality : We take care of the product quality in order to provide good service to our customers.

2)Warranty: One year after shipment,consumables are not included.

3)The quotation do not include installation and education training fee.

4) Payment Method: T/T or L/C
T/T 30% with the order, the rest 70% of total amount T/T before shipment.

5) Delivery time : 20--25 days

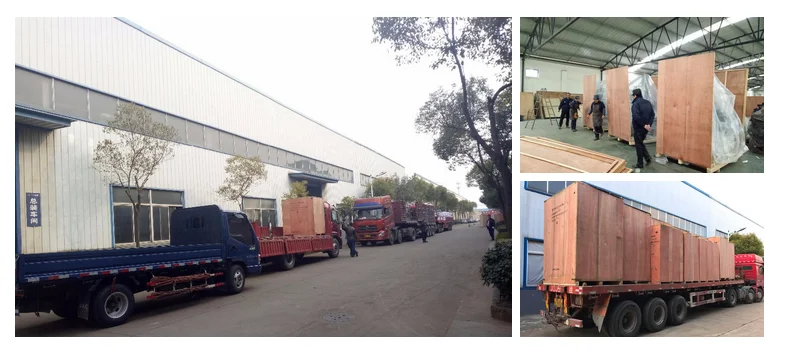

6) Packing : Standard export wooden cases

7) Port: Shanghai or any China port





FAQ


Q: Are you trading company or manufacturer ?
A: We are manufacturer.

Q: How long is your delivery time?
A: Normally our delivery time is 20~25 days, but if we have the goods you want in our stock, then the delivery time will be in about two weeks or less.

Q: Do you provide samples ? is it free or extra ?
A: No, we could not offer the sample.

Q: What is your terms of payment ?
A: Term payment: T/T  or  L/C
 T/T30% with the order, the rest 70% of total amount T/T before shipment.

Q: Could we use our own brand on your machine ?
A: Yes, we could love to accept.


Contact me


Company:Jiangsu Dongqing CNC Machine Tool Co.Ltd

Address:East Suburb Development Zone,Taizhou city,Jiangsu Province,China

Tel:0086-523-86290115

Mobile:  +86-18860892195

Web:www.topscnc.cn
