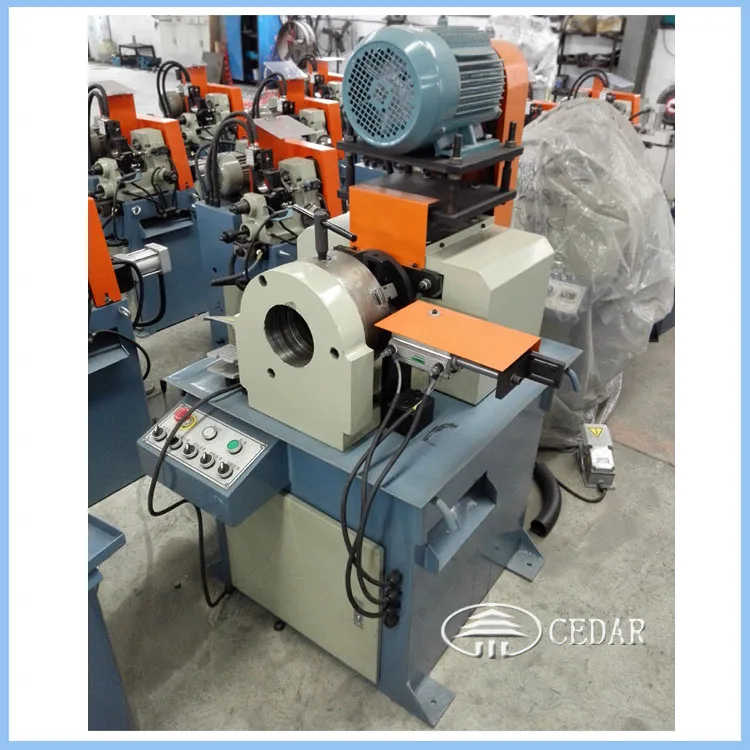

Горячая Распродажа XS-230Y выхлопную трубу станок для скашивания кромки фаски

The purpose of the chamfering machine:

Chamfering machine for chamfer on the edge of the workpiece before welding, using the sheet metal before welding deburring and chamfering processing, wash the cut edge of the steel plate according to the point of view, in order to get the chamfer Angle welding required. Chamfer machine is suitable for processing of steel, cast iron, hard plastic, non-ferrous metal etc.

Performance characteristics:

1.The machine is able to complete the Angle and the face of the round and the ends of the round bar, and it can be done quickly and accurately.

2.In order to ensure that the centerline of the machining object and the knife dish is not changed, the die and knife plate are carefully designed, and can be processed uniformly.

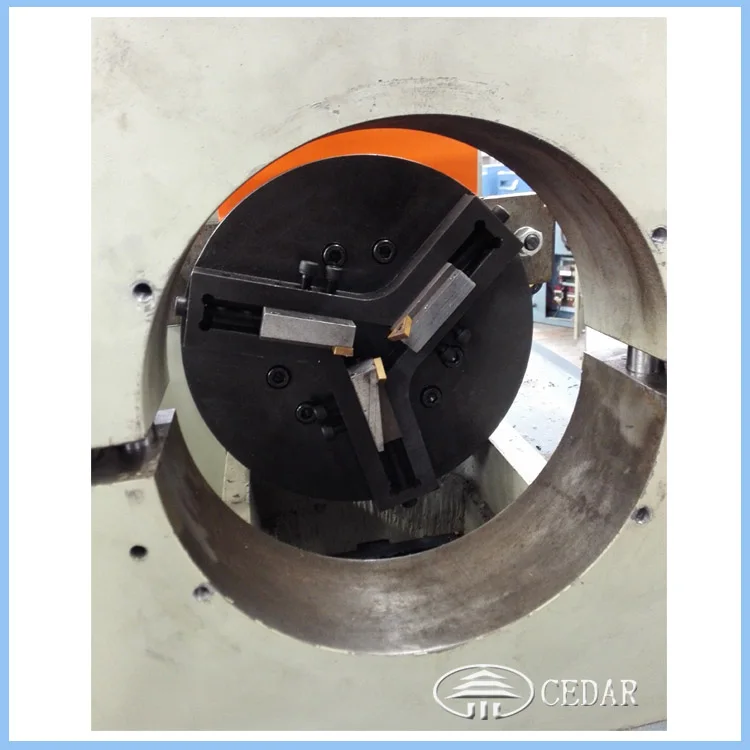

3.The knife plate is specially designed, the blade is normalized and the tool is simple and fast.

4.Manual feed, automatic hijacking, automatic cutting edge, fast speed, increase production.

5.Speed semi-automatic machine type has two phases: the first stage to fast speed to save working time, cutting down angular velocity can be adjusted in the second stage to complete processing smooth completion of the surface.

6.To replace the different sizes of the workpieces, simply make a simple knife plate and replace the die adjustment.

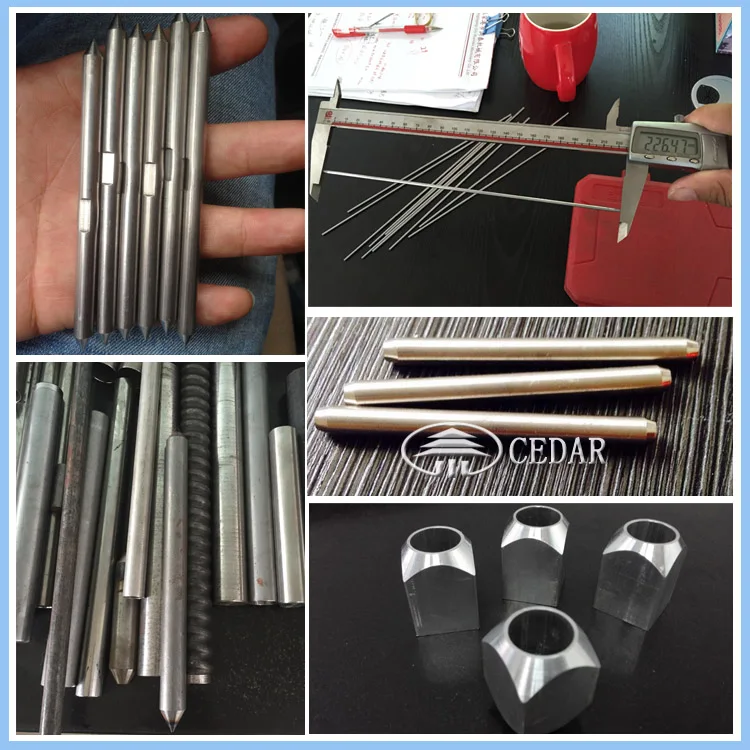

7.Suitable for steel pipe, iron pipe, aluminum pipe, copper pipe, stainless steel, bar, PVC pipe, round bar and nylon tube.

Technical parameters

Model: 230 AC

Main motor power 5.5 KW

The main motor brand Nan tong

The main motor is made of the crown

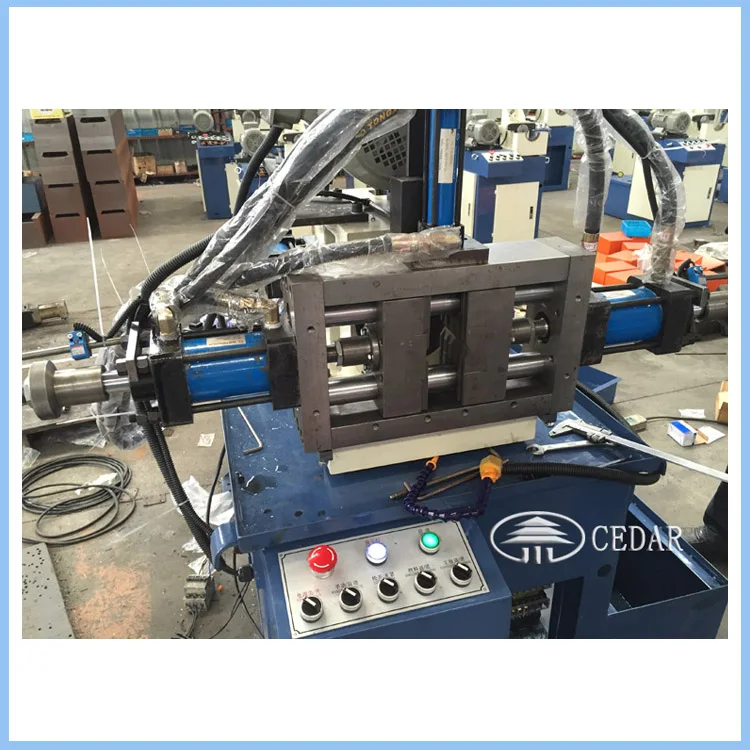

SC Φ cylinder specification 100 * 125 * 1 SC Φ 60-50 * 63 * 2 pieces

Electrical configuration :(1)transformer(2)The circuit breaker(3)fuse(4)contactor(5)Thermal relay(6)Time relay (7)Intermediate relay(8)Limit switch(9)Proximity switch.

MPA 10KG work pressure

Apply outside diameter pipe Φ Φ 30-230 mm round rods Φ 10 - Φ 50 mm

Processing length > 100mm

Processing speed 6 to 10 seconds/piece

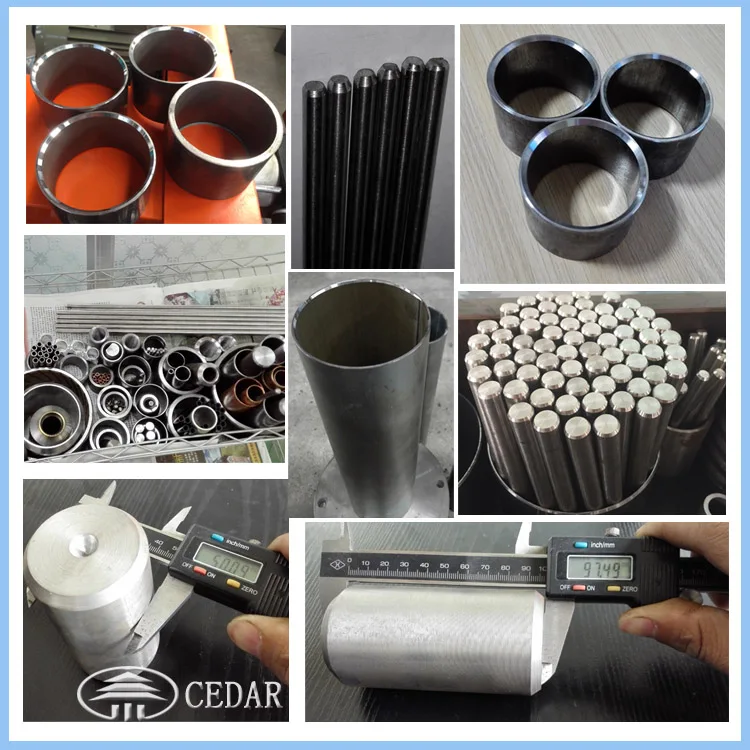

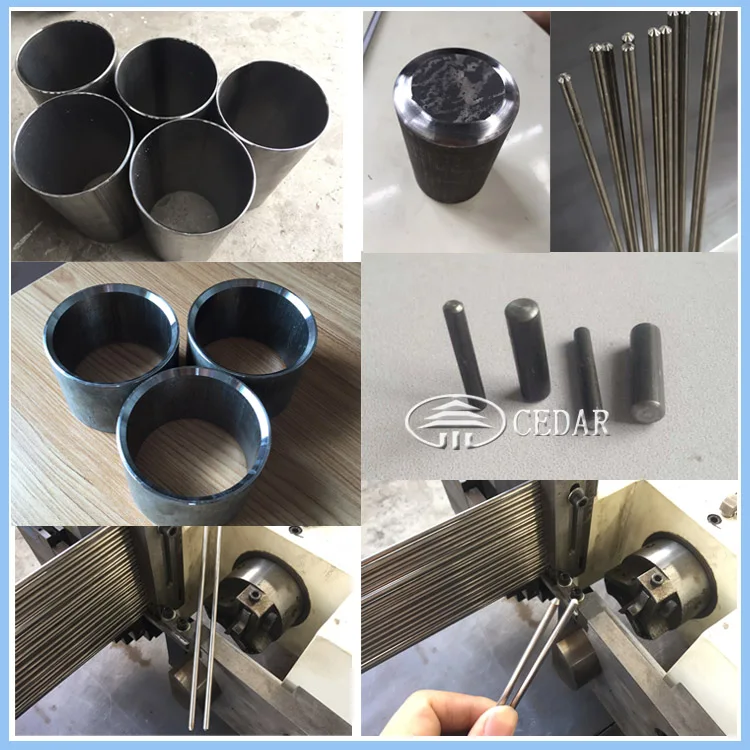

Suitable for steel pipe, iron pipe, stainless steel tube, aluminum pipe, copper pipe, plastic pipe, nylon tube, round bar

Standard configuration machine a knife plate 2 (installed in the machine platform)

Special spanner two inner hexagon wrench sets

An operating manual with a blade of six blades and a screw blade

The size of the machine is 1200x1400x1600mm
