MY-D019A(DR) Digital Portable X-ray System
This is for all the human ,wishing them Well
1.Application
The 4KW portable digital high frequency X-ray system is mainly suitable for extremities check,especially for rescues or diagnosis in Field operation sites,battlefields,stadiums,vet clinics etc.

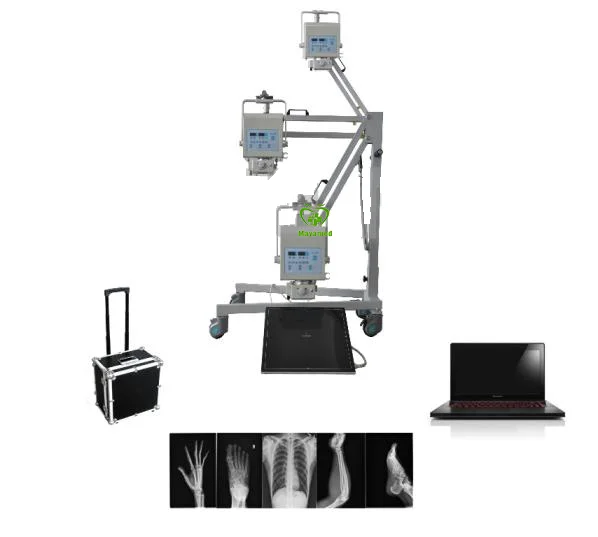

2.Composition
Main components |
Name of components |
Model/specification |
Quantity |
Remark |
DR system |
Portable x-ray machine |
MY-D019A |
1 set |
(Made-in-China) |
Digital detector |
Rayence 1717SCC(17X17inch) |
1 set |
(Made-in-China) |
|
Laptop |
1 set |
(Made-in-China) |
||
DR image processing software |
Rayence |
1 set |
(Made-in-China) |
|
Accessory equipment |
Machine frame |
1 set |
(Made-in-China) |

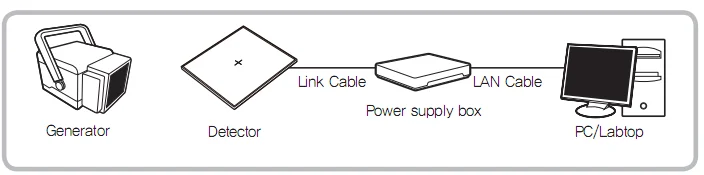

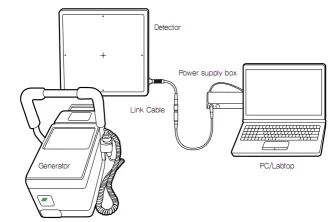

3.Complete software performance and Connection
4.Features
1) Deft and concise
2) 6 periods of digital LED display
3) 48 kinds of presupposed anatomy memory model choices
4) Accuracy control method of simulation and digital double loop
5) High precision control of tube voltage, tube current
6) Failure self-protection, self-diagnosis
5.Specification
Model |
MY-D019A |
Input power |
Voltage: AC220V±22V Frequency: 50/60Hz±1Hz |
Maximum output power |
P =110kV×36mA=4kW |
Nominal power |
100kV,40mA,0.1s,4kW |
kV adjusting range |
40kV~110kV,Continuous adjustment step 1 kV |
mA adjusting range |
36mA~70mA |
mAs adjusting range |
1mAs-200mAs, Shifted adjustment |
s adjusting range |
0.04s~3.2s |
X-ray tube |
Focus :0.6/1.5mm; Anode heat capacity:76kHU |
Rayence digital detector 17X17inch |
Scintilatolr:CsI Direct Deposit Pixel Matrix: 3,328X3,328 Limit resolution:Max.3.9LP/mm A/D Conversion:14bit Weight:4.1Kg |
Laptop |
Model:Lenovo Y40-80 CPU:Intel Core i5 Memory capacity:4GB
Screen size: 14 inch |
Anatomy program |
48 kinds of memory choices |
X-ray machine size |
290×260×230mm |
Weight |
18.8kg |
Accessory |
Standard:hand switch,remote control,
suitcase,machine frame |
